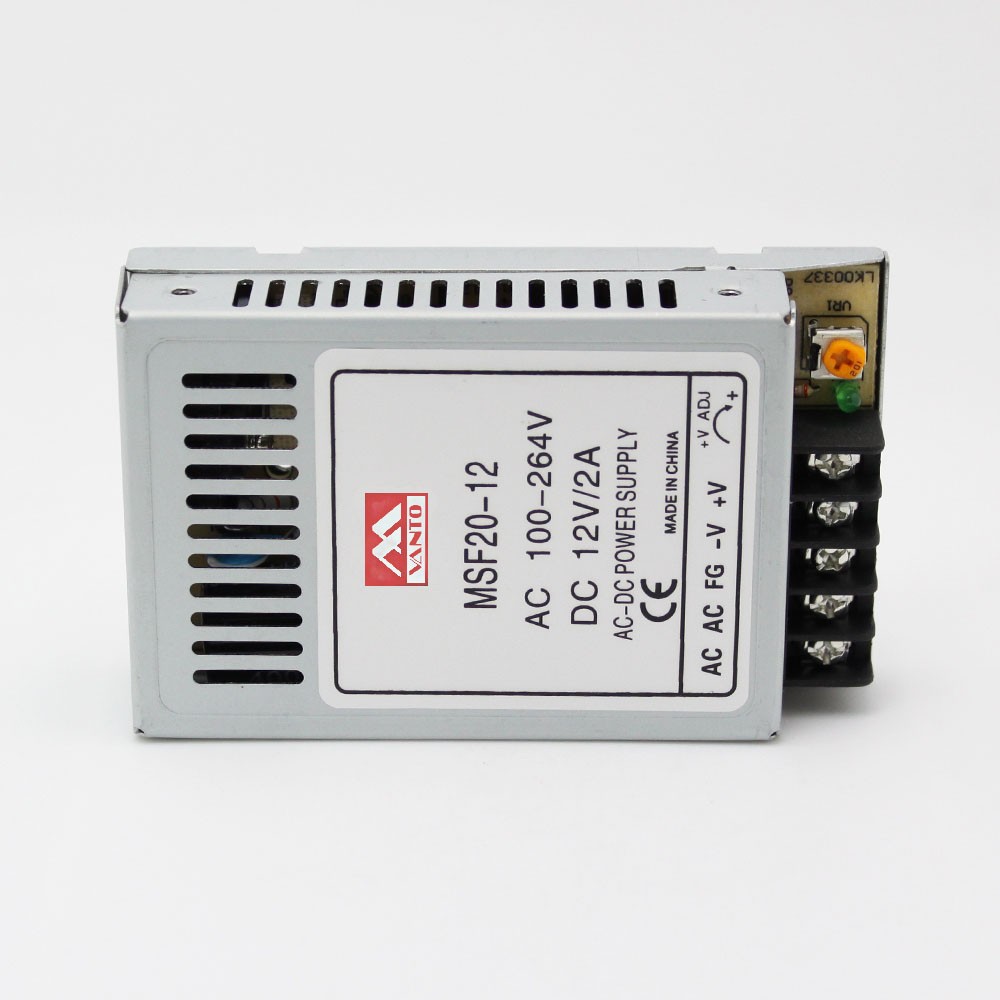

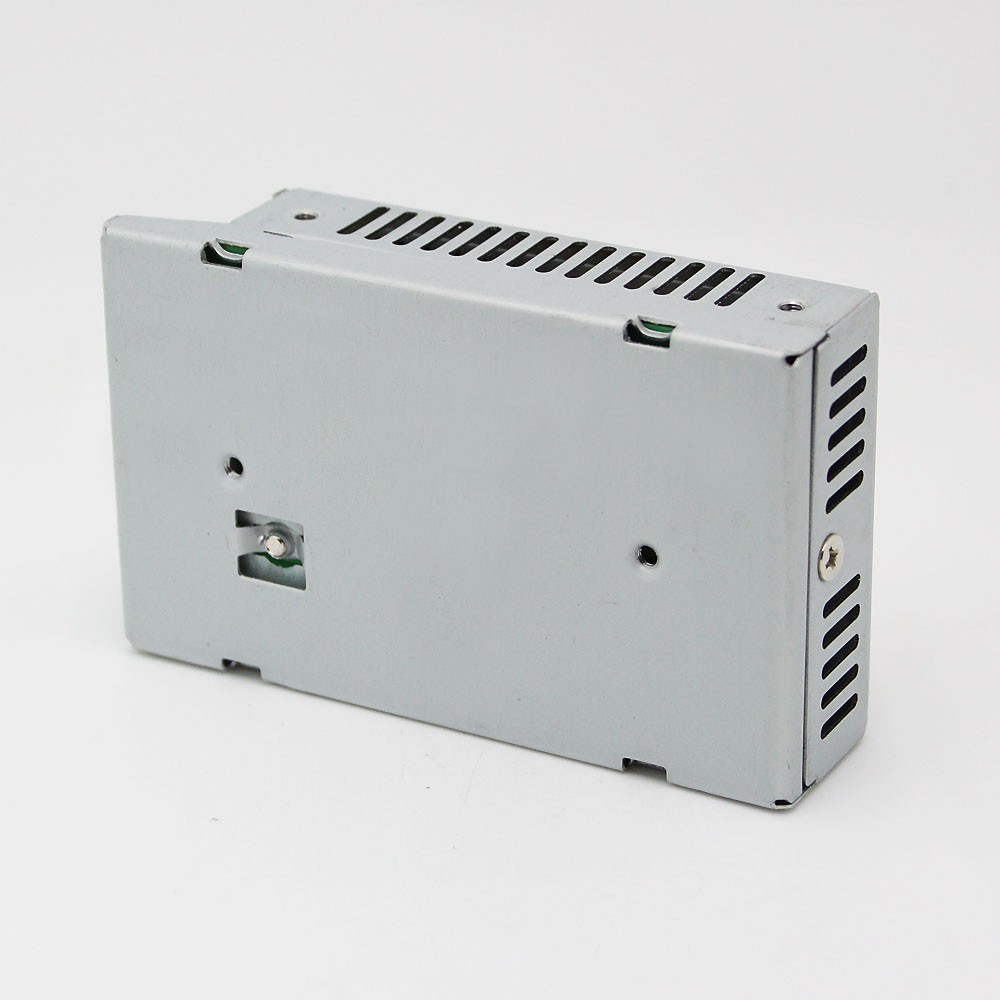

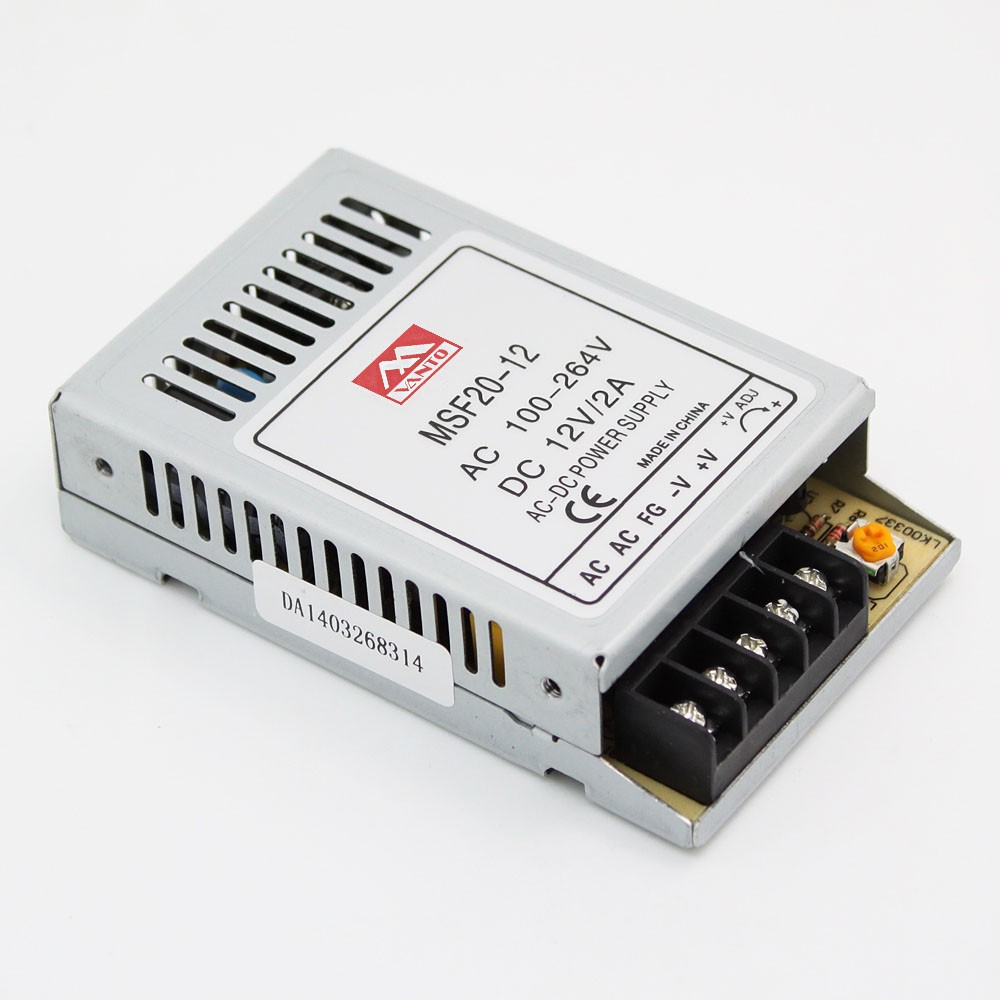

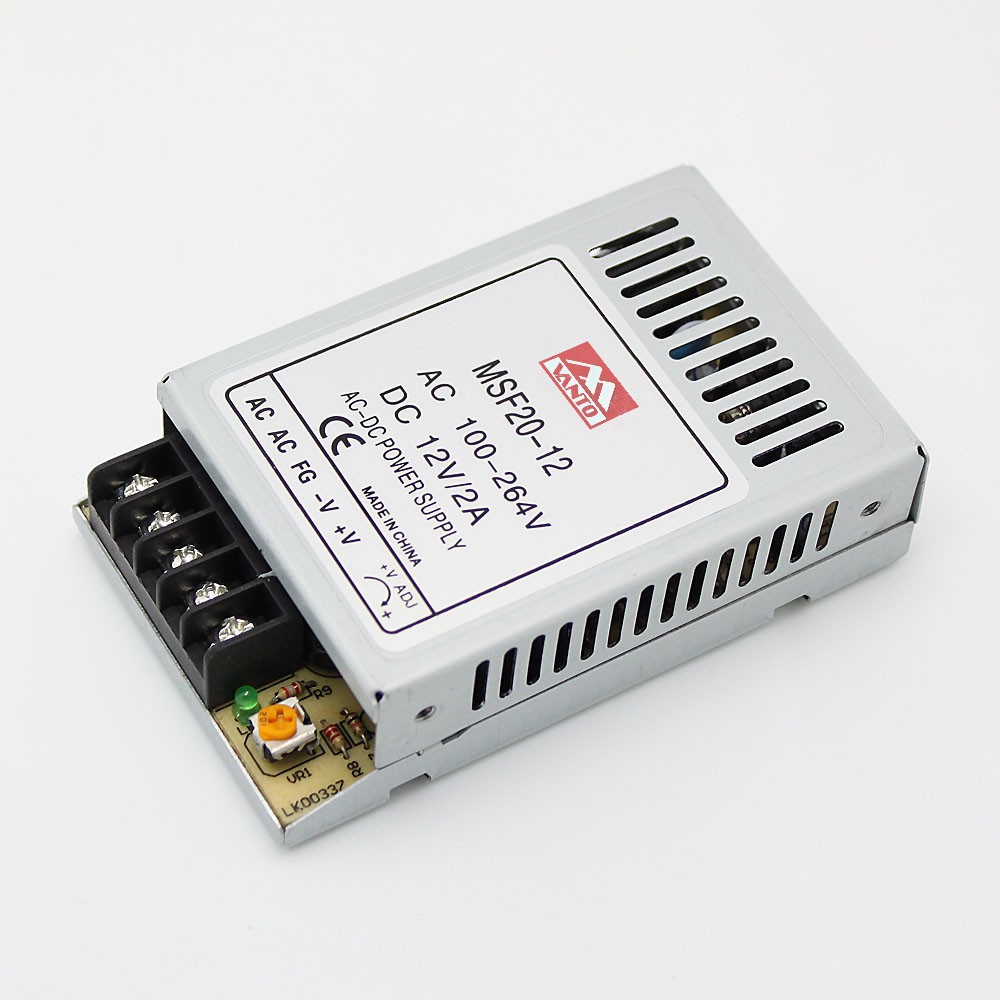

MSF-20W Switch Mode Power Supply

1. Small volume, light weight, high efficiency
2. Characteristics: short circuit protection miscalculates/overload
3. Natural cooling
4. With that took on light emitting diode (led)
5. 100% burned machine full load test
6. 2 years quality guarantee
7. Size:97*58*25mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MSF-20W Switch Mode Power Supply Specificates

MODEL

MSF-20-5

MSF-20-12

MSF-20-24

DC VOLTAGE

5V

12V

24V

RATED CURRENT

4A

2A

1A

CURRENT RANGE

0 ~ 4A

0 ~ 2A

0 ~ 1A

RATED POWER

20W

20W

20W

RIPPLE & NOISE (max.)

50mVp-p

50mVp-p

100mVp-p

VOLTAGE ADJ.RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

21.6 ~ 26.4V

VOLTAGE TOLERANCE

±2.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±0.5%

±0.5%

SETUP, RISE, HOLD TIME

200ms, 100ms, 30ms at full load

VOLTAGE RANGE

85 ~ 264VAC 120~370VDC 47~63Hz

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

68%

71%

75%

AC CURRENT

0.5A/115VAC 0.25A/230VAC

INRUSH CURRENT (max.)

COLD START 15A/115VAC 30A/230VAC

LEAKAGE CURRENT

<0.5mA/240VAC

OVERLOAD

105 ~ 135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is reoved

WORKING TEMP.

-10 ~ +60ºC (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85ºC , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.02%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to FCC Part15 J Conduction Class B

MTBF

522.1K hrs min. MIL-HDBK-217F (25ºC)

DIMENSION

97*58*25mm (L*W*H)

MSF-20W Switch Mode Power Supply Packing

MSF-20W Switch Mode Power Supply Packing Show MSF-20W Switch Mode Power Supply FAQQ:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
