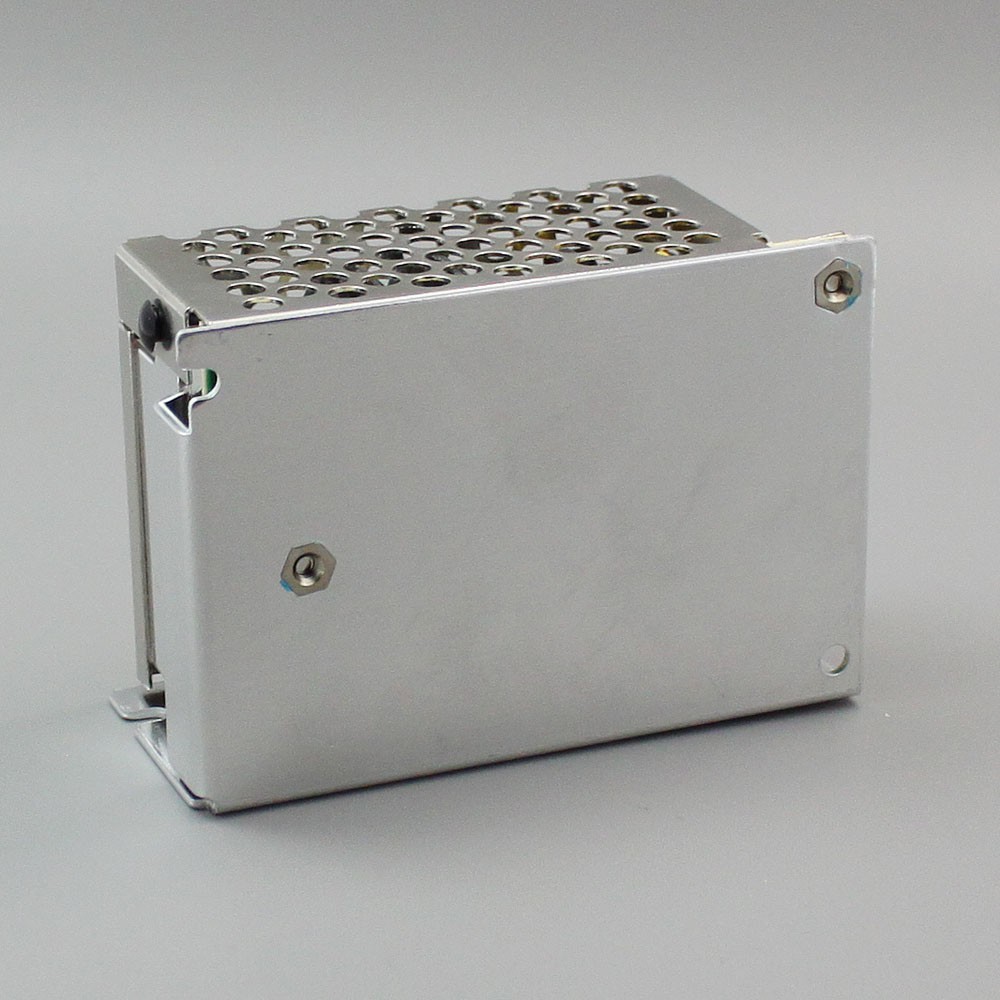

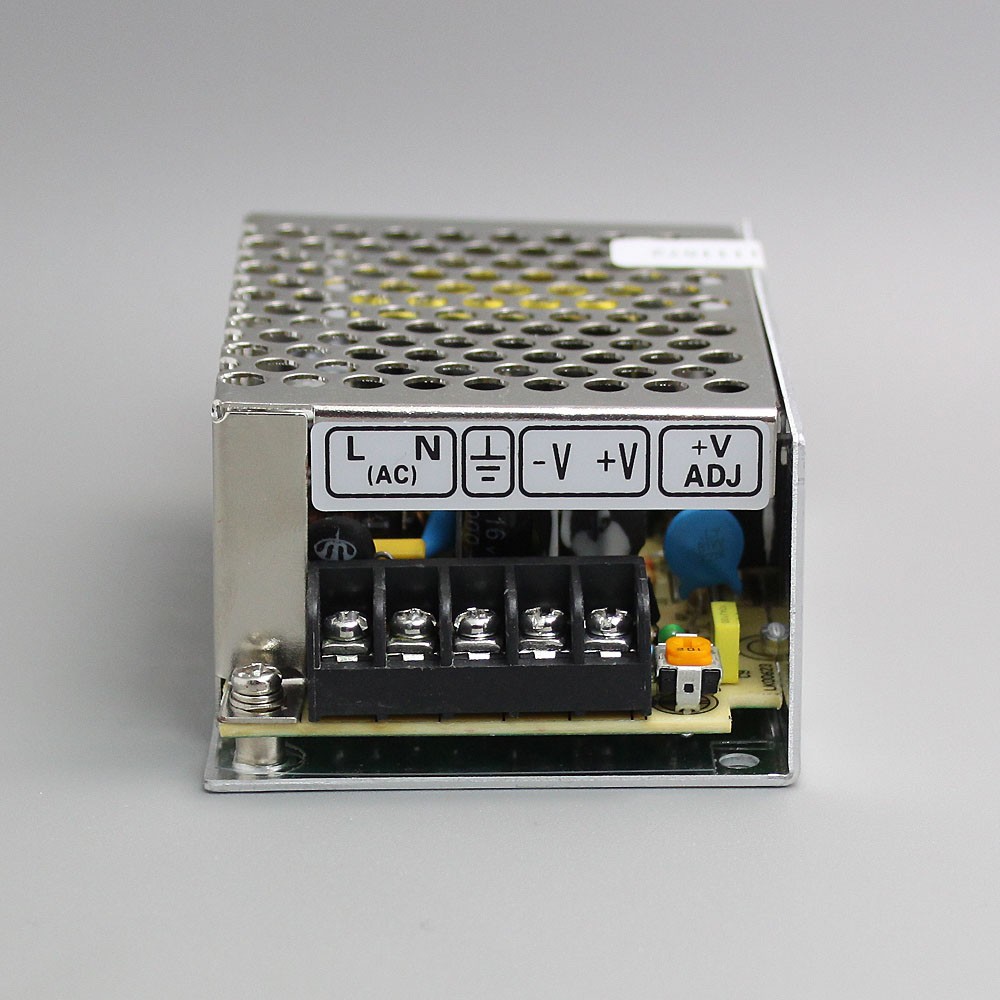

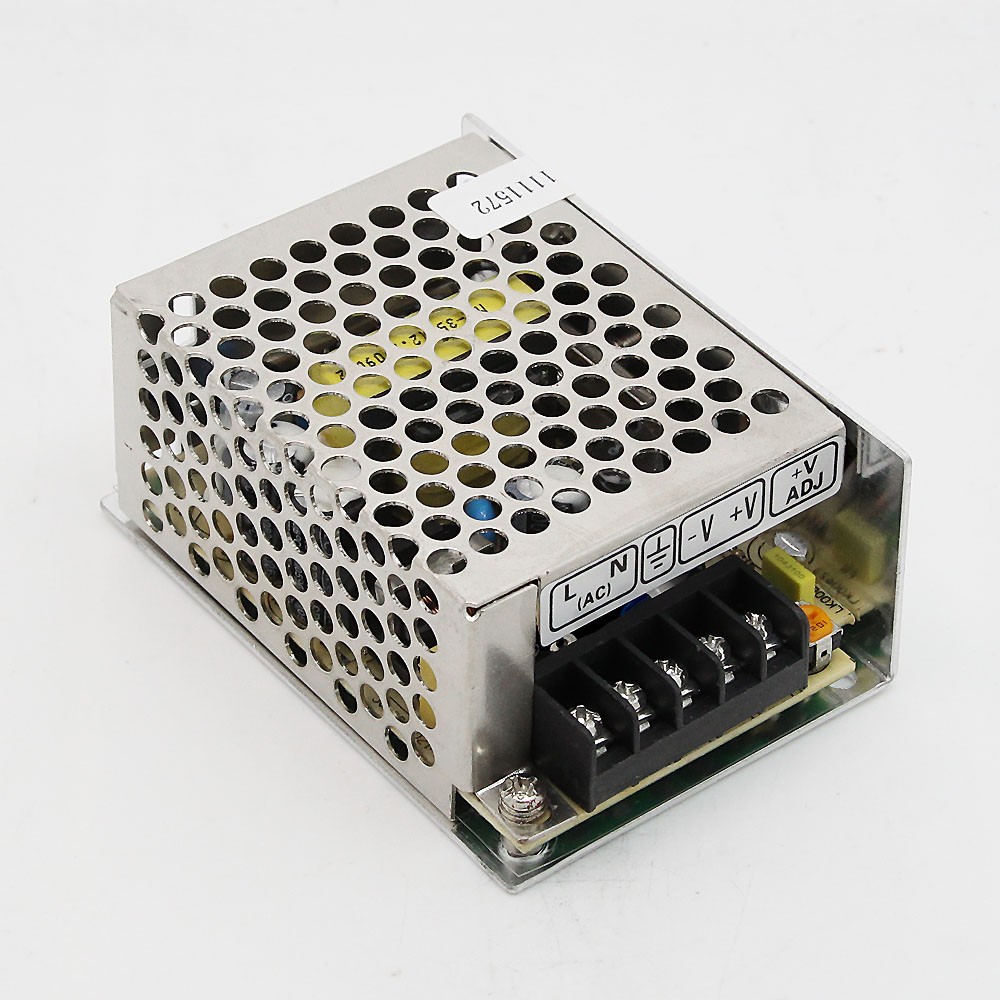

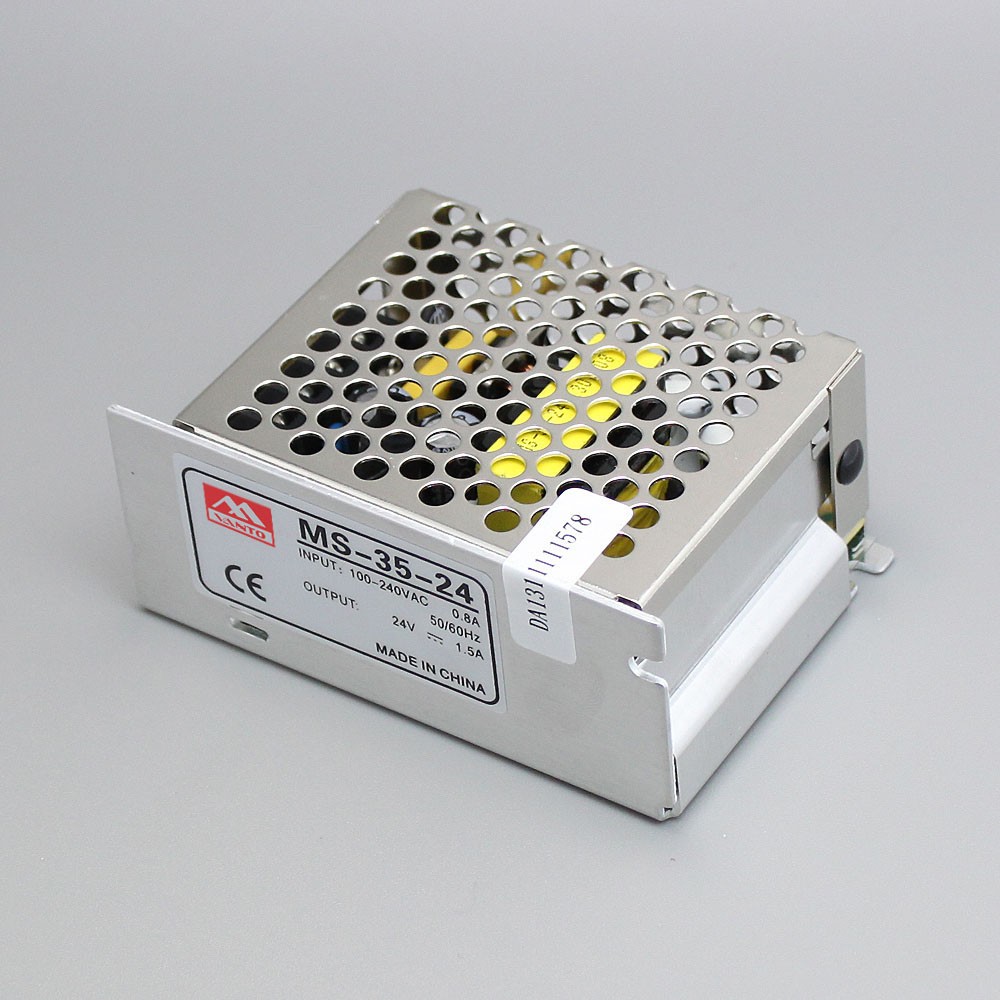

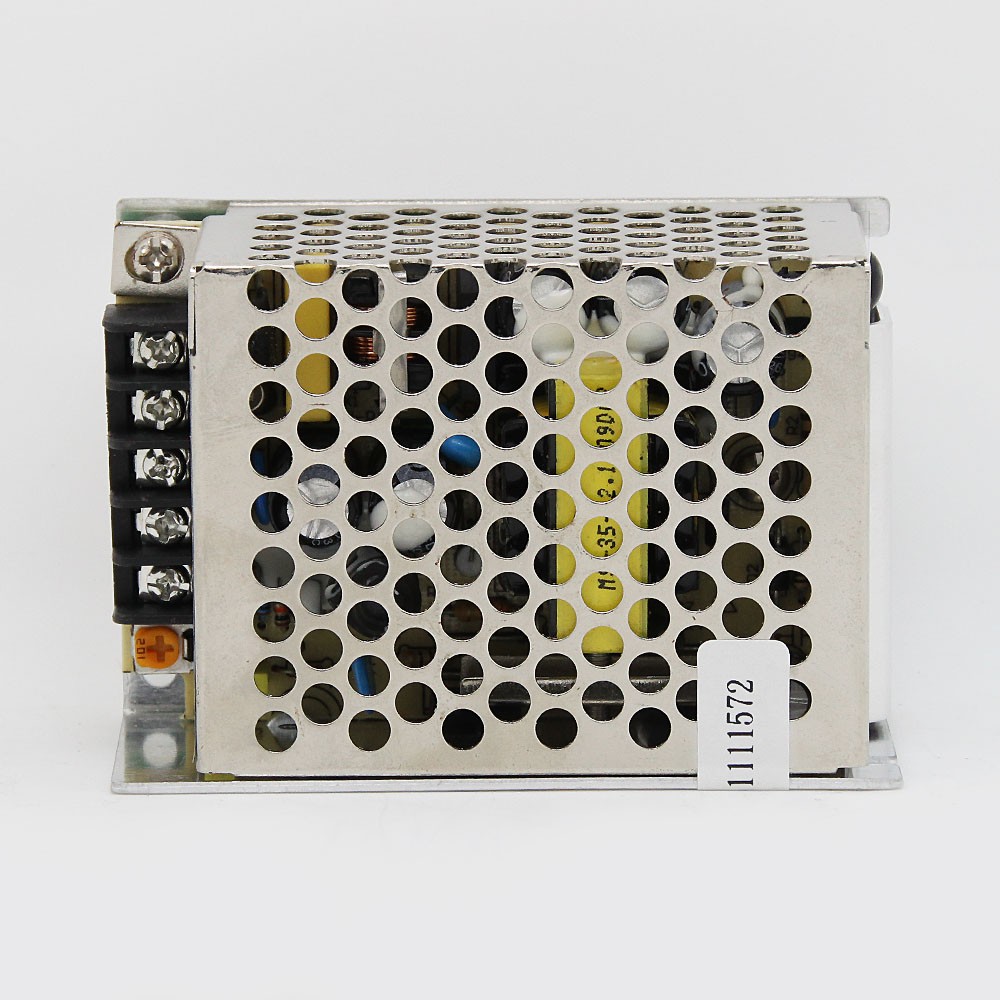

MS-35W Switch Mode Power Supply

1. Small volume, light weight, high efficiency
2. Characteristics: short circuit protection miscalculates/overload
3. Natural cooling
4. With that took on light emitting diode (led)
5. 100% had burned machine full load test
6. 2 years quality guarantee
7. Size: 84 x 58 x 38 mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MS-35W Switch Mode Power Supply Specificates

Model

MS-35-5 MS-35-12 MS-35-24
Output

Dc output voltage

5V 12V 24V

Output voltage tolerance

±1% ±1% ±1%

Rated output current

6A 3.0A 1.5A

Output current range

0~6A 0~3.0A 0~1.5A

Output power

25W 36W 36W

Ripple and the noise

80mVp-p 120mVp-p 120mVp-p

Dc voltage adjustable scope

-9%~+10% ±10% ±10%

Start, rise, keep time

800ms,20ms,24ms/230VAC.

Input

Input voltage range

85~264VAC, 120~370VDC 47~63Hz

Exchange input current

0.45A/230VAC

efficiency

77% 81% 84%

Impulse current

Cold start current 30A/230VAC

Leakage current

<1mA/240VAC

Protection characteristics

Overload protection

Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery

Environment

Working temperature, humidity

-10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve )

Keep temperature, humidity

-20℃~+85℃;10%~95%RH No condensation

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

Security

Compression sex

Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC

Insulation resistance

Between the input and output, the output and input: with ground: 100 M / 500 VDC Ohms

Complies with the standards

Safety standards

Meet the UL1012 requirements

EMC standard

Accord with
EN55022,CLASSA

Other

weight

0.17kg 84*58*38(L*W*H)

packaging

0.17kg/80pcs/14.5kg/0.9CUFT

Note

1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

MS-35W Switch Mode Power Supply Packing

MS-35W Switch Mode Power Supply Packing ShowMS-35W Switch Mode Power Supply FAQQ:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
