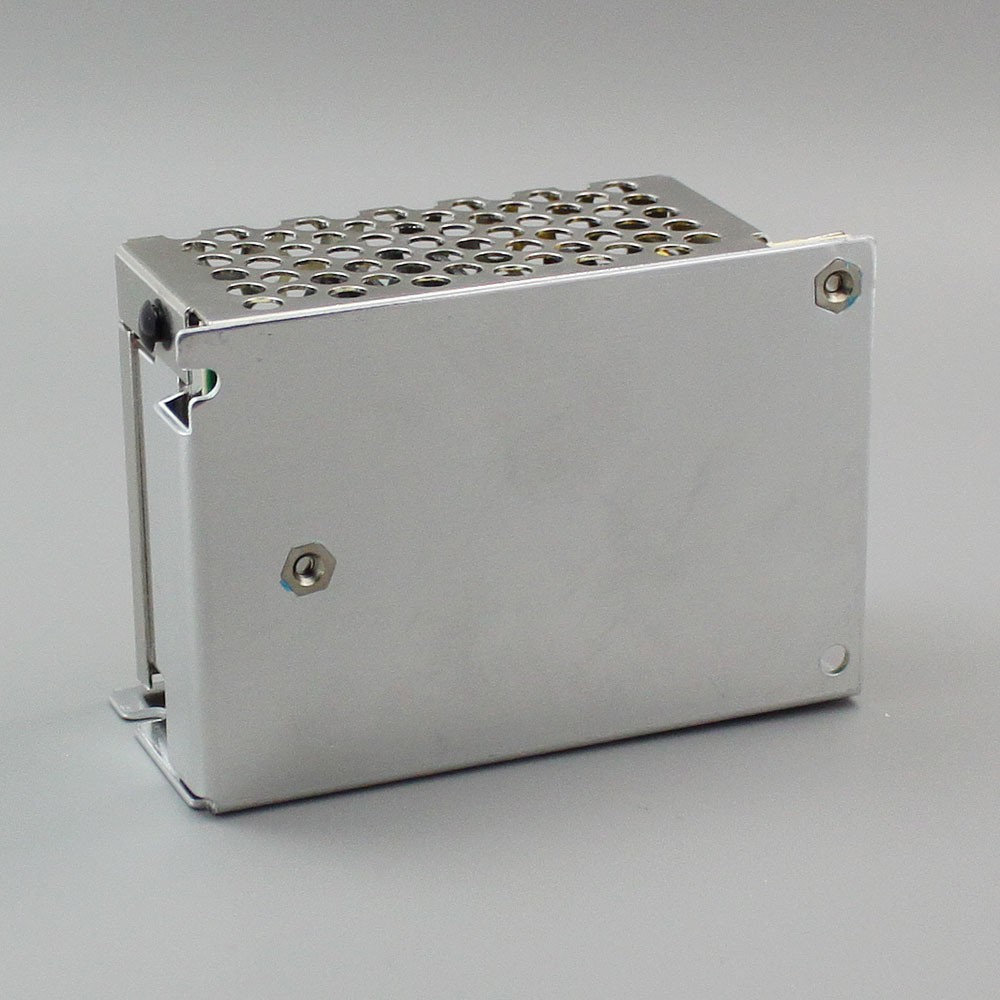

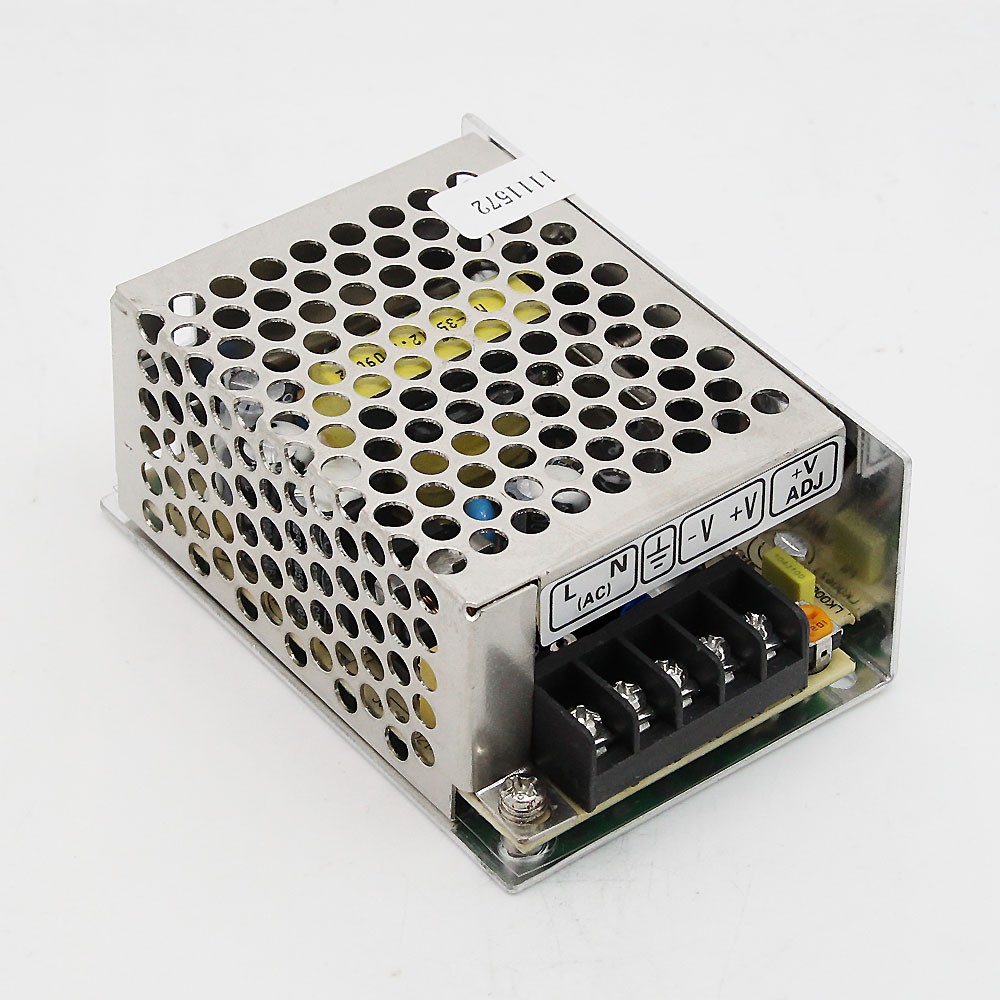

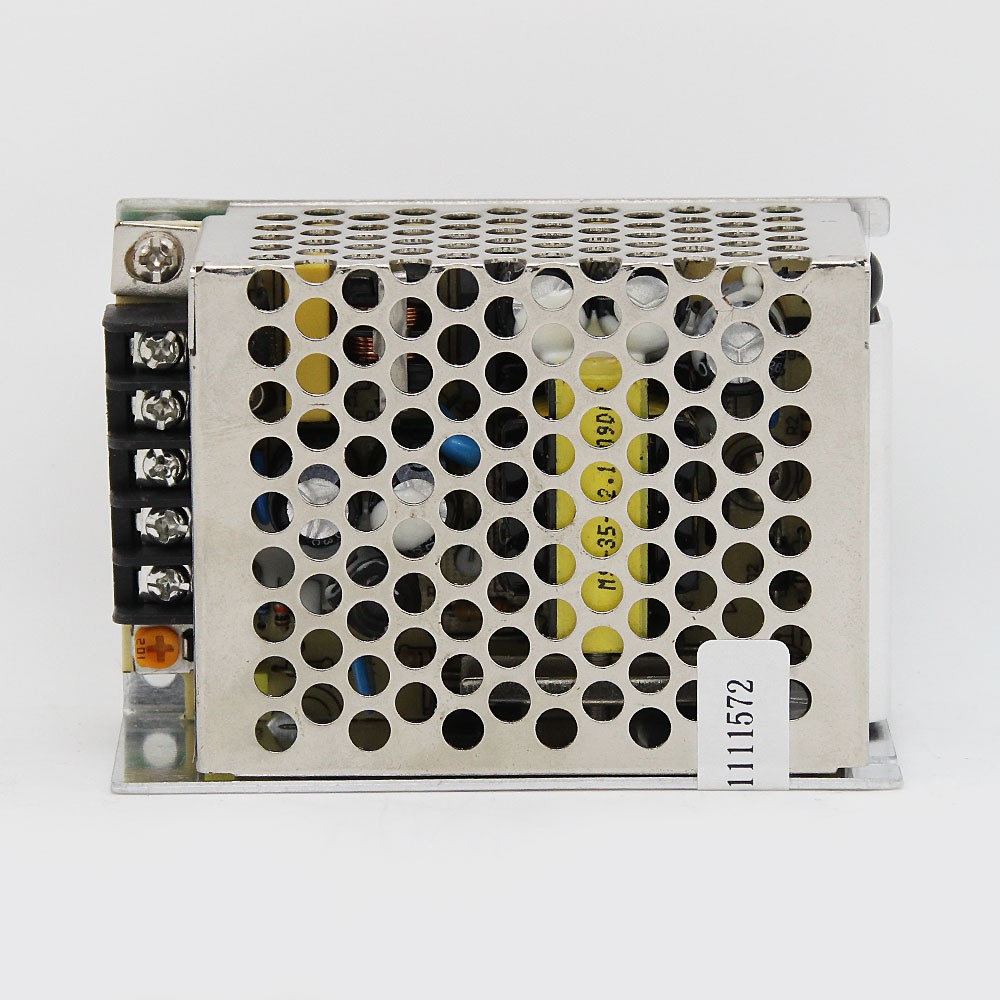

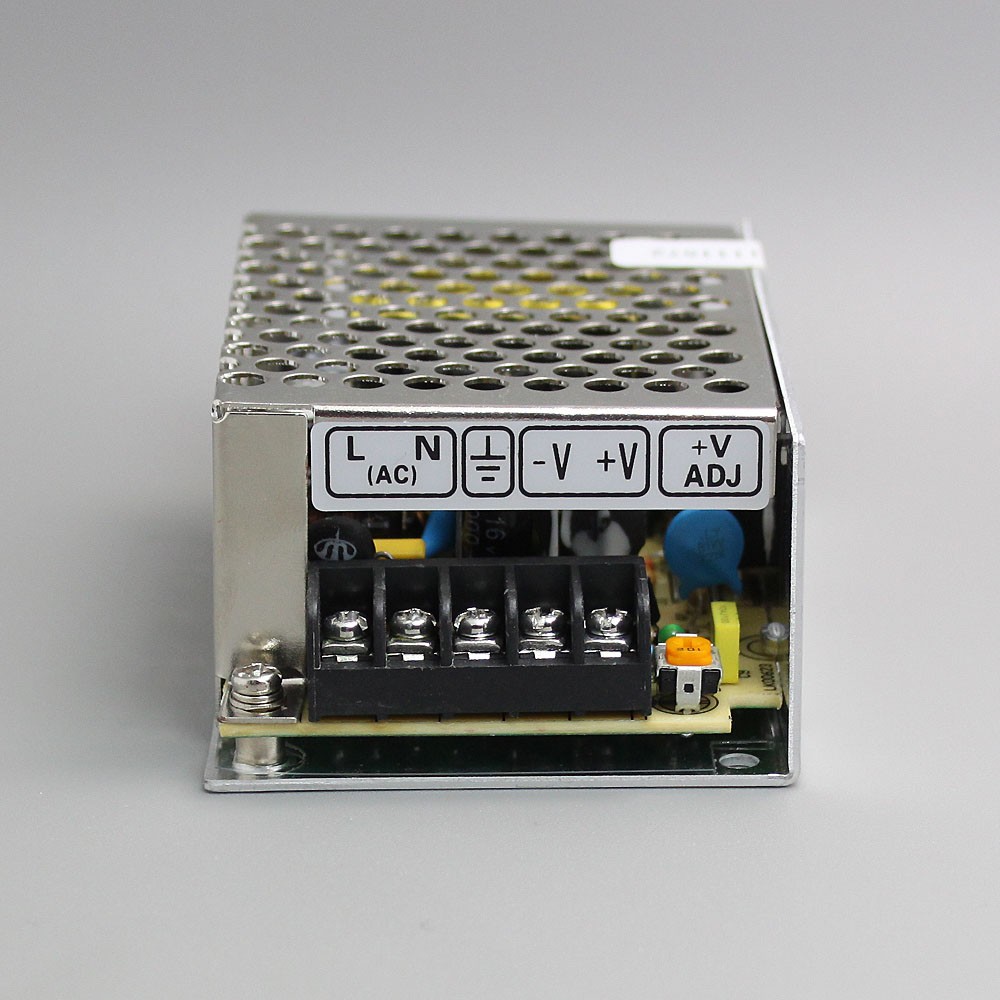

1. Small volume, light weight, high efficiency2. Characteristics: short circuit protection miscalculates/overload3. Natural cooling4. With that took on light emitting diode (led)5. 100% burned machine full load test6. 2 years quality guarantee7. Size:84*58*38mm
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|

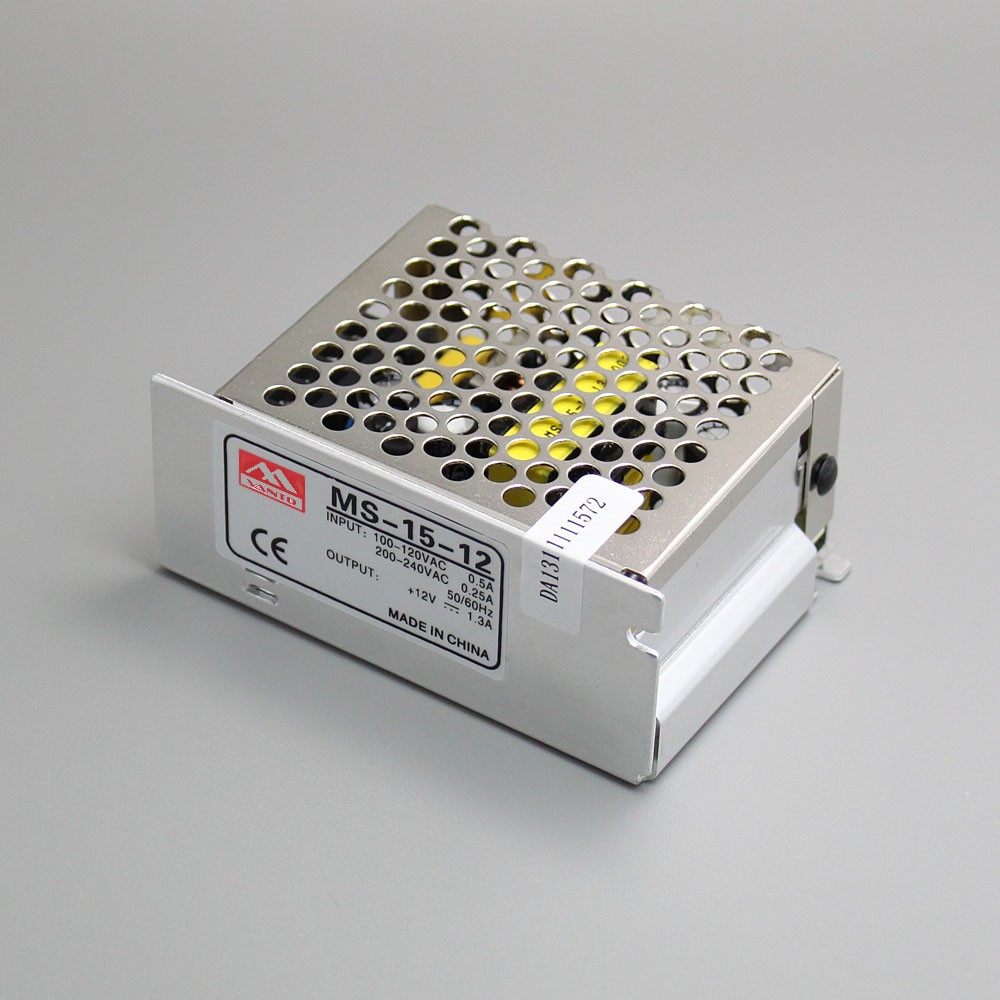

Model |
MS-15-5 | MS-15-12 | MS-15-24 | |
| output |
Dc output voltage |
5V | 12V | 24V |
|
Output voltage tolerance |
±1% | ±1% | ±1% | |
|
Rated output current |
3A | 1.3A | 0.7A | |
|
Output current range |
0-3A | 0-1.3A | 0-0.7A | |
|
Output power |
15W | 15.6W | 16.8W | |
|
Ripple and the noise |
80mVp-p | 120mVp-p | 150mVp-p | |
|
Dc voltage adjustable scope |
+10,-5% | ±10% | ±10% | |
|
Start, rise, keep time |
200ms,50ms,20ms/230VAC |
|||
| input |
Input voltage range |
85~264VAC, 120~370VDC 47~63Hz |
||
|
Exchange input current |
0.25A/230VAC |
|||
|
efficiency |
68% | 71% | 75% | |
|
Impulse current |
Cold start current |
|||
|
Leakage current |
＜0.5mA/240VAC |
|||
| Protection characteristics |
Overload protection |
Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery |
||
| environment |
Working temperature, humidity |
-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve |
||
|
Keep temperature, humidity |
-20℃～+85℃;10%～95%RH No condensation |
|||
|
Vibrate resistance |
10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis |
|||
| security |
Compression sex |
Between the input and output, the output and input: with ground: |
||
|
Insulation resistance |
Between the input and output, the output and input: with ground: |
|||
| standard |
Safety standards |
Meet the UL1012 requirements |
||
|
EMC standard |
Meet the FCC PART15J equipment conditions B |
|||
| other |
weight |
0.15kg 84*58*38（L*W*H） |
||
|
packaging |
0.15kg/80pcs/13kg |
|||
| note |
1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. |
|||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
