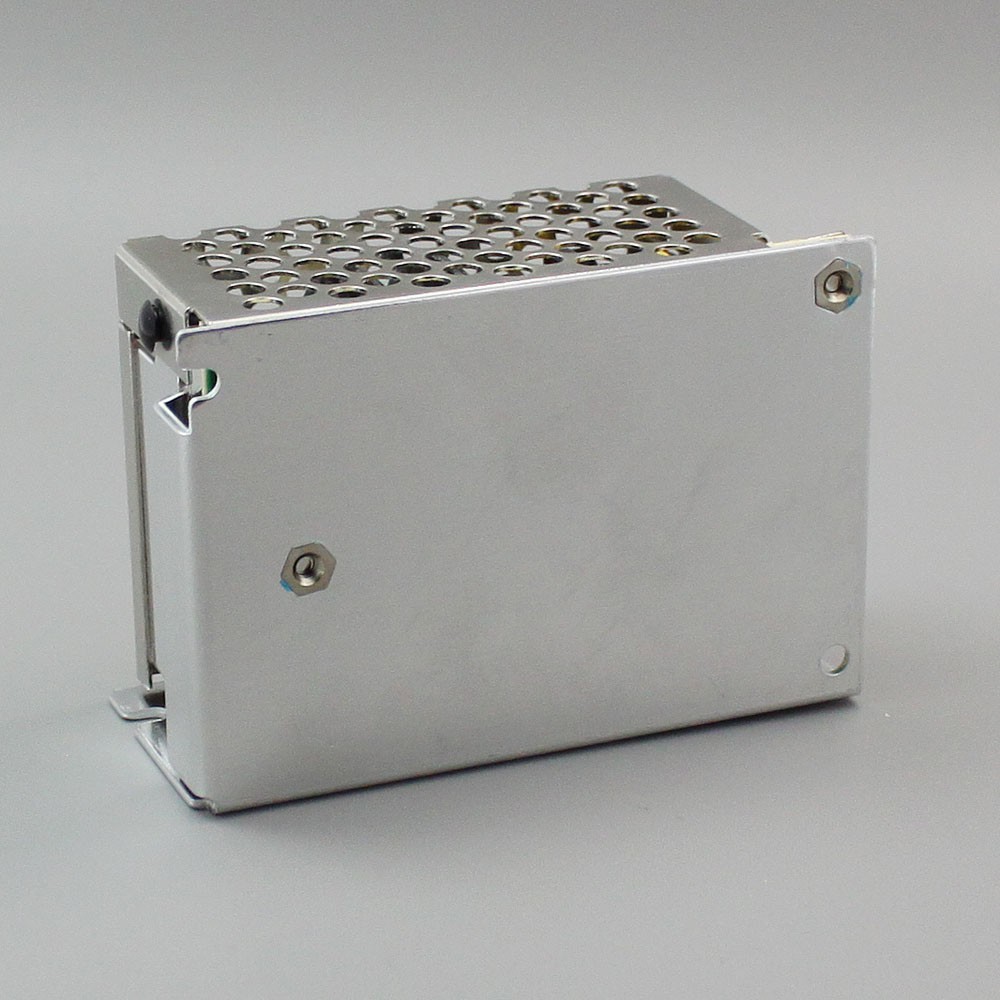

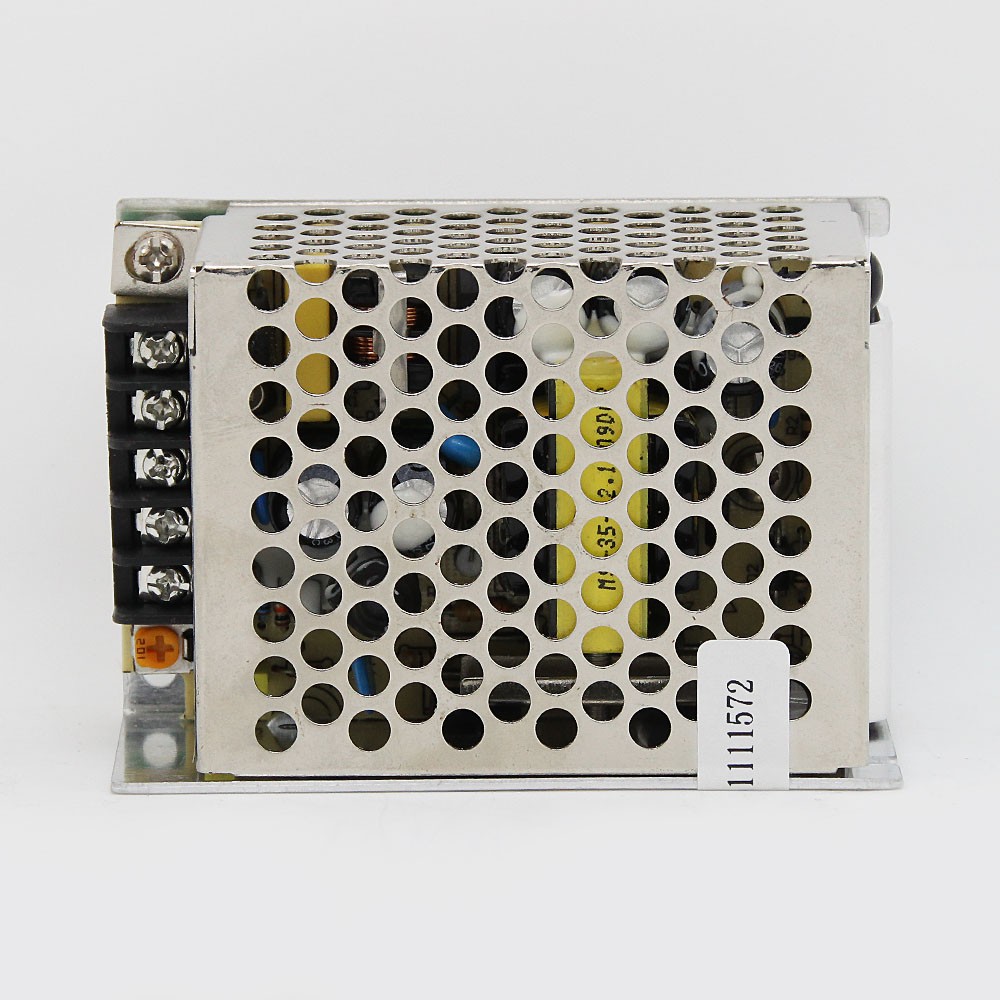

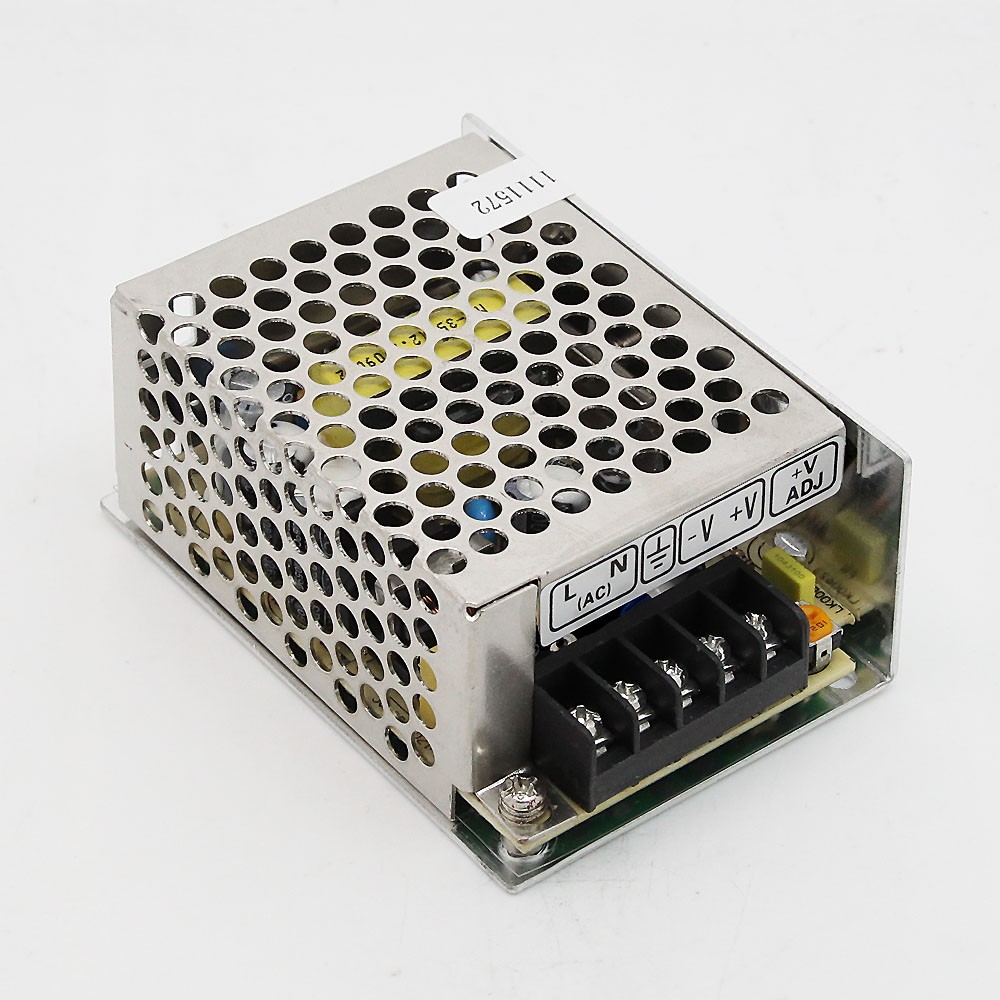

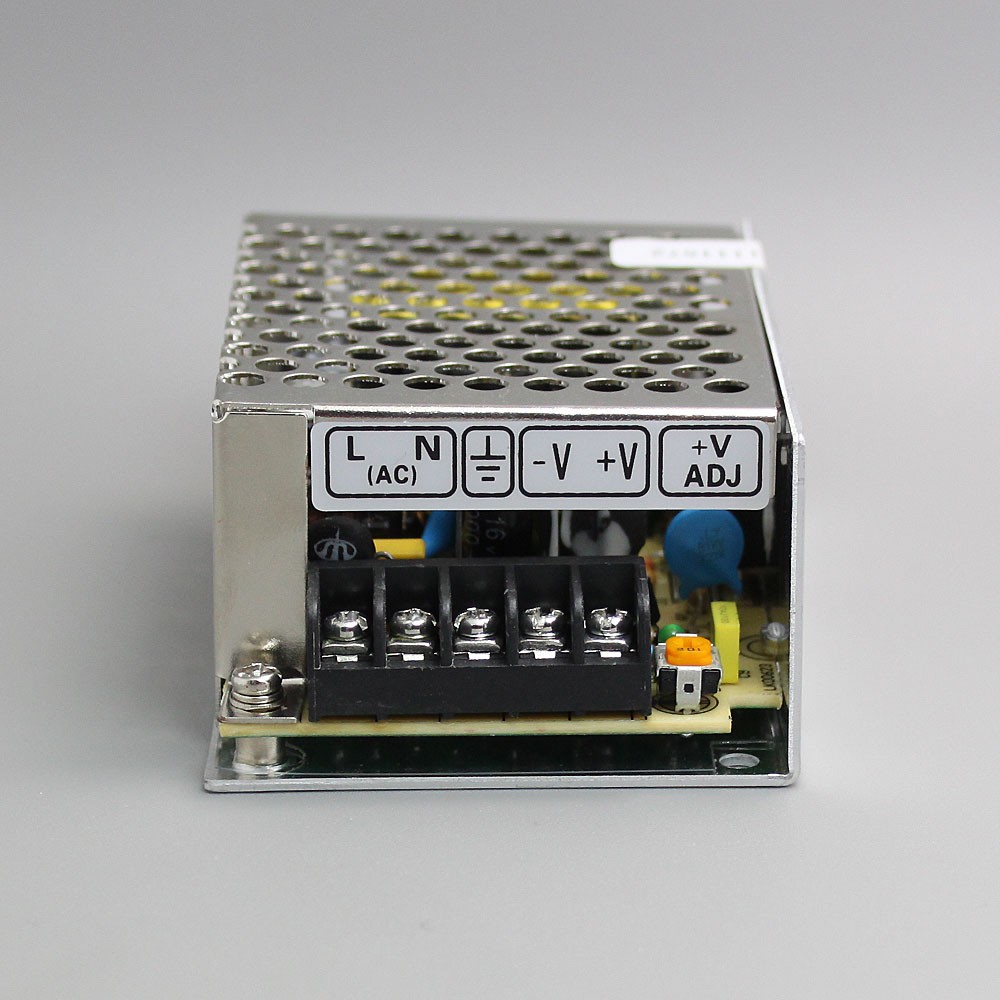

1. Small volume, light weight, high efficiency2. Characteristics: short circuit protection miscalculates/overload3. Natural cooling4. With that took on light emitting diode (led)5. 100% burned machine full load test6. 2 years quality guarantee7. Size: 84 x 58 x 38 mm
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model |

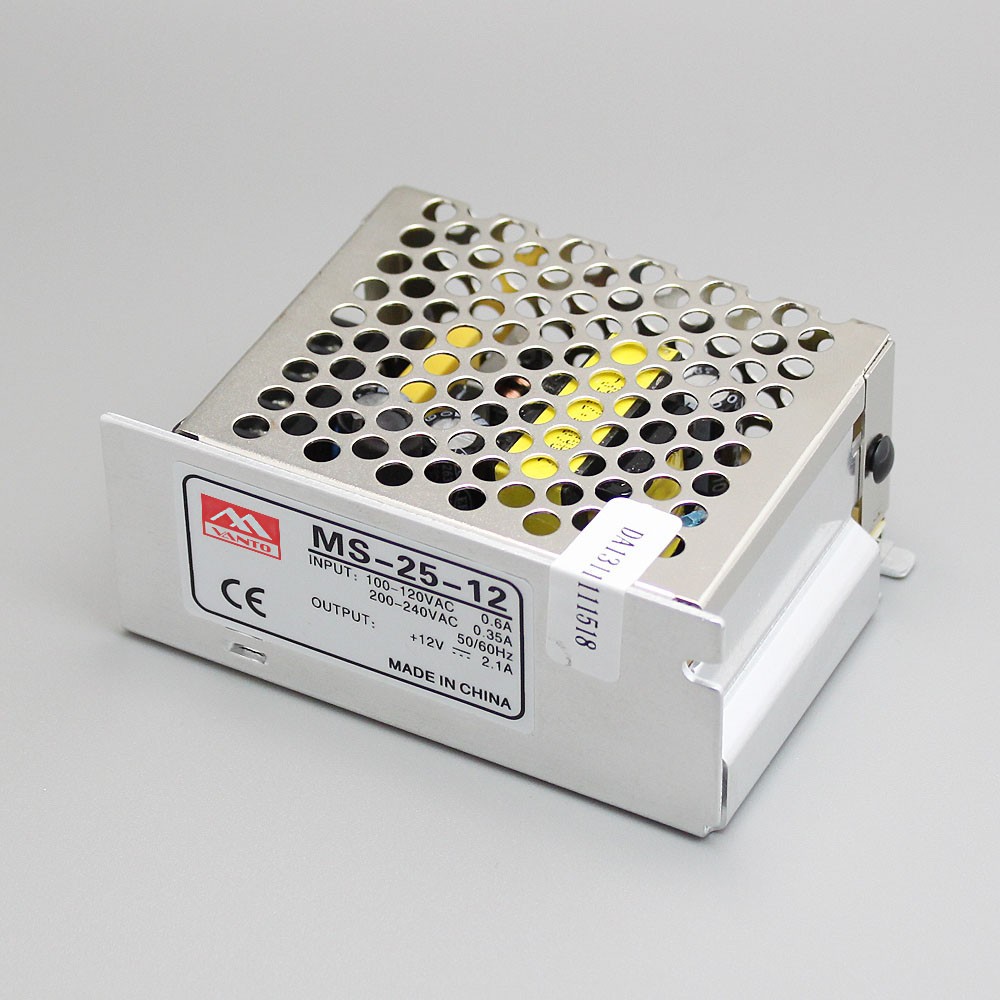

MS-25-12 | MS-25-15 | MS-25-24 | |
| Output |
Dc output voltage |
12V | 15V | 24V |
|
Output voltage tolerance |
±1% | ±1% | ±1% | |
|
Rated output current |
5A | 1.4A | 1.1A | |
|
Output current range |
0-5A | 0-1.4A | 0-1.1A | |
|
Output power |
24W | 24W | 24W | |
|
Ripple and the noise |
100mVp-p | 120mVp-p | 150mVp-p | |
|
Dc voltage adjustable scope |
±10% | ±10% | ±10% | |
|
Start, rise, keep time |
200ms,50ms,20ms/230VAC |
|||
| Input |
Input voltage range |
85~264VAC, 120~370VDC 47~63Hz |
||
|
Exchange input current |
0.35A/230VAC |
|||
|
efficiency |
70% | 76% | 78% | |
|
Impulse current |
Cold start current 30A/230VAC |
|||
|
Leakage current |
＜0.5mA/240VAC |
|||
| Protection characteristics |
Overload protection |
Protection way: fold layer type load current limiting, abnormal conditions can be removed recovery |
||
| Environment |
Working temperature, humidity |
-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve) |
||
|
Keep temperature, humidity |
-20℃～+85℃;10%～95%RH No condensation |
|||
|
Vibrate resistance |
10～500Hz，2G 10min./1Cycle time, 60 minutes, the axis |
|||
| Security |
Compression sex |
Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC |
||
|
Insulation resistance |
Between the input and output, the output and input: with ground: 100 M / 500 VDC Ohms |
|||
| Standards |
Safety standards |
Meet the UL1012 requirements |
||
|
EMC standard |
meet FCC PART15J conditions CLASS B |
|||
| Other |
weight |
0.15kg 84*58*38（L*W*H） |
||
|
packaging |
0.15kg/80pcs/13kg/0.9CUFT |
|||
| Note |
1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. |
|||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
