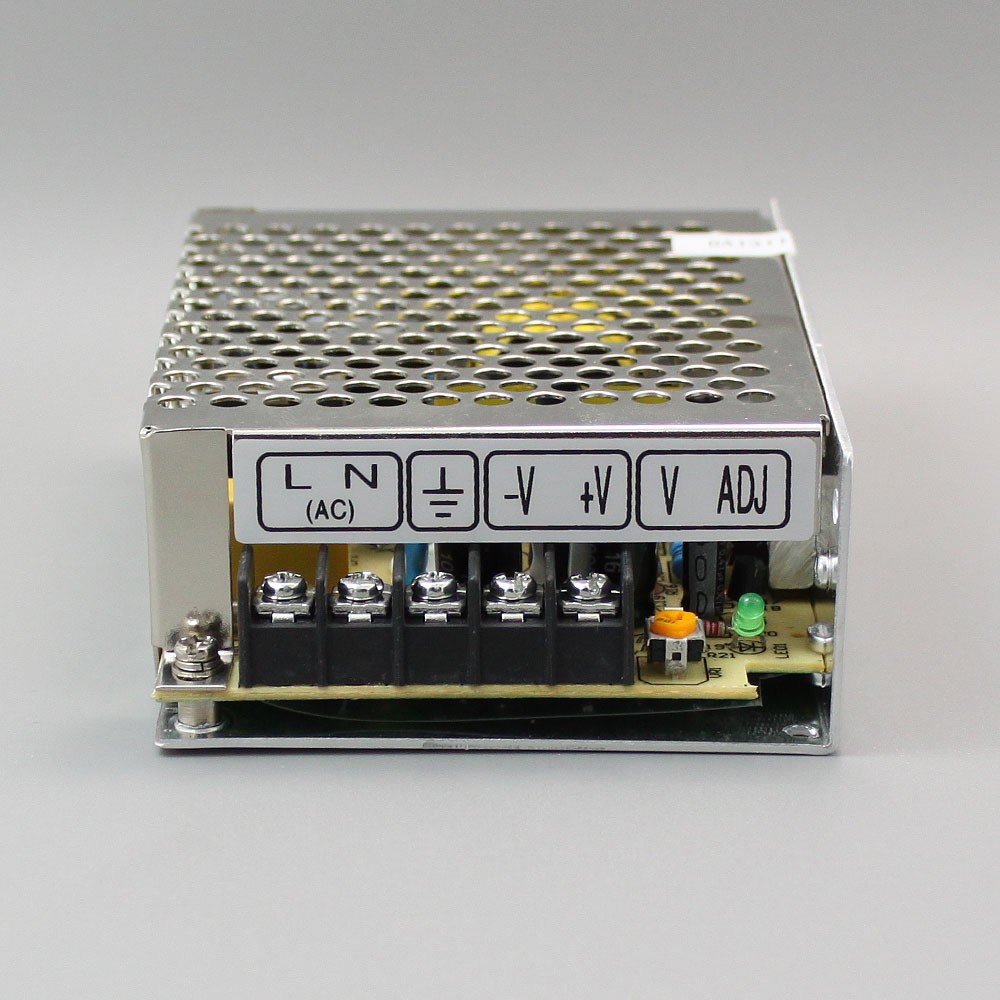

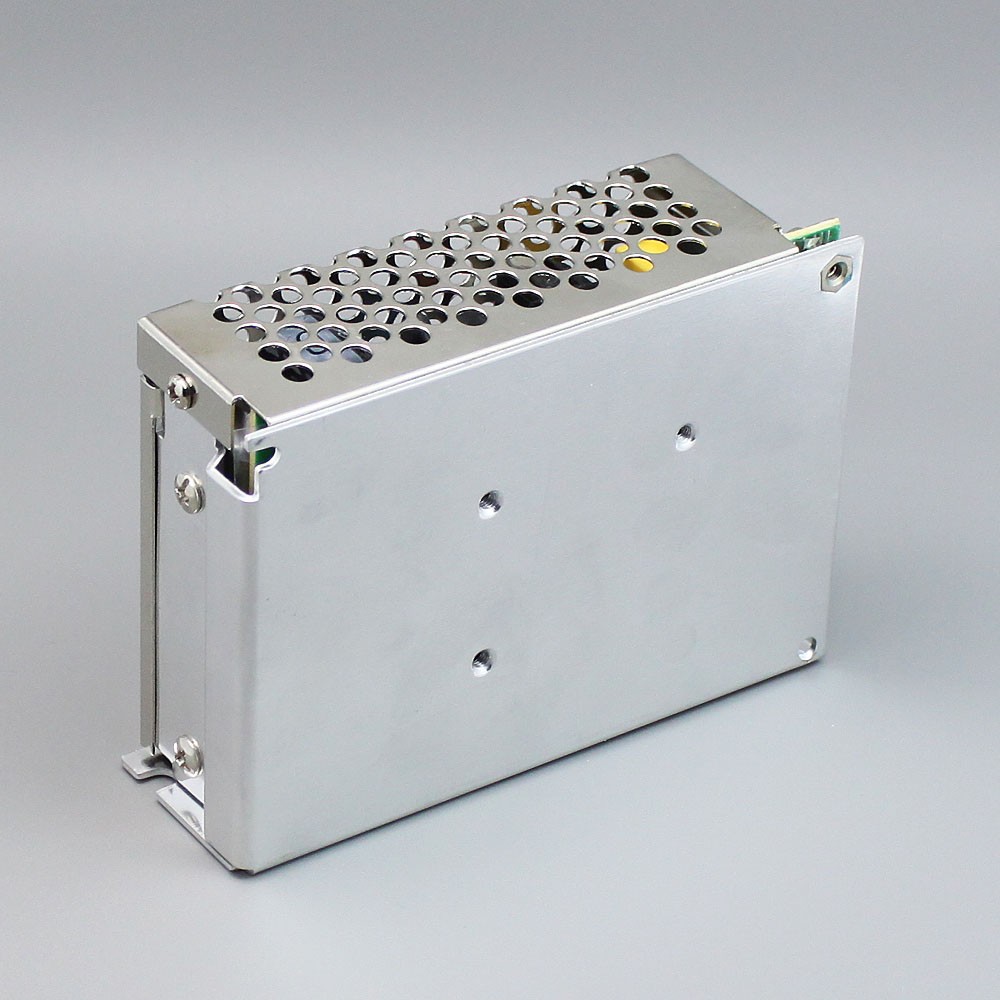

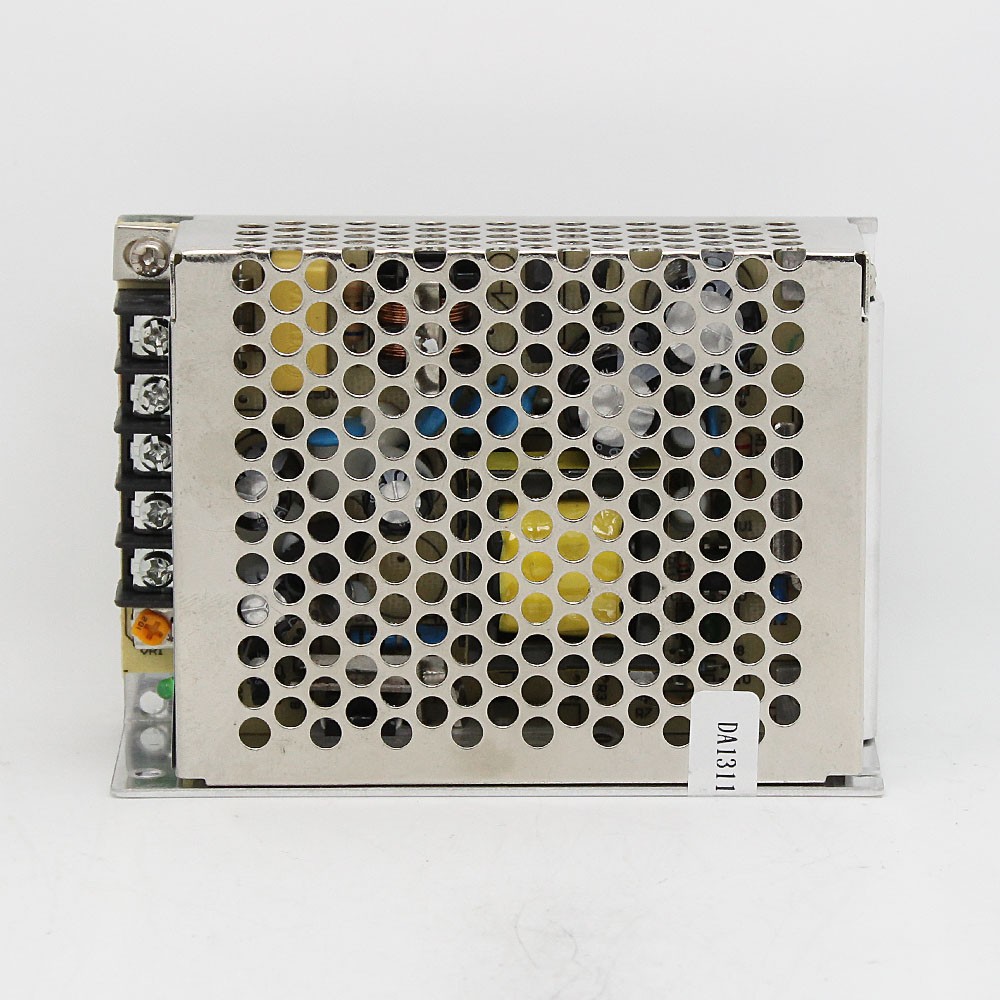

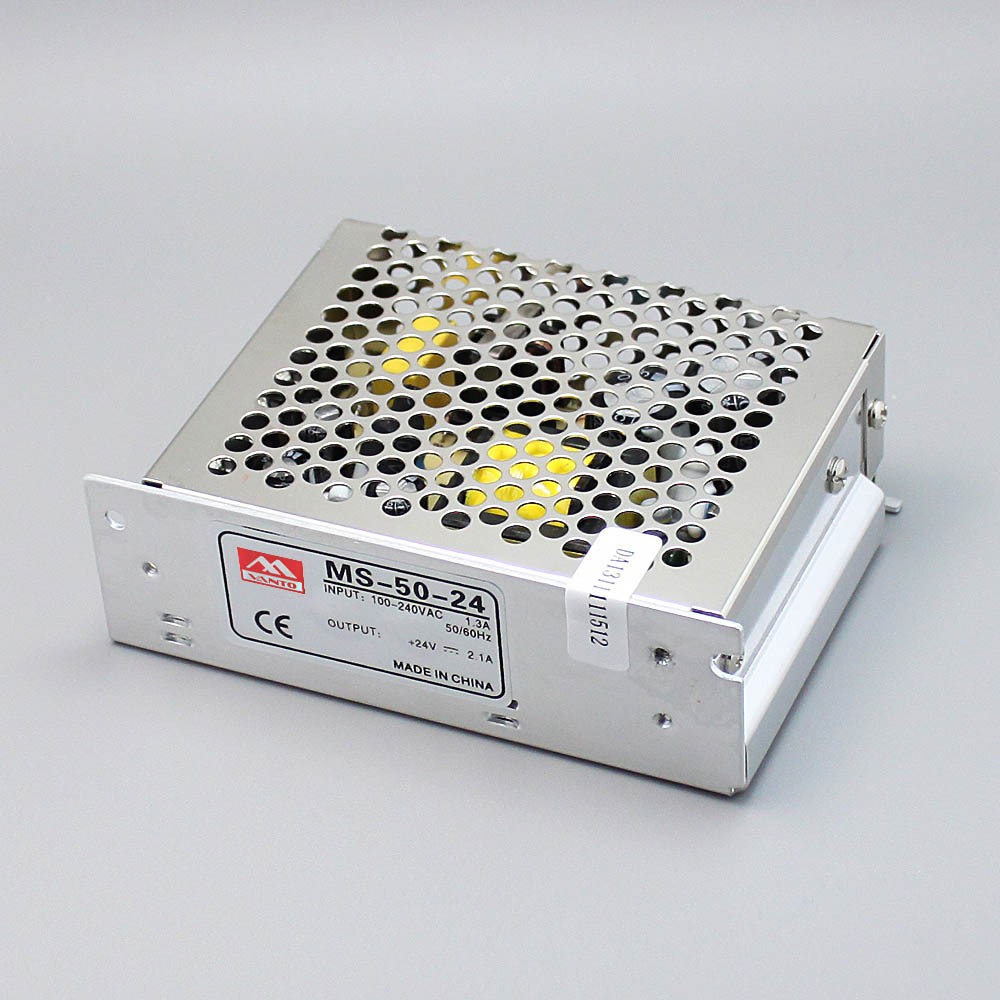

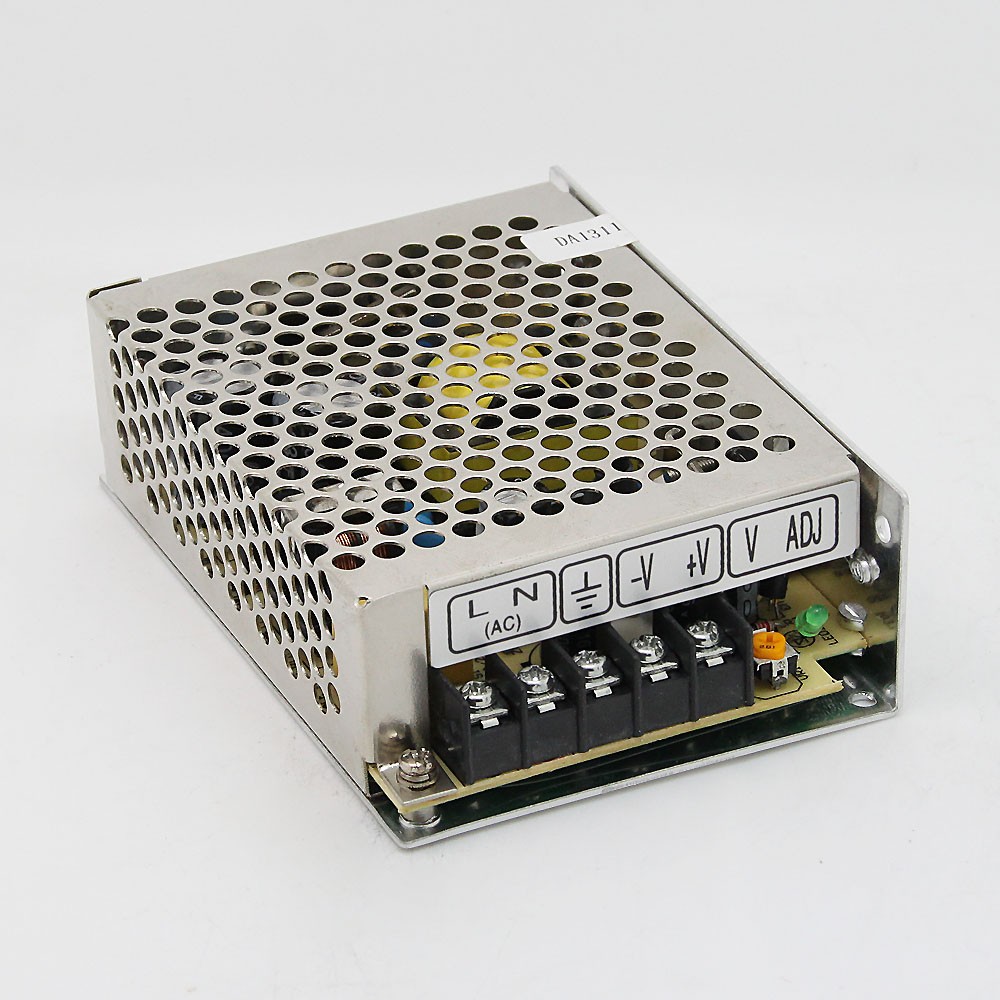

MS-50W Switch Mode Power Supply

1. Small volume, light weight, high efficiency
2. Characteristics: short circuit protection miscalculates/overload
3. Natural cooling
4. With that took on light emitting diode (led)
5. 100% burned machine full load test
6. 2 years quality guarantee
7. Size:111 x 78 x 36 mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MS-50W Switch Mode Power Supply Specificates

Model

MS-50-5 MS-50-12 MS-50-24
output

Dc output voltage

5V 12V 24V

Output voltage tolerance

±1% ±1% ±1%

Rated output current

10A 4.2A 2.1A

Output current range

0~10A 0~4.2A 0~2.1A

Output power

50W 50W 50W

Ripple and the noise

80mVp-p 120mVp-p 120mVp-p

Dc voltage adjustable scope

±10% ±10% ±10%

Start, rise, keep time

800ms,20ms,24ms/230VAC.

input

Input voltage range

85~264VAC, 120~370VDC 47~63Hz

Exchange input current

0.65A/230VAC

efficiency

80% 82% 84%

Impulse current

Cold start current 30A/230VAC

Leakage current

<1mA/240VAC

Protection characteristics

Overload protection

Protection way: hiccups mode, load abnormal conditions can be removed recovery

environment

Working temperature, humidity

-10℃~+60℃;20%~90%RH(please refer to reduce the specified number load curve)

Keep temperature, humidity

-20℃~+85℃;10%~95%RH No condensation

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

security

Compression sex

Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5: 0.5KVAC

Insulation resistance

Between the input and output, the output and input: with ground: 100M Ohms/500VDC

Complies with the standards

Safety standards

Meet the UL1012 requirements

EMC standard

Accord with EN55022,CLASSA

other

weight

0.26kg 111*78*36(L*W*H)

packaging

0.26kg/50pcs/14kg/0.9CUFT

note

1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

MS-50W Switch Mode Power Supply Packing

MS-50W Switch Mode Power Supply Packing ShowMS-50W Switch Mode Power Supply FAQQ:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
