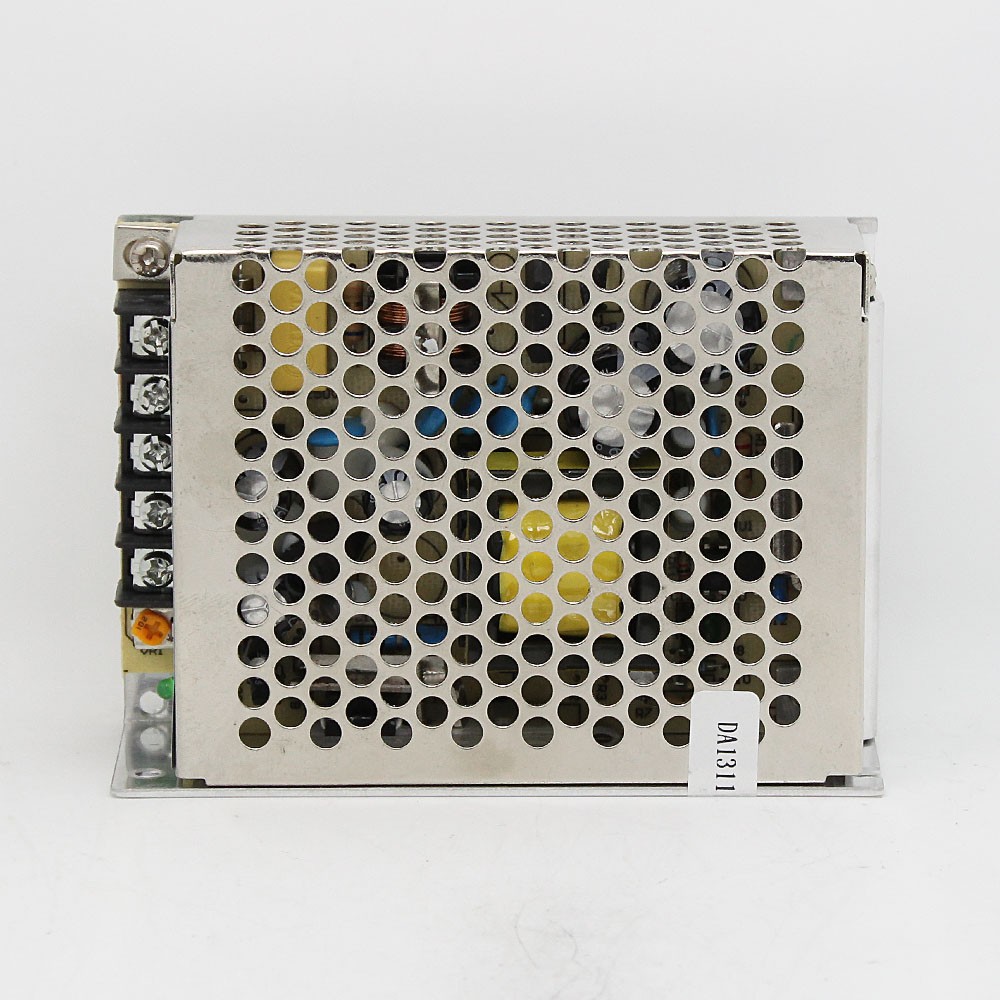

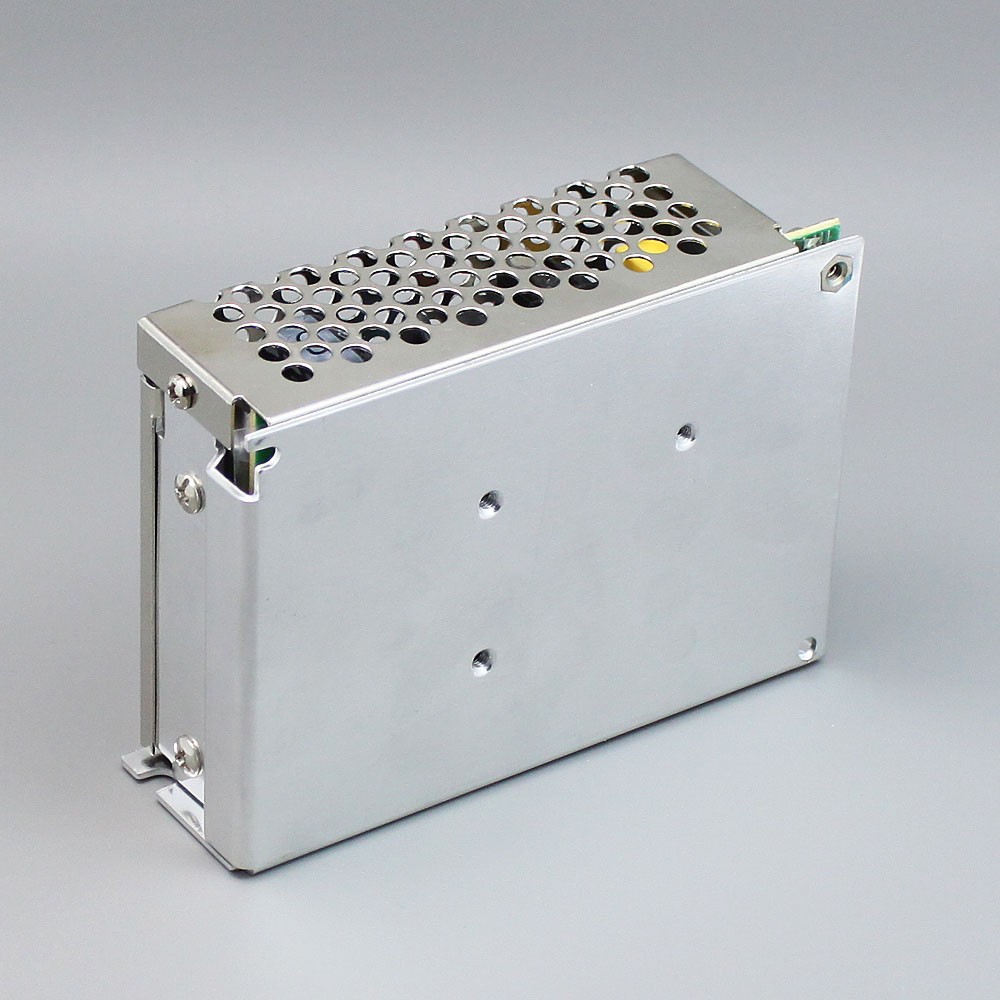

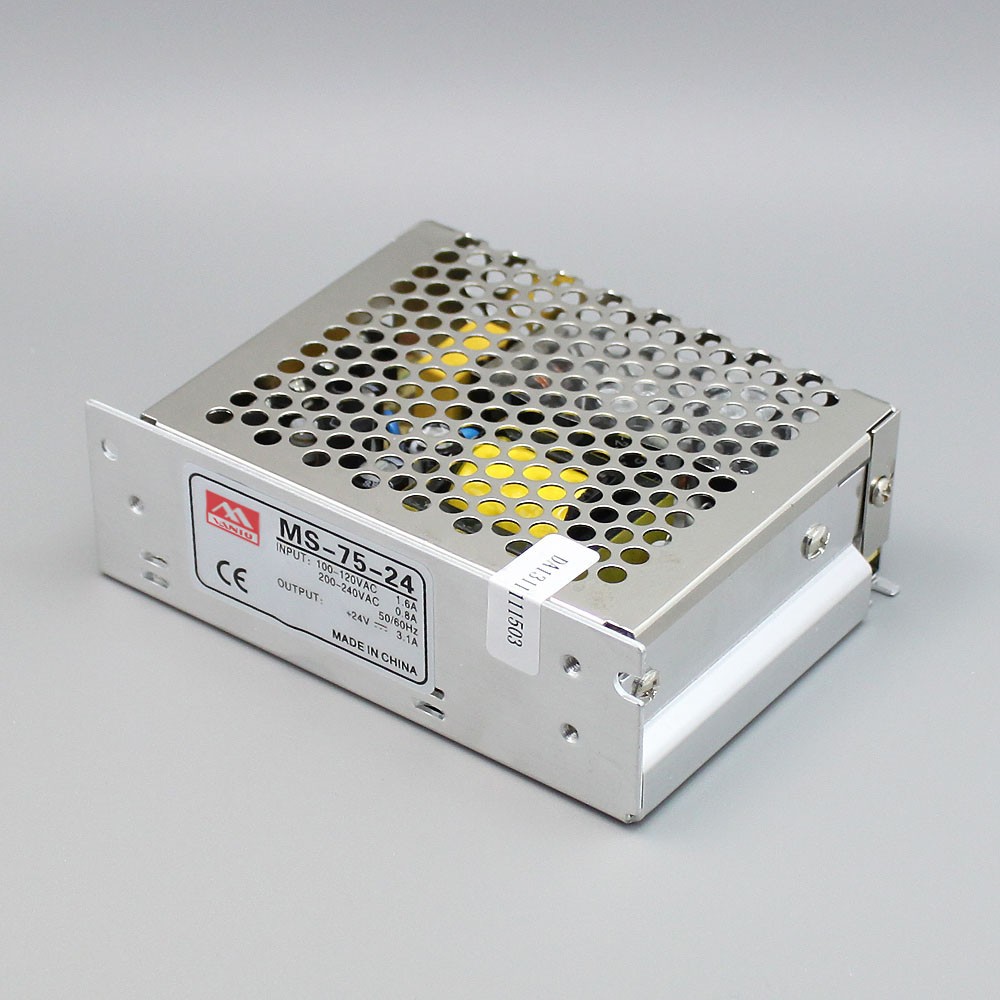

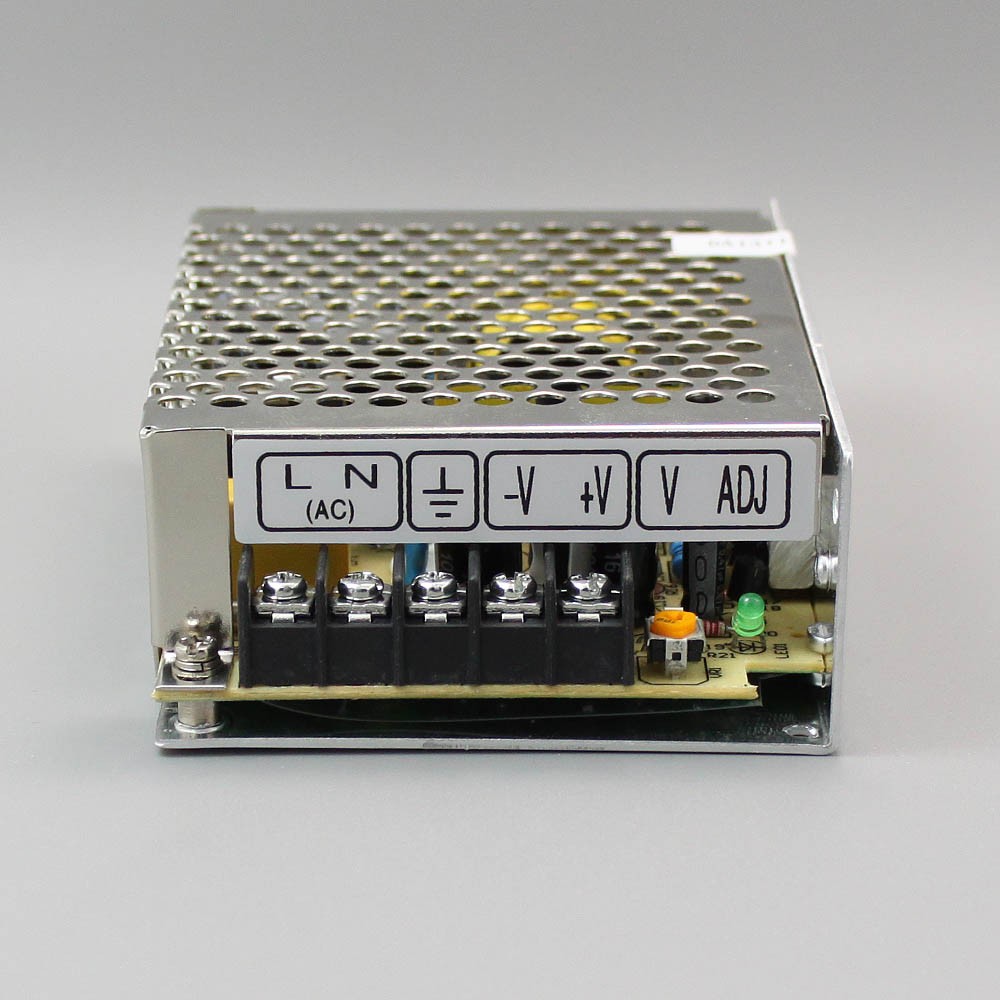

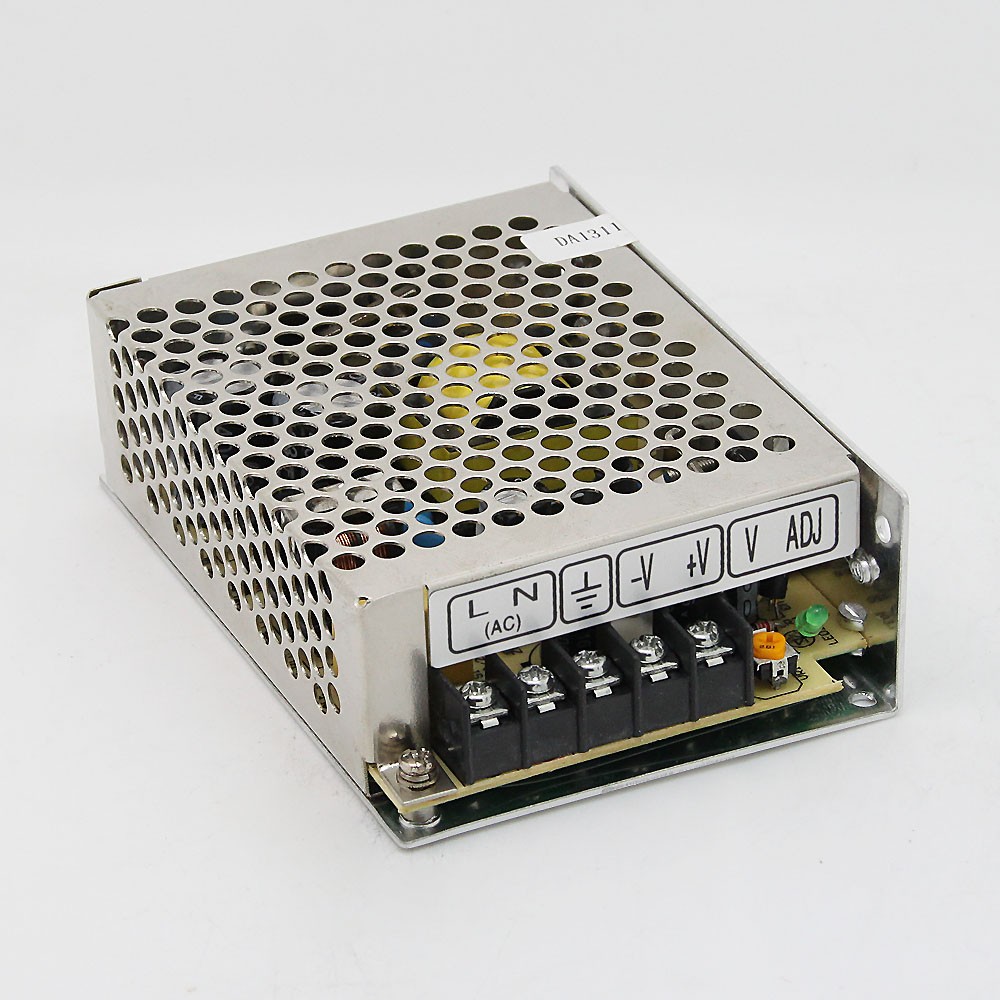

MS-75W Switch Mode Power Supply
You are here: Home» Products » Switching Power Supply » Mini Size Series MS MSF

MS-75W Switch Mode Power Supply

1. Input voltage range exchange by switch choice
2. Small volume, light weight, high efficiency
3. Characteristics: short circuit protection miscalculates/overload
4. Natural cooling
5. With that took on light emitting diode (led)
6. 100% burned machine full load test
7. 2 years quality guarantee
8. Size:111X78X36mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MS-75W Switch Mode Power Supply Specificates

Model Specification

MS-75-5

MS-75-12

MS-75-15

MS-75-24

DC Output voltage

5V

12V

15V

24V

Output voltage range(Note:2)

±2%

±1%

±1%

±1%

Rated output current

15A

6A

5A

3A

Output current range

0~15A

0~6A

0~5A

0~3A

Wave and noise(Note:3)

100mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±1%

±0.5%

±0.5%

±0.5%

DC output power

75W

75W

75W

75W

Efficiency

73%

78%

78%

82%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

85~264VAC, 120~370VDC 47~63Hz

Input current

2A/115V 1A/230V

AC Inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Overall dimension

111X78X36mm (L*W*H)

Weight

0.55kgS

Safety standards

UL 1012 TUV EN6050(IEC,ul1950)Approved

EMC standards

CISPR22(EN55022),IEC801-2,3,4 IEC555-2Verification

MS-75W Switch Mode Power Supply Packing

MS-75W Switch Mode Power Supply Packing ShowMS-75W Switch Mode Power Supply FAQQ:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
