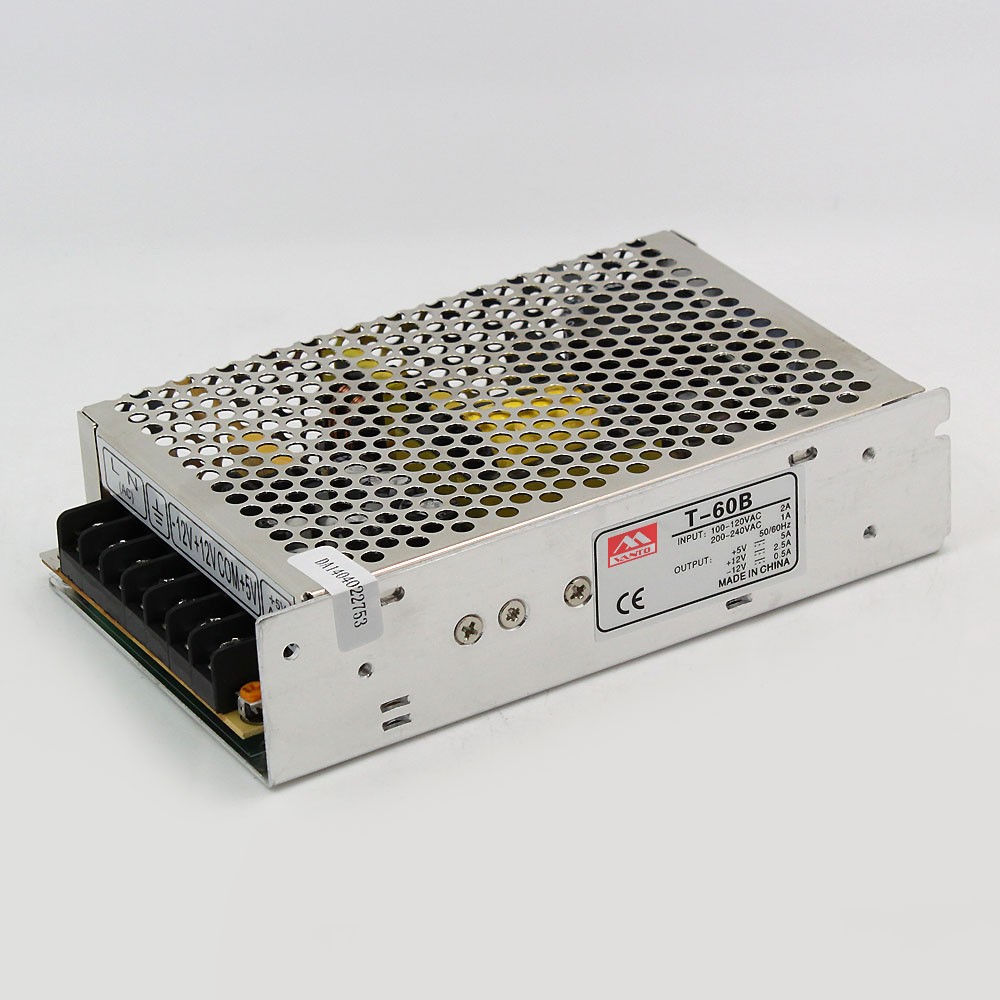

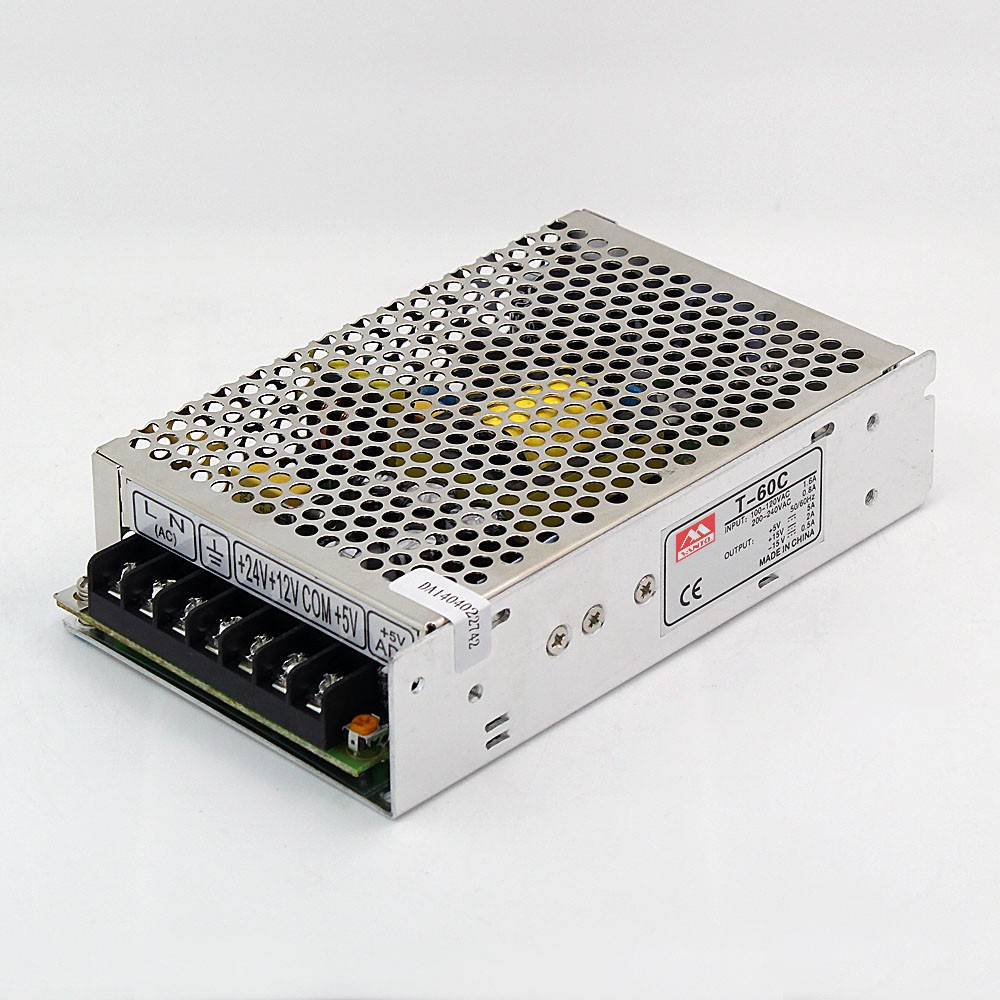

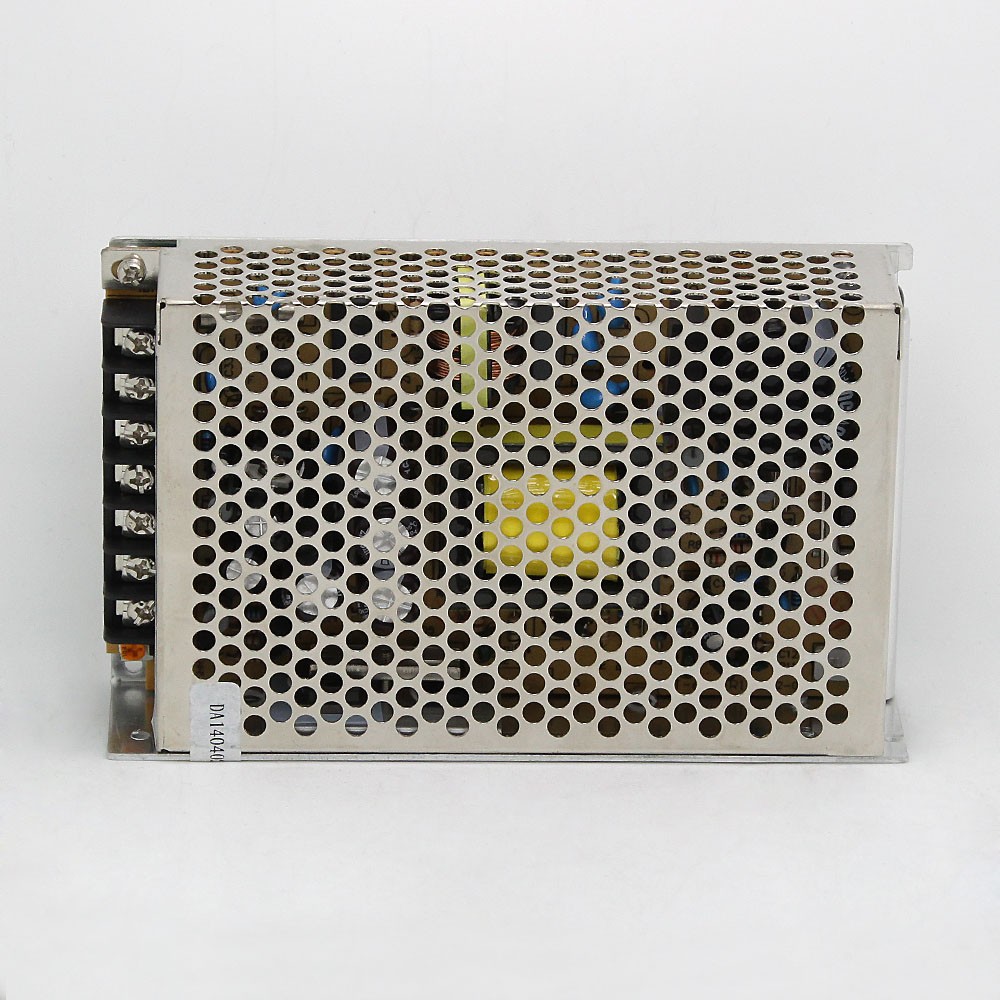

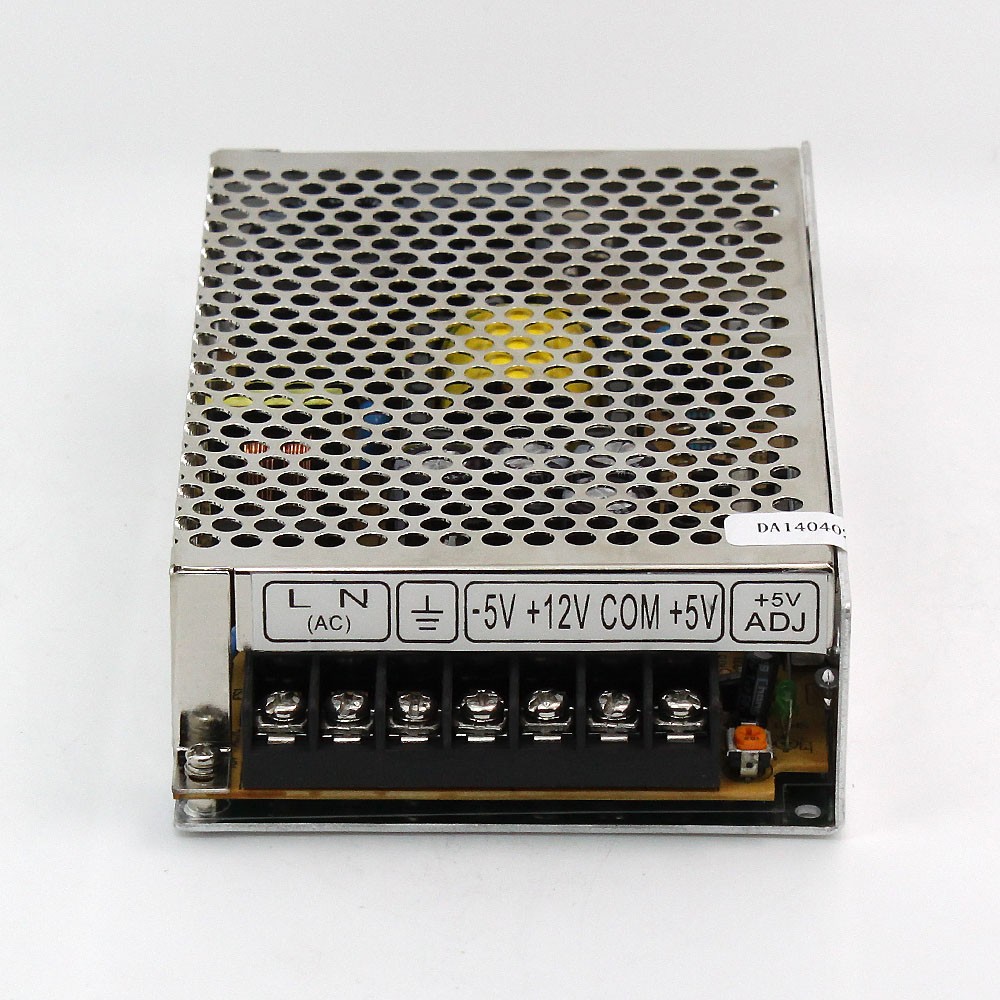

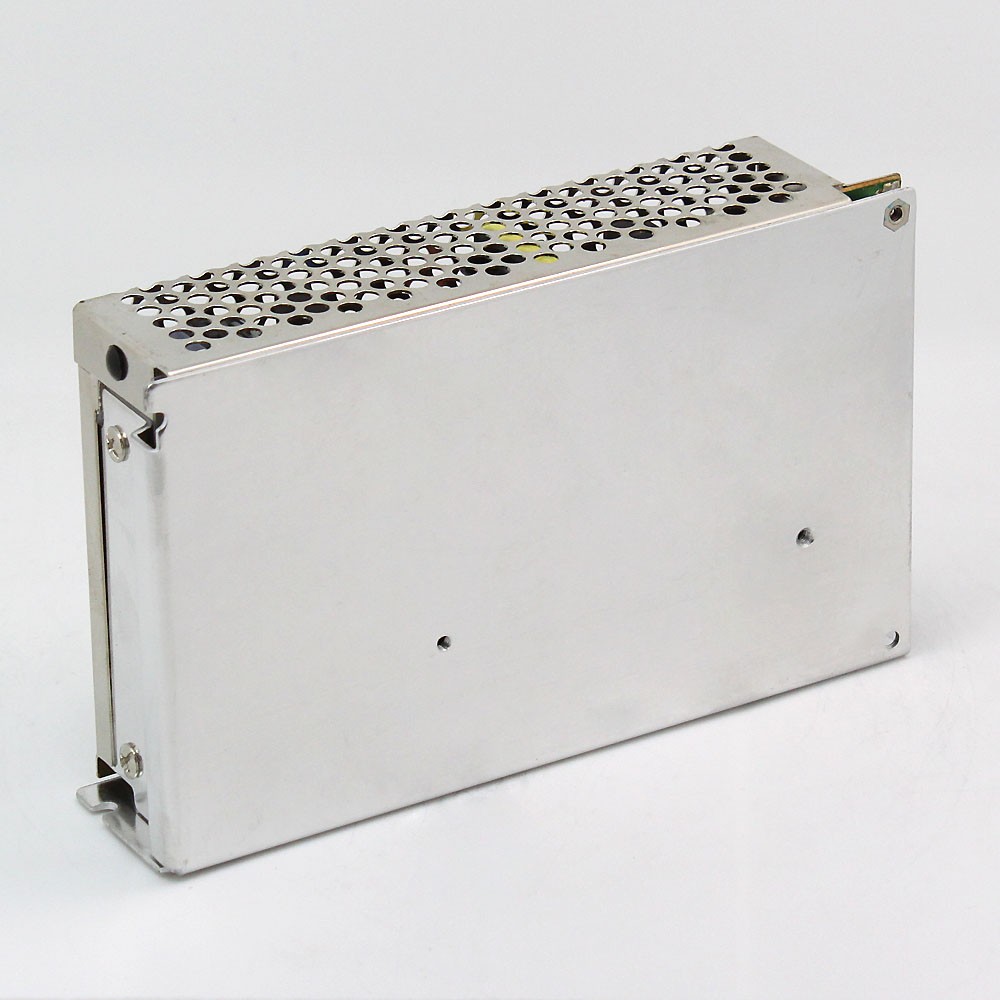

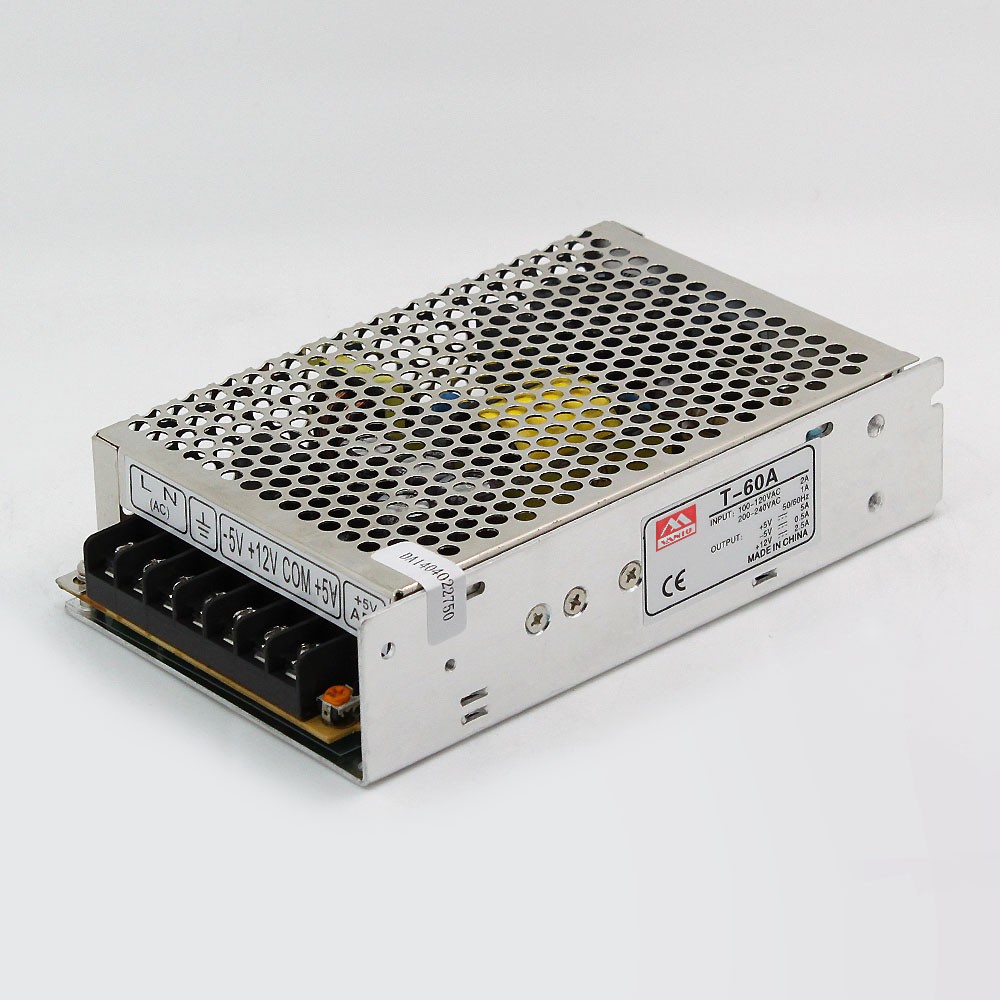

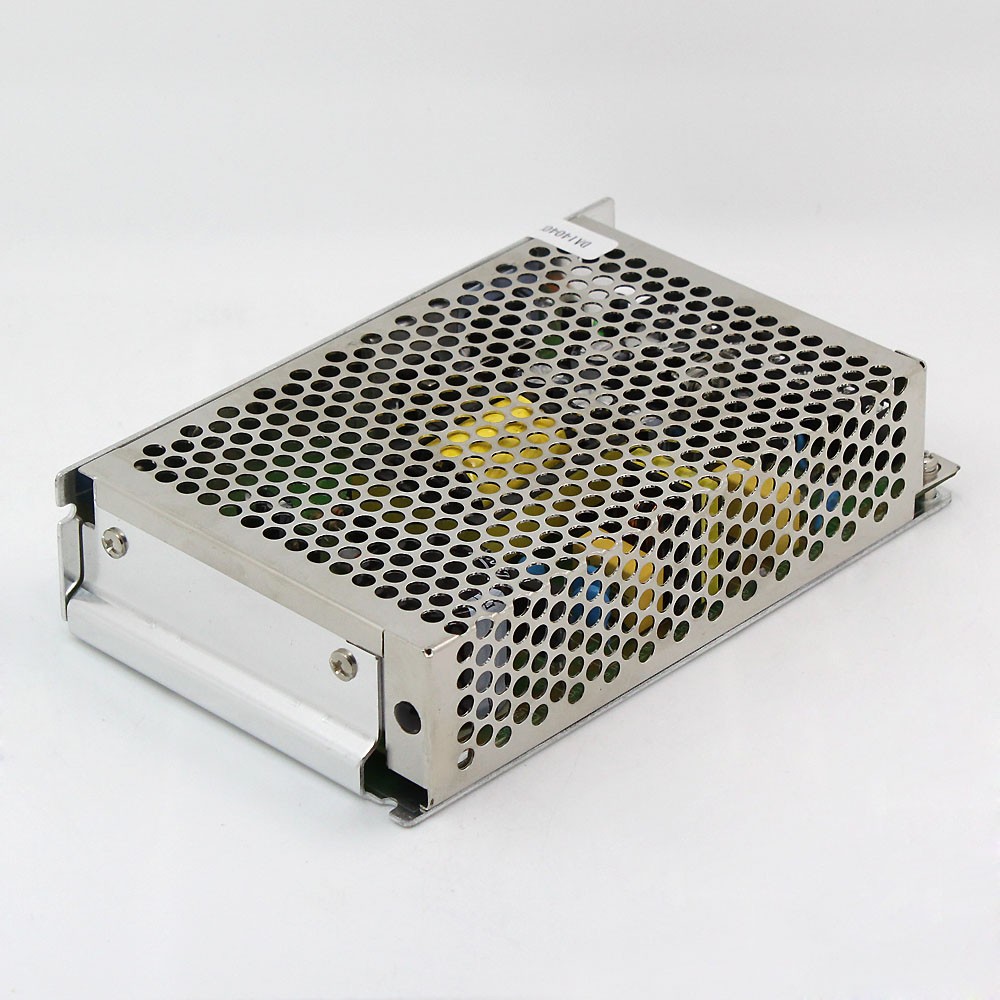

T-60W Triple Output SMPS Power Supply

1• AC input voltage range selected by switch
2• Small volume,low weight,high efficiency
3• Protections:short circuit/over load
4• LED indicator for power on
5• 100% full load burn-in test
6• 2 Year warranty
7• Size: 159×97×38mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

60W Triple Output AC to DC SMPS Power Supply Specificates

Model

T-60A

T-60B

T-60C

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

DC output voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

Output voltage range(Note:2)

±2%

±6%

±8%

±2%

±6%

±8%

±2%

±6%

±8%

Rated output current

5A

2.5A

0.5A

5A

2.5A

0.5A

5A

2A

0.5A

Output current range

0.5-7A

0.2-3.5A

0-0.1A

0.5-7A

0.2-3.5A

0-1A

0.5-7A

0.2-3A

0-0.1A

Wave and noise(Note:3)

100mVp-p

120mVp-p

100mVp-p

100mVp-p

120mVp-p

120mVp-p

100mVp-p

120mVp-p

120mVp-p

Inlet stability(Note:4)

±0.5%

±1%

±1%

±0.5%

±1%

±1%

±0.5%

±1%

±1%

Load stability(Note:5)

±0.5%

±4%

±6%

±0.5%

±4%

±6%

±0.5%

±4%

±4%

DC output power

57.5W

61W

62.5W

Efficiency

72%

72%

72%

Adjustable range for DC voltage

CH1; +10, -5%

CH1; +10, -5%

CH1; +10, -5%

Input current

2A/115V 1A/230V

AC inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<1mA/240VAC

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: auto recovery

Over-voltage protection

CH1: 5.75~6.75V

Temperature coefficient

±0.03%/°c(0~50°c)ON+5V

Setup, rise , hold up time

1.6ms, 50ms, 16ms/115VAC 800ms, 50ms, 60ms/230VAC

Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°c~+60°c(Refer to output derating curve), 20%~90%RH

Overall dimension

159×97×38mm

Weight

0.56Kgs

Safety standards

CSA international mark approved (CSA950, UL 1950, IEC950, EN60950)

EMC standards

CISPR22(EN55022), IEC801-2,-3,-4,IEC555-2 Verification

60W Triple Output AC to DC SMPS Power Supply Packing

60w Triple Output AC t0 DC SMPS Power Supply Packing Show

60W Triple Output AC to DC SMPS Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:12-24 months
