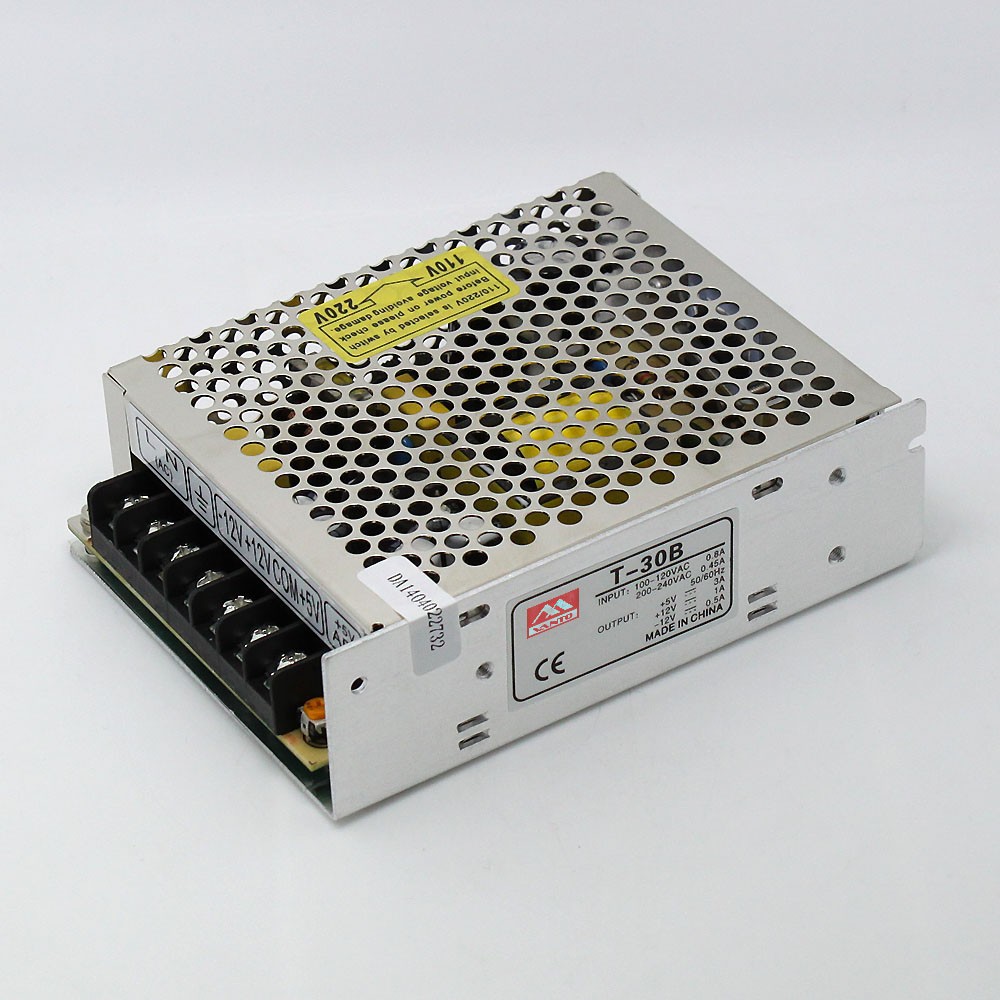

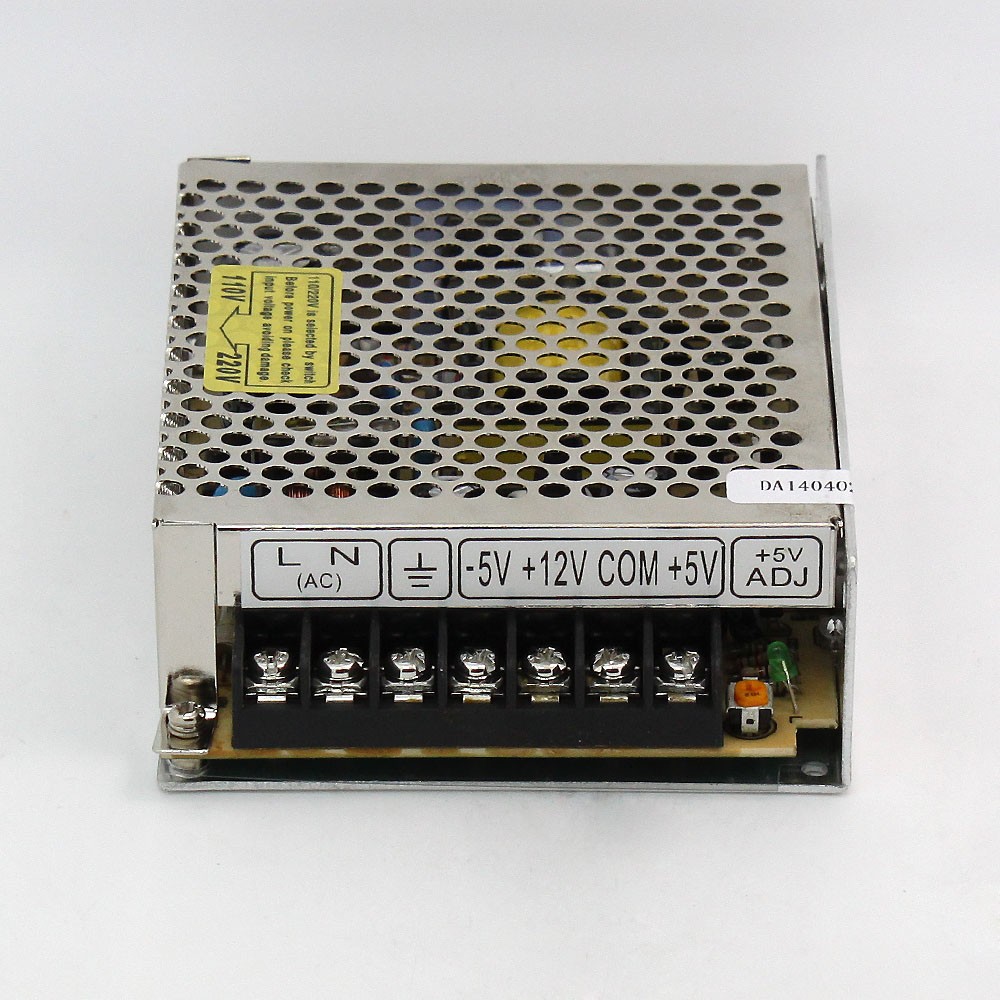

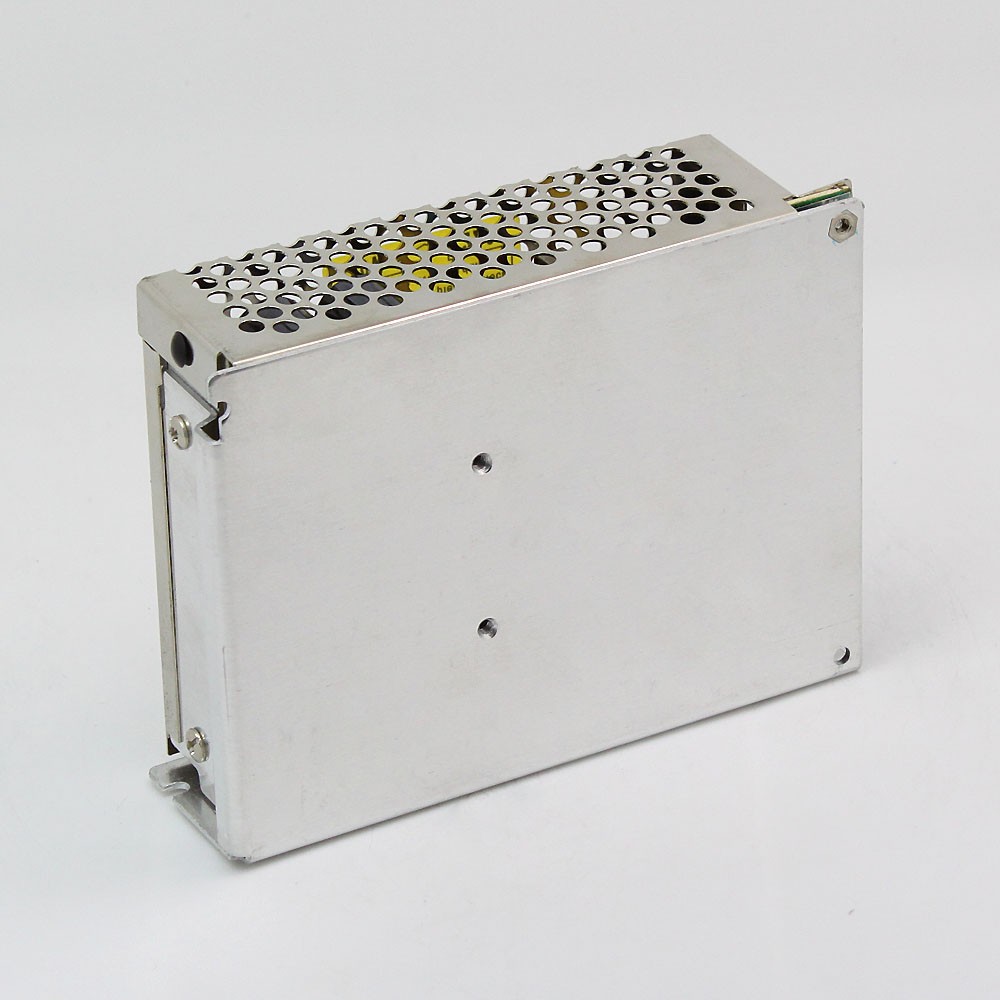

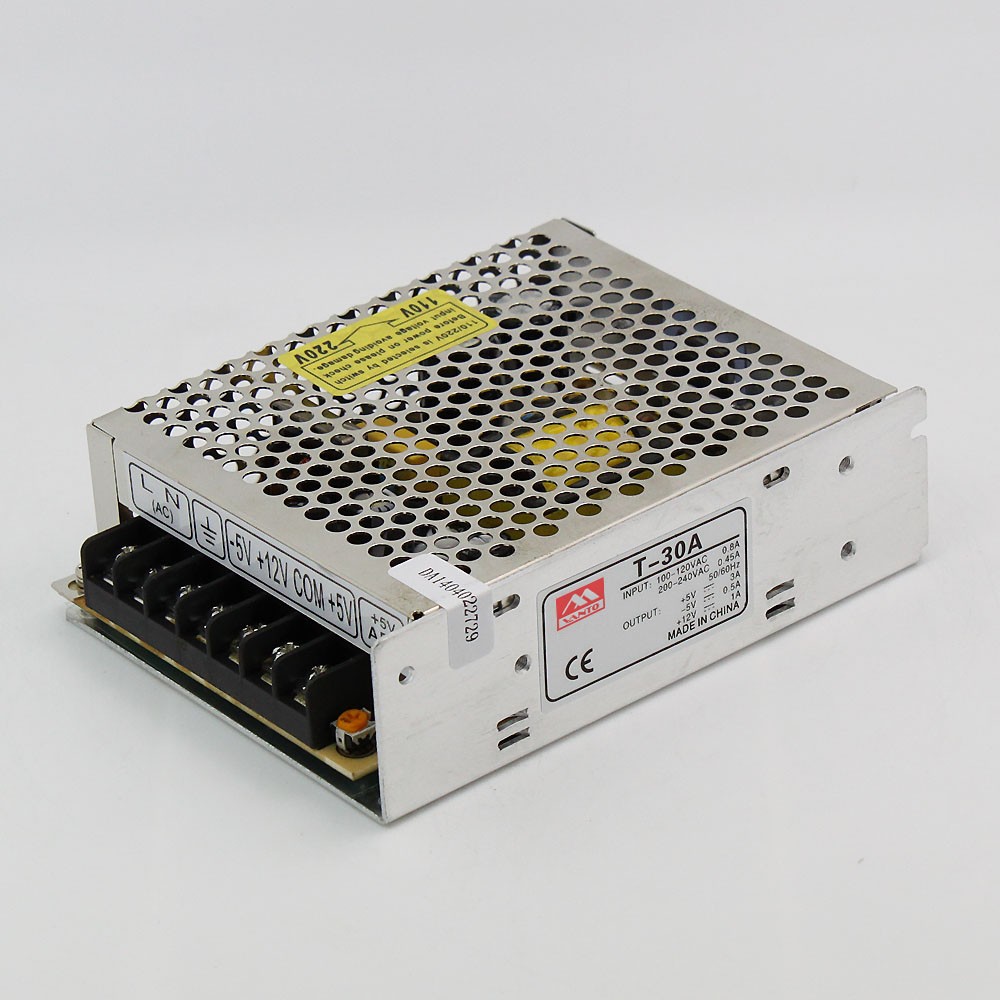

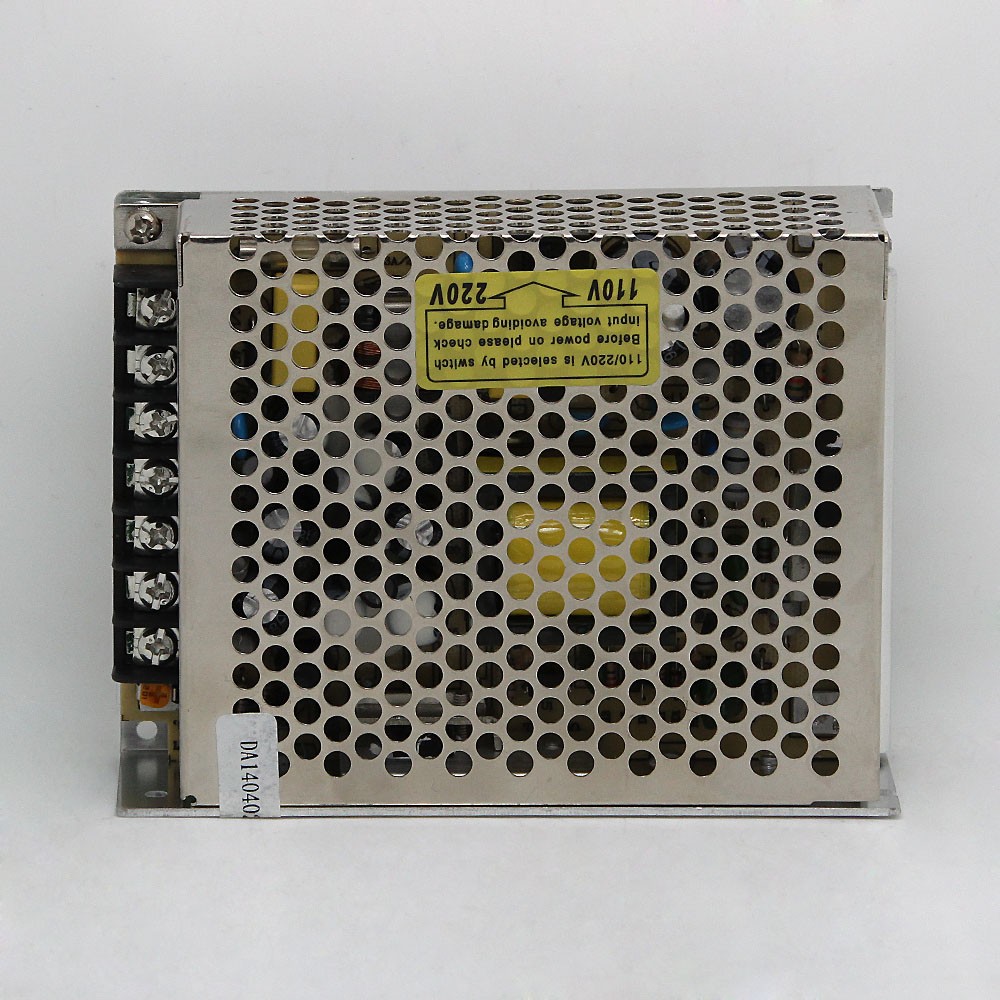

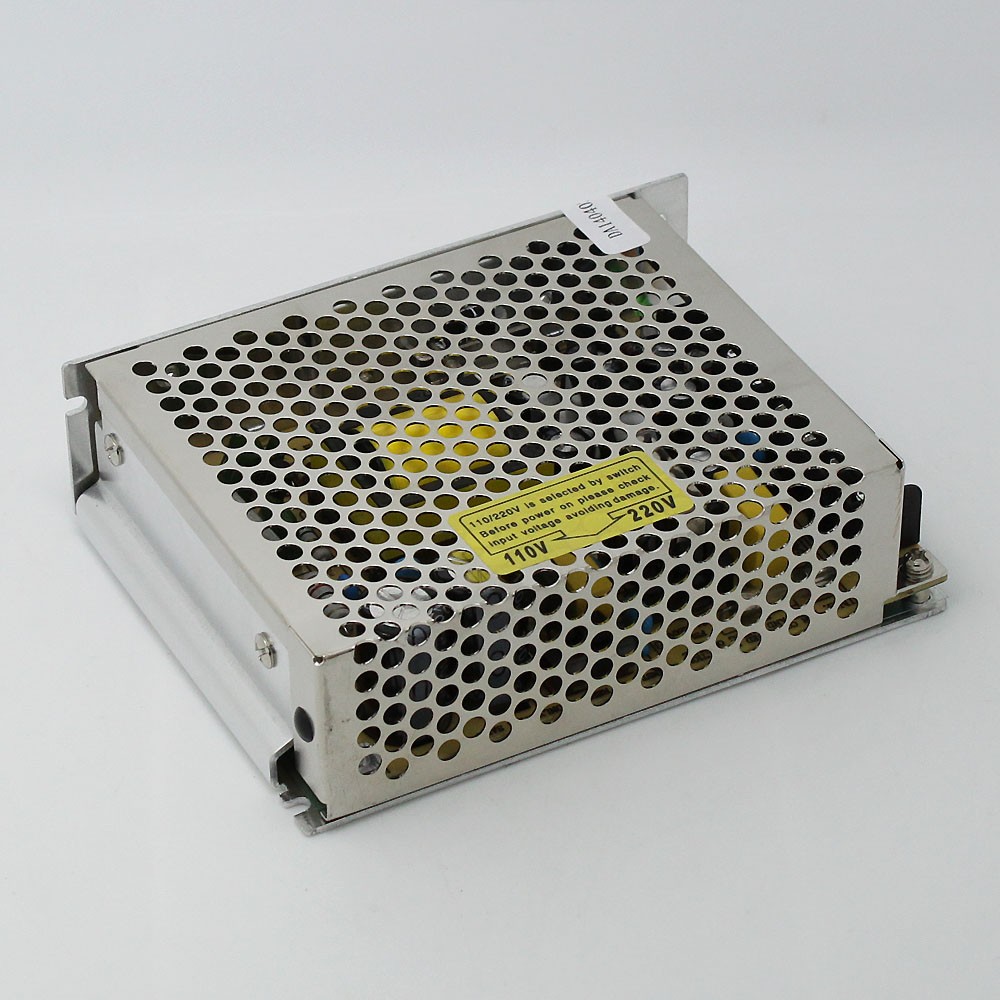

T-30W Triple Output SMPS Power Supply

1• AC input voltage range selected by switch
2• Small volume,low weight,high efficiency
3• Protections:short circuit/over load
4• LED indicator for power on
5• 100% full load burn-in test
6• 2 Year warranty
7• Size: 129×98×38mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

30W Triple Output AC to DC SMPS Switch Mode Power Supply Specificates

Model

T-30A

T-30B
CH1 CH2

CH2

CH1 CH2 CH2
DC output voltage 5V 12V

-5V

5V 12V -24V
Output voltage range(Note:2) ±2% +2, -6% +2, -10% ±2% +2, -10% ±6%
Rated output current 3A 1A

0.5A

3A 1A 0.5A
Output current range 0.5-3A 0.1-1A

0.1-0.5A

0.5-3A 0.1-1A 0.1-0.5A
Wave and noise(Note:3) 50mVp-p 100mVp-p

50mVp-p

50mVp-p 100mVp-p 100mVp-p
Inlet stability(Note:4) ±0.5% ±1%

±1%

±0.5% ±1% ±1%
Load stability(Note:5) ±0.5% ±5%

±5%

±0.5% ±5% ±5%
DC output power

30W

33W
Efficiency

70%

72%
Adjustable range for DC voltage CH1; +10, -5% CH1; +10, -5%
Input current

0.8A/115V 0.45A/230V

AC inrush current

Cold-start current 18A/115V 36A/230V

Leakage current

<0.5mA/240VAC

Temperature coefficient

±0.03%/°c(0~50°c)ON+5V

Setup, rise , hold up time 200ms,50ms, 30ms
Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity -10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension

129×98×38mm

Weight

0.4Kgs

Safety standards

Meet UL 1012 requiement (Not apply for the mark)

EMC standards

Meet FCC PART 15 J Conduction class A

30W Triple Output AC to DC SMPS Switch Mode Power Supply Packing

120w Dual Output AC to DC Switch Mode Power Supply Packing Show

30W Triple Output AC to DC SMPS Switch Mode Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:12-24 months
