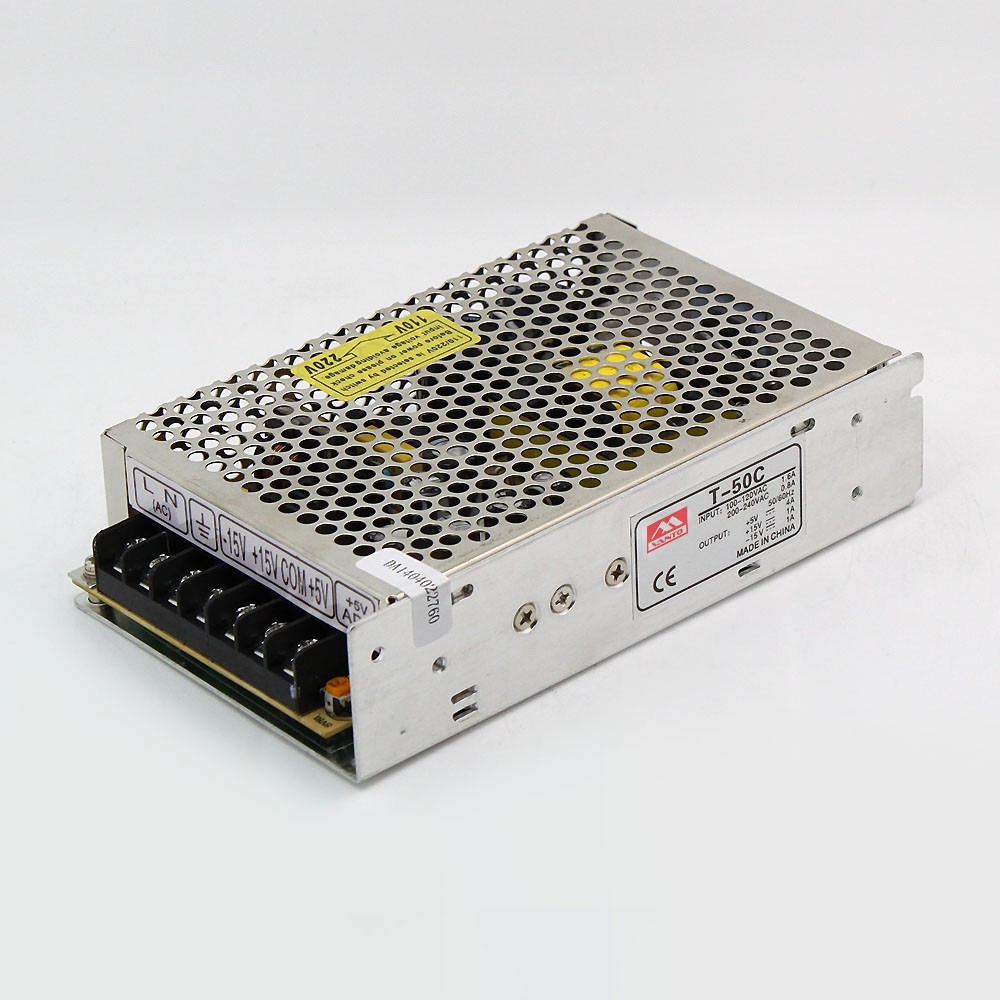

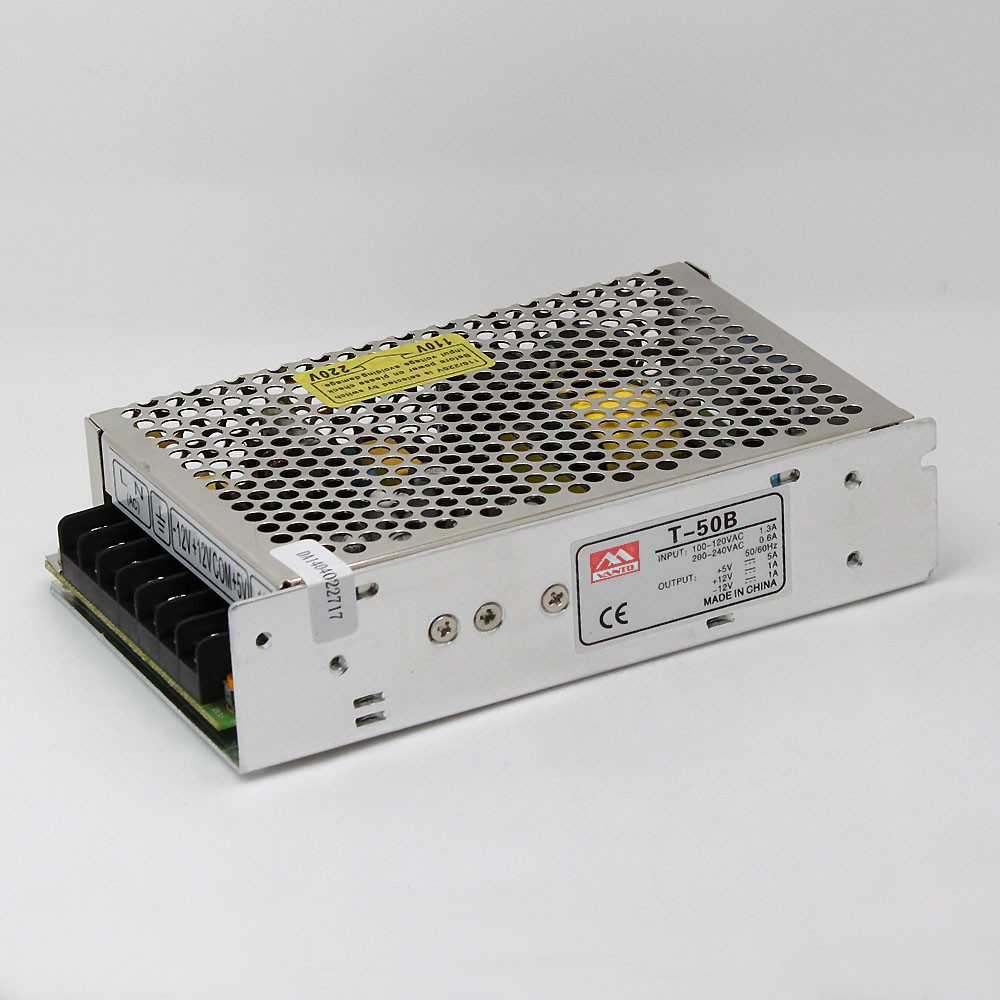

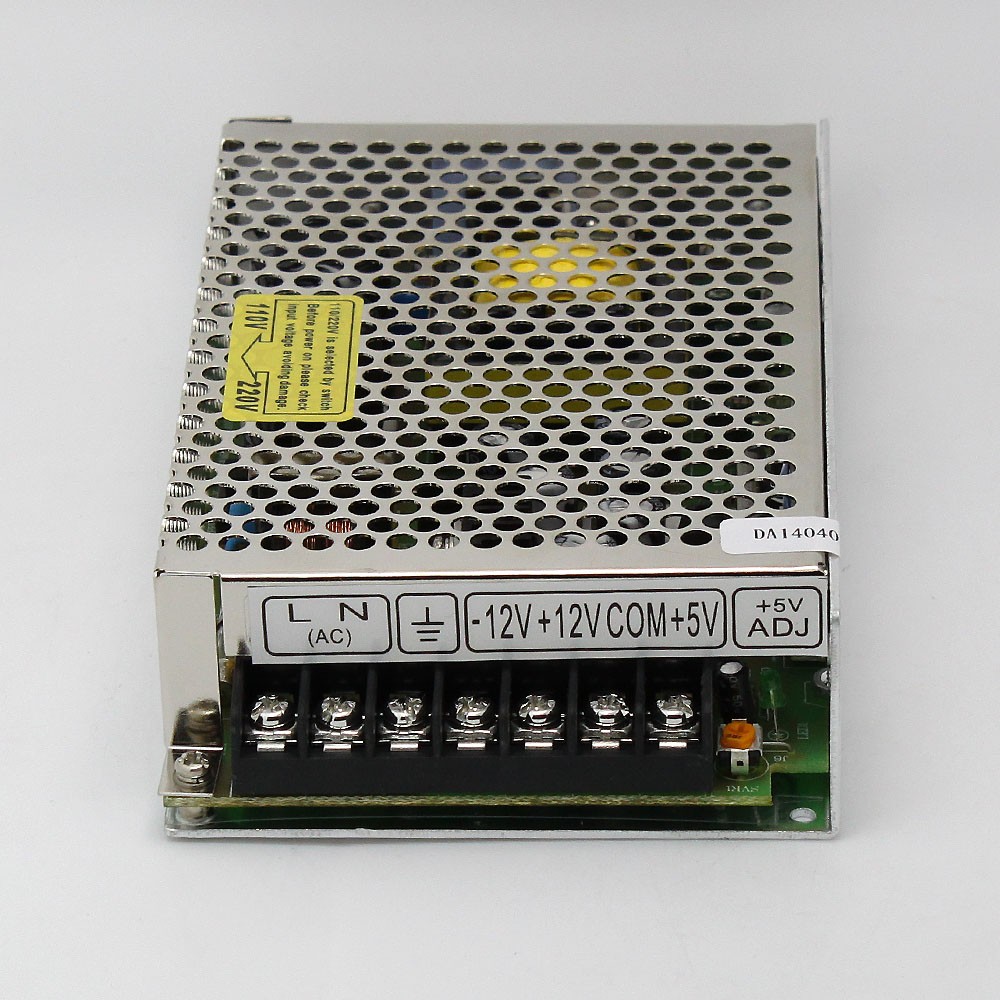

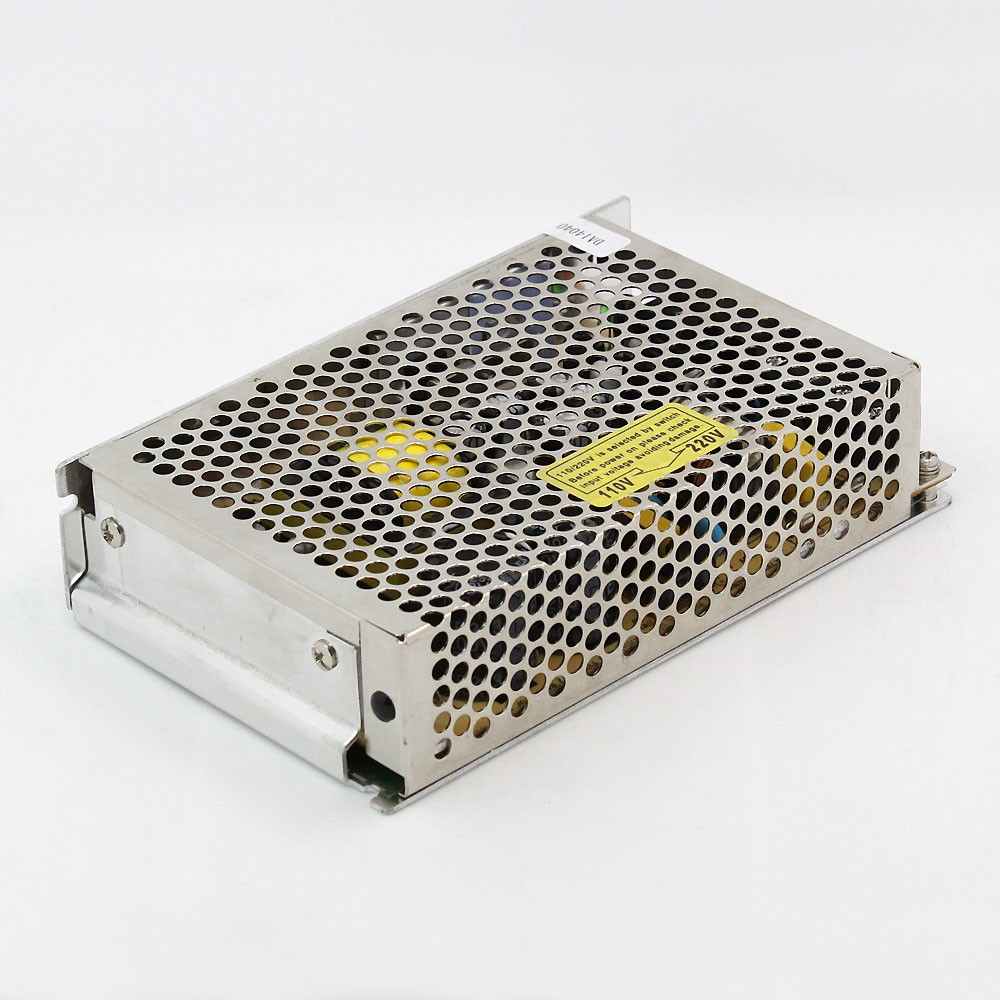

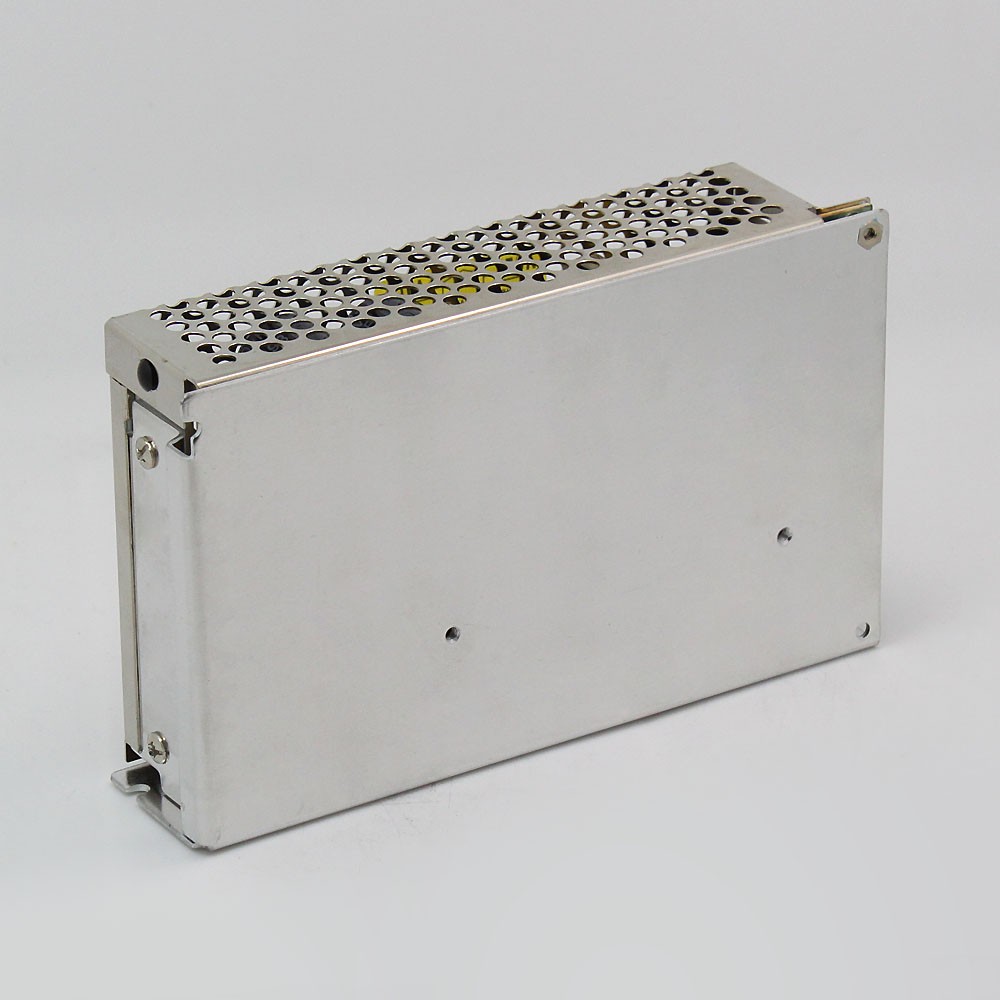

T-50W Triple Output SMPS Power Supply

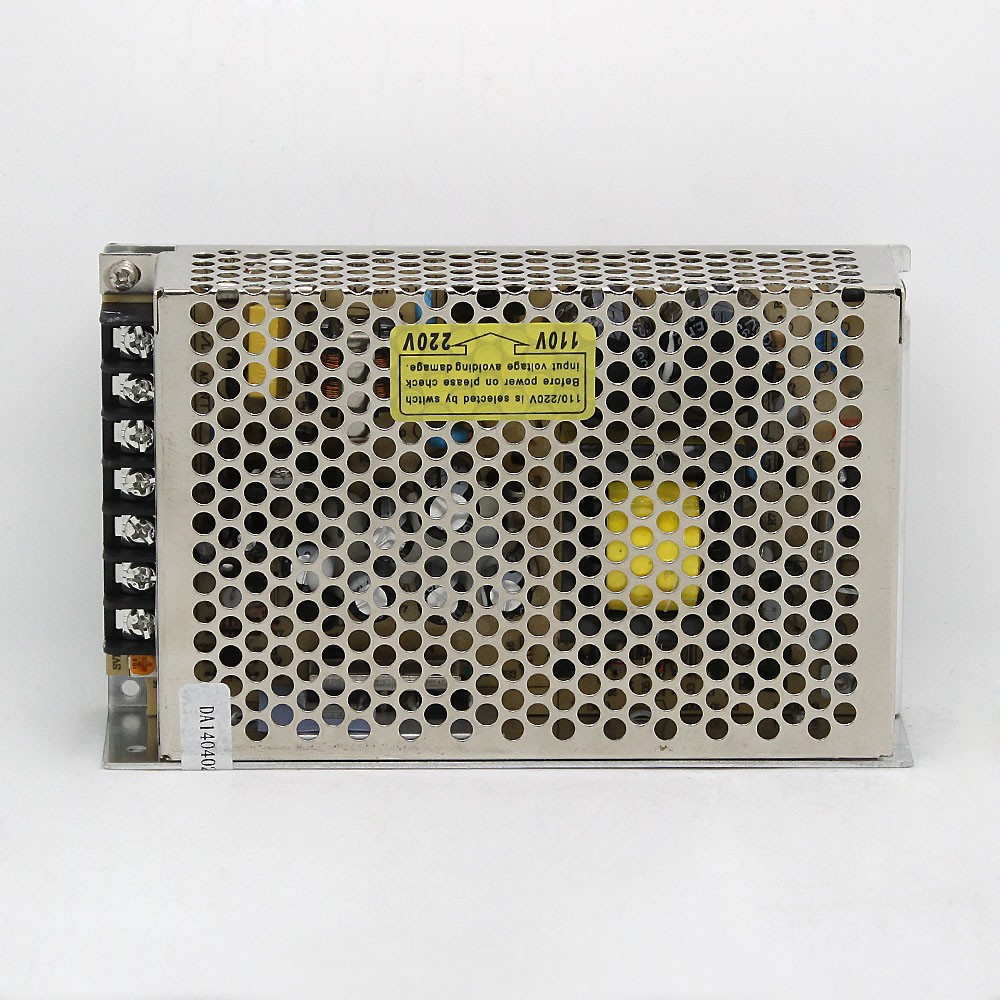

1• AC input voltage range selected by switch
2•Small volume,low weight,high efficiency
3•Protections:short circuit/over load
4•LED indicator for power on
5•100% full load burn-in test
6•2 Year warranty
7•Size: 159×98×38mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

50W Triple Output AC to DC SMPS Switch Mode Power Supply Specificates

Model

T-50A

T-50B

T -50C

T-50D

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

DC output voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

Output voltage range(Note:2)

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±6%

±6%

Rated output current

7A

1A

1A

5A

1A

1A

4A

1A

1A

3A

1A

1A

Output current range

0.6-7A

0.2-1A

0.2-1A

0.6-5A

0.2-1A

0.2-1A

0.6-1A

0.2-1A

0.2-1A

0.6-4A

0.2-1.2A

0.2-1.2A

Wave and noise(Note:3)

100mV

100mV

100mV

100mV

100mV

100mV

100mV

100mV

100mV

50mV

120mV

120mV

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±1%

±1%

Load stability(Note:5)

±1%

±4%

±4%

±1%

±4%

±4%

±1%

±4%

±4%

±1%

±5%

±5%

DC output power

52W

49W

50W

51W

Efficiency

66%

69%

71%

72%

Adjustable range for DC voltage

CH1; +10, -5%

CH1; +10, -5%

CH1; +10, -5%

CH1; +10, -5%

Input current

1.6A/115V 0.8A/230V

AC inrush current

Cold-start current 20A/115V 40A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°c(0~50°c)ON+5V

Setup, rise , hold up time

200ms, 50ms, 16ms

Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC


Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°c~+60°c(Refer to output derating curve), 20%~90%RH

Overall dimension

159×98×38mm

Weight

0.55Kgs

Safety standards

Meet UL 1012 requirement (Not apply for the mark)

50W Triple Output AC to DC SMPS Switch Mode Power Supply Packing

120w Dual Output AC to DC Switch Mode Power Supply Packing Show

50W Triple Output AC to DC SMPS Switch Mode Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:12-24 months
