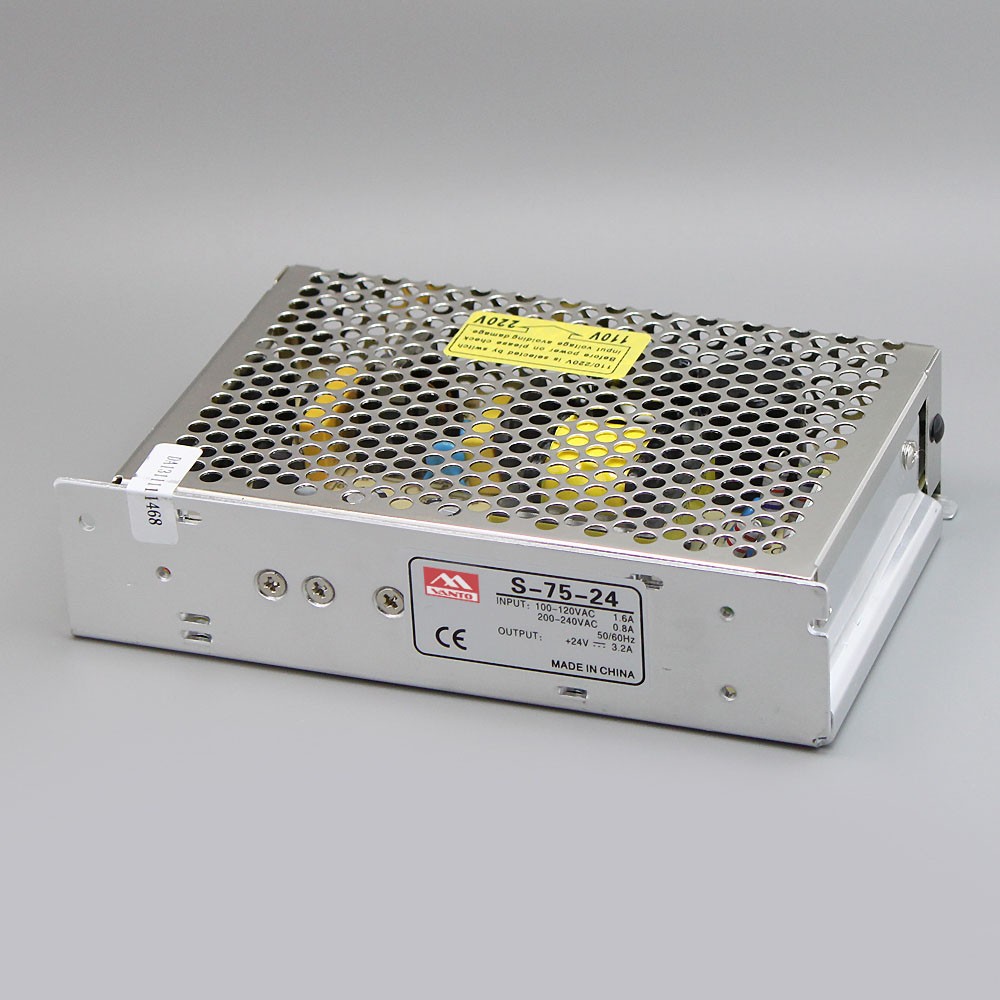

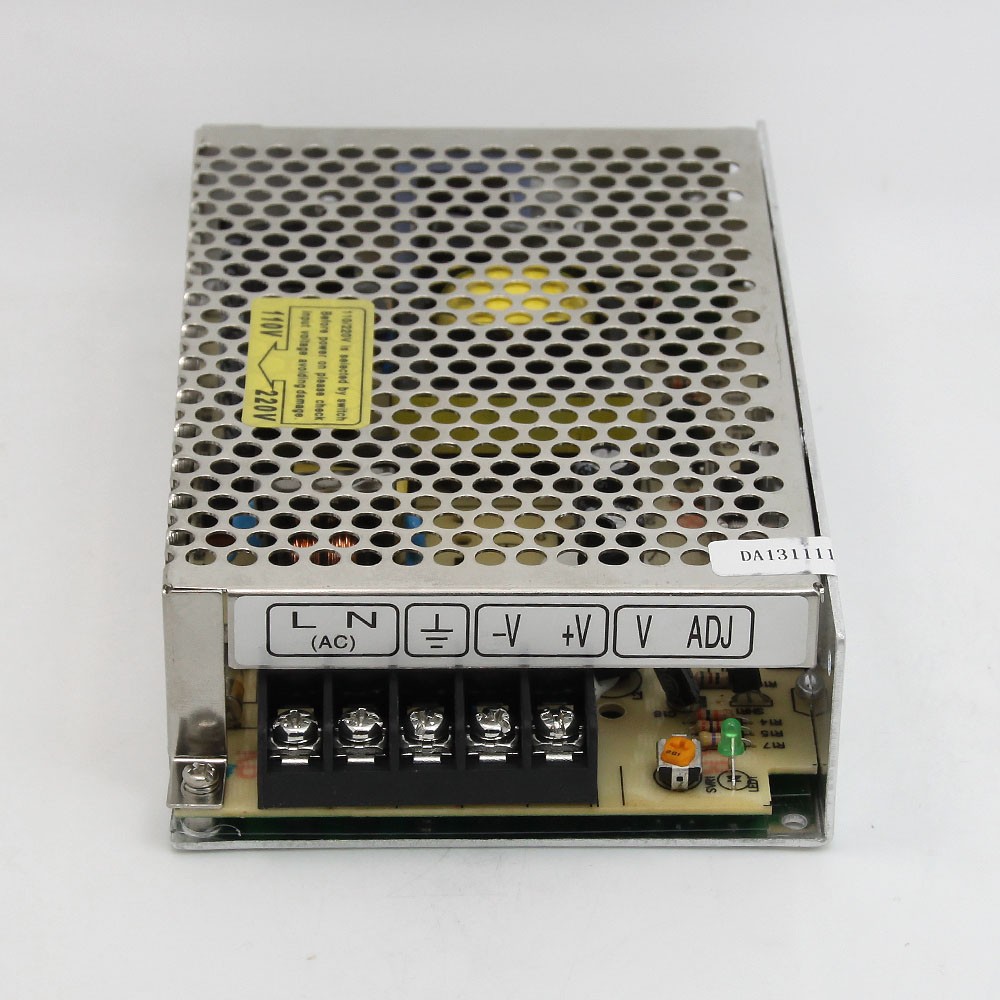

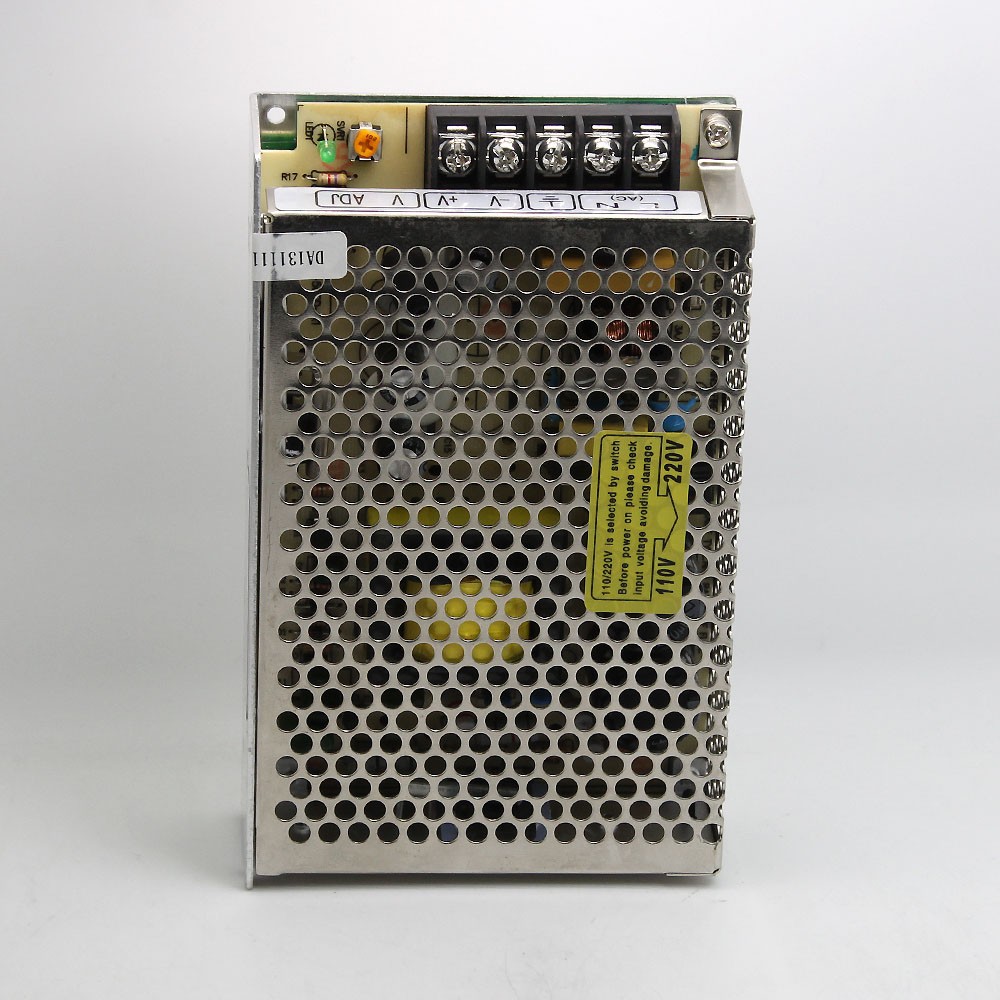

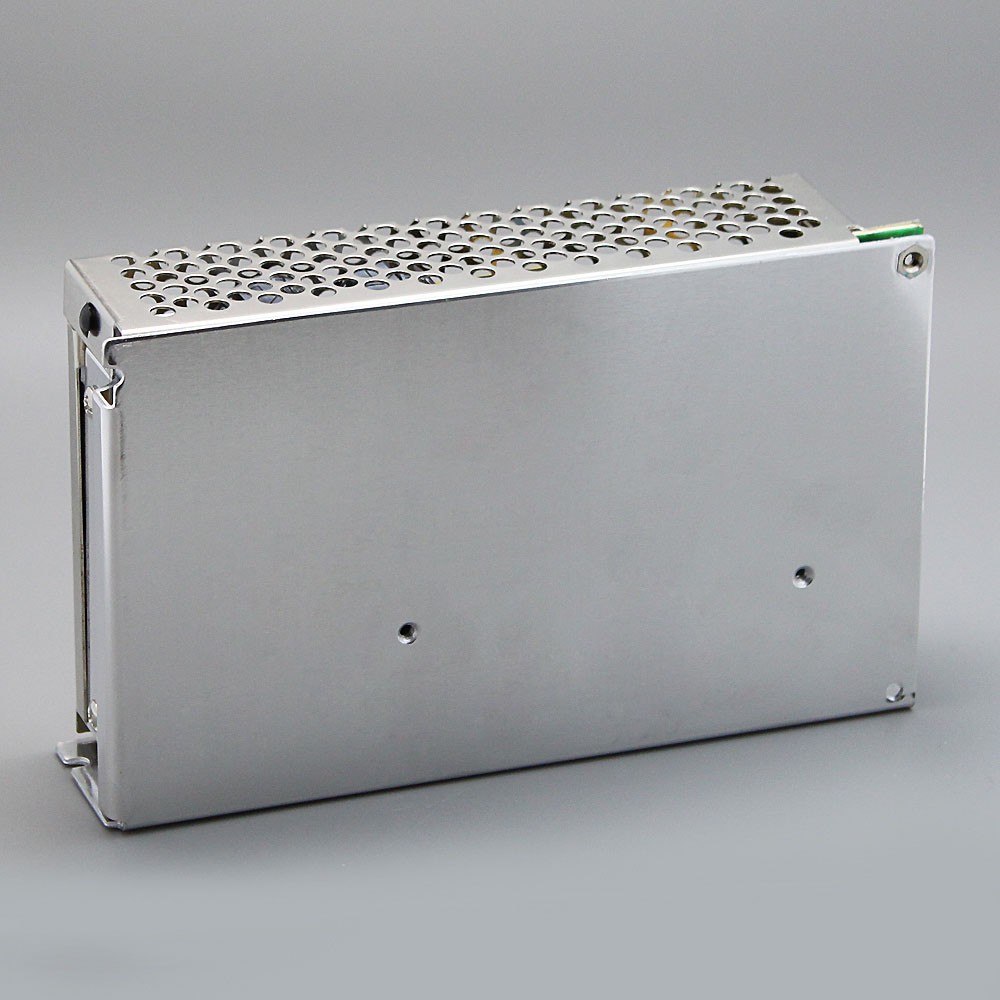

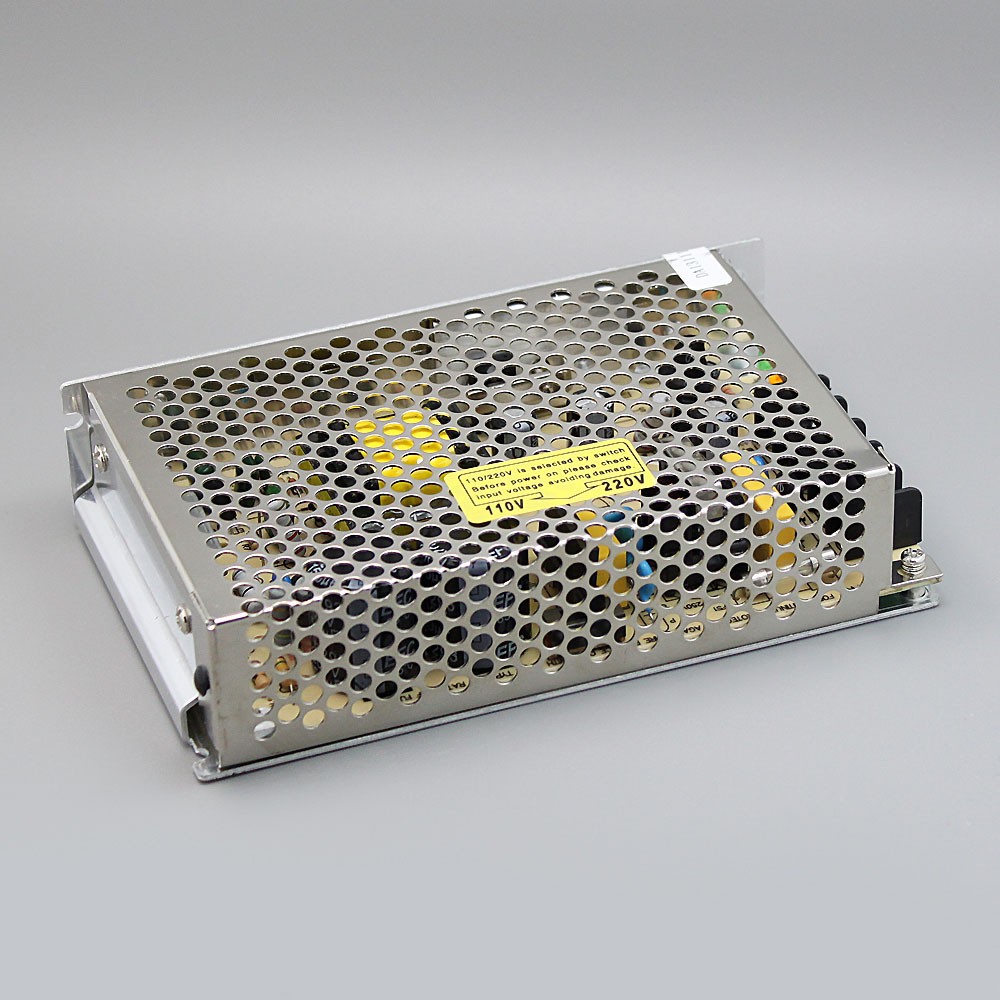

S-75W Single Output Switching Power Supply

1. High efficiency, high reliability and low cost
2. Switch input voltage range choice
3. 100% full load and machine test
4. Protection characteristics: short circuit/overload
5. Air cooling
6. Working frequency 37 KHz
7. Two years warranty
8. Size:199*98*38mm(L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

75W AC DC Switching Power Supply Specificates

MODEL S-75-5 S-75-12 S-75-24 S-75-48
OUTPUT DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 12A 6A 3A 1.6A
CURRENT RANGE 0 ~ 12A 0 ~ 6A 0 ~ 3A 0 ~ 1.6A
RATED POWER 60W 72W 72W 72W
RIPPLE & NOISE (max.) 70mVp-p 120mVp-p 120mVp-p 200mVp-p
VOLTAGE ADJ. RANGE +10,-5% ±10% ±10% ±10%
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 200ms,100ms,30ms at full load
HOLD TIME 100ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 85~264VAC or 240~370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 77% 80% 84% 85%
AC CURRENT 2A/115VAC 1A/230VAC
INRUSH CURRENT (max.) COLD START 18A/115V 36A/230V
LEAKAGE CURRENT <3.5mA/240VAC
PROTECTION OVERLOAD Above 105%~150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75~6.75V 13.8~16.2V 27.6~32.4V 52.2~64.81V
Protection type :Shut off
ENVIRONMENT WORKING TEMP. -20 ~ +60°C
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -30 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 40°C)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min
SAFETY & EMC SAFETY STANDARDS Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMC EMISSION & IMMUNITY EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
OTHERS MTBF 500K hrs min
DIMENSION 159×97×38mm (L*W*H) 0.49kg

75W AC DC Switching Power Supply Packing

75W AC DC Switching Power Supply Packing Show

75W AC DC Switching Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
