1. High efficiency, high reliability and low cost 2. Switch input voltage range choice 3. 100% full load and machine test 4. Protection characteristics: short circuit/overload5. Air cooling 6. Working frequency 37 KHz 7. Two years warranty 8. Size: 129x98x38mm (LxWxH)
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|

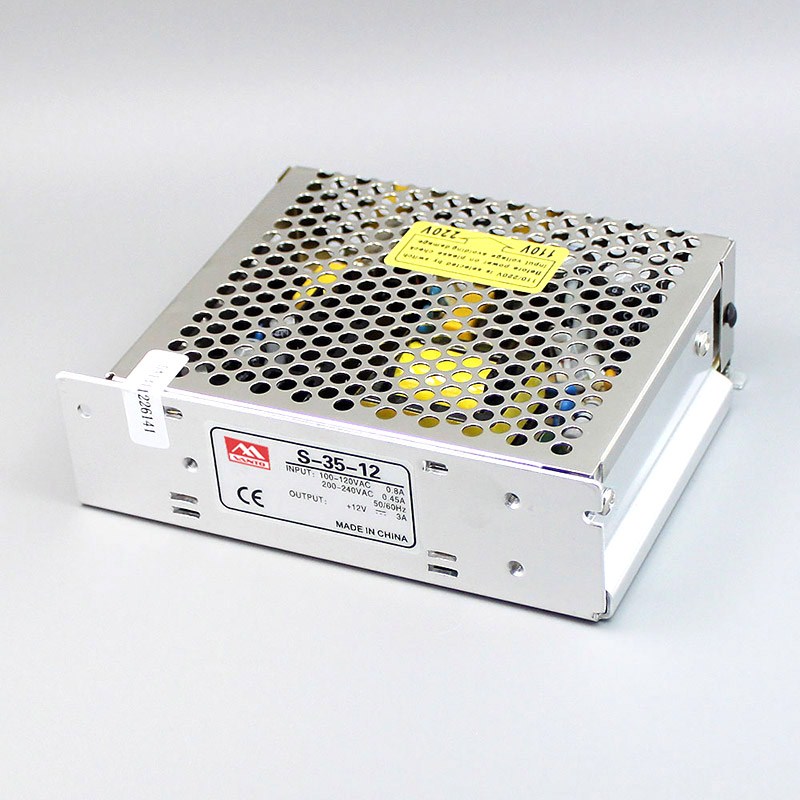

Model |
S-35-5 |
S-35-9 |
S-35-12 |
S-35-15 |
S-35-24 |
|
|
OUTPUT |
Dc output voltage |
5V |
9V |
12V |
15V |
24V |
|
Output voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
|
|
Rated output current |
7A |
3.6A |
3A |
2.4A |
1.5A |
|
|
Output current range |
0-7A |
0-3.6A |
0-3A |
0-2.4A |
0-1.5A |
|
|
Output power |
35W |
32.4W |
36W |
36W |
36W |
|
|
Ripple and the noise |
75mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
|
Dc voltage adjustable scope |
+10,-5% |
±10% |
±10% |
±10% |
±10% |
|
|
Start, rise, keep time |
200ms,100ms,30ms Loaded with |
|||||
|
INPUT |
Input voltage range |
85～132 VAC/170～264VAC 47～63 Hz；选择 240～370VDC |
||||
|
Exchange input current |
0.8 A/115 V 0.45A/ 230 V |
|||||
|
efficiency |
70% |
72% |
76% |
78% |
78% |
|
|
Impulse current |
Cold start current 18A/115V 36A/230V |
|||||
|
Leakage current |
＜2mA/240VAC |
|||||
|
PROTECTION |
Overload protection |
110%～160% |
||||
|
Protection way: current limiting, automatic recovery |
||||||
|
ENVIRONMENT |
Working temperature, humidity |
-10℃～+60℃；20%～90 %RH |
||||
|
Keep temperature, humidity |
-20℃～+85℃；10%～95 %RH |
|||||
|
Vibrate resistance |
10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis |
|||||
|
SAFETY |
Compression sex |
Between input and output |
||||
|
Insulation resistance |
Between the input and output, the input and output, and the earth |
|||||
|
STANDARD |
Safety standards |
Accord with |
||||
|
EMC standards |
Design refer to FCC Part15 J Conduction Class B |
|||||
|
OTHERS |
weight |
0.4Kg |
||||
|
packaging |
45pcs/18.8Kg/1.22CUFT |
|||||
|
NOTE |
1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. 4. Specific output current see output drop forehead curve. |
|||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
