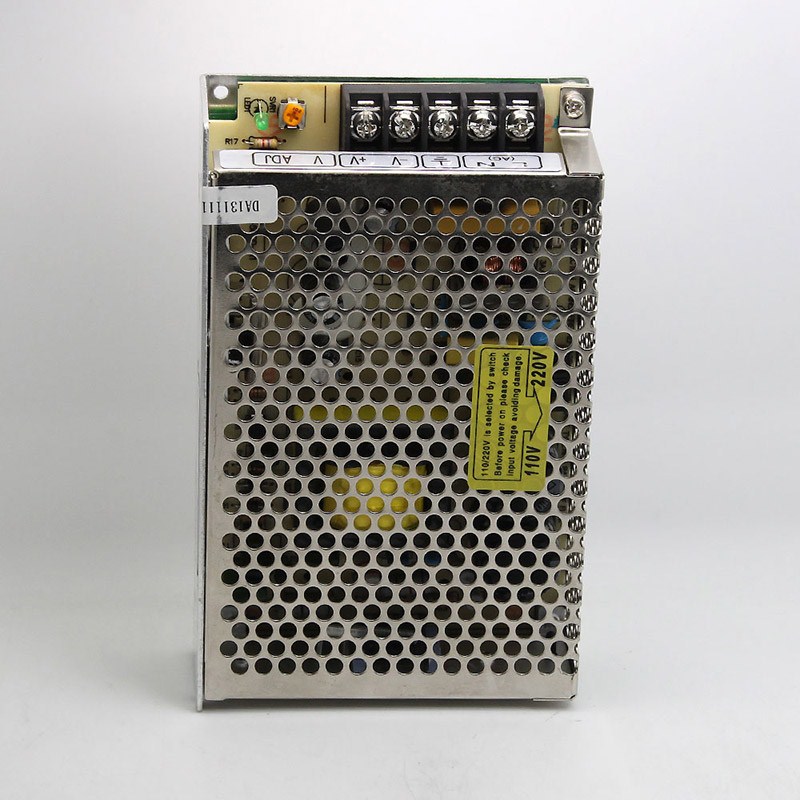

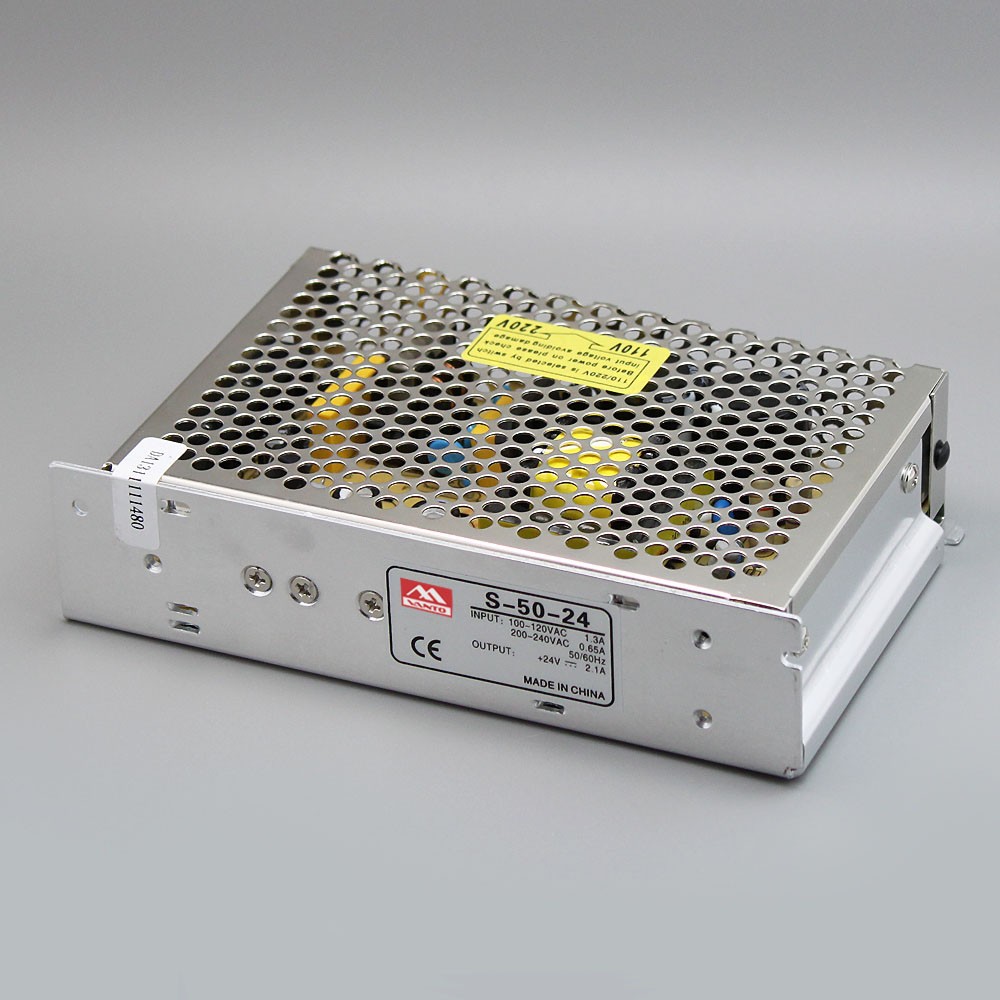

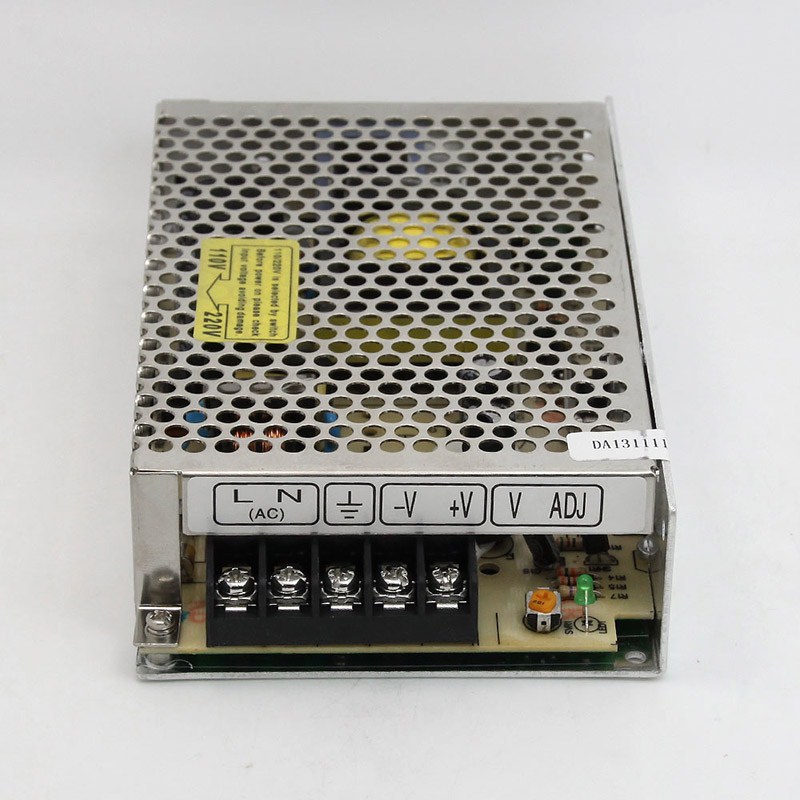

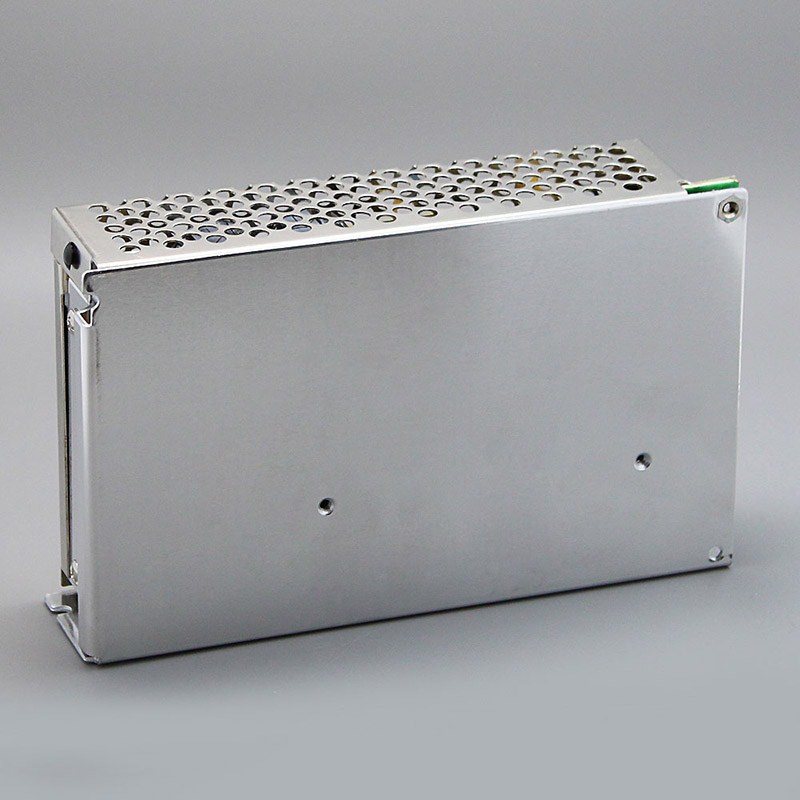

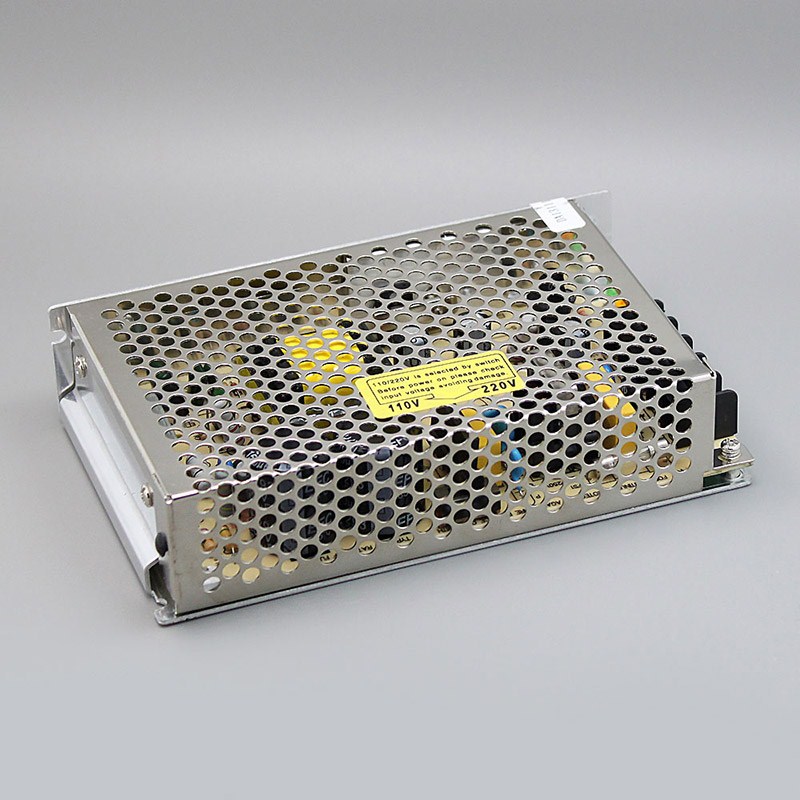

S-50W Single Output Switching Power Supply

1. High efficiency, high reliability and low cost
2. Switch input voltage range choice
3. 100% full load and machine test
4. Protection characteristics: short circuit/overload
5. Air cooling
6. Working frequency 37 KHz
7. Two years warranty
8. Size: 159*98*38mm(L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

S-50W Single Output Switching Power Supply Specificates

Model

S-50-5

S-50-12

S-50-15

S-50-24

S-50-48

OUTPUT

DC Voltage

5V

12V

15V

24V

48V

Voltage Tolerance

±2%

±1%

±1%

±1%

±1%

Rated Current

10A

4.2A

3.4A

2.1A

1A

Current Range

0-10A

0-4.2A

0-3.4A

0-2.1A

0-1A

Rated Power

50W

50.4W

51W

50.4W

48W

Ripple & Noise

75mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

DC Adjustment Range

+10,-5%

±10%

±10%

±10%

±10%

Setup, Rise, Hold Time

200ms,100ms,20ms Loaded with

INPUT

Voltage Range

85~132 VAC/170~264VAC 47~63 Hz by switch 240~370VDC

AC Curren

1.3A/115 V 0.65A/ 230 V

Efficiency

71%

78%

78%

82%

84%

Inrush Current

Cold start current
18A/115V 36A/230V

Leakage Current

<1 mA/240VAC

PROTECTION

Overload protection

110%~160%

Protection way: current limiting, automatic recovery

ENVIRONMENT

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

SAFETY

Compression sex

Input/output: 1.5 KVAC input and between
:1.5KVAC Output and to
:0.5KVAC

Insulation resistance

Between the input and output, the input and output, and ground:
100M Ohms/500VDC

STANDARD

Safety standards

meet UL1012

EMC standards

Design refer to FCC Part15 J Conduction Class B

OTHERS

weight

0.5Kg

packaging

30pcs/15.8Kg/0.99CUFT

NOTE

  1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
  2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
  3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
  4. Specific output current see output drop forehead curve.
50W AC DC Switching Power Supply Packing

50W AC DC Switching Power Supply Packing Show

50W AC DC Switching Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
