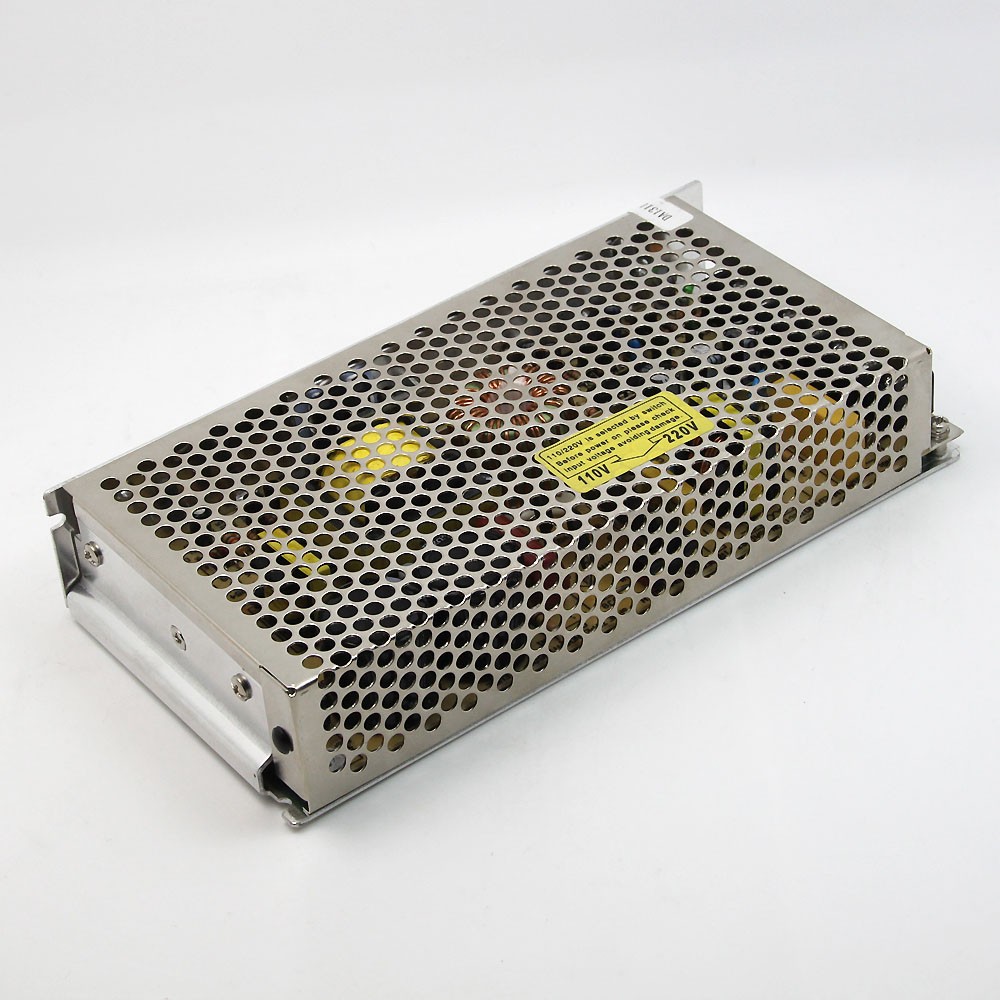

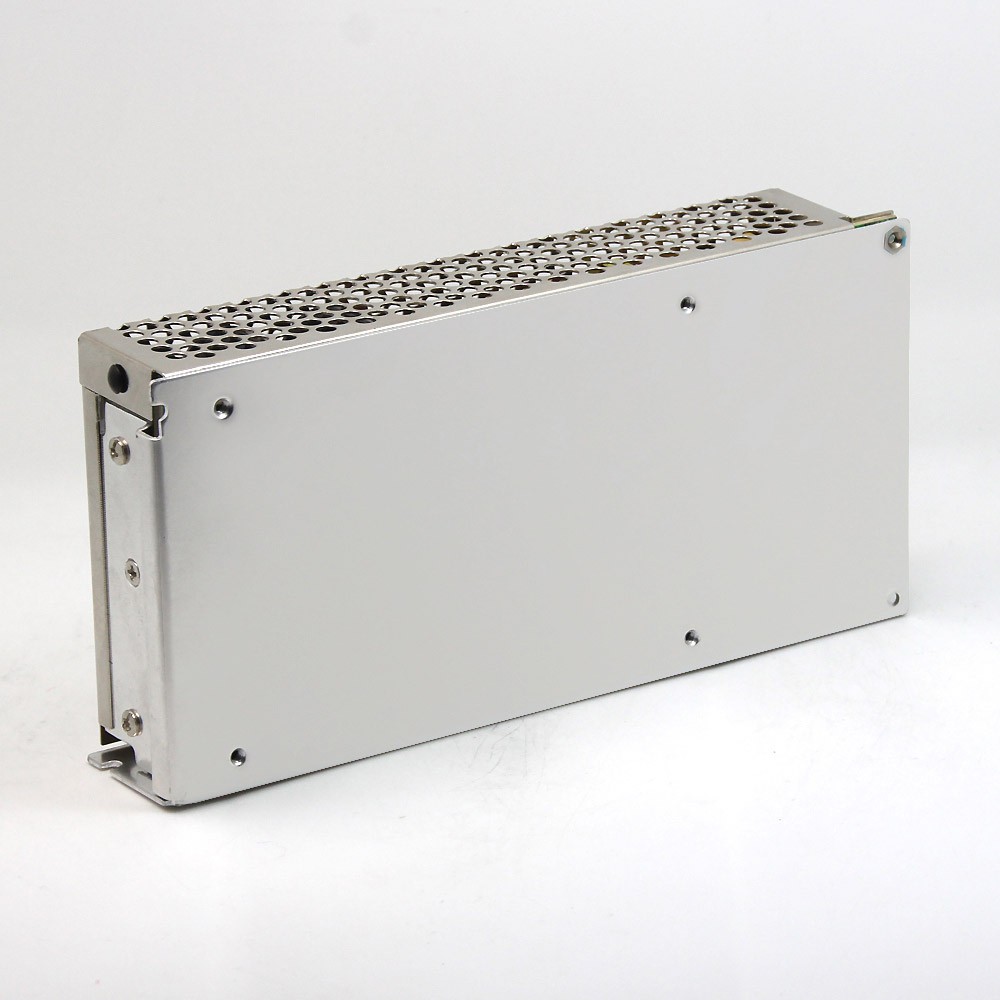

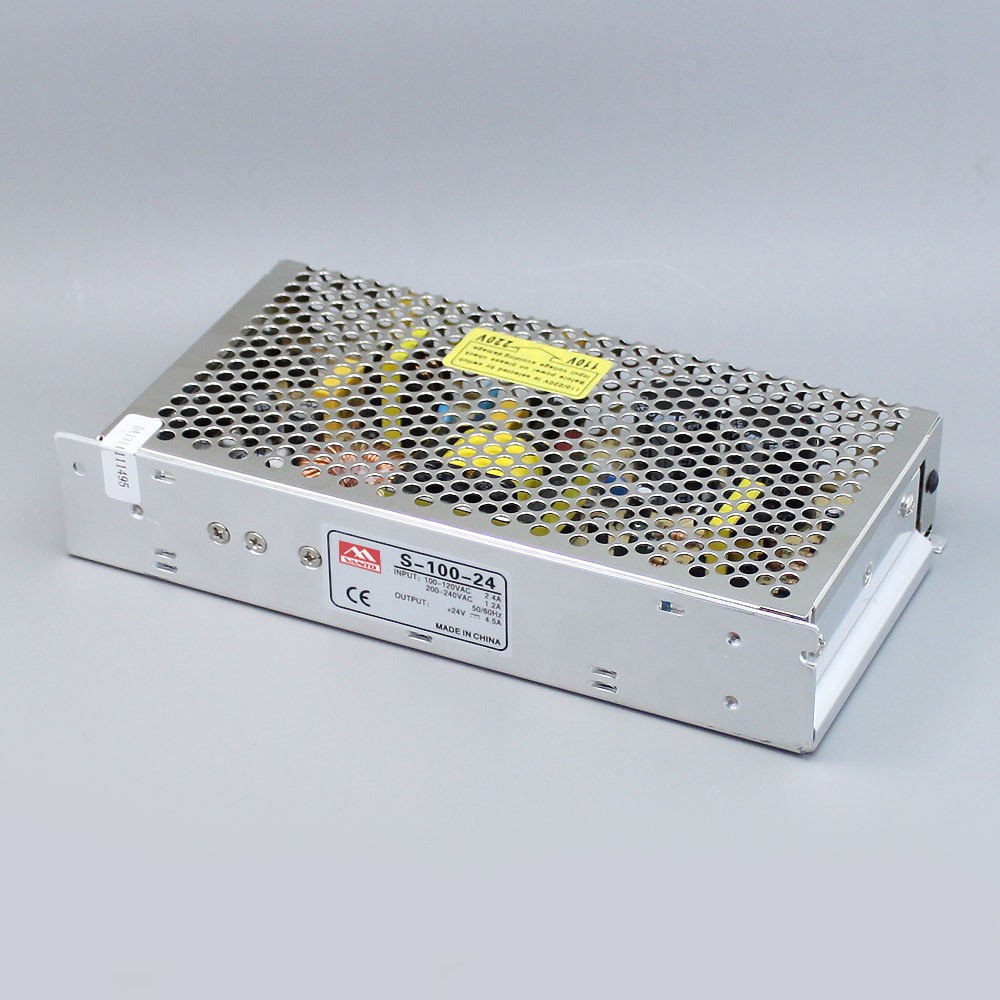

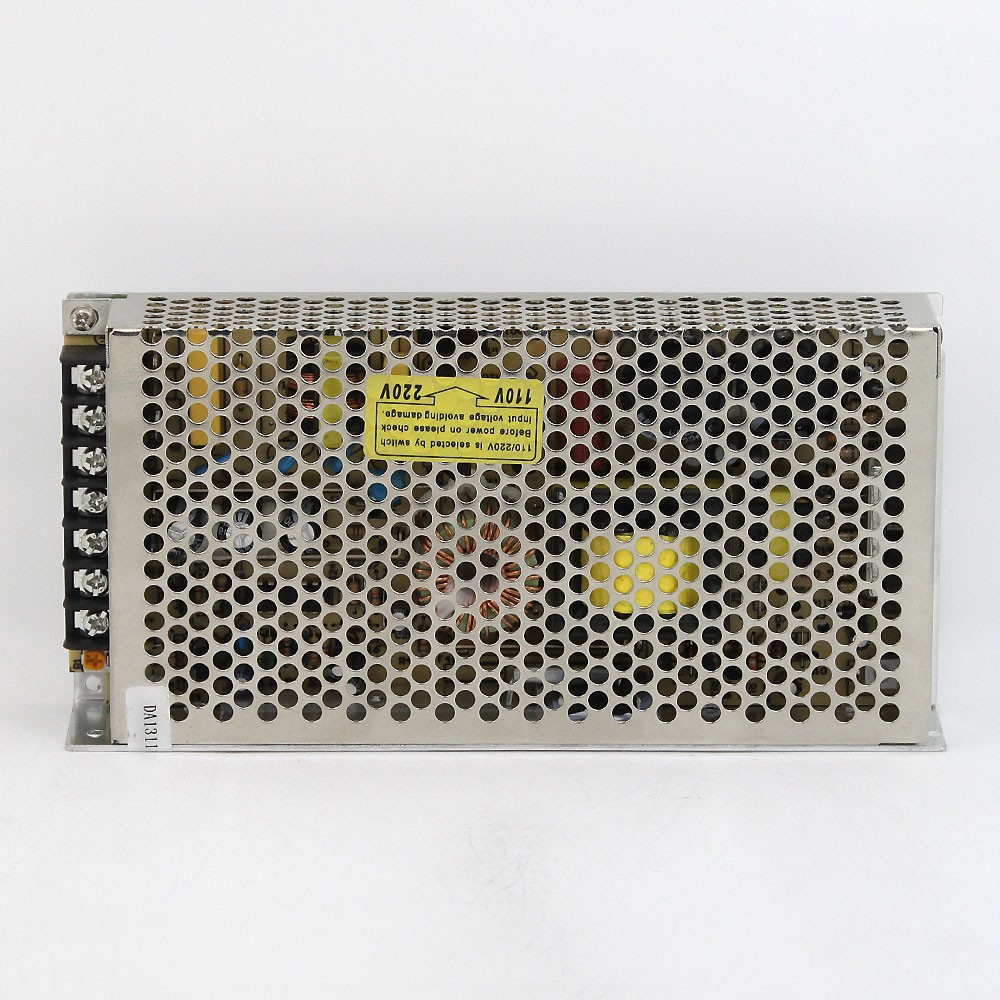

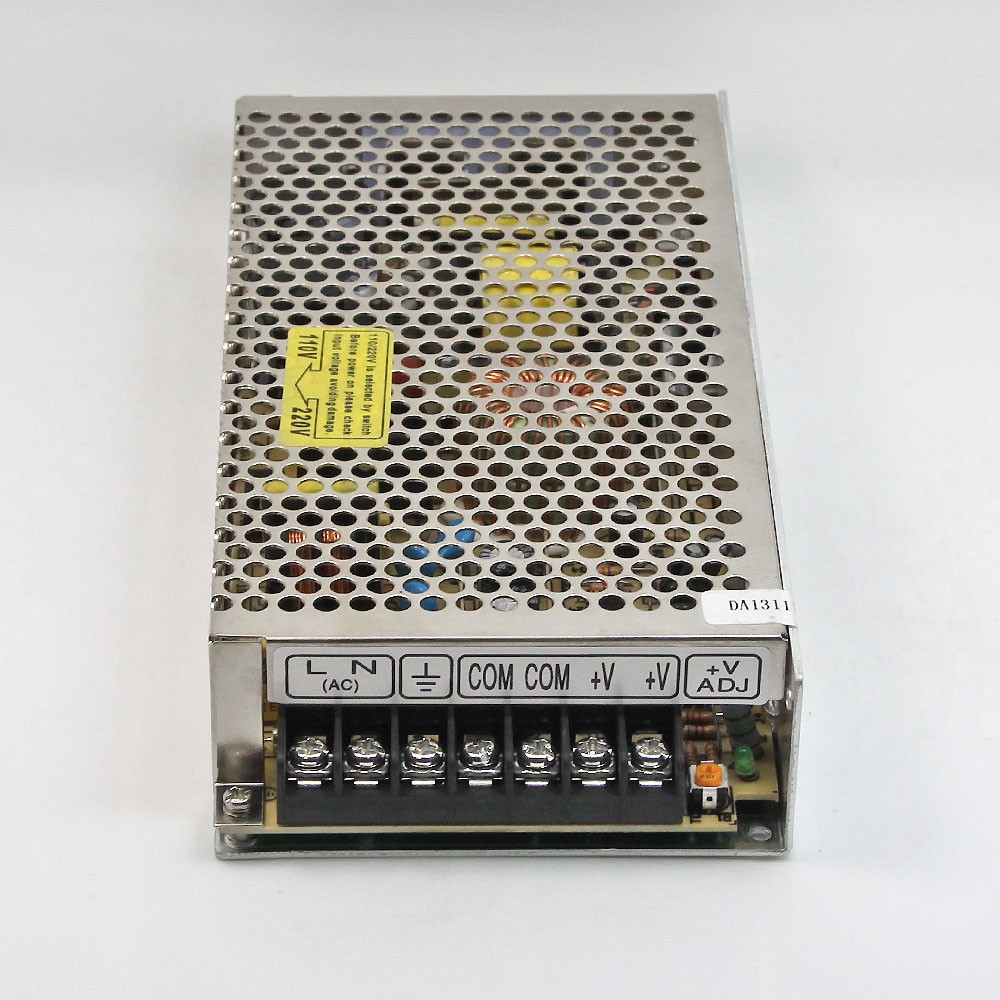

S-100W Single Output Switching Power Supply

1. High efficiency, high reliability and low cost
2. Switch input voltage range choice
3. 100% full load and machine test
4. Protection characteristics: short circuit/overload
5. Air cooling
6. Working frequency 37 KHz
7. Two years warranty
8. Size:199*98*38mm (L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

100W AC DC Single Output Switching Power Supply Specificates

Model

S-100-5

S-100-12

S-100-15

S-100-24

S-100-36

S-100-48




Output

DC voltage

5V

12V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

20A

8.5A

6.7A

4.5A

3A

2.1A

Current range

0~20A

0~8.5A

0~6.7A

0~4.5A

0~3A

0~2.1A

Rated power

100W

102W

100.5W

108W

108W

101W

Ripple&noise

100mvp-p

120mvp-p

120mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

±10%



Input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

2.4A/115VAC,1.2A/230VAC

efficiency

78%

80%

80%

82%

82%

83%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 3.5mA/240VAC


Protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

-----

-----

-----

-----

-----

-----

Environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storagetemp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

EN55022,CLASSA

Others

Dimension

199*98*38mm (L*W*H)

Weight/packing

0.6kg/30pcs/19kg/0.034 m³/1.2CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
