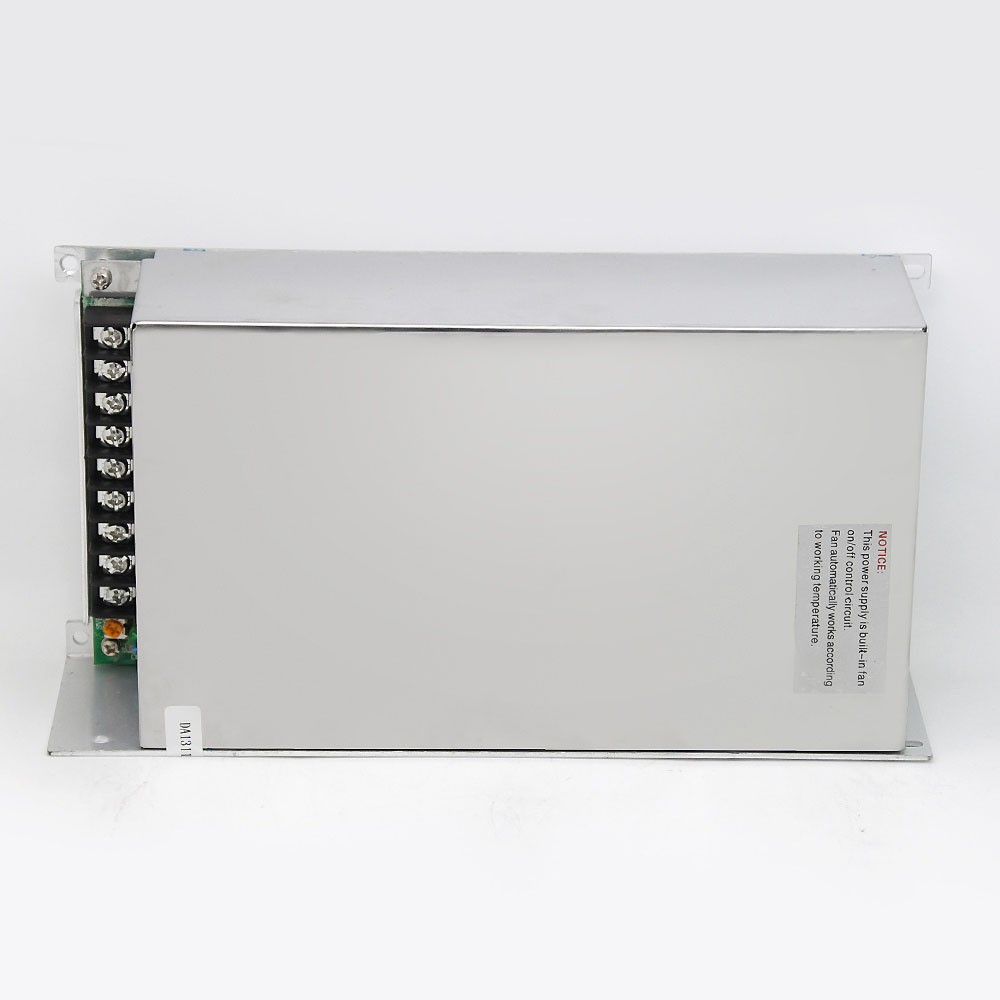

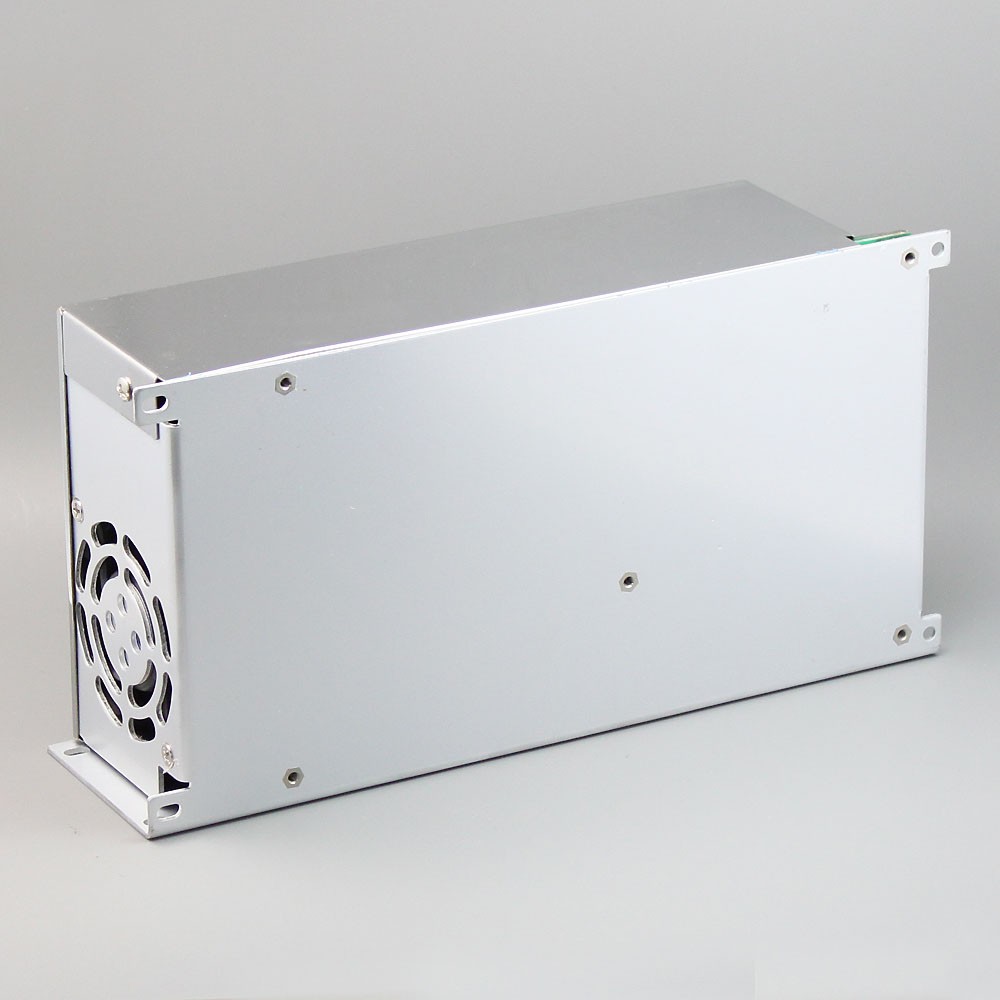

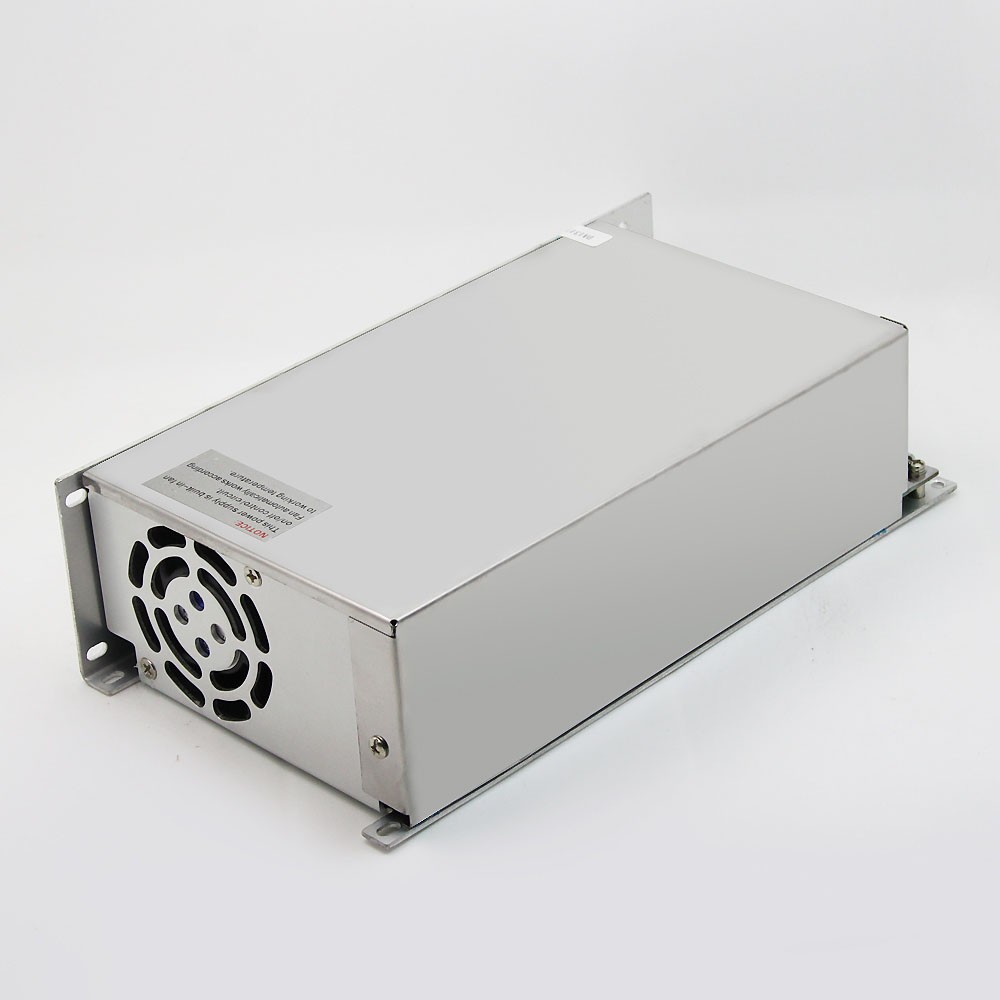

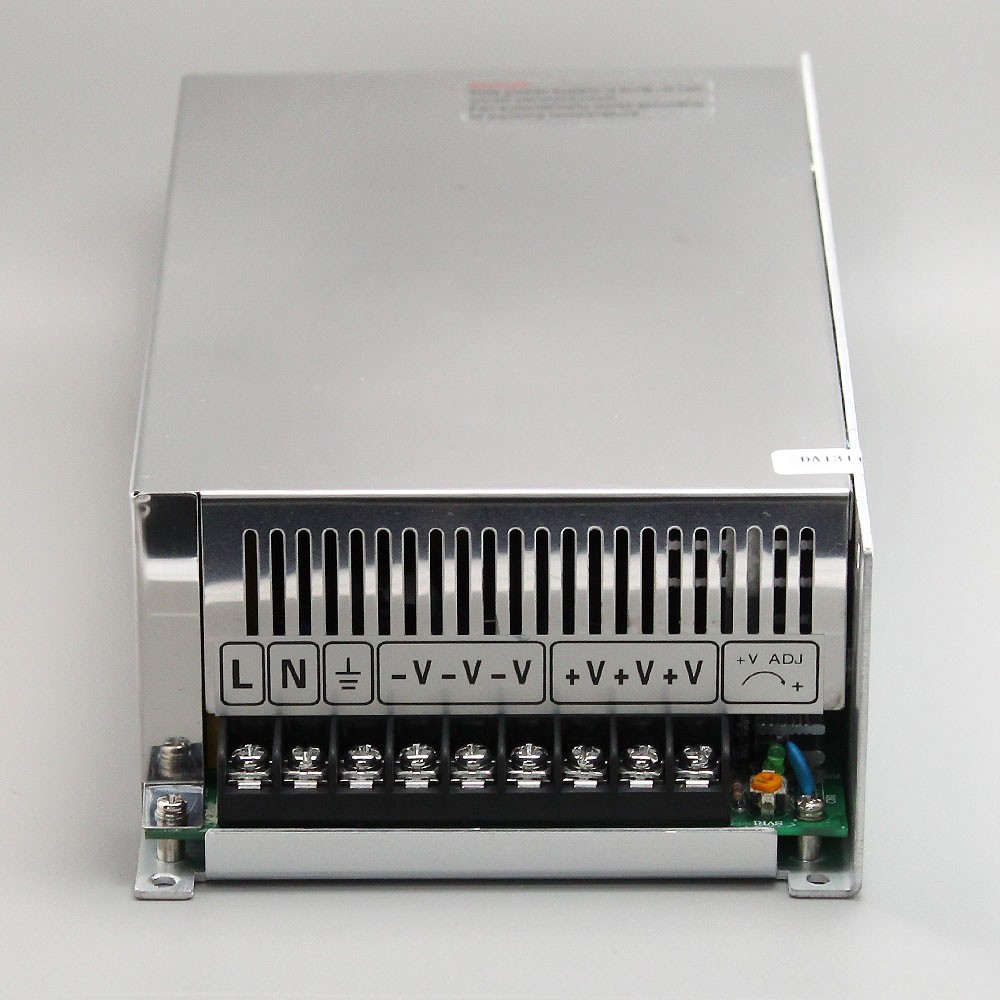

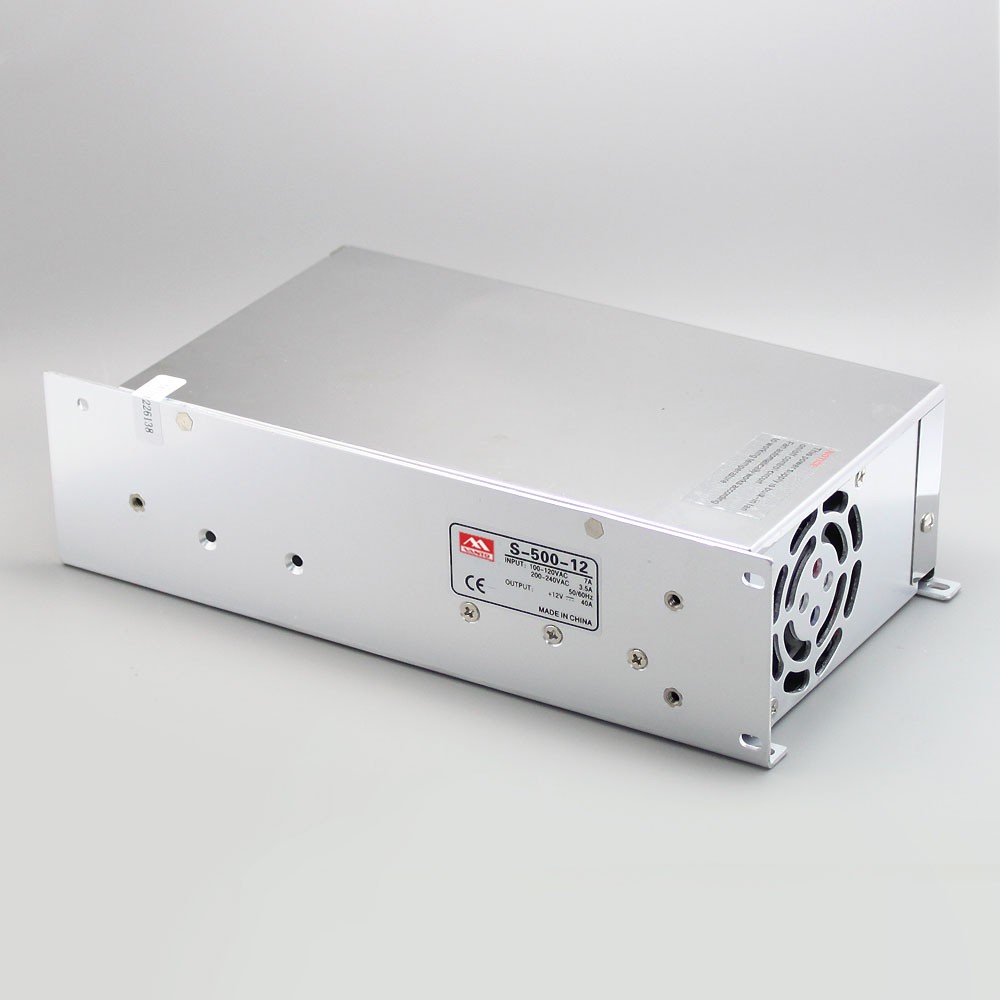

S-500W Single Output Switching Power Supply

1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. Forced air cooling by built-in DC fan
4. Cooling Fan ON-OFF auto control
5. 100% full load burn-in test
6. Low cost, high reliability
7. 2 years warranty
8. Size:240*125*65mm (L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

500W AC to DC CCTV Switching Power Supply

MODEL

S-500-12

S-500-13.5

S-500-15

S-500-24

S-500-27

S-500-48

OUTPUT

DC VOLTAGE

12V

13.5V

15V

24V

27V

48V

RATED CURRENT

40A

36A

32A

20A

18A

10A

CURRENT RANGE

0 ~ 40A

0 ~ 36A

0 ~ 32A

0 ~ 20A

0 ~ 18A

0 ~ 10A

RATED POWER

480W

486W

480W

480W

486W

480W

RIPPLE & NOISE (max.)

240mVp-p

240mVp-p

240mVp-p

240mVp-p

200mVp-p

300mVp-p

VOLTAGE ADJ.RANGE

10 ~ 13.2V

12 ~ 15V

13.5 ~ 18V

20 ~ 26.4V

26 ~ 32V

41 ~ 56V

VOLTAGE TOLERANCE

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE, HOLD TIME

200ms, 50ms, 20ms at full load

INPUT

VOLTAGE RANGE

90-132VAC/180-264VAC by switch

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

84%

84%

84%

86.0%

87.0%

88%

AC CURRENT

7A/115V 3.5A/230V

INRUSH CURRENT (max.)

18A/115V 36A/230V

LEAKAGE CURRENT

<3.5mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 135% of rate load

Protection type : Fold back current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

13.8 ~ 16.2V

15.5 ~ 18.2V

18 ~ 21V

27.6 ~ 32.4V

31 ~ 36.5V

57.6 ~ 67.2V

Protection type : Hiccup mode, recovers automatically after fault condition is removed.

FAN CONTROL,O.T.P.

RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down

ENVIRONMENT

WORKING TEMP.

-10 ~ +60ºC, 20 ~ 90% RH non-condensing

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85ºC, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS

Design refer to UL1950, TUV EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A

OTHERS

MTBF

138.6K hrs min. MIL-HDBK-217F (25ºC)

DIMENSION

240*125*65mm (L*W*H)

PACKING

1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB

500W AC to DC CCTV Switching Power Supply

500W AC to DC CCTV Switching Power Supply Packing Show500W AC to DC CCTV Switching Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
