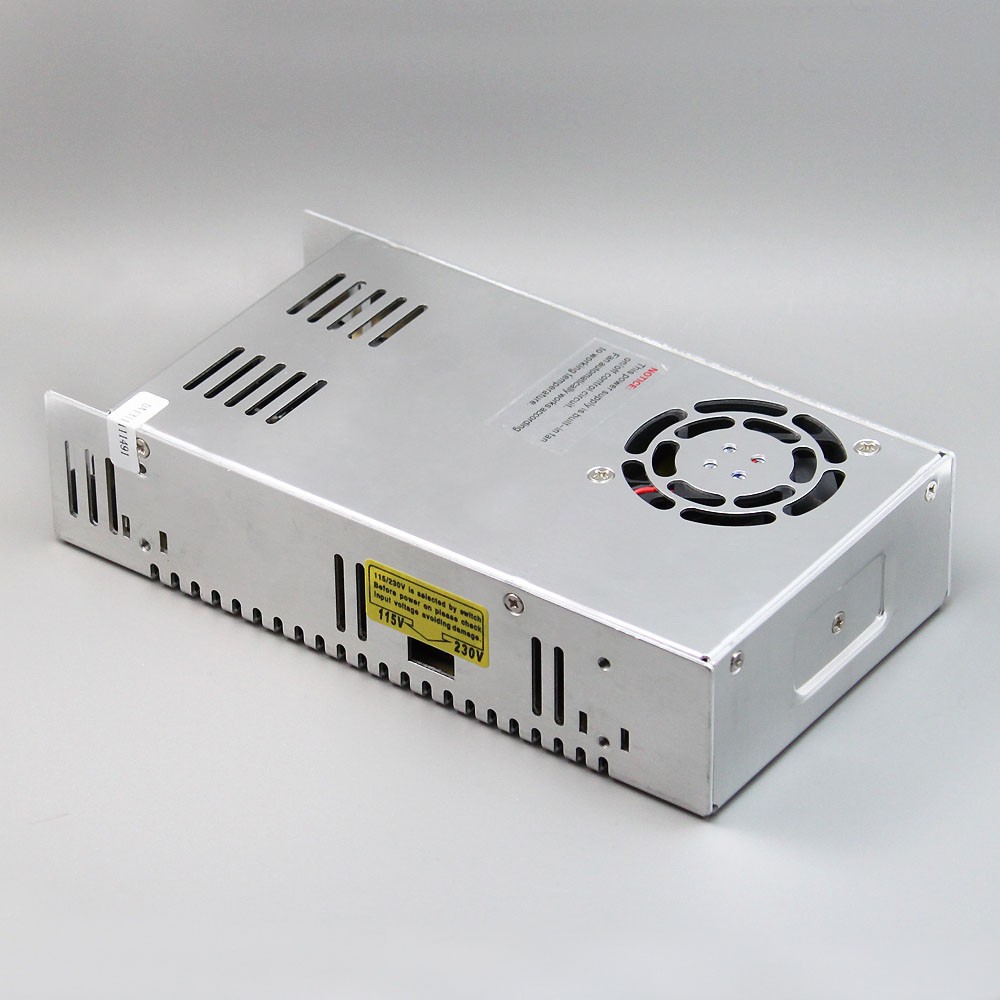

1. AC input range selectable by switch2. Protections: Short circuit / Overload / Over voltage / Over temperature3. Forced air cooling by built-in DC fan4. Cooling Fan ON-OFF auto control5. 100% full load burn-in test6. Low cost, high reliability7. 2 years warranty
OnLine Service: |
|
|---|---|

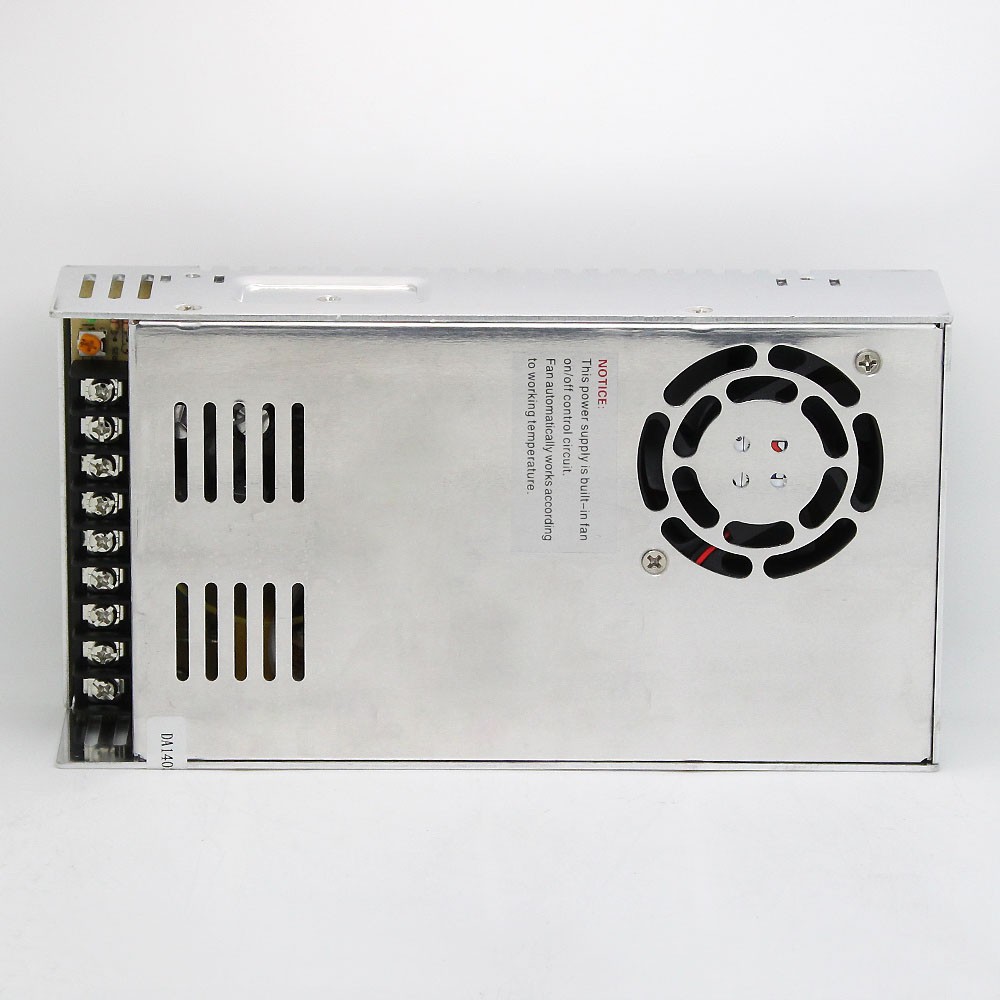

E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|

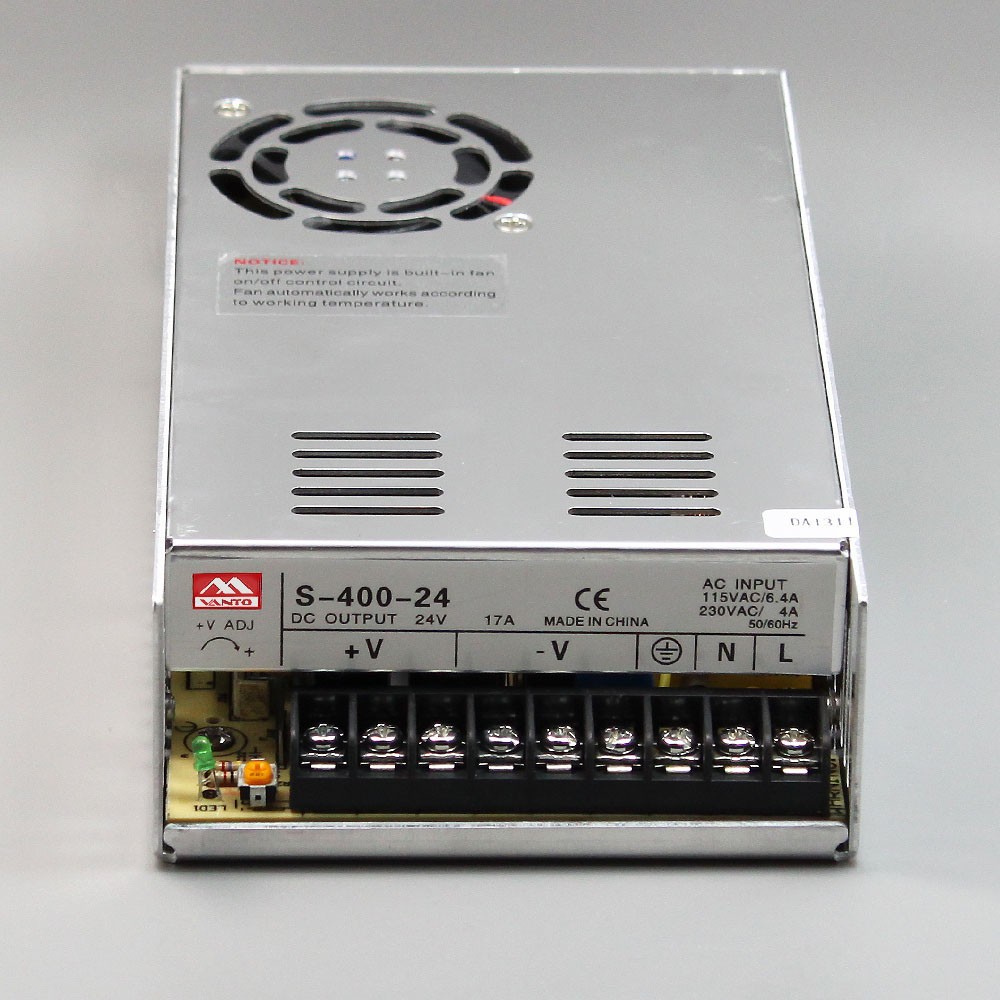

Model |
S-400W-5V |
S-400W-12V |
S-400W-15V |
S-400W-24 |
S-400W-48 |
|
DC output voltage |
5V |
12 V |
15 V |
24V |
48V |
|
DC output current |
60A |
33A |
27A |
16.5A |
8.3A |
|
DC output voltage error |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple & noise |
150mV |
150mV |
150mV |
150mV |
150mV |
|
efficiency |
73% |
74 % |
78% |
81% |
83 % |
|
AC input voltage range |
85-132VAC/170-264vac 47-63HZ 240-370VDC |
||||
|
Input current |
6.5A/115V 4A/230V |
||||
|
AC inrush current |
Cola-start current 25A/115V 50A/230V |
||||
|
Leakage current |
<3.5mA/240VAC |
||||
|
DC adjustable range |
±10% rated output voltage |
||||
|
Over load protection |
105-135% cut off the output auto -recovery |
||||
|
Over-voltage protection |
115-135 cut off the output auto -recovery |
||||
|
Setup rise hold up time |
200ms 50ms 20ms |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC 1minute I/P-FG:1.5KVAC 1minute O/P-O/P:0.5KVAC 1minute |
||||
|
Withstand temperature |
-10°C~+60°C,20%-90% RH |
||||
|
weight |
1.05kg |
||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
