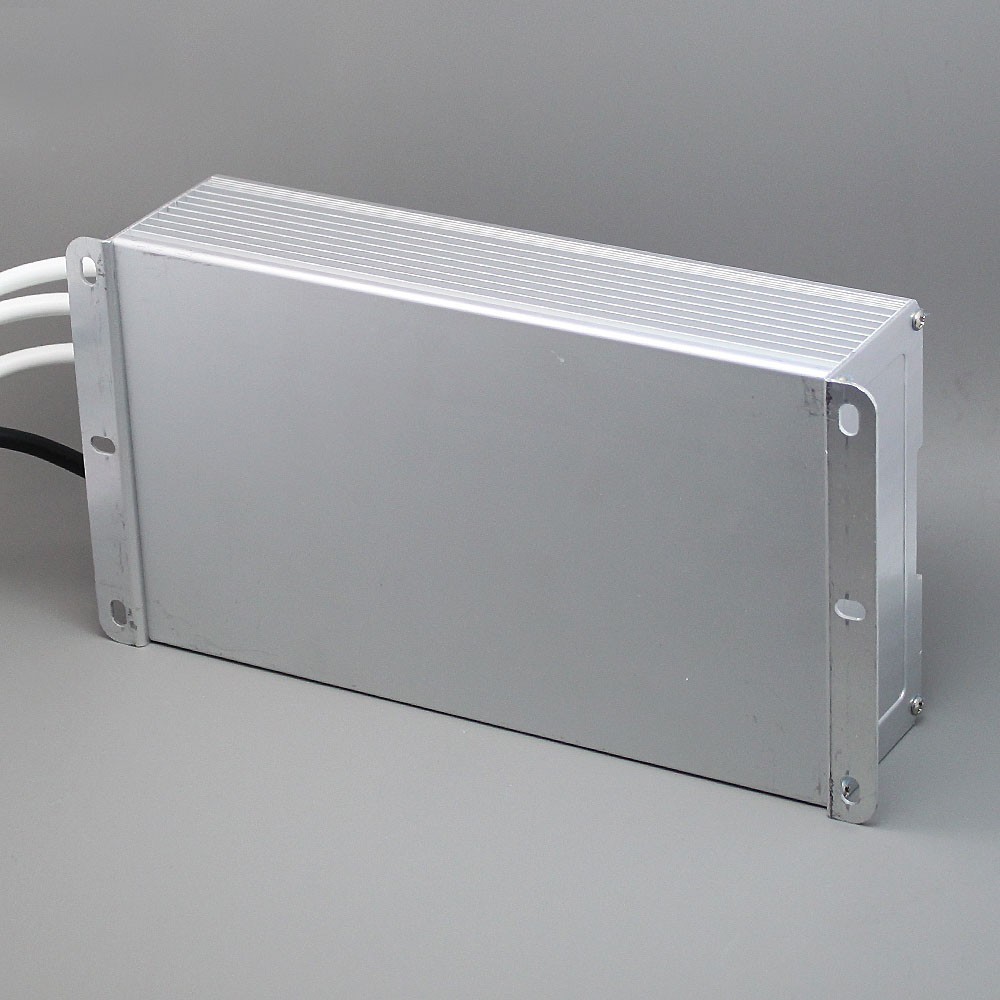

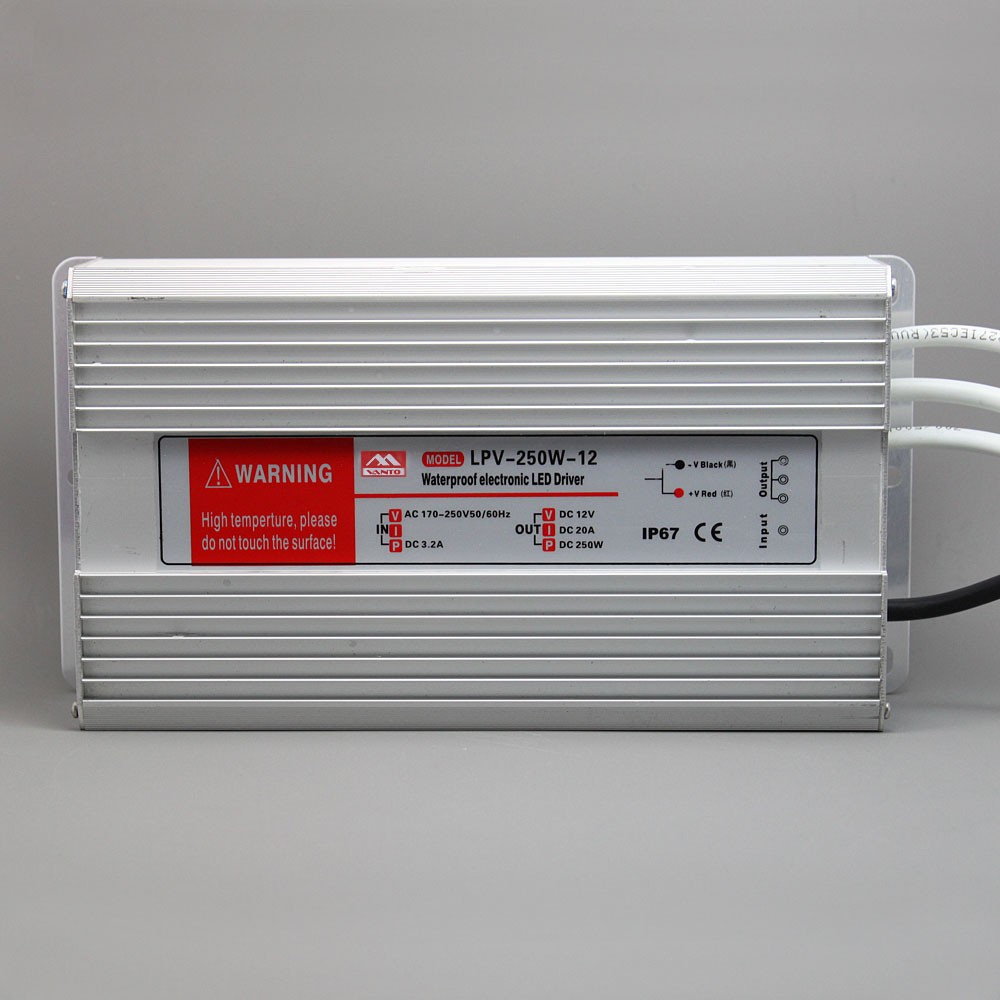

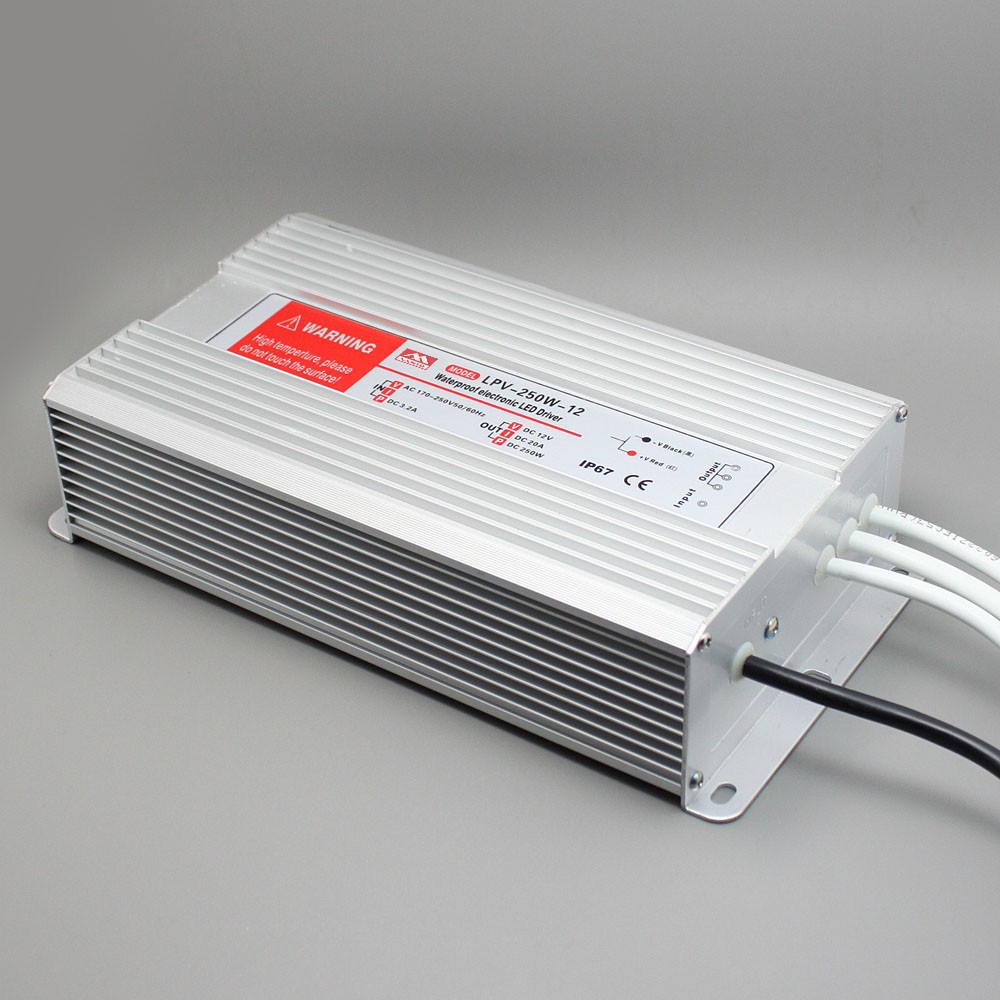

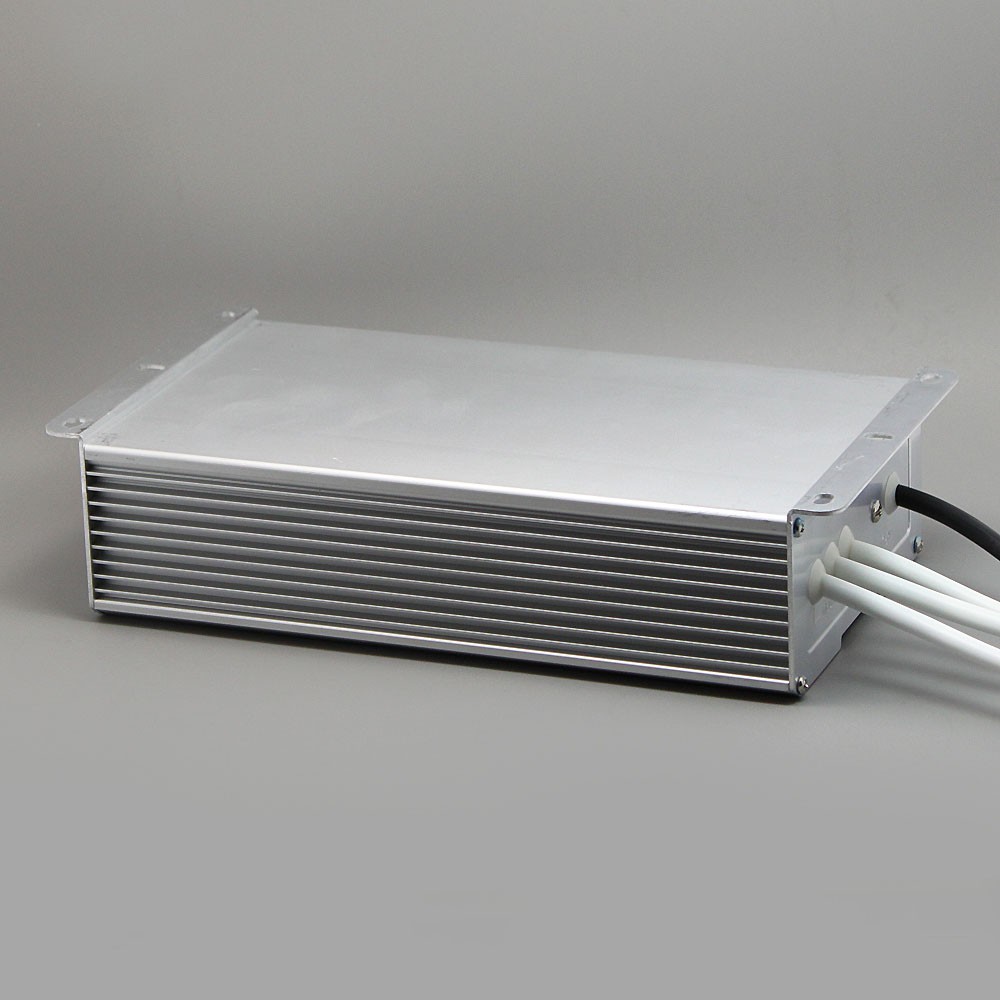

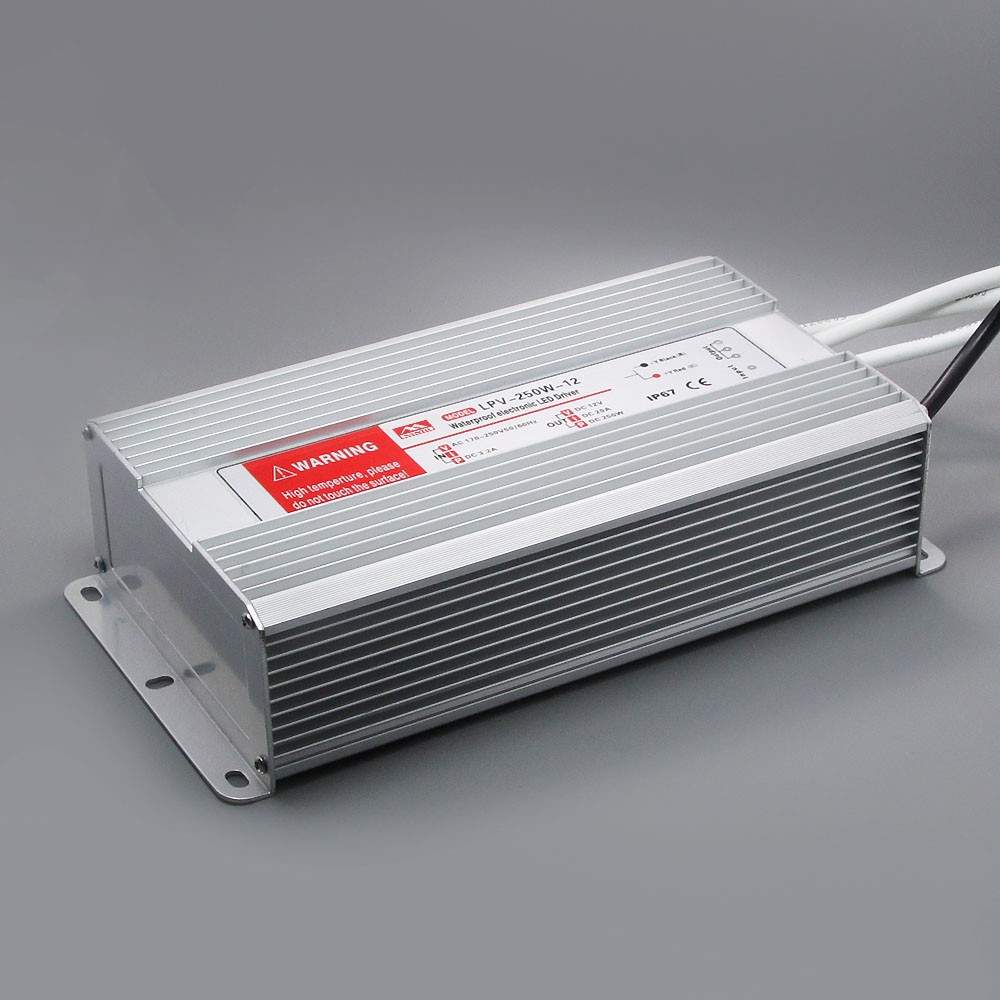

1. 180～264VAC input range2. Small volume, light weight, high efficiency3. Characteristics: short circuit protection miscalculates/overload/pressure/thermal4. Air cooling5. Waterproof IP676. 100% full load burn-in test7. 2 years warranty8. Size:233 x 122 x 60mm
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model |
LPV-250-12 | LPV-250-24 | LPV-250-36 | |
| Output |
Dc output voltage |
12V | 24V | 36V |
|
Output voltage tolerance |
±3% | ±3% | ±3% | |
|
Rated output current |
20A | 10A | 7A | |
|
Output current range |
0～20A | 0～10A | 0～7A | |
|
Output power |
240W | 240W | 252W | |
|
Ripple and the noise |
150mVp-p | 200mVp-p | 200mVp-p | |
|
Dc voltage adjustable scope |
±10% | ±10% | ±10% | |
|
Start, rise, keep time |
1000ms,30ms,24ms/230VAC |
|||
| Input |
Input voltage range |
180～264VAC 47～63Hz，254～370VDC |
||
|
Exchange input current |
2.8A/230VAC |
|||
|
efficiency |
82% | 84% | 85% | |
|
Impulse current |
Cold start current 50A/230VAC |
|||
|
Leakage current |
＜3.5mA/240VAC |
|||
| Protection characteristics |
Overload protection |
Rated output power of 105% ~ 135% start the load protection, protection way: cut off output power can be automatically after the restart, recovery |
||
| Environment |
Working temperature, humidity |
-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve ) |
||
|
Keep temperature, humidity |
-20℃～+85℃;10%～95%RH No condensation |
|||
|
Vibrate resistance |
10～500Hz，2G 10min./ 1 cycle time, 60 minutes, the axis |
|||
| Security |
Compression sex |
Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC |
||
|
Insulation resistance |
Between the input and output, the output and input: with ground: 100 M / 500 VDC Ohms |
|||
| Standards |
Safety standards |
Accord with UL1012 |
||
|
EMC standard |
Accord with EN55022，CLASSA |
|||
| Other |
weight |
2.5kg 233*122*60mm（L*W*H） |
||
|
packaging |
2.5kg/9pcs/22.5kg |
|||
| Note |
1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value. 2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when. 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. |
|||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
