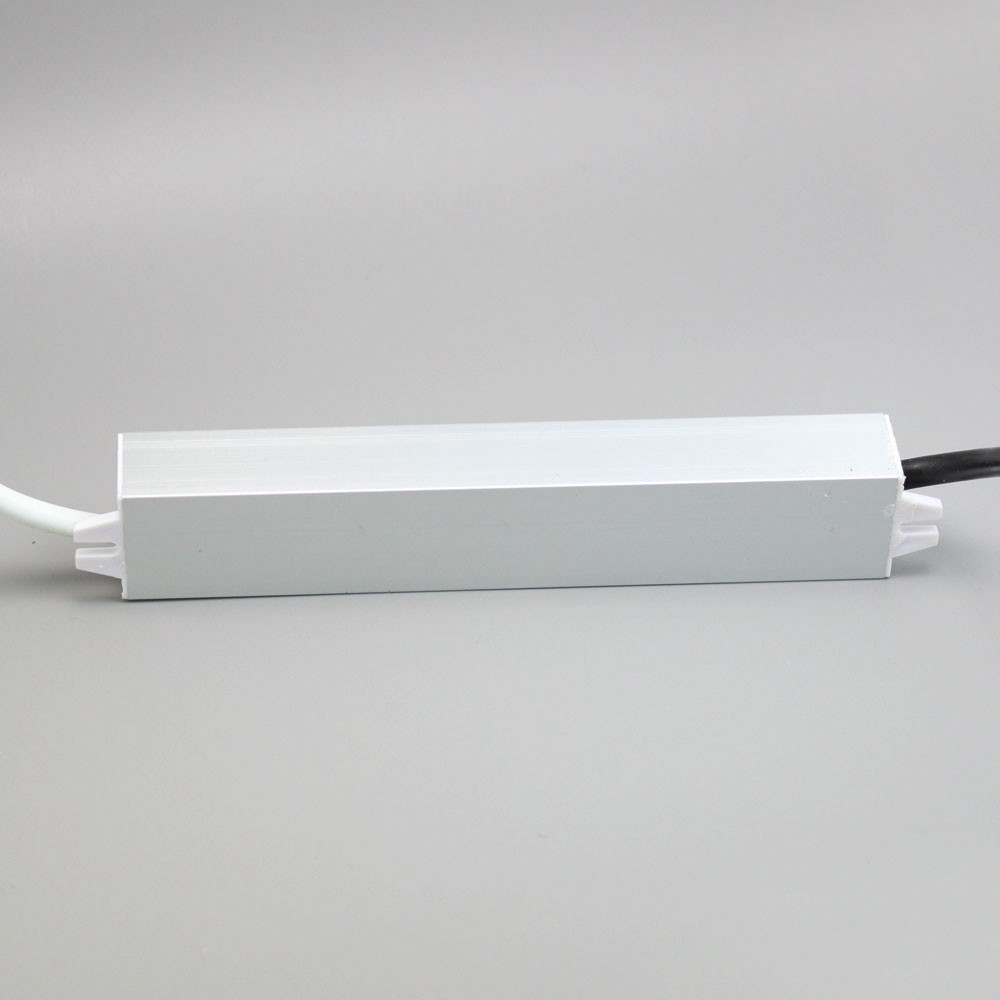

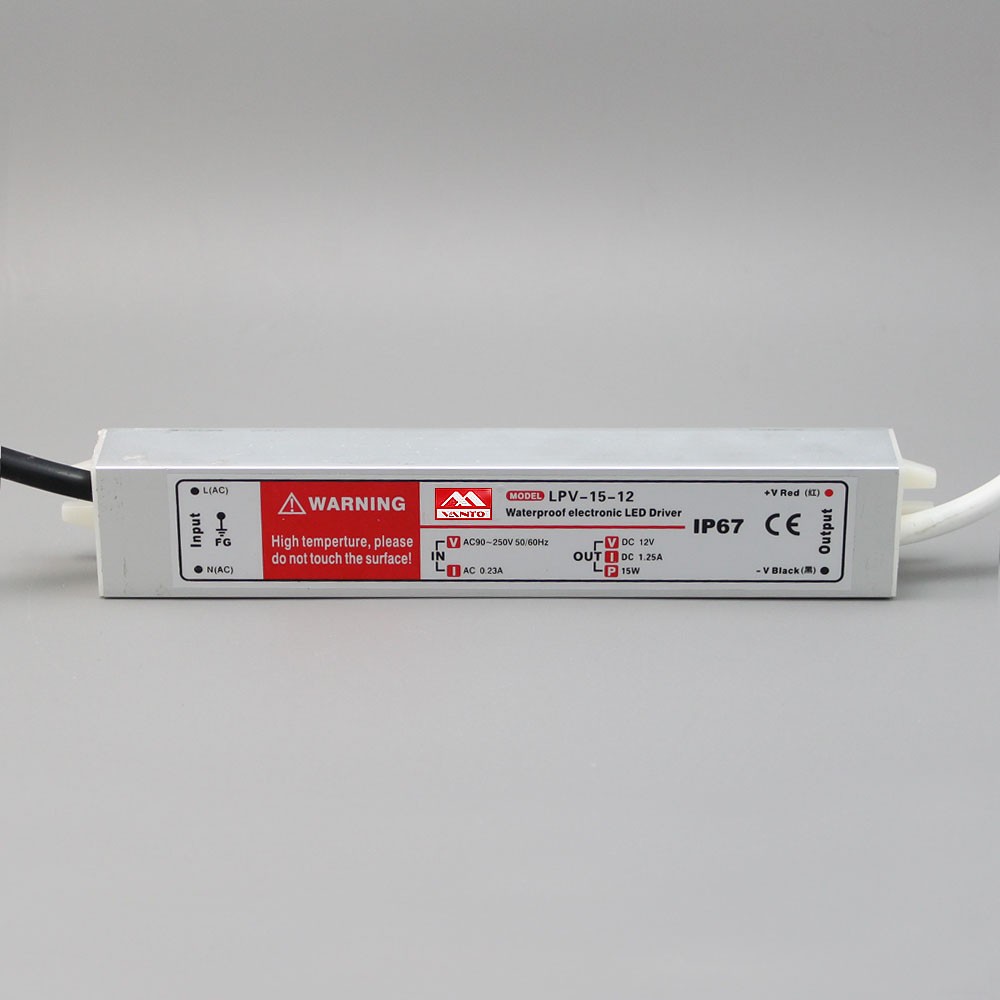

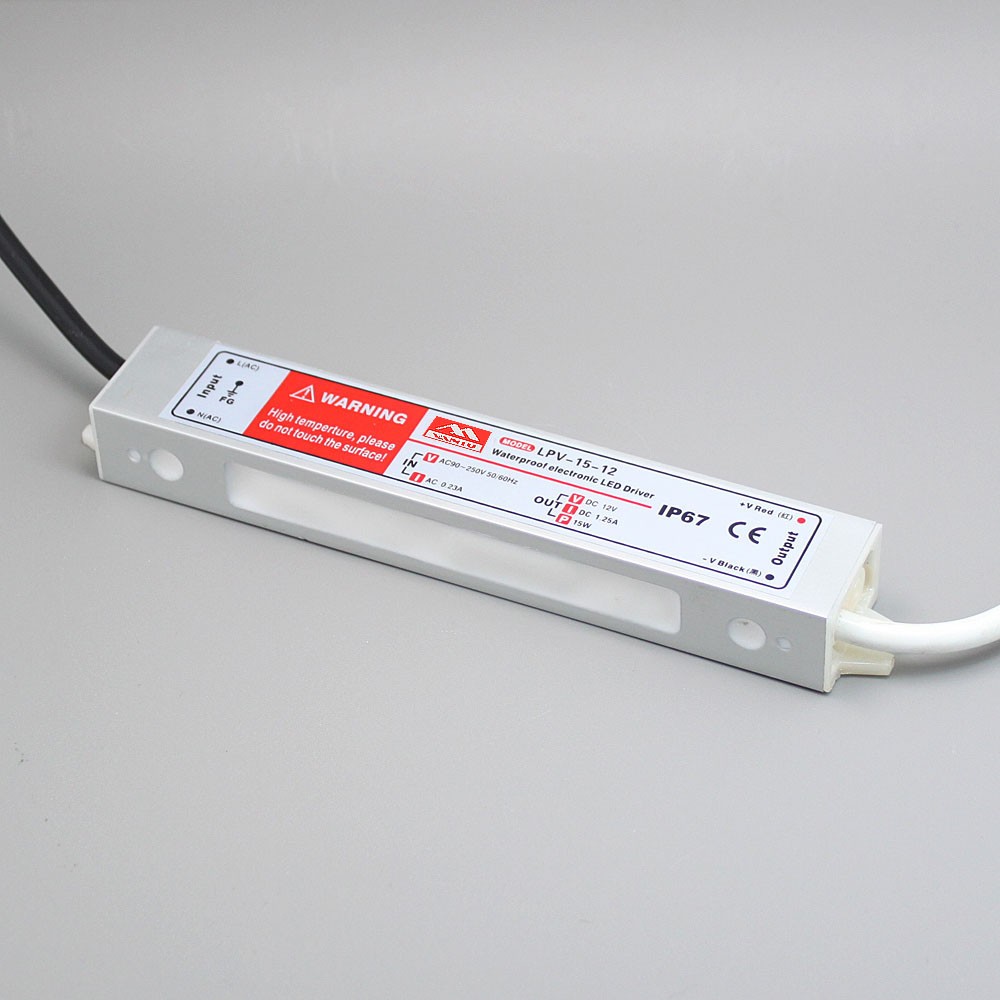

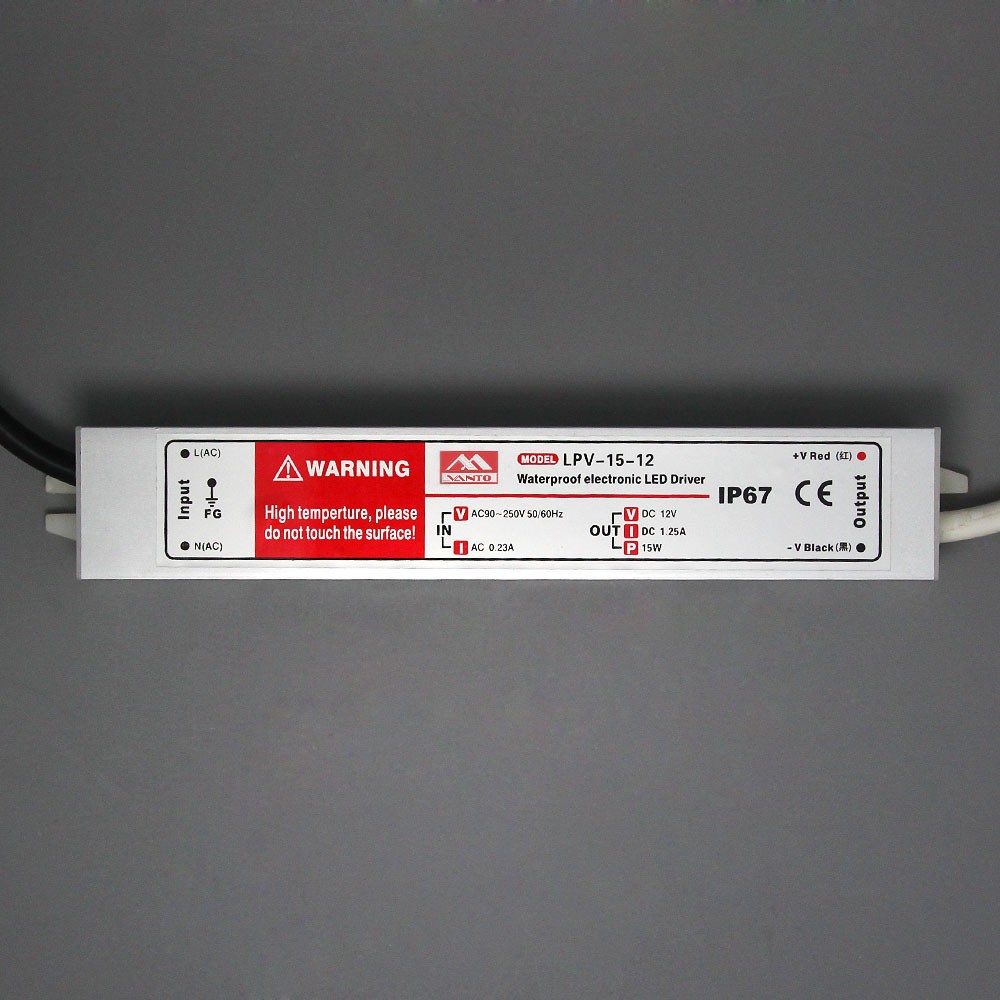

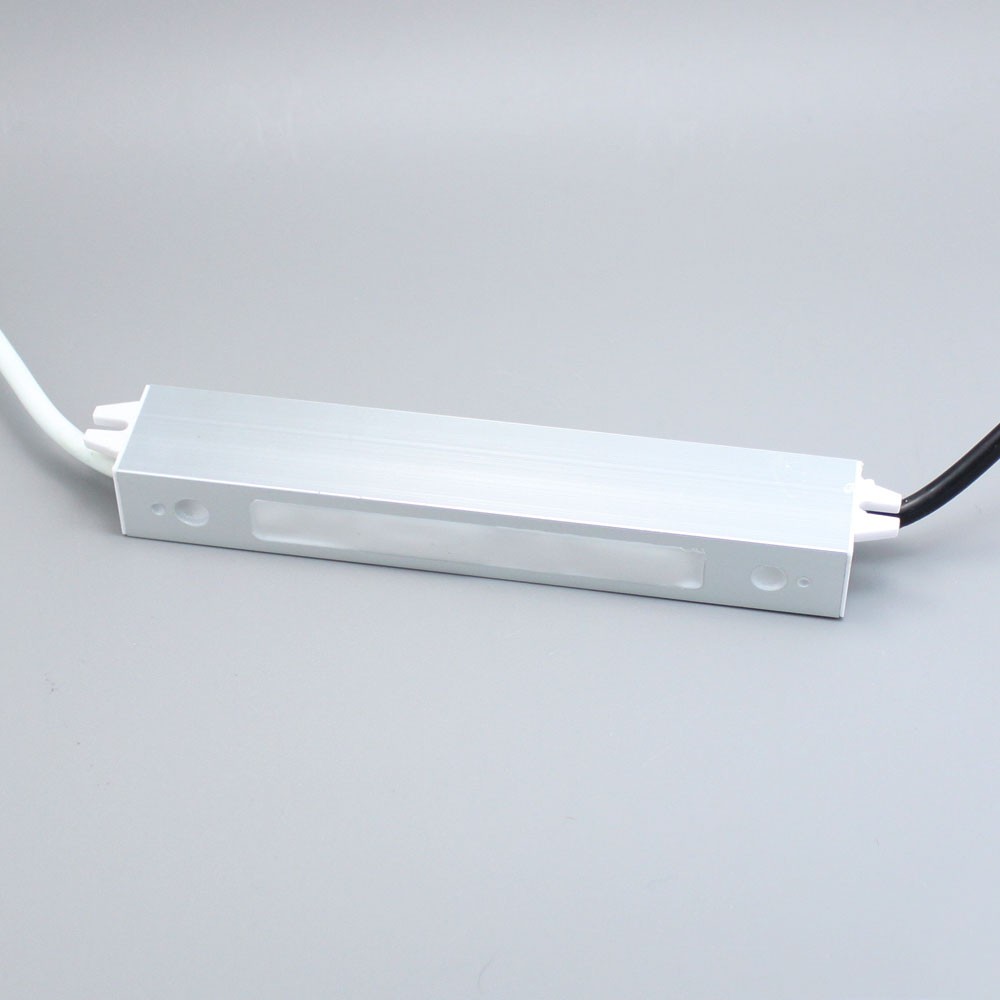

1. 85 ~ 264 VAC input range2. Small volume, light weight, high efficiency3. Characteristics: short circuit protection miscalculates/overload/pressure/thermal4. Air cooling5. IP67 Waterproof6. 100% full load burn-in test7. 2 years quality assurance8. Size: 182×30×20mm
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model |
LPV-15-12 |
LPV-15-24 |
|
DC output voltage |
12V |
24V |
|
Output voltage error |
±1% |
±1% |
|
Rated output current |
1.25A |
0.63A |
|
Output current range |
0-1.25A |
0-0.63A |
|
Wave and noise |
80mVp-p |
100mVp-p |
|
Inlet stability |
±0.5% |
±0.5% |
|
Load stability |
±0.5% |
±0.5% |
|
DC output power |
15W |
15W |
|
Efficiency |
81% |
83% |
|
AC input voltage range |
85-264VAC |
|
|
Input current |
0.5A/115V 0.25A/230V |
|
|
AC impulse current |
Cold-start current 13A/115V 26A/230V |
|
|
Leakage current |
<0.5mA/240VAC |
|
|
Over load protection |
105%~150% rated output power |
|
|
Protection:Hiccup mode,recover automatically |
||
|
Over voltage protection |
13~16V |
28~32V |
|
Protection:Shut down output voltage |
||
|
Short circuit protection |
Protection:Hiccup mode |
|
|
Temperature coefficient |
±0.03%(050) |
|
|
Setup rise hold up time |
800ms,20ms,24ms |
|
|
Vibration |
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
|
|
Withstand voltage |
I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|
|
Isolation resistance |
I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH |
|
|
Working temperature and humidity |
-10~+60°C, 20~90%RH |
|
|
Store temperature and humidity |
-20~+85°C, 10~95%RH |
|
|
Overall dimension |
182×30×20mm 80PCS/CARTON |
|
|
Weight |
0.22KG |
|
|
Safety standards |
Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved |
|
|
EMC |
EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved |
|
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
