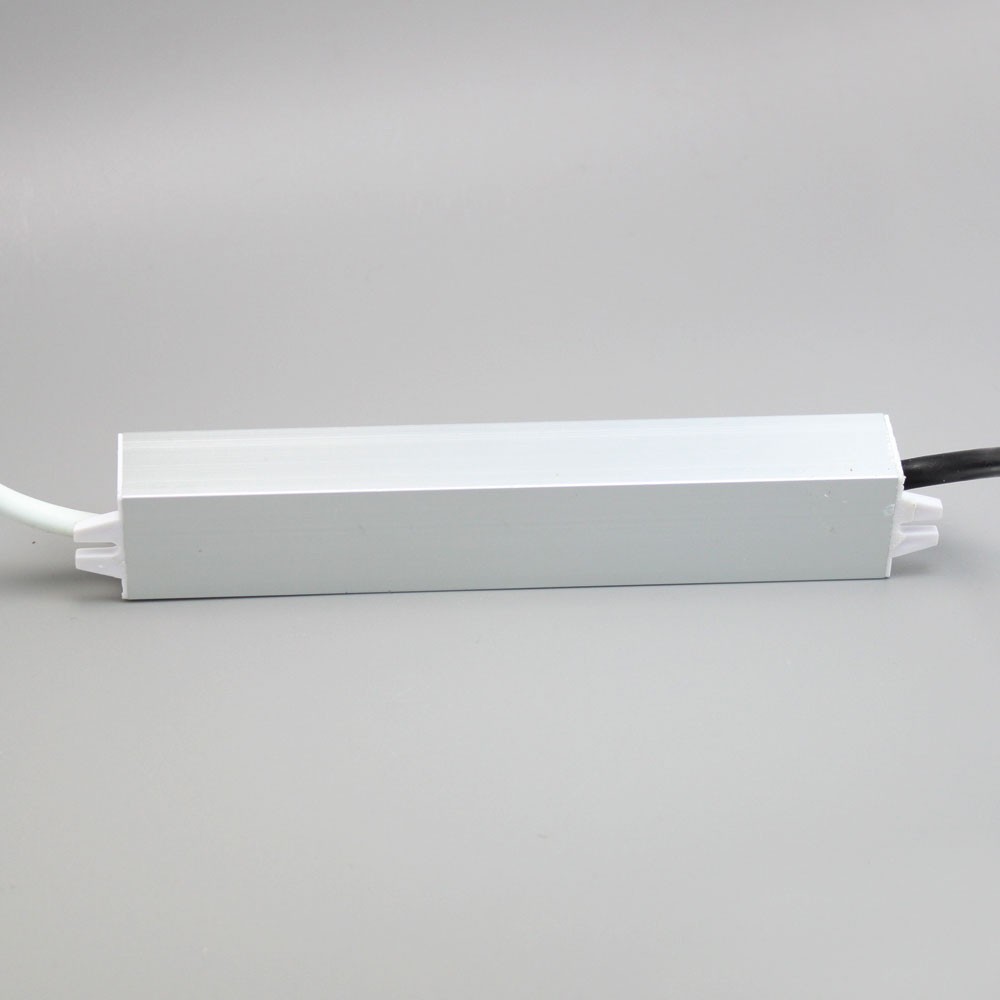

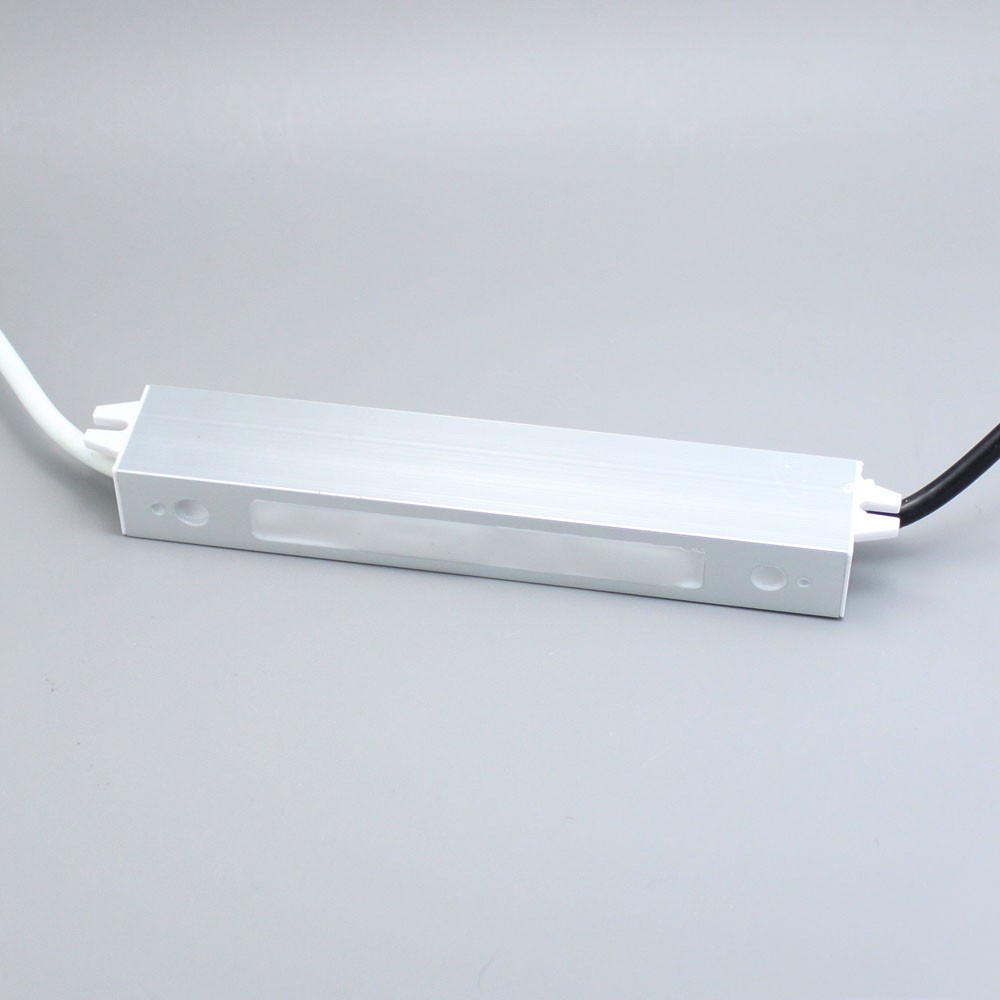

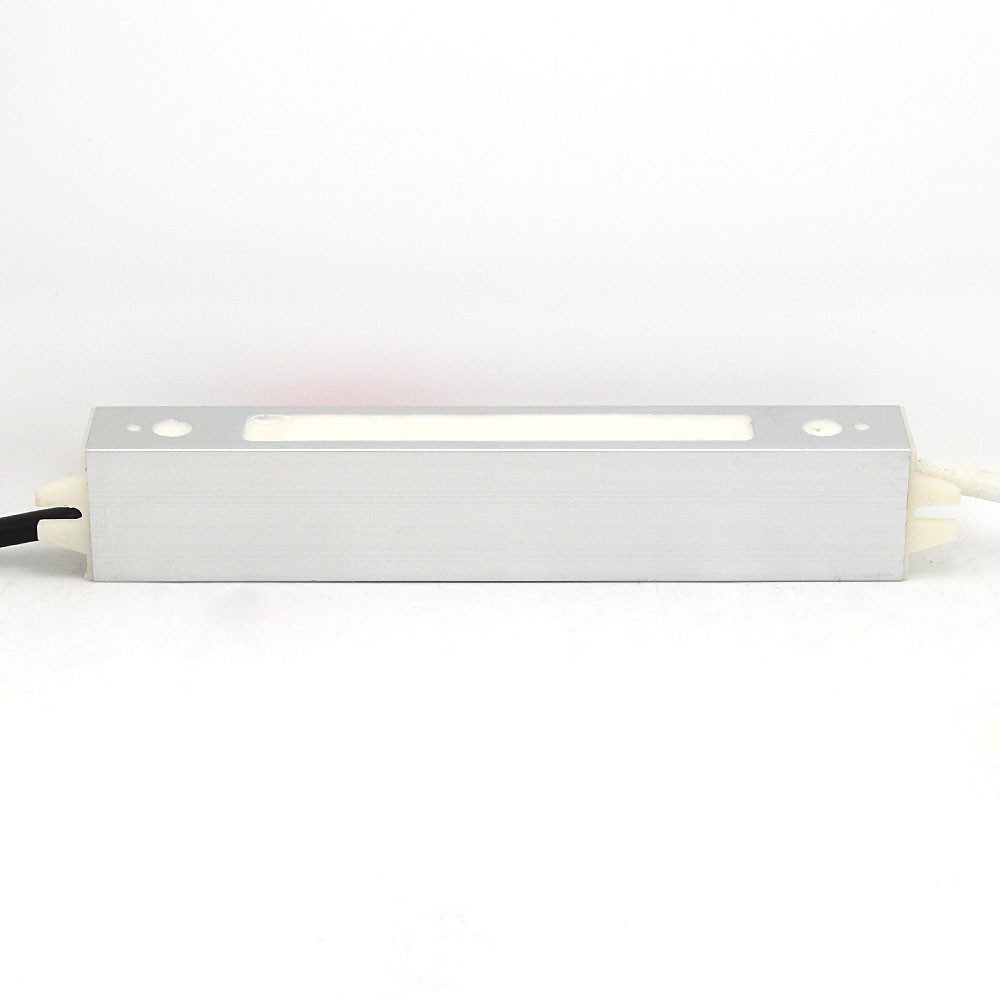

1. 85 ~ 264 VAC input range2. Small volume, light weight, high efficiency3. Characteristics: short circuit protection miscalculates/overload/pressure/thermal4. Air cooling5. IP67 waterproof6. 100% full load burn-in test7. 2 years warranty8. Size: 182*30*20mm
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model |

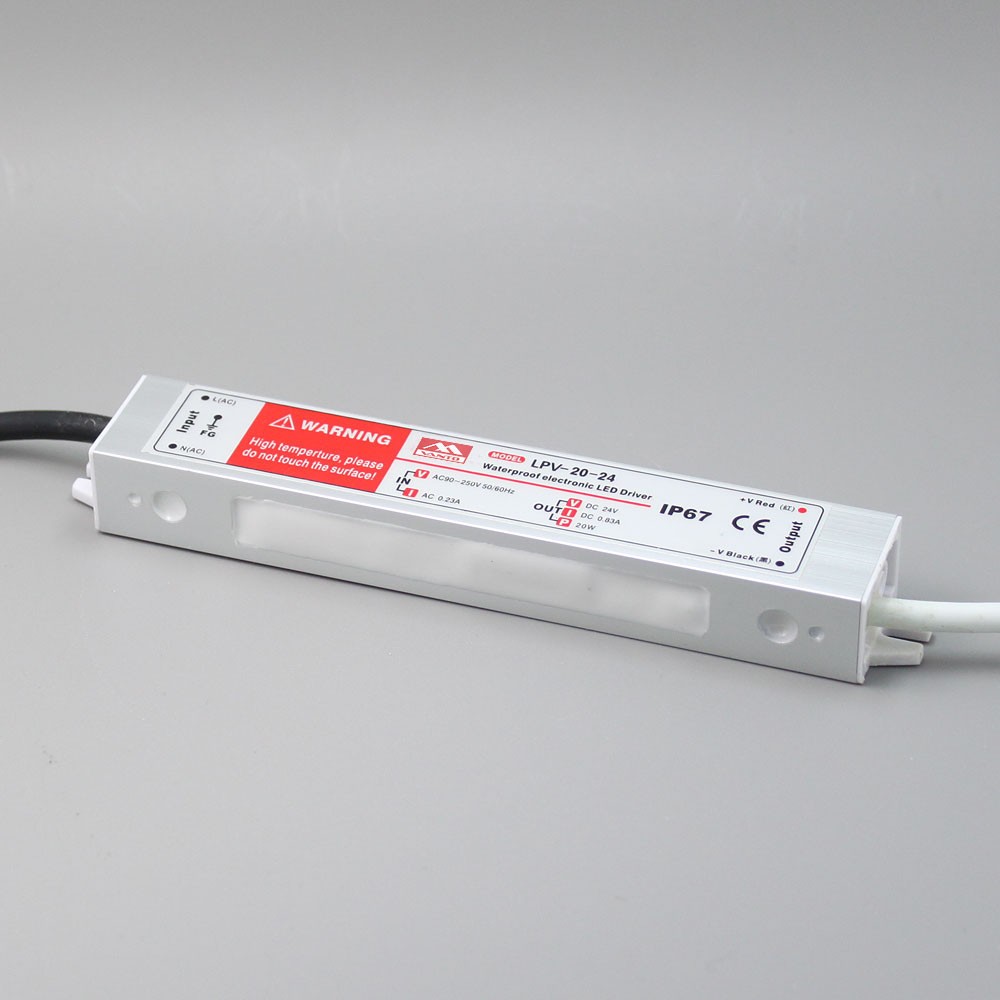

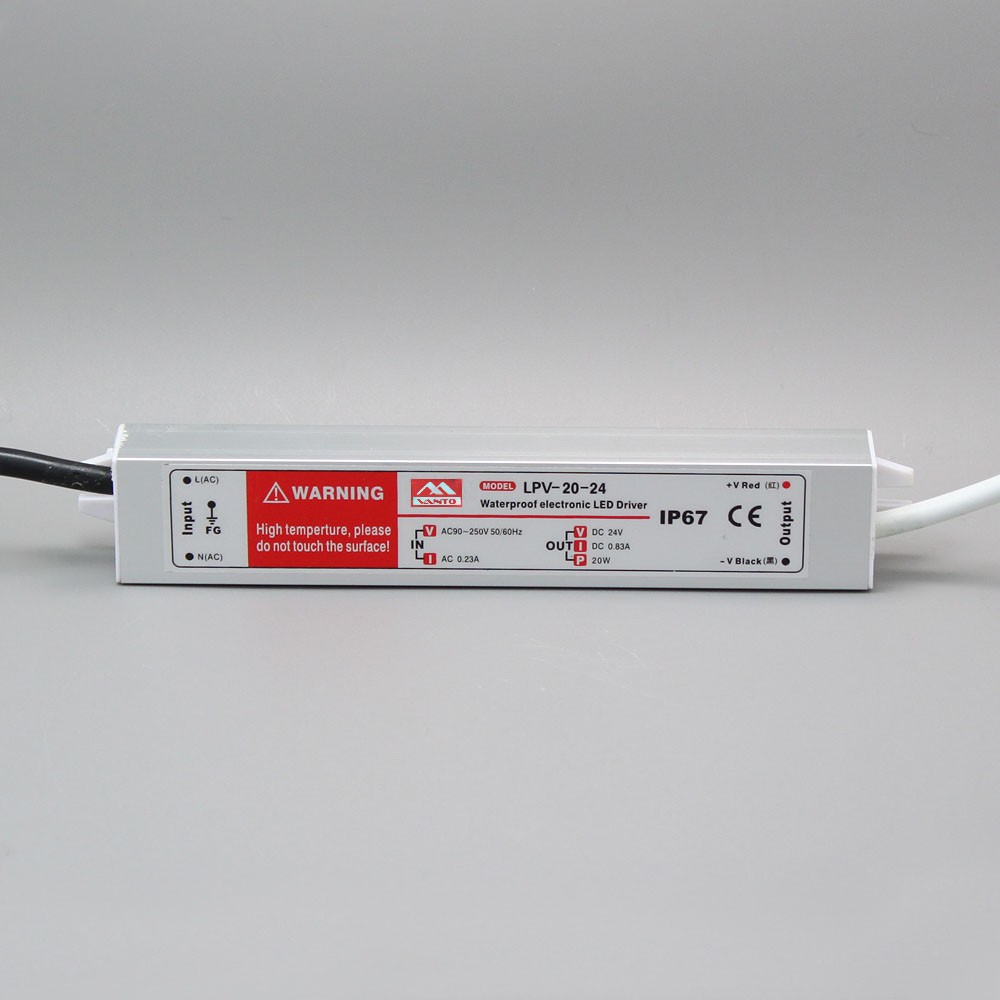

LPV-20-12 | LPV-20-24 | LPV-20-36 | |
| Output |
Dc output voltage |
12V | 24V | 36V |
|
Output voltage tolerance |
±1% | ±1% | ±1% | |
|
Rated output current |
1.67A | 0.84A | 0.6A | |
|
Output current range |
0～1.67A | 0～0.84A | 0～0.6A | |
|
Output power |
20W | 20W | 21W | |
|
Ripple and the noise |
100mVp-p | 100mVp-p | 150mVp-p | |
|
Dc voltage adjustable scope |
±10% | ±10% | ±10% | |
|
Start, rise, keep time |
800ms,20ms,24ms/230VAC |
|||
| Input |
Input voltage range |
85～264VAC 47～63Hz，120～370VDC |
||
|
Exchange input current |
0.28A/230VAC |
|||
|
efficiency |
78% | 80% | 80% | |
|
Impulse current |
Cold start current 30A/230VAC |
|||
|
Leakage current |
＜0.5mA/240VAC |
|||
| Protection characteristics |
Overload protection |
Protection way: hiccups mode, load abnormal conditions can be removed recovery |
||
| Environment |
Working temperature, humidity |
-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve ) |
||
|
Keep temperature, humidity |
-20℃～+85℃;10%～95%RH No condensation |
|||
|
Vibrate resistance |
10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis |
|||
| security |
Compression sex |
Between input and output ：1.5KVAC |
||
|
Insulation resistance |
Between input and output ：100M Ohms/500VDC |
|||
| Complies with the standards |
Safety standards |
Accord with UL1012 |
||
|
EMC standard |
Accord with EN55022，CLASSA |
|||
| Other |
weight |
0.22kg 182*30*20mm（L*W*H） |
||
|
packaging |
0.22kg/80pcs/18kg |
|||
| Note |
1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. |
|||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
