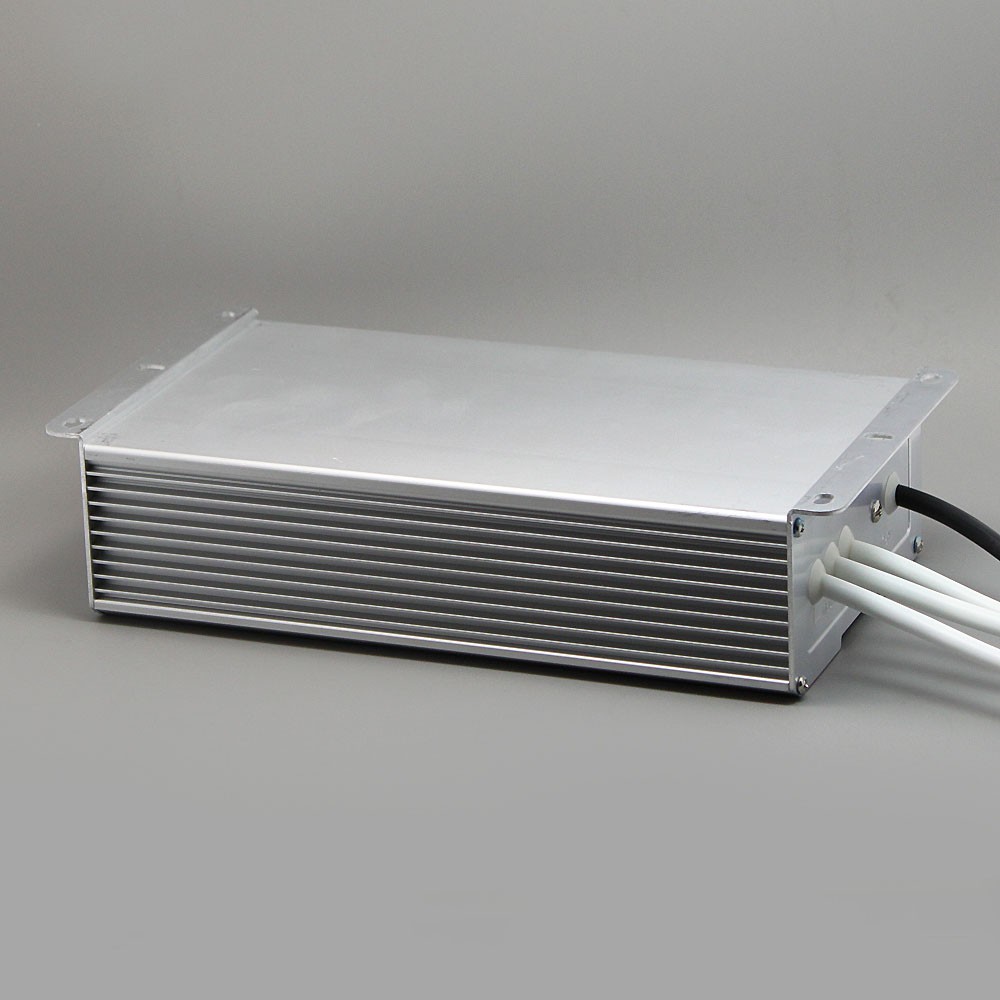

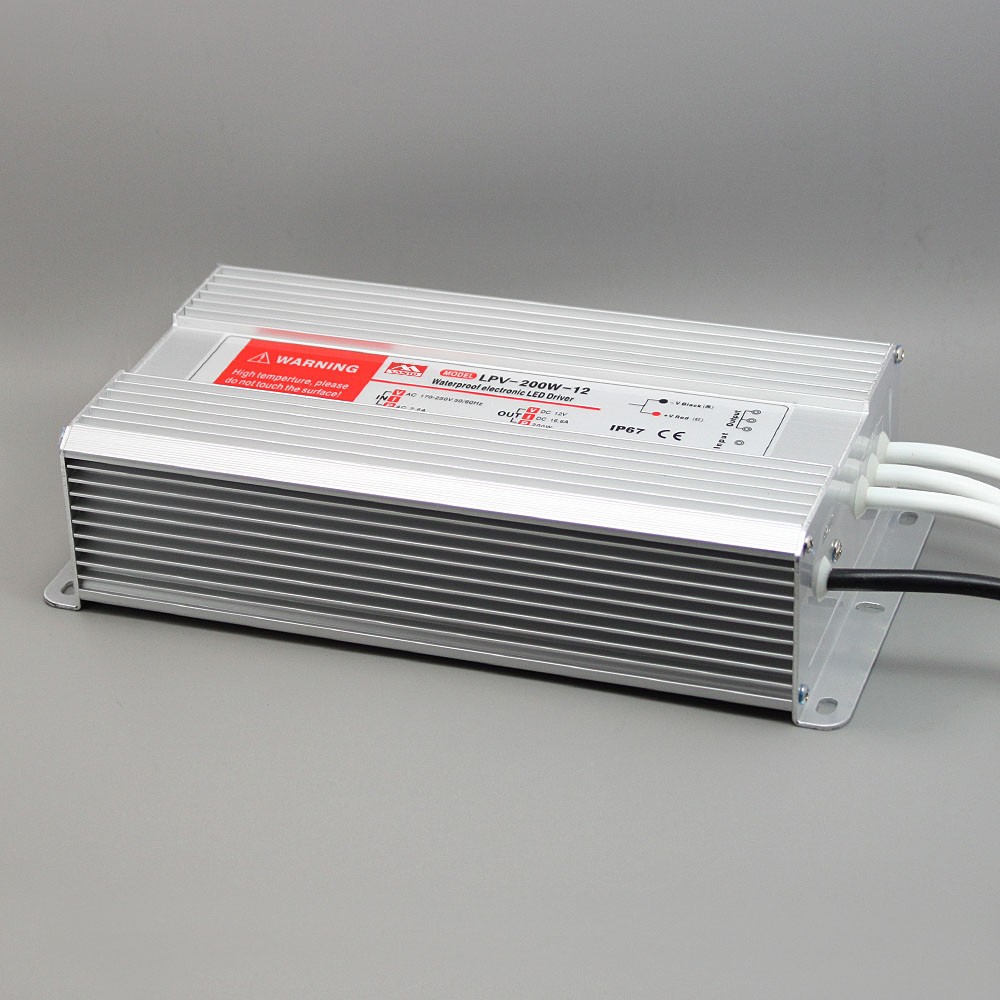

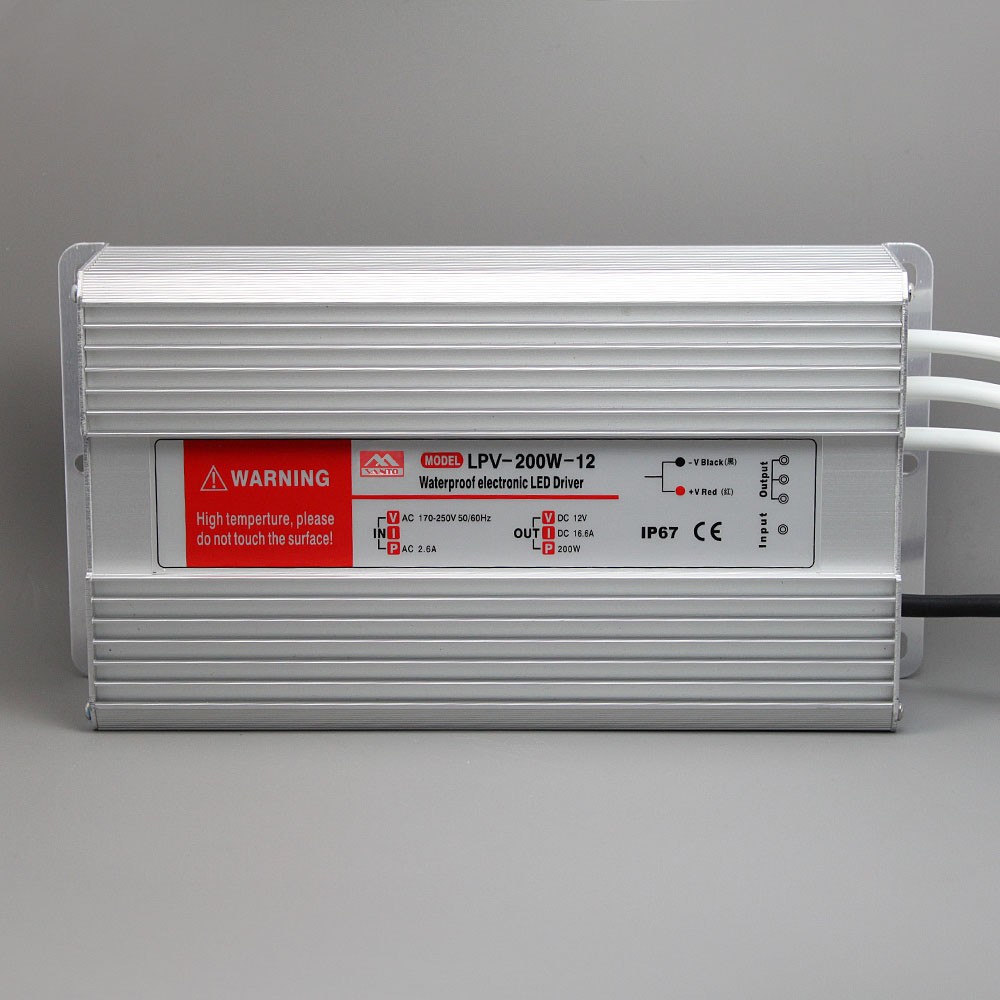

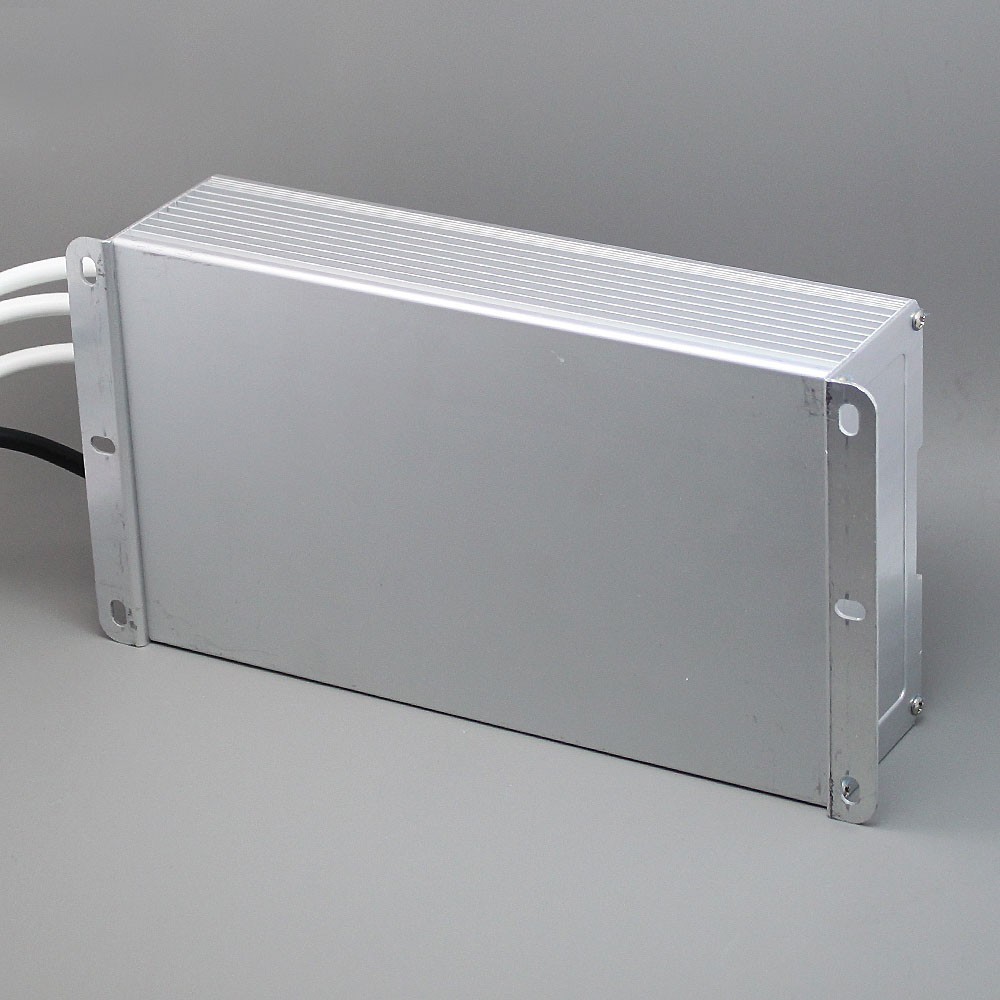

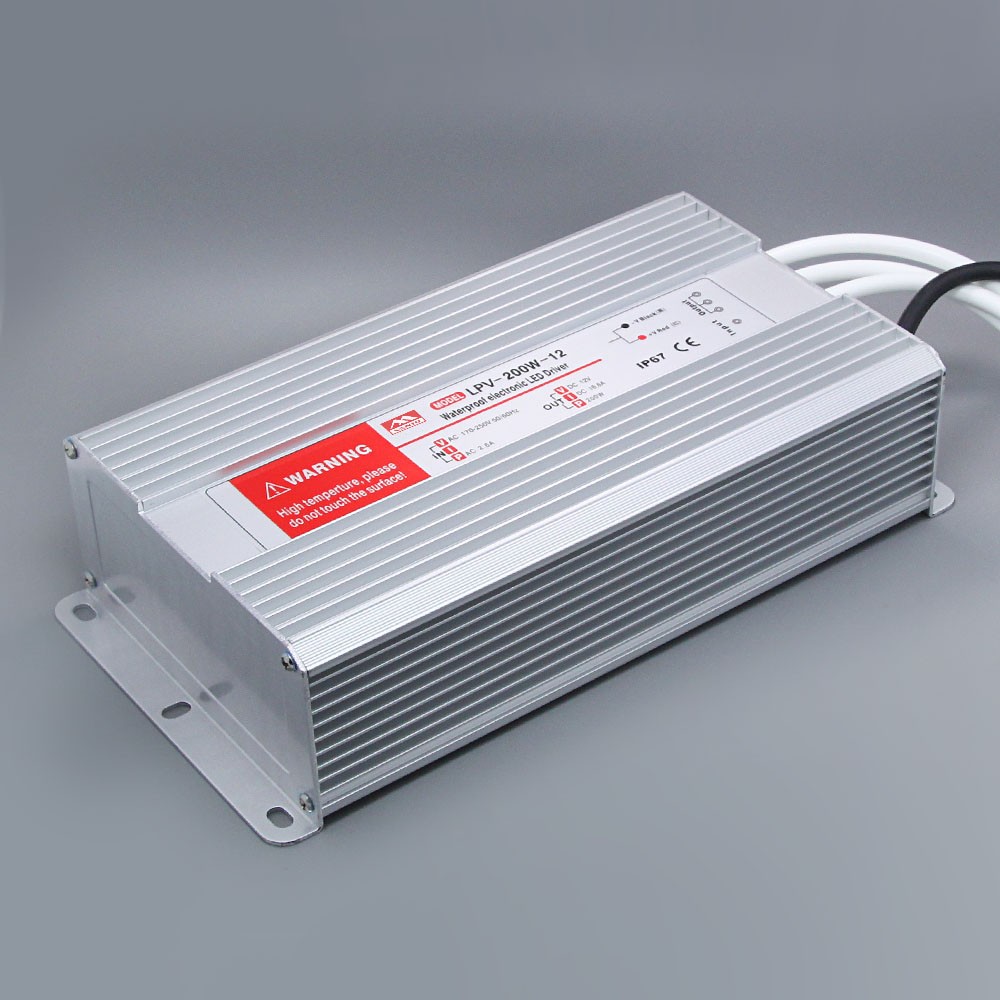

LPV-200W Waterproof LED Switch Power Supply

1. 180~264VAC 47~63Hz,254~370VDC
2. Small volume, light weight, high efficiency
3. Characteristics: short circuit protection miscalculates/overload/pressure/thermal
4. Air cooling
5. Waterproof IP67
6. 100% full load burn-in test
7. 2 years warranty
8. Size:233 x 122 x 60 mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

LPV-200W Waterproof LED switching Mode Power Supply Specificates

Model

LPV-200-12 LPV-200-24 LPV-200-36
Output

Dc output voltage

12V 24V 36V

Output voltage tolerance

±3% ±3% ±3%

Rated output current

16.5A 8.3A 5.5A

Output current range

0~16.5A 0~8.3A 0~5.5A

Output power

198W 199W 198W

Ripple and the noise

150mVp-p 200mVp-p 200mVp-p

Dc voltage adjustable scope

±10% ±10% ±10%

Start, rise, keep time

1000ms,30ms,24ms/230VAC

Input

Input voltage range

180~264VAC 47~63Hz,254~370VDC

Exchange input current

1.8A/230VAC

efficiency

81% 83% 84%

Impulse current

Cold start current

50A/230VAC

Leakage current

<3.5mA/240VAC

Protection characteristics

Overload protection

Rated output power of 115% ~ 135% start the load protection, protection way: cut off output power can be automatically after the restart, recovery

Environment

Working temperature, humidity

-10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve)

Keep temperature, humidity

-20℃~+85℃;10%~95%RH No condensation

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

Security

Compression sex

Between input and output:1.5KVAC

Insulation resistance

Between input and output :100M Ohms/500VDC

Complies with the standards

Safety standards

Accord with UL1012

EMC standard

Accord with EN55022,CLASSA

Other

weight

2.5kg 233*122*60mm(L*W*H)

packaging

2.5kg/9pcs/22.5kg

Note 1. All the parameters in has not specified, all is in 2 3 0 V voltage input, A C rated load and 2 5 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 2 0 M H z bandwidth with 1 to 2 inches oscilloscope twisted pair end and 0. 1 mu and 4 7 muon capacitance measurement when.

3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

LPV-200W Waterproof LED switching Mode Power Supply Packing

LPV-200W Waterproof LED switching Mode Power Supply Packing Show
LPV-200W Waterproof LED switching Mode Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
