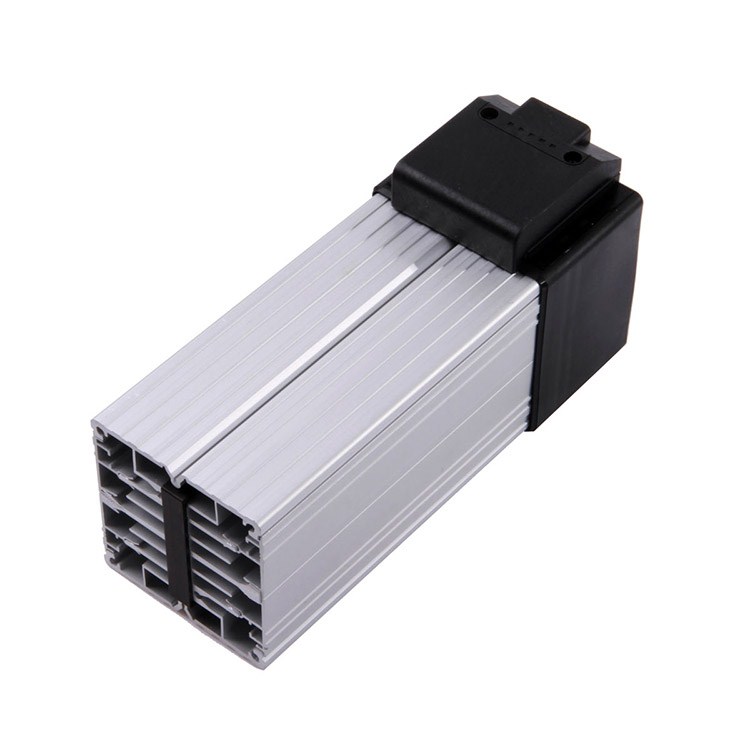

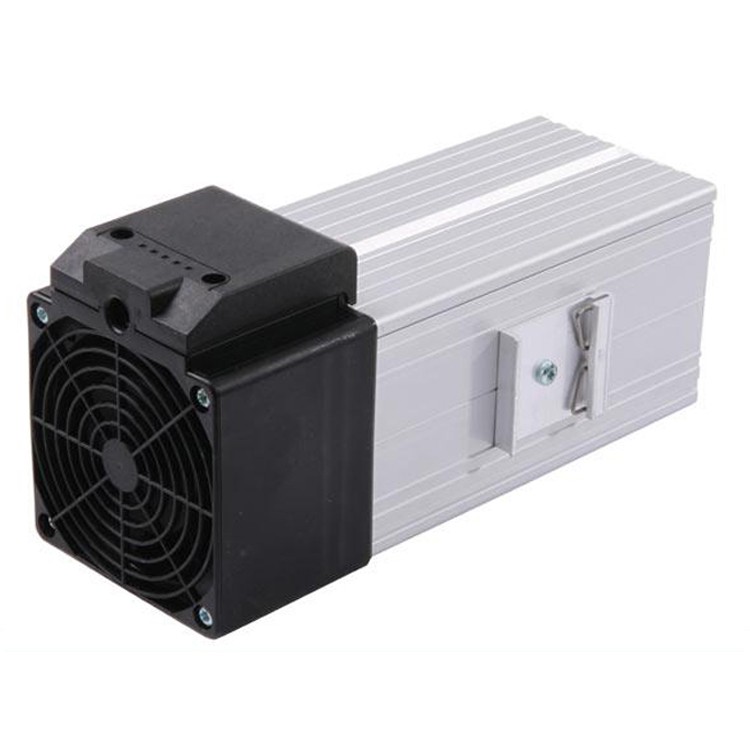

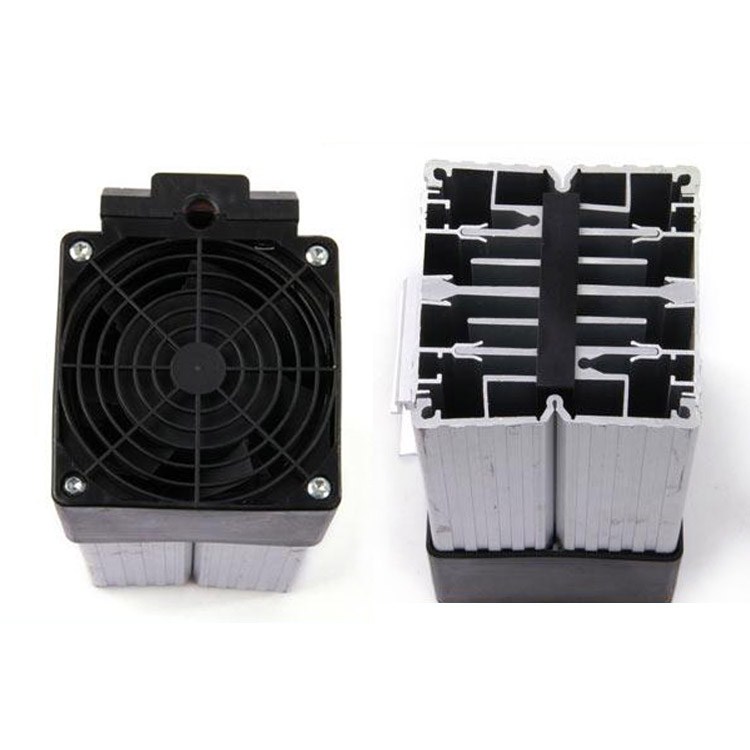

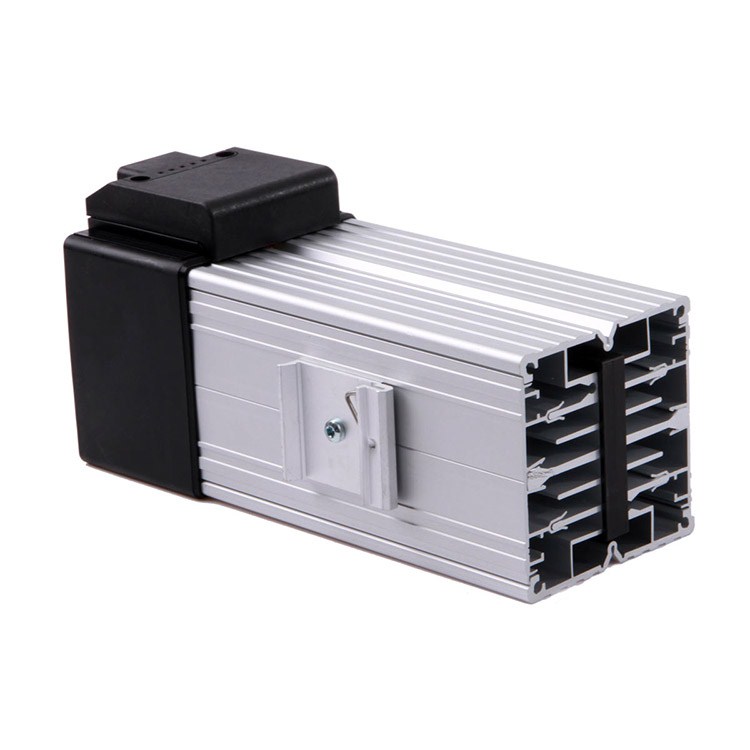

HGL 046 Fan Heater

1. Compact Design
2. Clip fixing
3. Long service life
4. Temperature safety cut-out

Compact fan heater prevents formation of condensation and frost. The integrated high-performance axial fan provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

HGL 046 Fan Heater Specifications

Heating element:
resistance heater
Temperature safety cut-out:
to protect against overheating in case of fan failure
Heater body:
anodised extruded aluminium profile
Surface temperature:
max. 75°C (400W)
Axial fan, ball bearing:
Airflow, free flow
AC: 45m³/h (50HZ) or 54m³/h (60Hz)
DC: 54m³/h
service life 50 000h at 25°C (77°F)
Connection:
internal connection terminal 1.5mm² with clamping torque 0.8Nm max.
Connection casing:
plastic according to UL94 V-0,black
Mounting:
clip for 35mm DIN rail, EN 50022
Fitting position:
vertical
Operating/Storage temperature:
-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class:
IP20 / I (earthed)

Part No.
Operating Voltage
Heating Capacity
Length (L)
Weight
04640.0-00
230VAC, 50/60Hz
250W
182mm
1.10kg
04641.0-00
230VAC, 50/60Hz
400W
222mm
1.40kg
04640.9-00
120VAC, 50/60Hz
250W
182mm
1.10kg
04641.9-00
120VAC, 50/60Hz
400W
222mm
1.40kg
04640.1-00
24VDC
250W
182mm
1.10kg
04640.2-00
48VDC
250W
182mm
1.10kg
04641.2-00
48VDC
400W
222mm
1.40kg

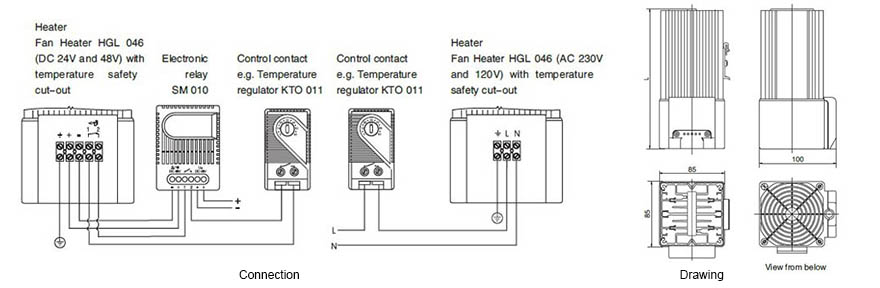

HGL 046 Fan Heater Cabinet Heater Enclosure heater Drawing

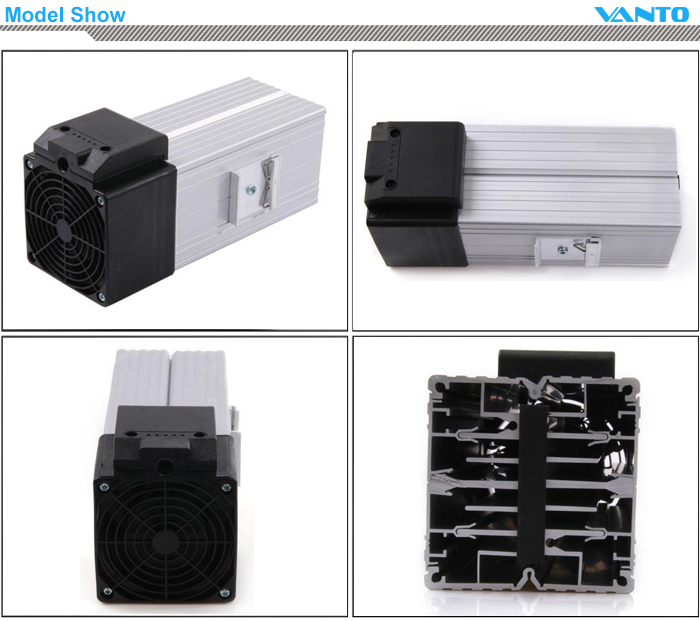

HGL 046 Fan Heater Cabinet Heater Enclosure Heater Model Show

HGL 046 Fan Heater Packing Show
