CS 028 / CSL 028 Touch-safe PTC Fan Heater

1. Small, compact design
2. Quiet in operation
3. Dynamic heating up
4. Clip or screw fixing

CS 028 / CSL 028 Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the CSL 028 makes it ideal for use in enclosures where space is at a premium.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

CSL 028 Compact Semiconductor Fan Heater Specifications

Heating element

PTC heating element

Inrush current max.

2A at 230VAC , 5A at 120VAC

Surface temperature

Max.65°C(149°F)

Axial fan, ball bearing

air flow 13.8m³/h, free flow(service life 40,000h at 40°C

Connection

2-pole clamp max. 2.5mm² (CSL 028 with strain relief), clamping screw torque 0.8Nm max.

Casing

plastic according to UL94-0, black

Mounting

clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)

Fitting position

vertical airflow (air outlet up)

Weight

approx.0.3kg

Operating / Storage temperature

-45 to +70°C (-49 to +158°F)

Protection type / Protection class

IP20 / II (double insulated)

Note

other voltages on request



















-

Art. No. clip fixing Art. No. screw fixing Operating voltage Heating capacity Dimensions (H x W x D) Weight (approx.)
02800.0-00 02800.0-01 230VAC, 50/60Hz 150W 75 x 65 x 90mm 0.3kg
02811.0-00 02811.0-01 230VAC, 50/60Hz 250W 90 x 85 x 111mm 0.5kg
02810.0-00 02810.0-01 230VAC, 50/60Hz 400W 90 x 85 x 111mm 0.5kg
02800.9-00 02800.9-01 120VAC, 50/60Hz 150W 75 x 65 x 90mm 0.3kg
02811.9-00 02811.9-01 120VAC, 50/60Hz 250W 90 x 85 x 111mm 0.5kg
02810.9-00 02810.9-01 120VAC, 50/60Hz 400W 90 x 85 x 111mm 0.5kg

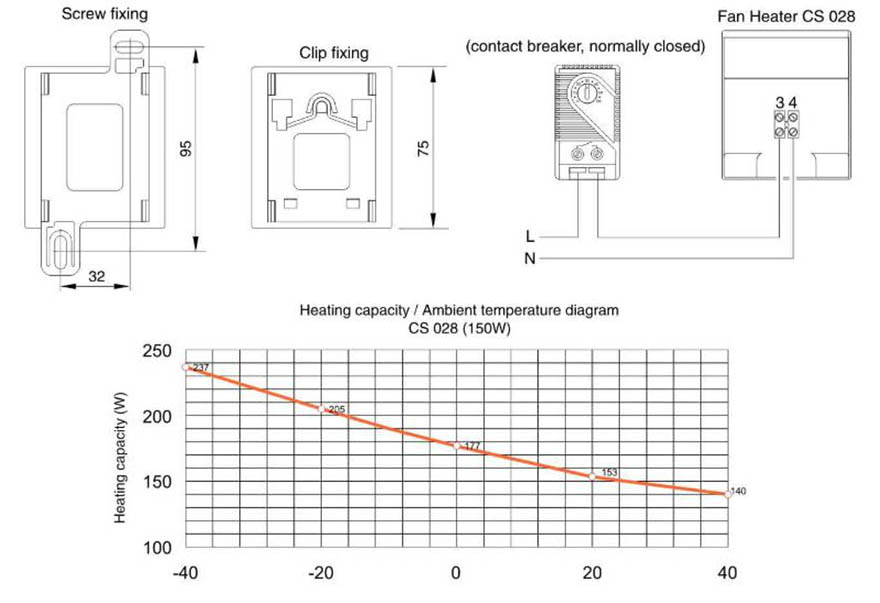

Stego Fan Heater CSL 028 Drawing

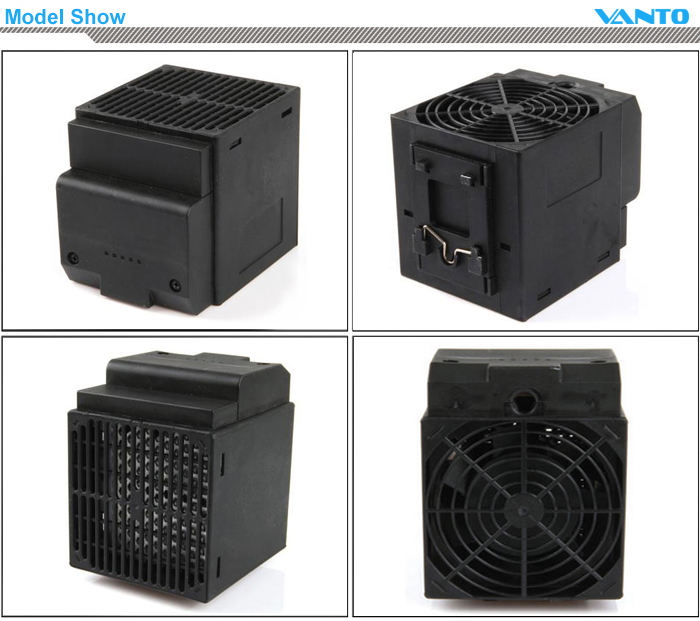

Stego CSL 028 Panel-mount PTC Fan Heater Cabinet Heater Enclosure Heater Model ShowStego Fan Heater CSL 028 Packing Show
