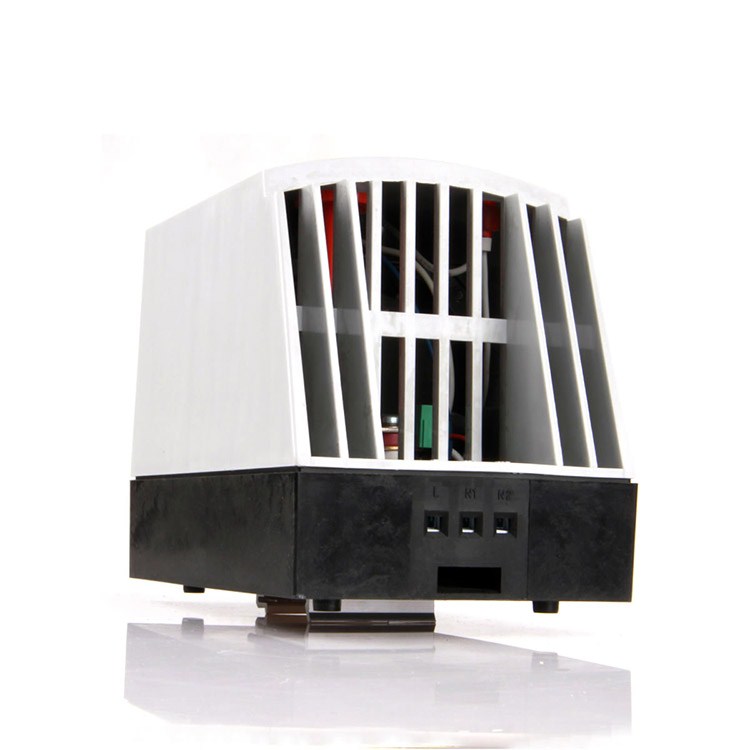

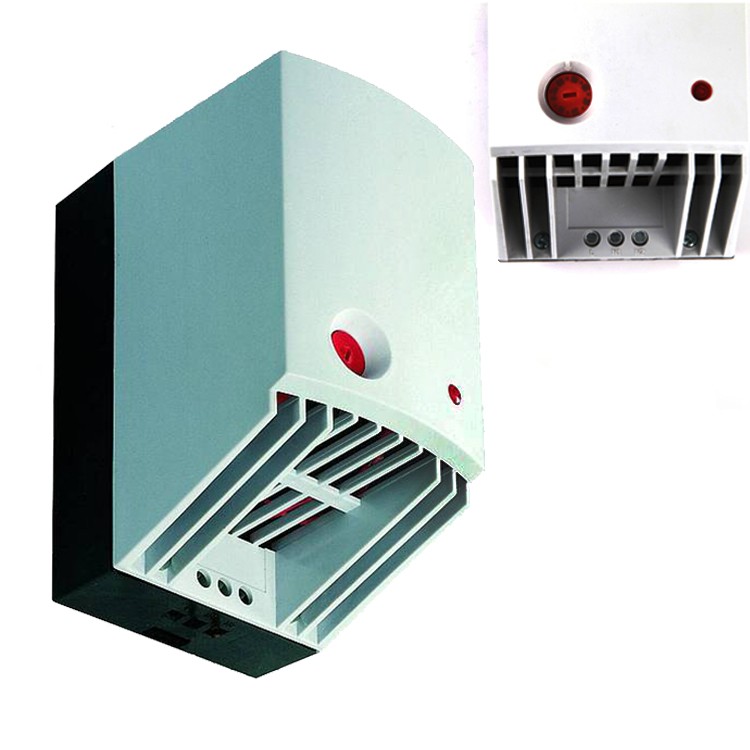

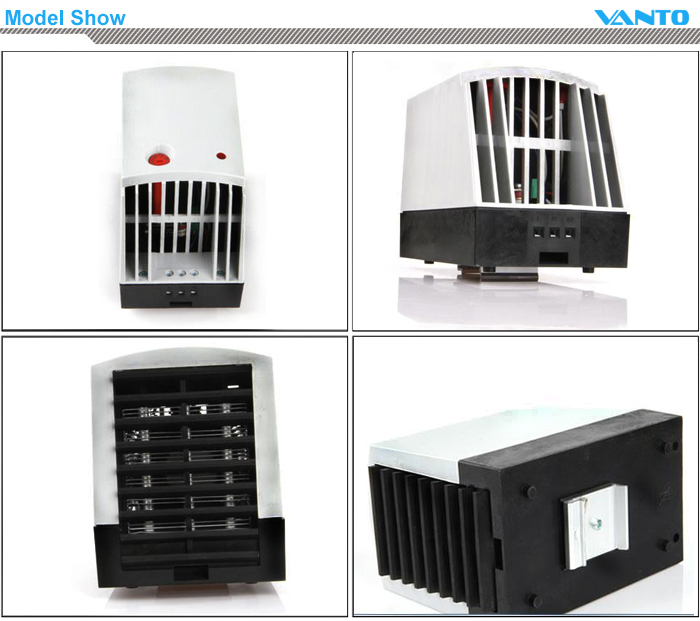

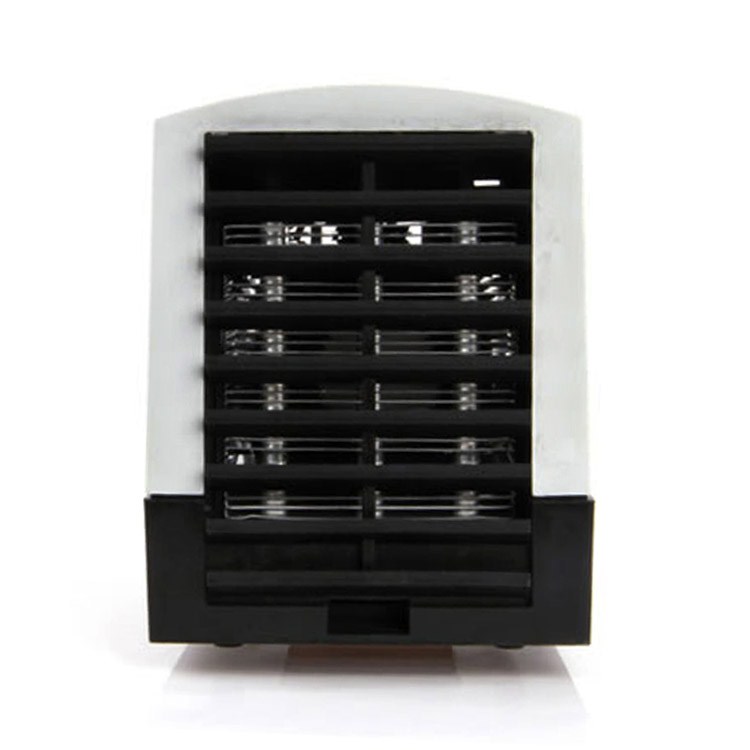

1. Compact heater2. Integrated thermostat3. Clip fixing4. Optical indicator5. Temperature safety cut-outSemiconductor fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The integrated thermostat is used to set the desired temperature.
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Heating element
|
PTC resistor, self regulating and temperature limiting
|
|
Temperature safety cut-out
|
to protect against overheating in case of fan failure
|
|
Axial fan, ball bearing
|
Airflow see table
|
|
service life 50 000h at 25°C (77°F)
|
|
|
Casing
|
plastic according to UL94 V-0, light grey
|
|

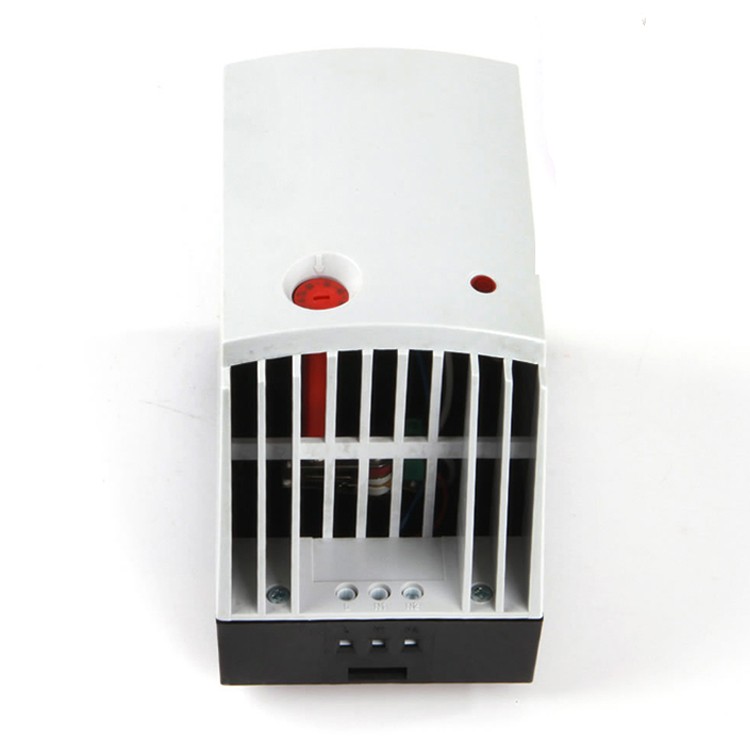

Optical indicator
|
thermostat control lamp
|
|
Connection
|
2-pole clamp 2.5mm², clamping torque 0.8Nm max.
|
|

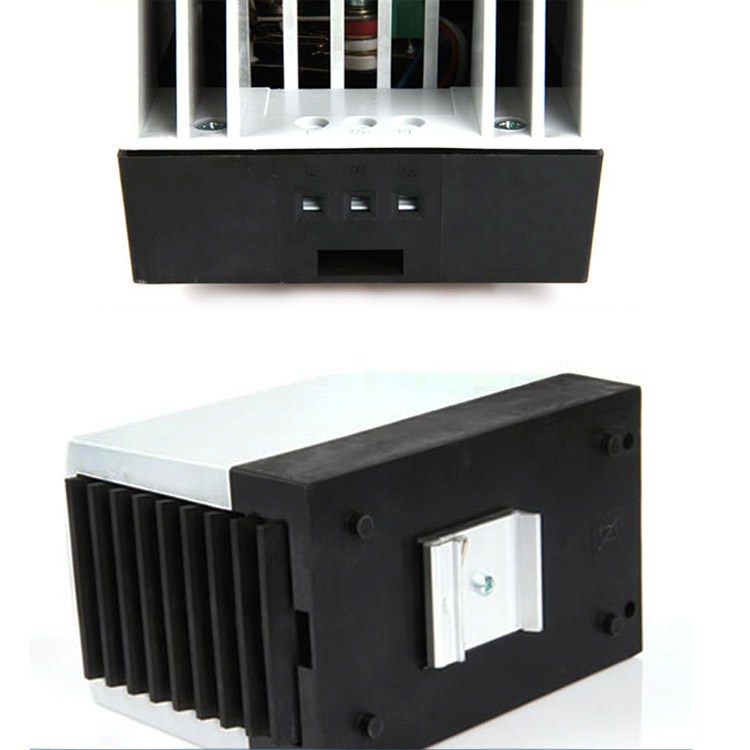

Mounting
|
clip for 35mm DIN rail, EN 50022
|
|
Fitting position
|
vertical
|
|
Operating/Storage temperature
|
0 to +60 °C (-32 to +140 °F) / -45 to +70 °C (-49 to +158 °F)
|
|

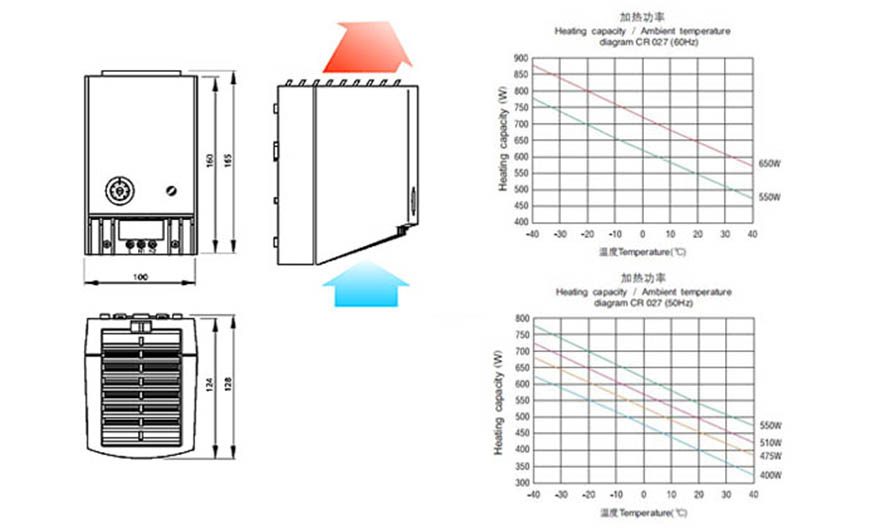

Dimensions
|
100 x 128 x 165mm
|
|
Protection type/Protection class
|
IP20 / II (double insulated)
|
|
Art. No.
|
Voltage
|
(50Hz)*
|
(60Hz)*
|
Max. current (inrush)
|
Axial Fan (ball bearing)
|
TemperatureRange
|
Weight
|
|
02700.0-00
|
220-240VAC, 50/60Hz
|
475W
|
550W
|
11.0A
|
35m³/h
|
0 to +60°C
|
0.90kg
|
|
02701.0-00
|
220-240VAC, 50/60Hz
|
550W
|
650W
|
13.0A
|
45m³/h
|
0 to +60°C
|
1.10kg
|
|
02700.9-00
|
100-120VAC, 50/60Hz
|
400W
|
550W
|
14.0A
|
35m³/h
|
+32 to +140°F
|
0.90kg
|
|
02701.9-00
|
100-120VAC, 50/60Hz
|
510W
|
650W
|
15.0A
|
45m³/h
|
+32 to +140°F
|
1.10kg
|
