CS 130 Panel-mount PTC Fan Heater
You are here: Home» Products » Heater » Fan Heater

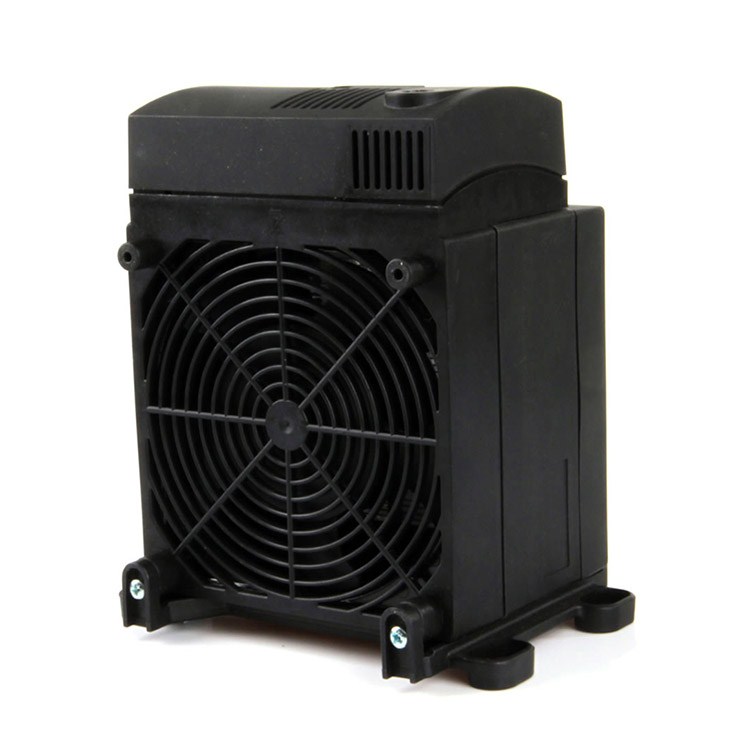

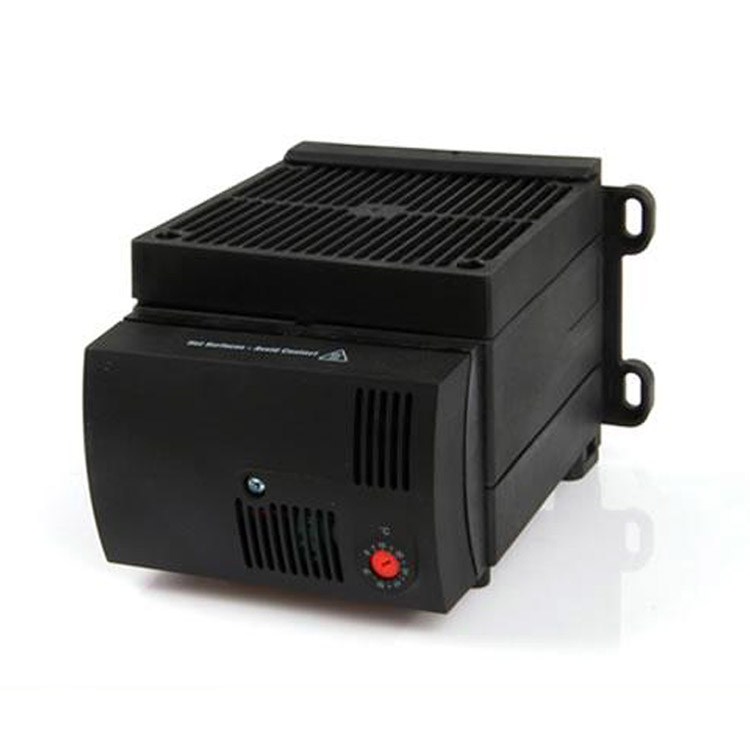

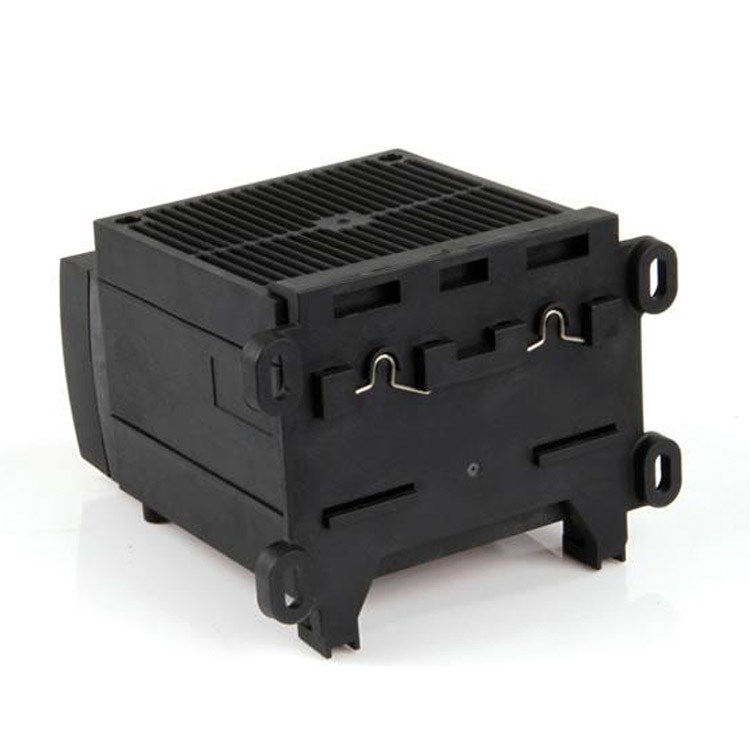

CS 130 Panel-mount PTC Fan Heater

1. Compact design
2. High heating performance
3. Double insulated
4. Integrated thermostat (optional)
5. Optional clip or screw fixing
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

CS 130 Panel-mount PTC Fan Heater Specifications

Heating element PTC resistor - temperature limiting
Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing airflow 160m³/h, free flow
Axial fan, ball bearing airflow see table
service life 50,000h at 25℃ (77°F)
Connection 2-pole clamp max. 2.5mm clamping screw torque 0.8Nm max
Casing plastic according to UL94 V-0,black
Mounting clip for 35mm DIN rail, EN 60715 or screw fixing (M6)
Fitting position vertical airflow (air outlet up) ��?other fitting positions possible
Dimensions 182 x 160 x 120mm
Weight approx. 1.3kg
Operating / Storage temperature -45 to +70°C (-49 to +158°F)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type / Protection class IP20 / II (double insulated)
-
Art.No. Model Operating voltage Heating capacity Inrush current max. Setting range
13060.0-00 Fan Heater with thermostat 230VAC, 50/60Hz 1,200W 13A 0 to +60℃
13060.0-01 Fan Heater without thermostat 230VAC, 50/60Hz 1,200W 13A --
13060.9-00 Fan Heater with thermostat 120VAC, 50/60Hz 1,200W 16A +32 to +140°F
13060.9-01 Fan Heater without thermostat 120VAC, 50/60Hz 1,200W 16A --

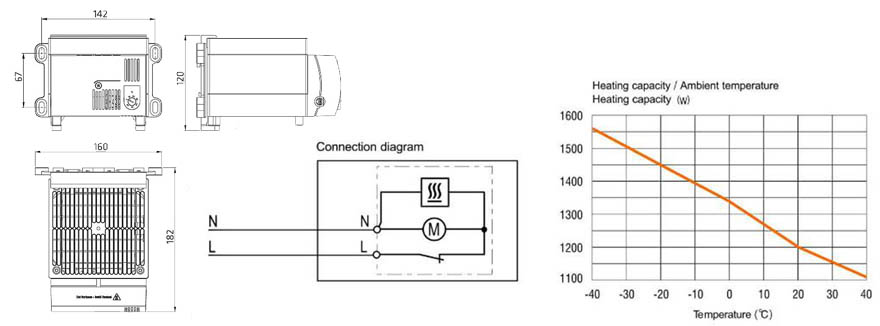

CS 130 Panel-mount PTC Fan Heater Cabinet Heater Enclosure Heater Drawing 1

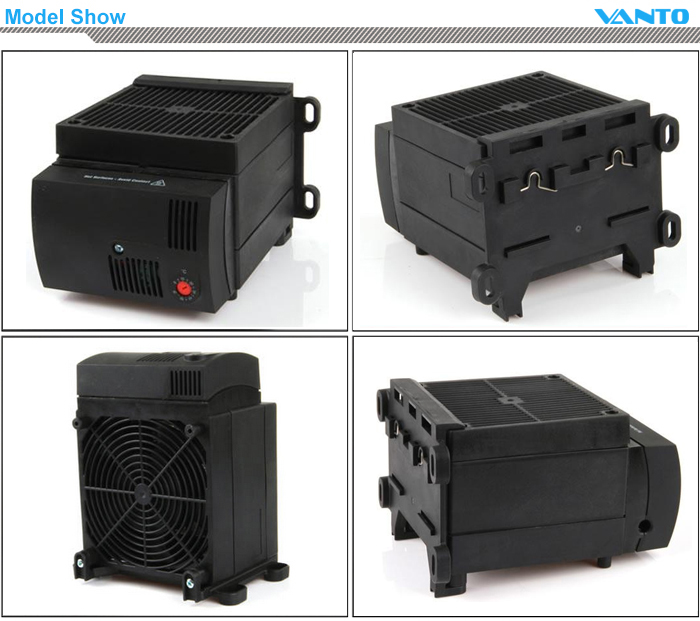

CS 130 Panel-mount PTC Fan Heater Cabinet Heater Enclosure Heater Model ShowCS 130 Fan Heater Packing Show
