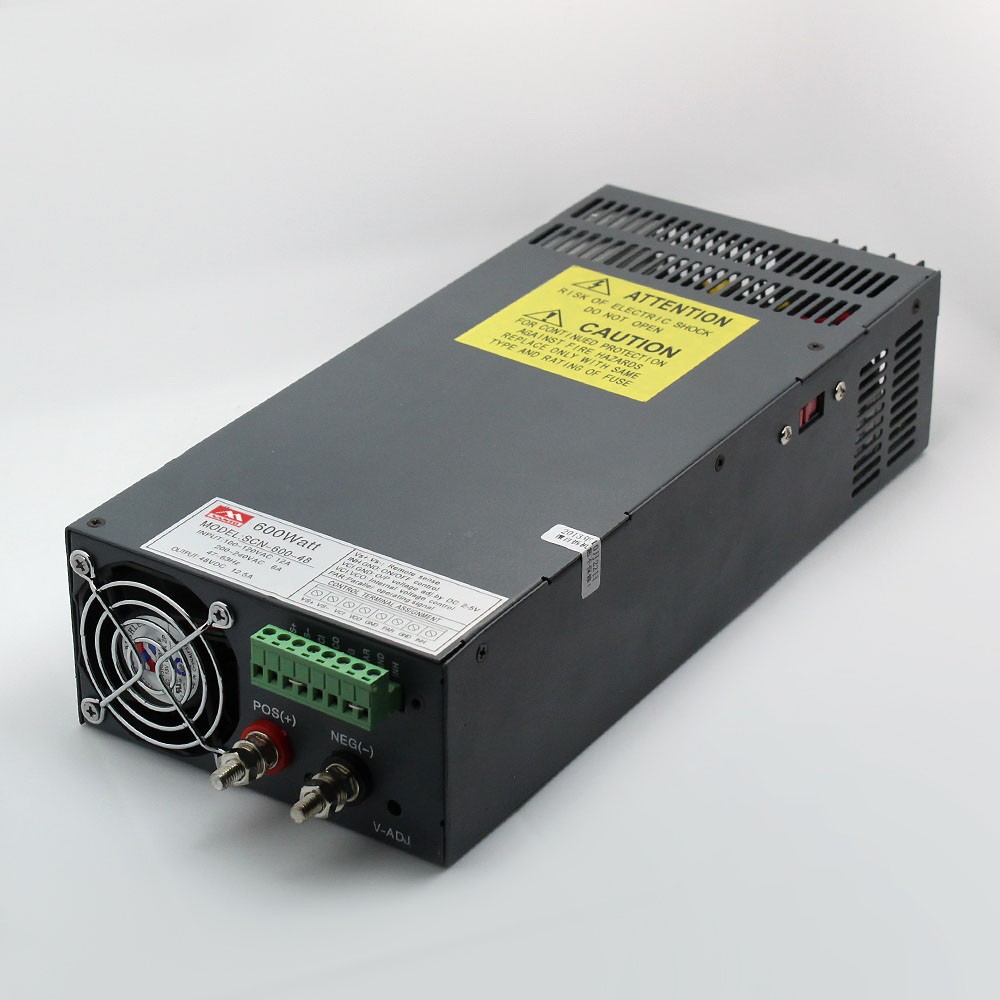

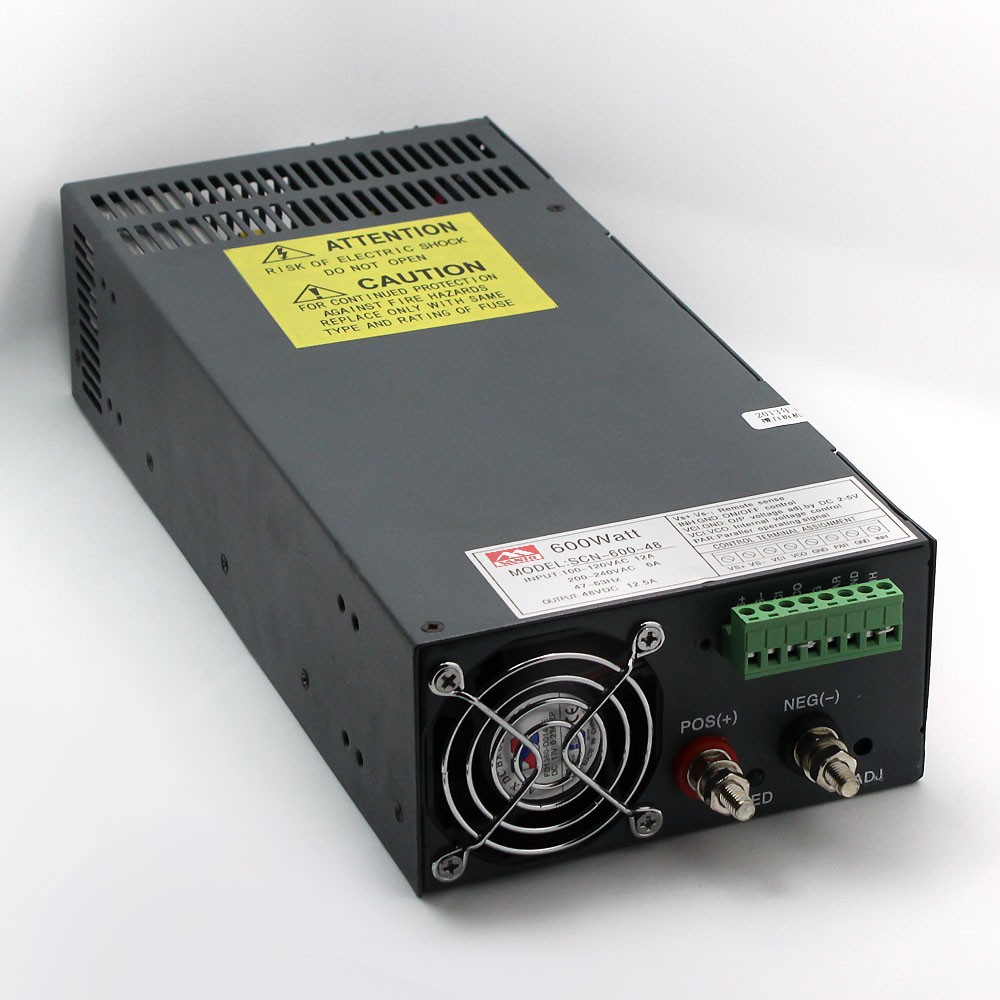

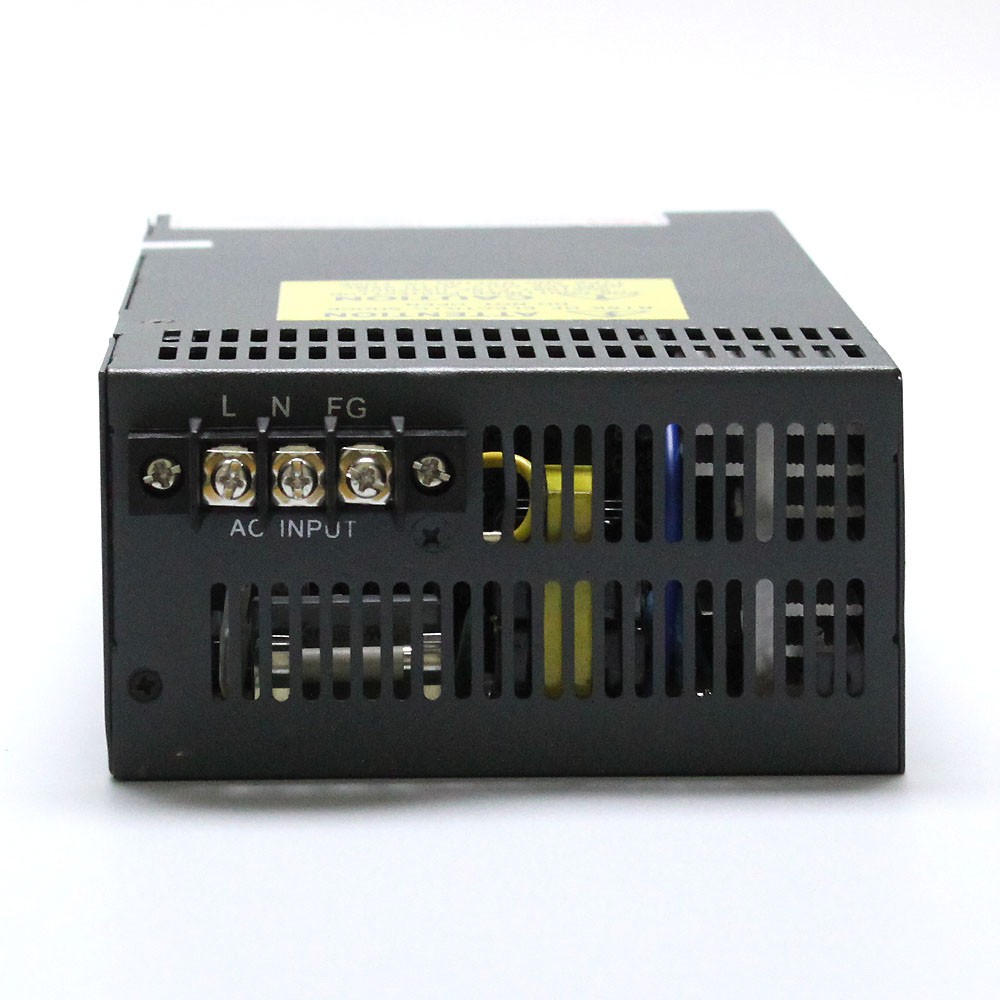

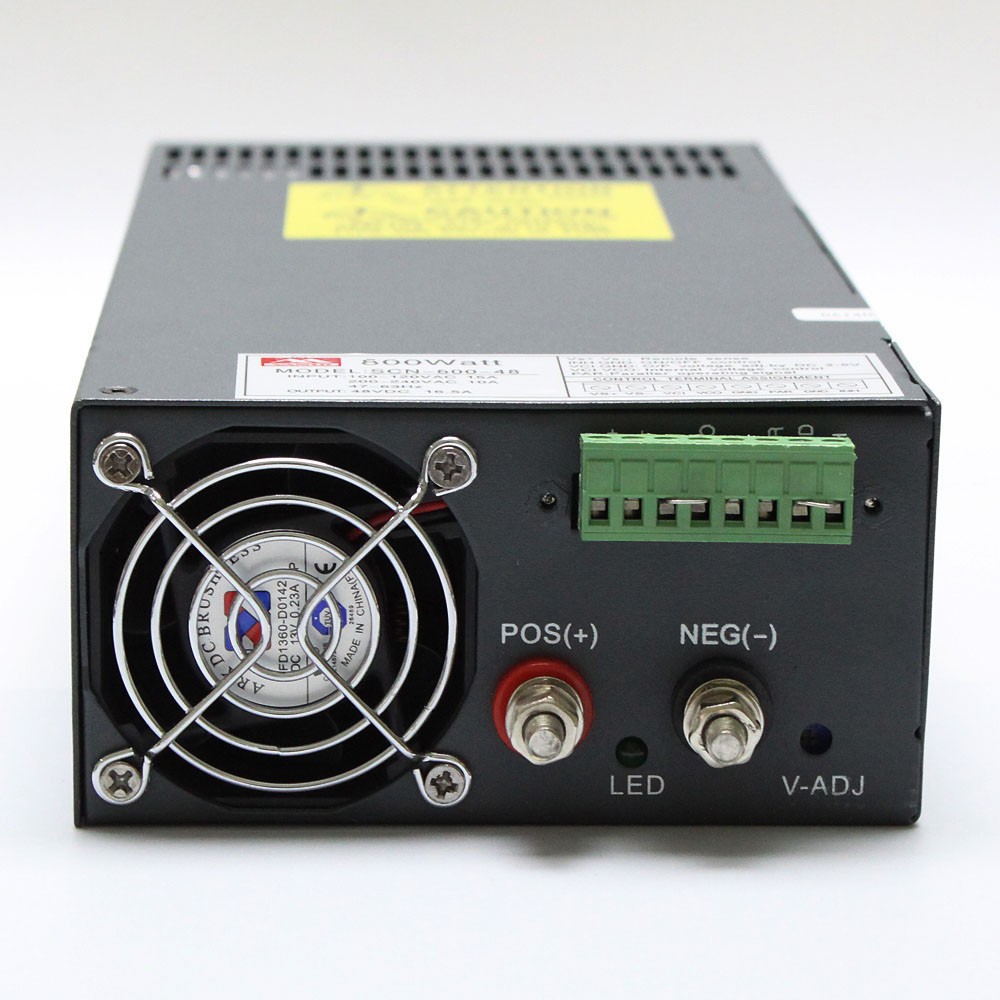

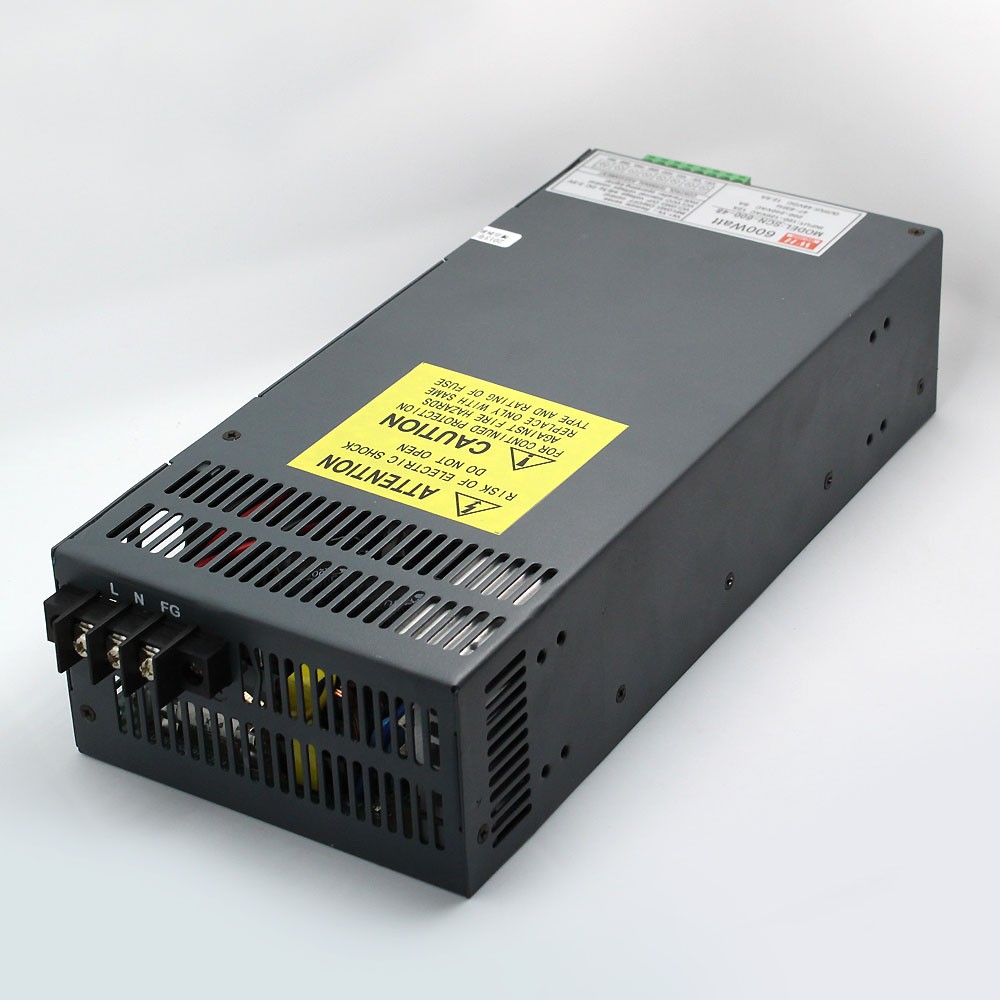

1. High reliability, low ripple2. Switch input voltage range choice3. Protection characteristics: short circuit/overload/pressure/thermal4. Built-in distance open/shutdown and voltage compensation signal interface5. Has the parallel function6. Built-in dc electric fan forced air cooling7. One year warranty 8. Size:247 x 147 x 63.5mm(L*W*H)
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model / Specification |
SCN-600-12 |
SCN-600-13.5 |
SCN-600-15 |
SCN-600-24 |
SCN-600-27 |
SCN-600-48 |
|
DC output voltage |
12V |
13.5V |
15V |
24V |
27V |
48V |
|
Output voltage error |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Rated output current |
50A |
44A |
40A |
25A |
22A |
12.5A |
|
Output current rage |
0-50A |
0-44A |
0-40A |
0-25A |
0-22A |
0-12.5A |
|
Wave and noise |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
|
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability(Note5) |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
DC output power |
600W |
600W |
600W |
600W |
600W |
600W |
|
Efficiency |
83% |
84% |
84% |
85.5% |
86.5% |
87% |
|
Adjustable range for DC voltage |
10-13.2V |
12-15V |
13.5-18V |
20-26.4V |
24-30V |
41-56V |
|
AC input voltage range |
90~132AC/180~264AC |
|||||
|
AC Input current |
12A/115V 7.5A/230VAC |
|||||
|
AC impulse current |
25A/115V 50A/230V |
|||||
|
Leakage current |
<3.5mA/240VAC |
|||||
|
Overload protection |
105%~135% Type:PULSING HICCUP SHUTDOWN Reset: auto recovery |
|||||
|
Setup rise hold up time |
±0.03%°C(0~50°C) |
|||||
|
Vibration |
10~500Hz, 2G 10min./1cycle,Period for 60min,EACH AXES |
|||||
|
Withstand voltage |
Input and output interval:1.5KvAC,Input and enclosure:1.5KVAC Output and enclosure:0.5KVAC |
|||||
|
Isolation resistance |
Input and output interval,Input and enclosure,Output and enclosure:500VDC/100M Ohms |
|||||
|
Working temperature and humidity |
-10°C~+50°C,20%~90%RH |
|||||
|
Store temperature and humidity |
-20°C~+85°C,10%~95%%RH |
|||||
|
Overall dimension |
247 x 147 x 63.5mm |
|||||
|
Weight |
2.1Kgs |
|||||
|
Safety standards |
Meet UL 1950 requirement (NOT apply for the mark) |
|||||
|
EMC standards |
CISPR22(EN55022)IEC1000-4,2,3,4,5,6,8,11 IEC100-3-2 |
|||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
