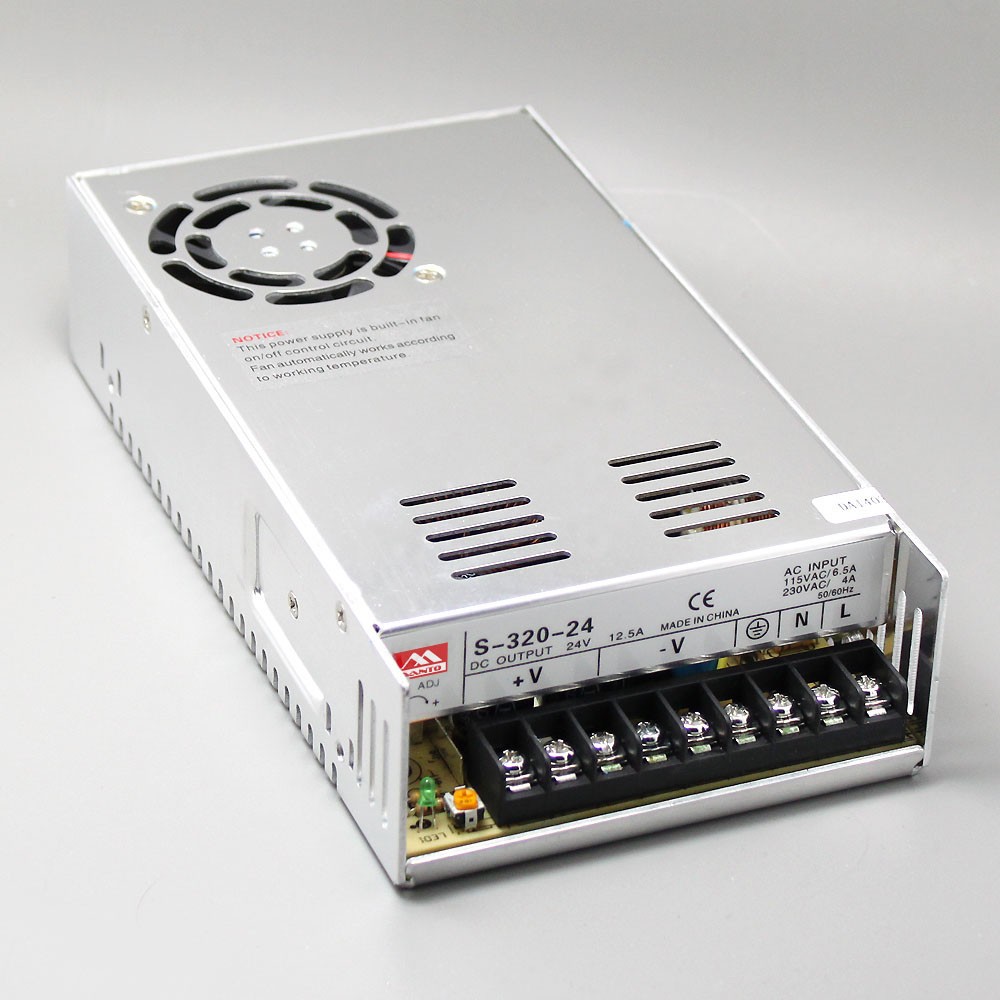

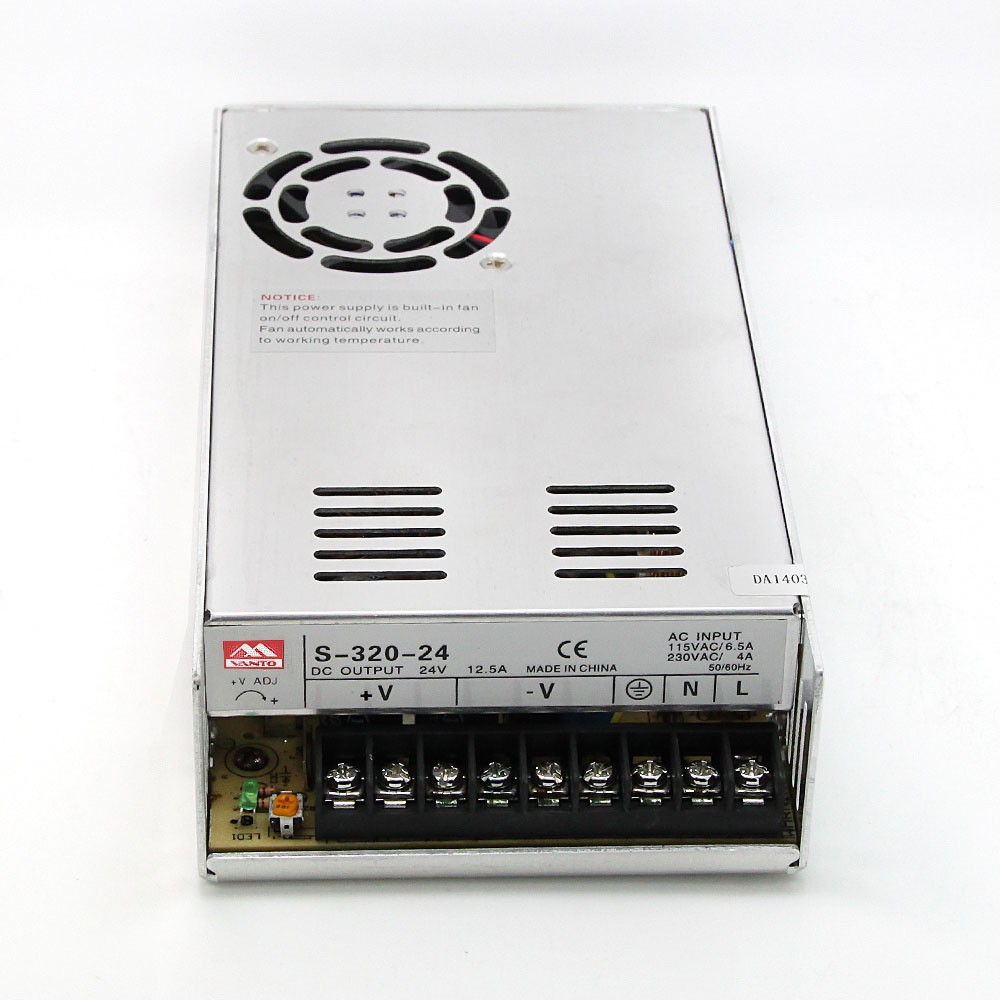

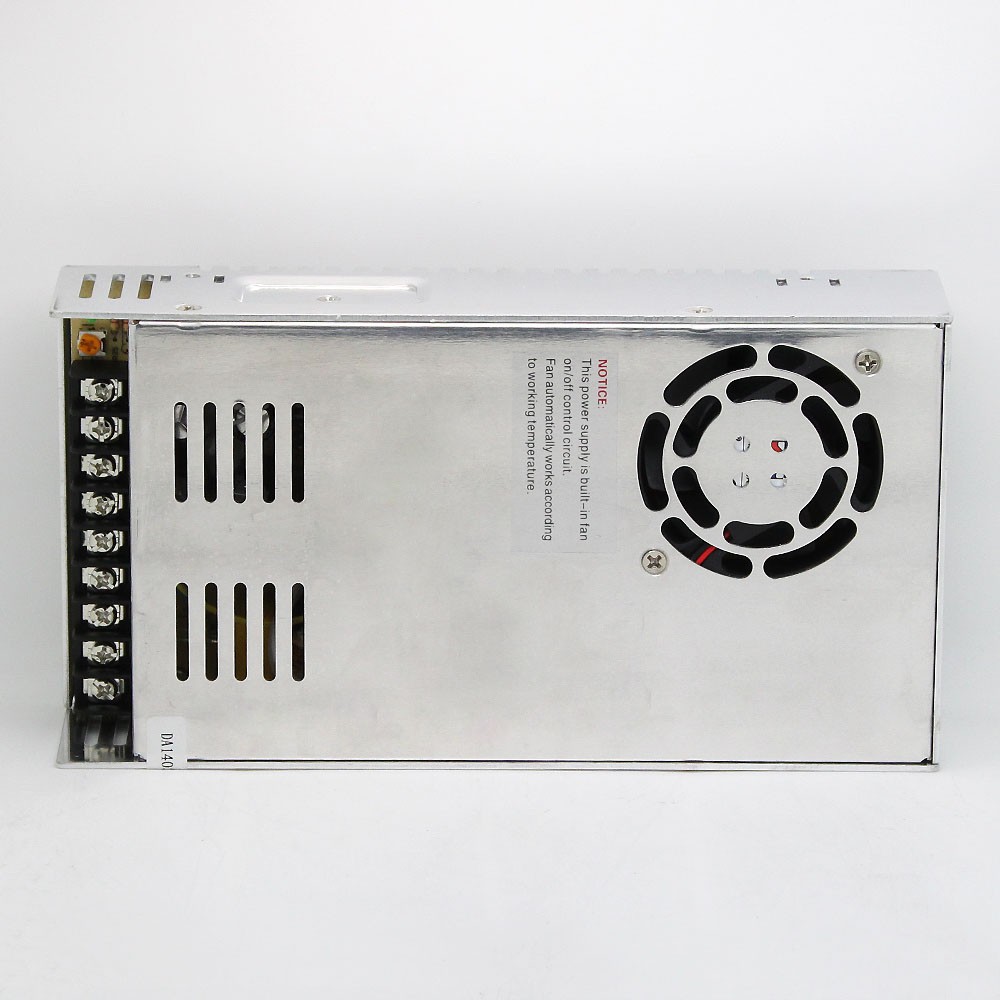

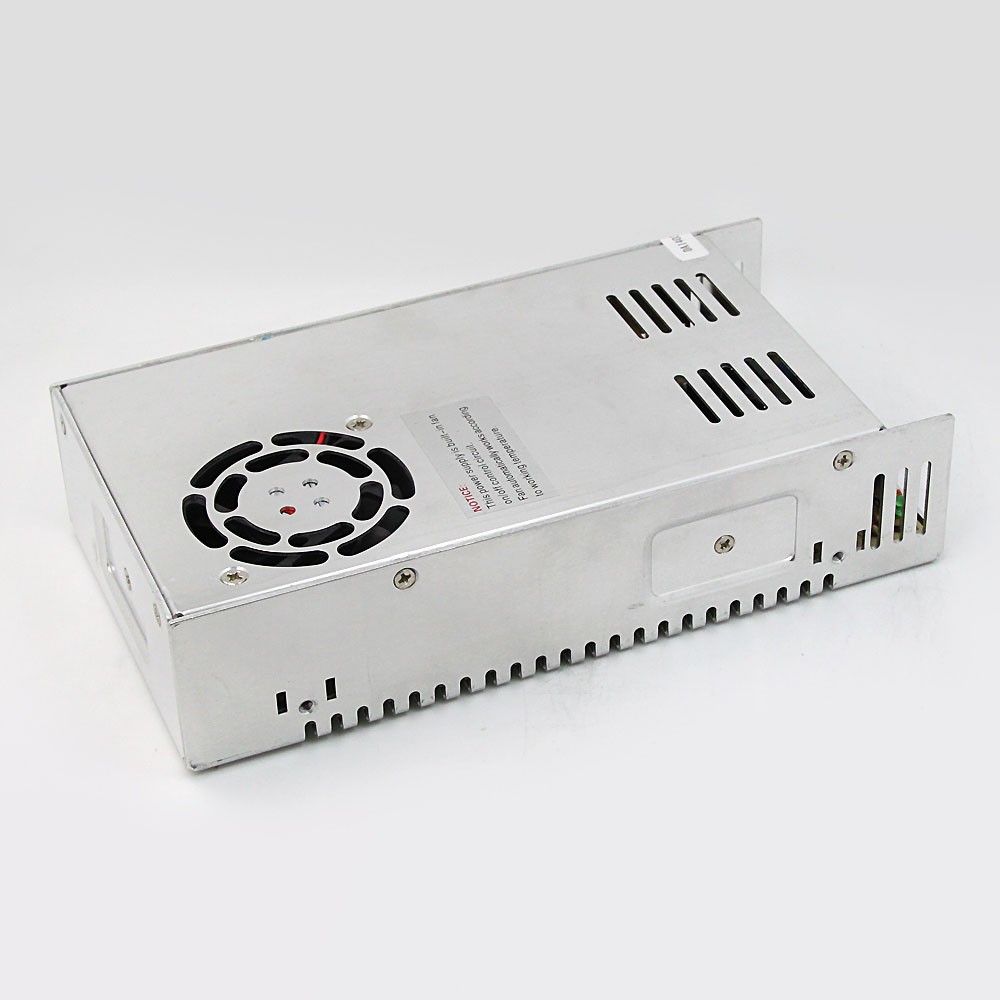

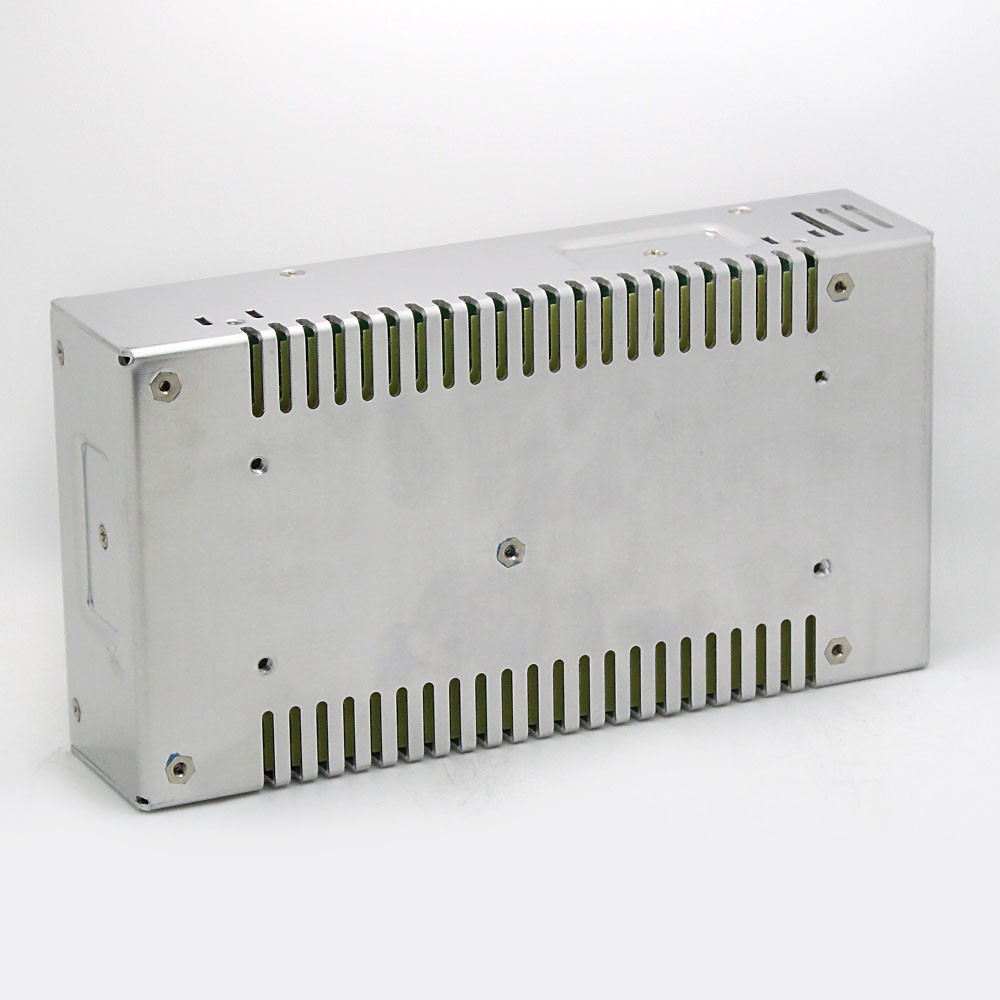

1. AC input range selectable by switch2. Protections: Short circuit / Overload / Over voltage / Over temperature3. Forced air cooling by built-in DC fan4. Cooling Fan ON-OFF auto control5. 100% full load burn-in test6. Fixed switching frequency at 90KHz7. Low cost, high reliability8. 2 years warranty
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model |
S-320-12 |
S-320-15 |
S-320-24 |
S-320-27 |
S-320-36 |
S-320-48 |
|
|
Output |
DC voltage |
12V |
15V |
24V |
27V |
36V |
48V |
|
Voltage tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
|
Rated current |
25A |
20A |
12.5A |
11A |
8.5A |
6.5A |
|
|
Current range |
0~25A |
0~20A |
0~12.5A |
0~11A |
0~8.5A |
0~6.5A |
|
|
Rated power |
300W |
300W |
300W |
297W |
306W |
312W |
|
|
Ripple&noise |
100mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
150mvp-p |
200mvp-p |
|
|
DCvoltage ADJ.range |
±10% |
±10% |
±10% |
±10% |
±10% |
±10% |
|
|
Input |
Voltage range |
90~132VAC/180~264VAC(selected by switch),255~373VDC |
|||||
|
frequency |
47~63HZ |
||||||
|
AC current |
6.0A/115VAC,3.5A/230VAC |
||||||
|
efficiency |
80% |
80% |
82% |
82% |
82% |
83% |
|
|
Inrush current |
Cold start current 25A/115VAC,50A/230VAC |
||||||
|
Leakage current |
< 3.5mA/240VAC |
||||||
|
Protection |
overload |
Rated output power105%~135% start over load protection |
|||||
|
protection type :rated current limit ,auto-recovery after fault condition is removed |
|||||||
|
Over voltage |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
33.2~35.6V |
42.6~44.2V |
54.8~56.6V |
|
|
Protection type:hiccup mode,auto-recovery after fault condition is removed |
|||||||
|
Over temperature |
≥55℃fan on,≤50℃fan off,≥85℃ start over temperature protection |
||||||
|
Protection mode:cutoff output,auto-recovery after temperature become normal |
|||||||
|
Environment |
Working temp,humidity |
-10℃~+60℃,20%~90%RH |
|||||
|
Storagetemp,humidity |
-20℃~+85℃,10%~95%RH non-condensing |
||||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
||||||
|
Safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
||||||
|
Fitstandard |
Safety standard |
Fit UL1012 |
|||||
|
EMC standard |
meet EN55022,CLASSA |
||||||
|
Others |
Dimension |
215*115*50mm (L*W*H) |
|||||
|
Weight/packing |
1.0kg/2pcs/20kg |
||||||
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
||||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
