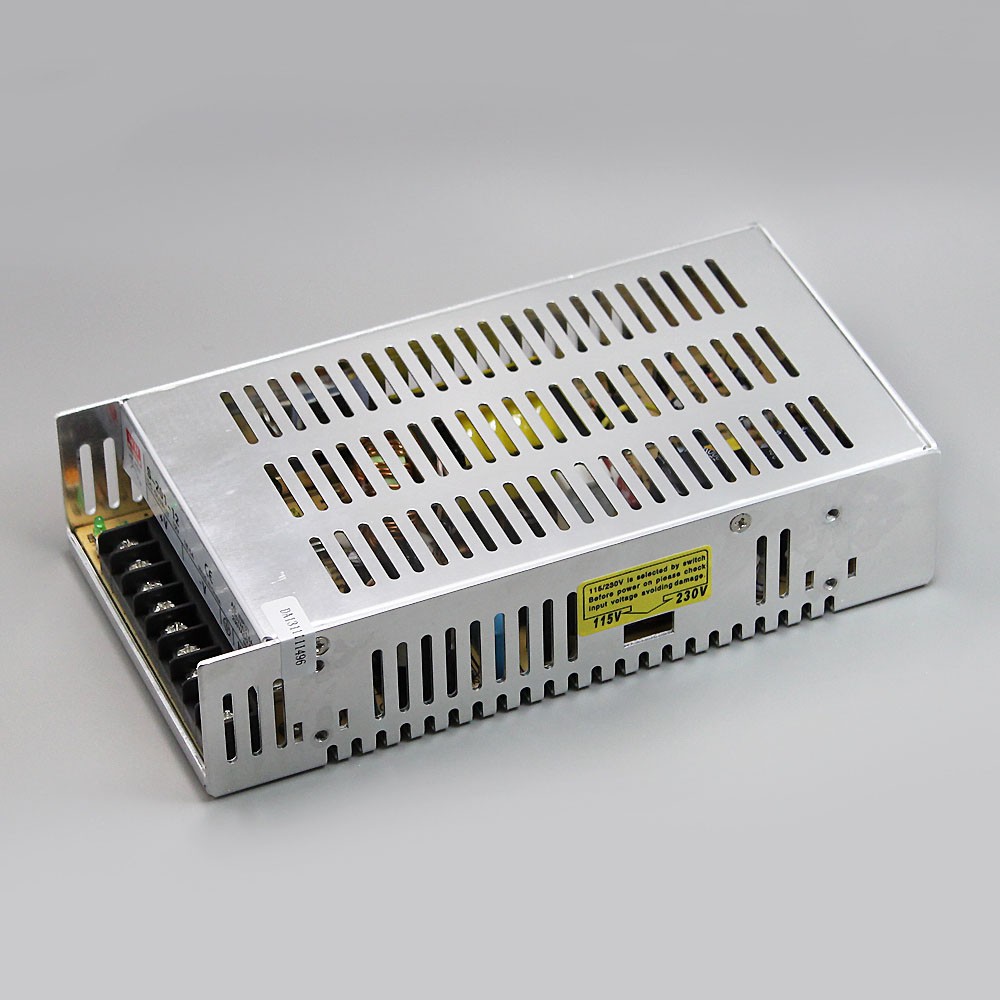

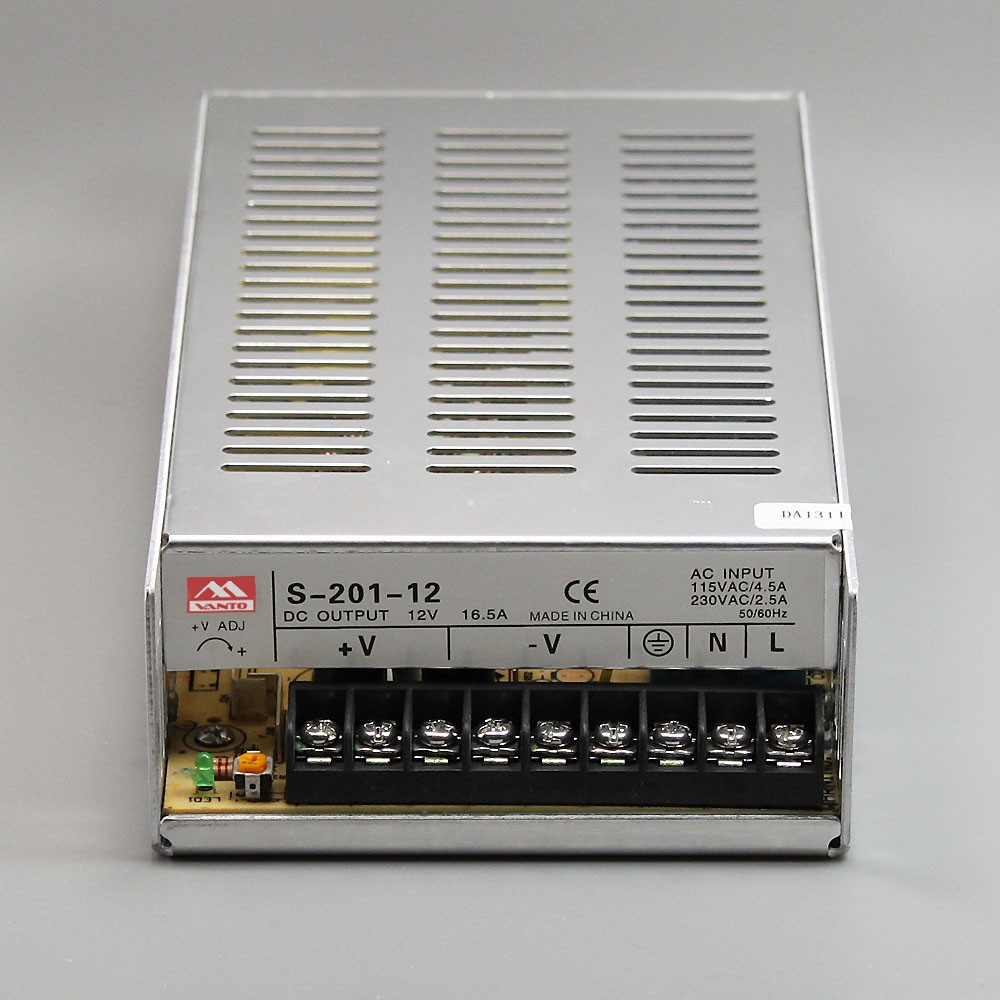

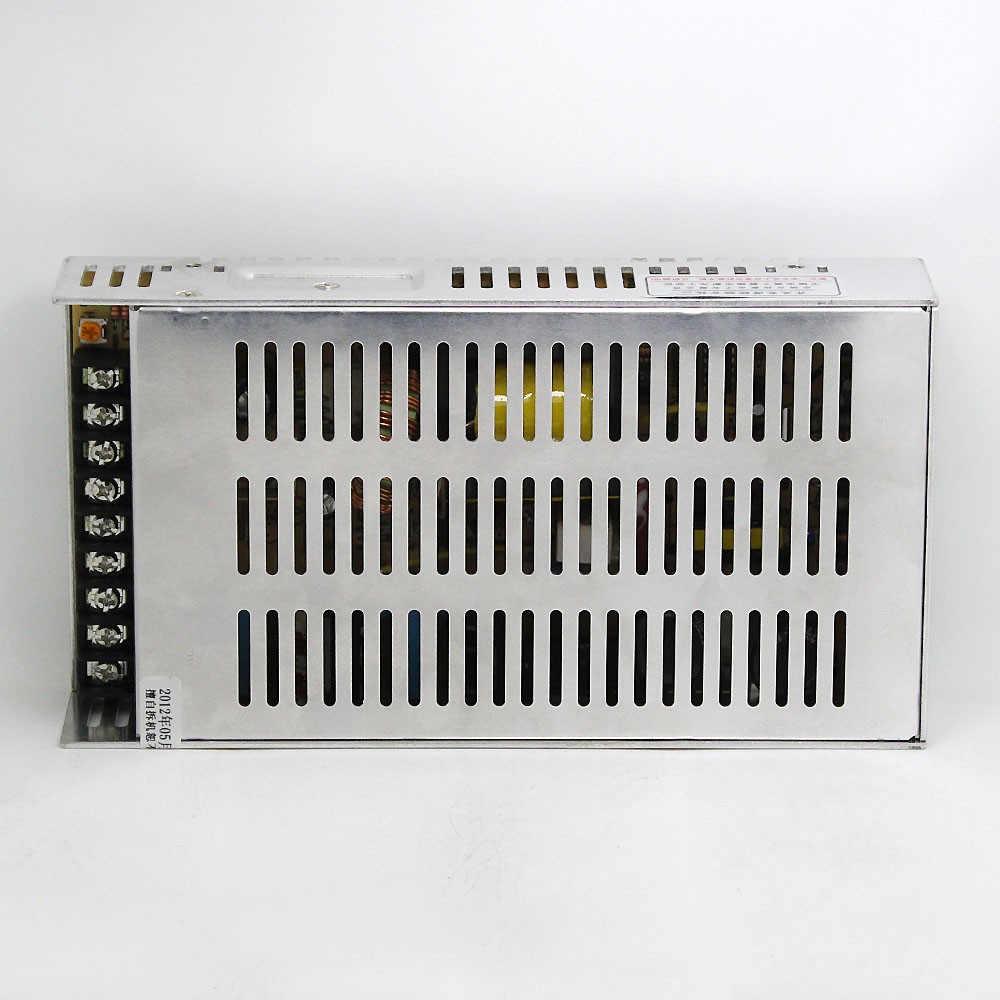

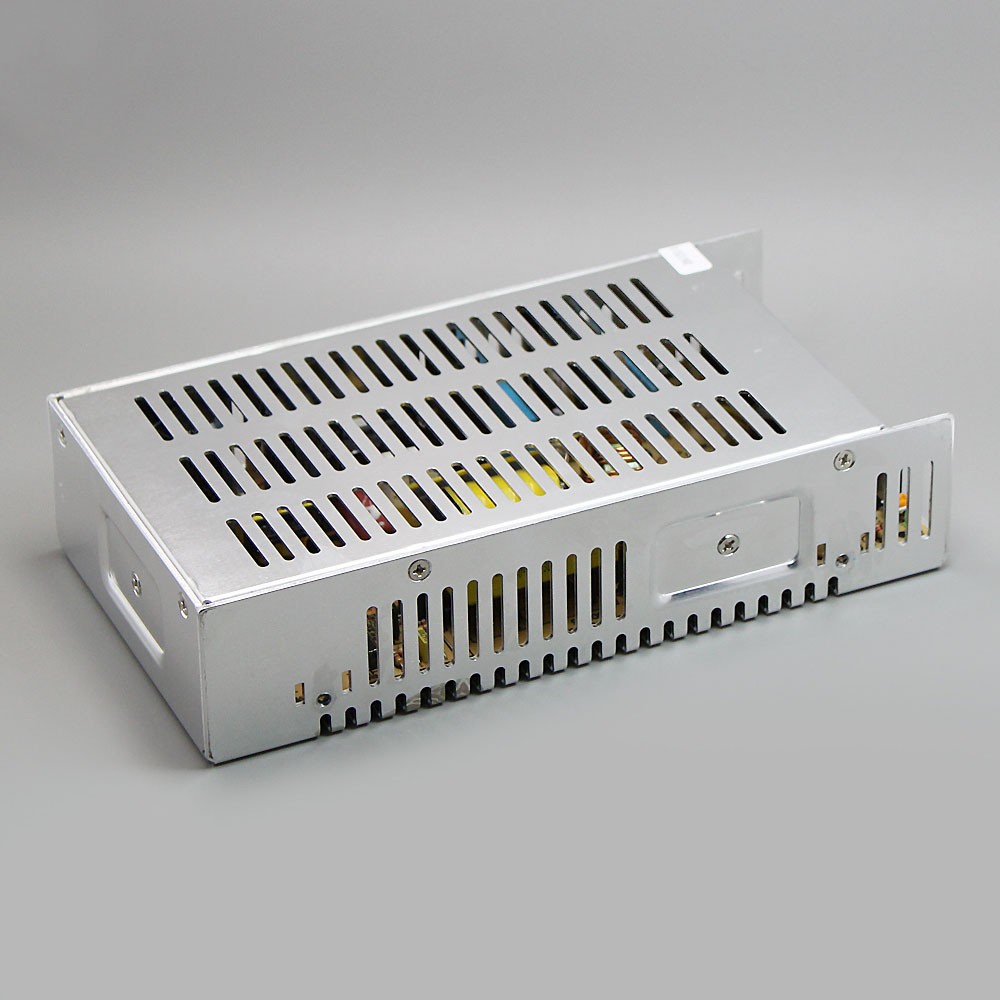

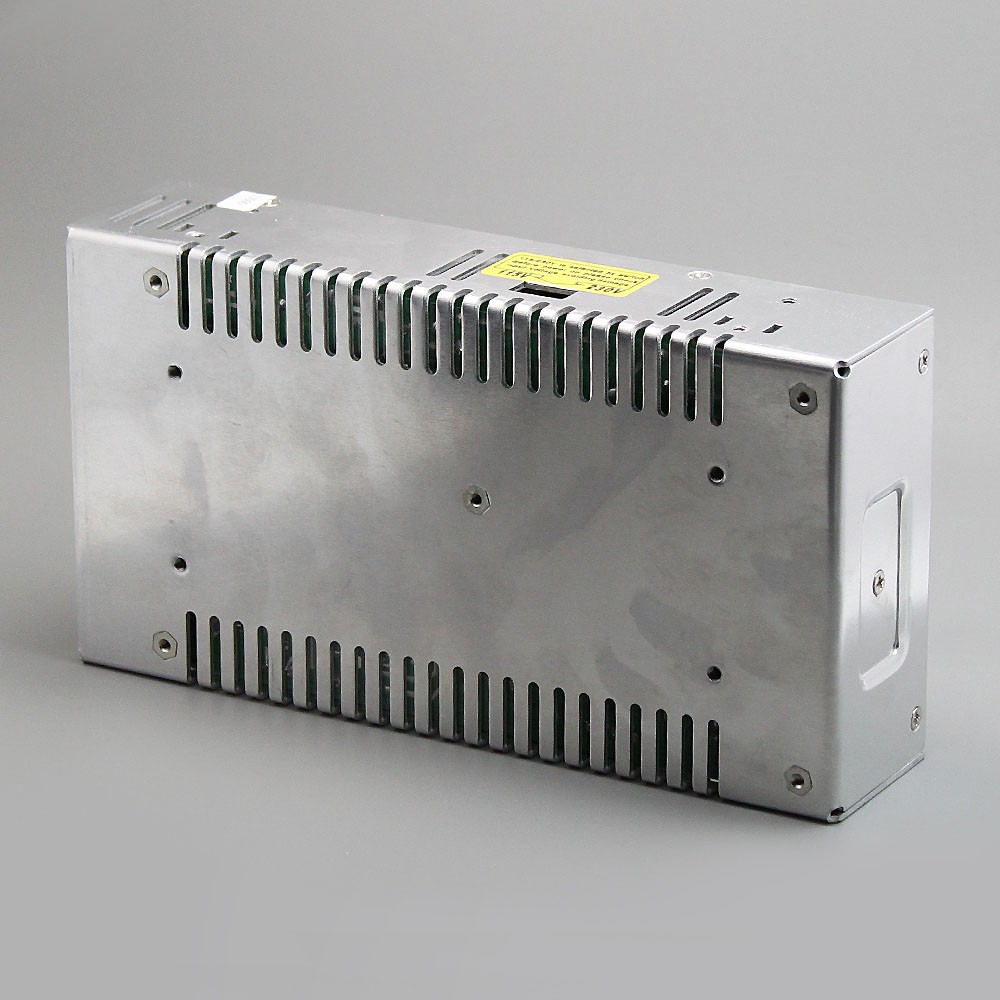

S-201W Single Output Switching Power Supply

1. High efficiency, high reliability
2. Switch input voltage range choice
3. 100% full load and machine test
4. Protection characteristics: short circuit/overload/pressure/thermal
5. Air cooling
6. Working frequency 25 KHz
7. 2 years warranty
8. Size: 215*115*50mm(L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

201W AD to DC Power Supply Specificates

Model

S-201-12

S-201-13.5

S-201-15

S-201-24

S-201-27

S-201-48

Output

Dc output voltage

12V

13.5V

15V

24V

27V

48V

Output voltage tolerance

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current

16.5A

14.7A

13A

8.3A

7.4A

4.2A

Output current range

0-16.5A

0-14.7A

0-13A

0-8.3A

0-7.4A

0-4.2A

Output power

198W

198.45W

198W

199.2W

199.8W

201.6W

Ripple and the noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Dc voltage adjustable scope

-16%,+10%

-12%,+11%

-10%,+20%

-16%,+10%

-4%,+18%

-15%,+17%

Start, rise, keep time

200ms,100ms,20ms Loaded with

Input

Input voltage range

90~132 VAC/180~264VAC By switch 47~63 Hz 254~370VDC

Exchange input current

4.5A/115VAC 2.5A/230VAC

efficiency

76%

79%

78%

82%

82%

83%

Impulse current

50A/115V 50A/230V

Leakage current

<3.5 mA/240VAC

Protection characteristics

Overload protection

115%~135%

Protection way: current limiting, automatic recovery

Overvoltage protection

115%~135%

Protection way: voltage limitation, automatic recovery

High temperature protection

RTH3 acuity 90 ℃, the temperature drop, cut off output automatically after recovery

Environment

Working temperature, humidity

-10℃~+50℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

Security

Compression sex

Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC

Insulation resistance

Between the input and output, the input and output, and ground:
100M Ohms/500VDC

Standard

Safety standards

meet UL1950

EMC standard

Drsign refer to FCC Part15 J Conduction Class A

Other

Weight

0.9Kg

Packaging

20pcs/18Kg

Note

  1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
  2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
  3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
  4. Specific output current see output drop forehead curve.
