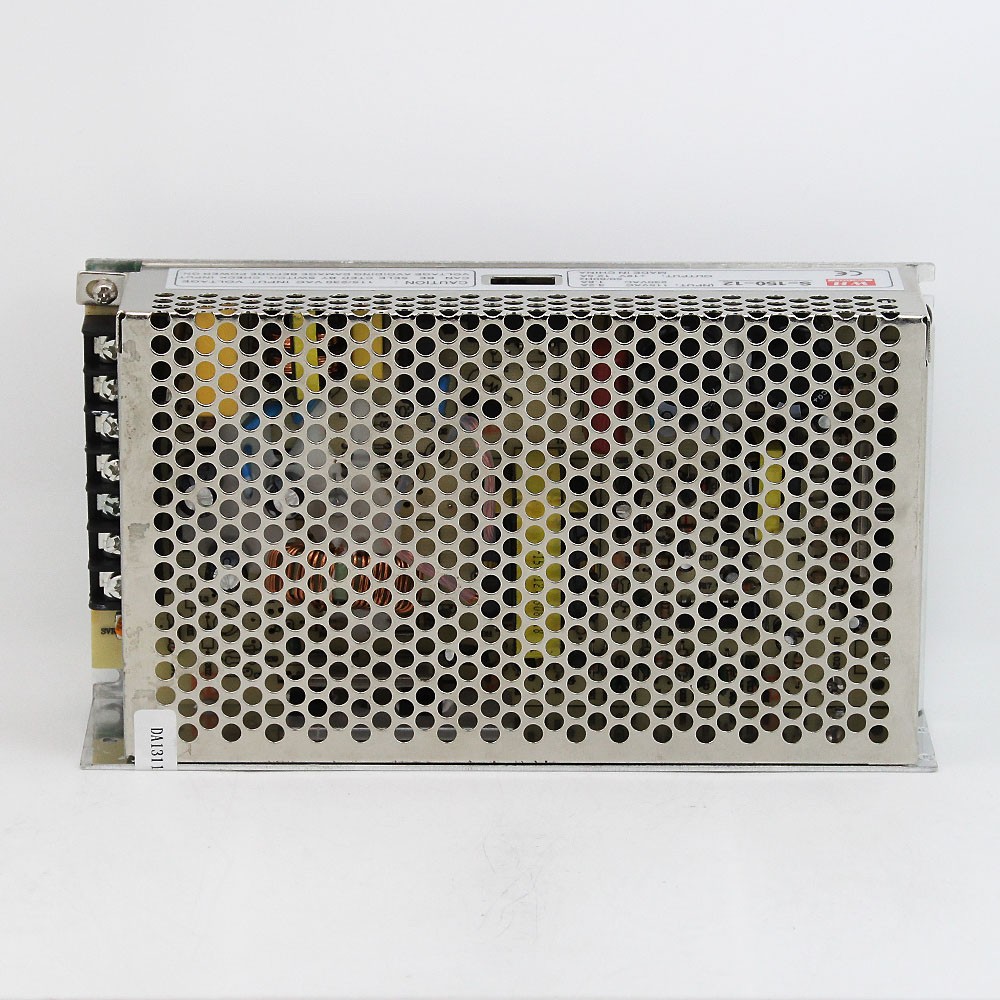

1. High efficiency, high reliability and low cost2. Switch input voltage range choice3. 100% full load and machine test4. Protection characteristics: short circuit/overload/pressure5. Air cooling6. Working frequency 25 KHz7. 2 years warranty8. Size: 199*98*38mm (L*W*H)
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model Specification |
S-150-7.5 |
S-150-9 |
S-150-12 |
S-150-13.5 |
S-150-15 |
S-150-24 |
|
DC Output voltage |
7.5V |
9V |
12V |
13.5V |
15V |
24V |
|
Output voltage range(Note:2) |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Rated output current |
20A |
16.7A |
12.5A |
11.2A |
10A |
6.5A |
|
Output current range |
0~20A |
0~16.7A |
0~12.5A |
0~11.2A |
0~10A |
0~6.5A |
|
Wave and noise(Note:3) |
150mVp-p |
120mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
Inlet stability(Note:4) |
±0.5% |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
±0.2% |
|
Load stability(Note:5) |
±0.5% |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
±0.2% |
|
DC output power |
150W |
150.3W |
150W |
151.2W |
150W |
156W |
|
Efficiency |
80% |
80% |
82% |
83% |
84% |
85% |
|
Adjustable range for DC voltage |
6~8.3V |
8~10.4V |
10.6~13.2V |
12~15V |
13.5~16.5V |
21~28V |
|
AC input voltage range |
85~132VAC/176~264VAC selected by switch 47~63Hz,248~370VDC |
|||||
|
Input current |
3.2A/115V 1.6A/230V |
|||||
|
AC Inrush current |
Cold-start current 30A/115V 60A/230V |
|||||
|
Leakage current |
<3.5mA/240VAC |
|||||
|
Overload protection |
105 ~ 150% Protection type :pulsing hiccup shutdown Reset: auto recovery. |
|||||
|
Over-voltage protection |
115%~135% Protection type :shut off output |
|||||
|
Temperature coefficient |
±0.03%/°C(0~50°C) |
|||||
|
Setup, rise, hold up time |
100ms, 50ms, 20ms |
|||||
|
Vibration |
10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes |
|||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
|
Working temperature and humidity |
-10°C~+60°C(Refer to output load derating curve),20%~90%RH |
|||||
|
Overall dimension |
199X98X38mm (L*W*H) |
|||||
|
Weight |
0.85kgS |
|||||
|
Safety standards |
UL 1950 TUV EN60950 Approved |
|||||
|
EMC standards |
CISPR22(EN 5022),IEC1000-4-2,3,4 IEC1000-3-2Verification |
|||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
