FTO 011 Tamper-proof Thermostat

1. Small size
2. Default temperature settings
3. Easy to install
4. High switching accuracy

Tamper-proof (Pre-set) Thermostat FTO 011: Contact breaker/NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

FTS 011 FTO 011 Tamper-proof (Pre-set) Thermostat Cabinet Thermostat Enclosure Thermostat Specifications

Sensor element
thermostatic bimetal
Contact type
snap-action contact
Contact resistance
< 20mΩ
Service life
> 100 000 cycles
Max. switching capacity
10A resistive/ 2A inductive @ 120VAC
5A resistive/ 1.6A inductive @ 240VAC
DC 30W
Max. inrush current
AC 10A
EMC
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection
2-pole terminal for AWG 14 max.(2.5mm2), torque 0.8Nm max
Housing
plastic, UL 94V-0, light grey
Mounting
clip for 35mm DIN rail, EN60 715
Mounting position
vertical
Operating temperature
-4 to +176°F(-20 to +80)
Storage temperature
-49 to +176°F(-45 to +80)
Dimensions/weight
1.85 x 1.3 x 1.3" (47x33x33mm) approx. 23g
Protection type
IP20


Part No.
Contact
Switch-off temperature
Switch-on temperature
01160.0-00
NC - open on rise
59°F / 15°C (± 9°F / 5K tolerance)
41°F / 5°C (± 9°F / 5K tolerance)
01160.0-01
NC - open on rise
77°F / 25°C (± 9°F / 5K tolerance)
59°F / 15°C (± 9°F / 5K tolerance)
01161.0-00
NO - close on rise
122°F / 50°C (± 11°F / 6K tolerance)
104°F / 40°C (± 12.6°F / 7K tolerance)
01161.0-01
NO - close on rise
140°F / 60°C (± 11°F / 6K tolerance)
122°F / 50°C (± 12.6°F / 7K tolerance)
01161.0-02
NO - close on rise
95°F / 35°C (± 11°F / 6K tolerance)
77°F / 25°C (± 12.6°F / 7K tolera

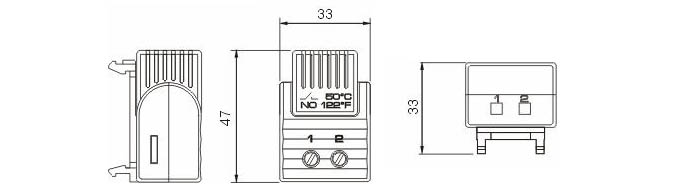

FTS 011 FTO 011 Tamper-proof (Pre-set) Thermostat Cabinet Thermostat Enclosure Thermostat Drawing 1

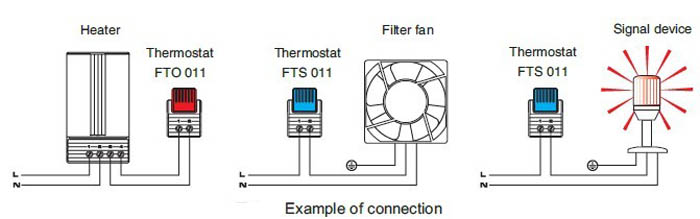

FTS 011 FTO 011 Tamper-proof (Pre-set) Thermostat Cabinet Thermostat Enclosure Thermostat connection drawing 2

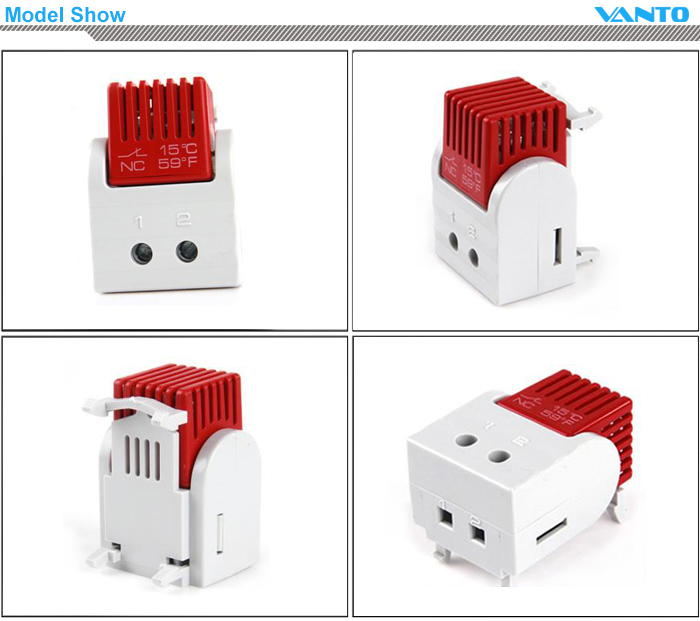

FTO 011 Tamper-proof (Pre-set) Thermostat Cabinet Thermostat Enclosure Thermostat Model Show

FTS 011 FTO 011 Thermostat Packing


FAQ-Vanto Electric

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
