KTS 011 Small Thermostat

1. Large setting range
2. Small size
3. Simple to mount
4. Lifetime warranty
5. High switching performance
6. 1 Piece sample order acceptable

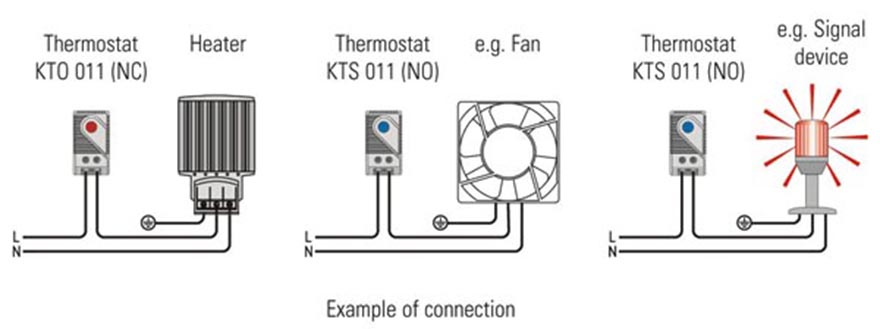

KTS 011: Thermostat(normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Specification of KTS 011 Small Thermostat

Switch temperature difference:
7K (± 4K tolerance)
Sensor element:
thermostatic bimetal
Contact type:
snap-action contact
Contact resistance:
< 10mOhm
Service life:
> 100 000 cycles
Max. switching capacity:
250VAC, 10 (2) A
120VAC, 15 (2) A
DC 30W
EMC:
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection:
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting:
clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing:
plastic according to UL94 V-0, light grey

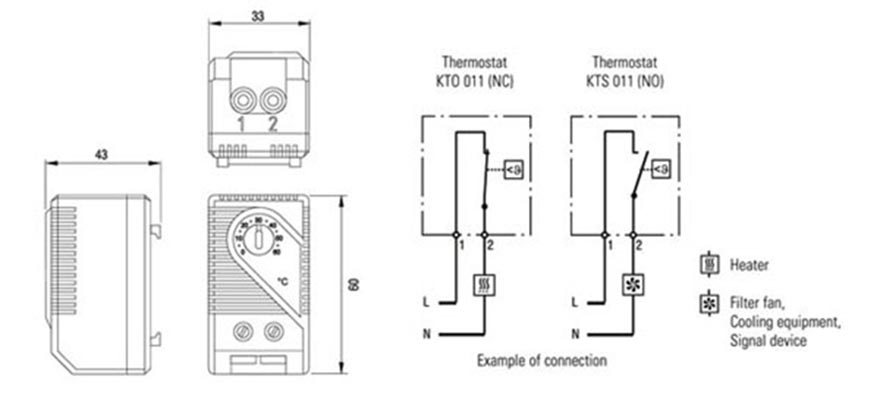

Dimensions/weight:
60 x 33 x 43mm approx. 40g
Fitting position:
variable
Operating/Storage temperature:
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type:
IP20


Setting range
Art. No. Contact breaker (NO)
0 to +60°C
01141.0-00
-10 to +50°C
01143.0-00
+20 to +80°C
01158.0-00
+32 to +140°F
01141.9-00
+14 to +122°F
01143.9-00
0 to +60°C
01147.9-00

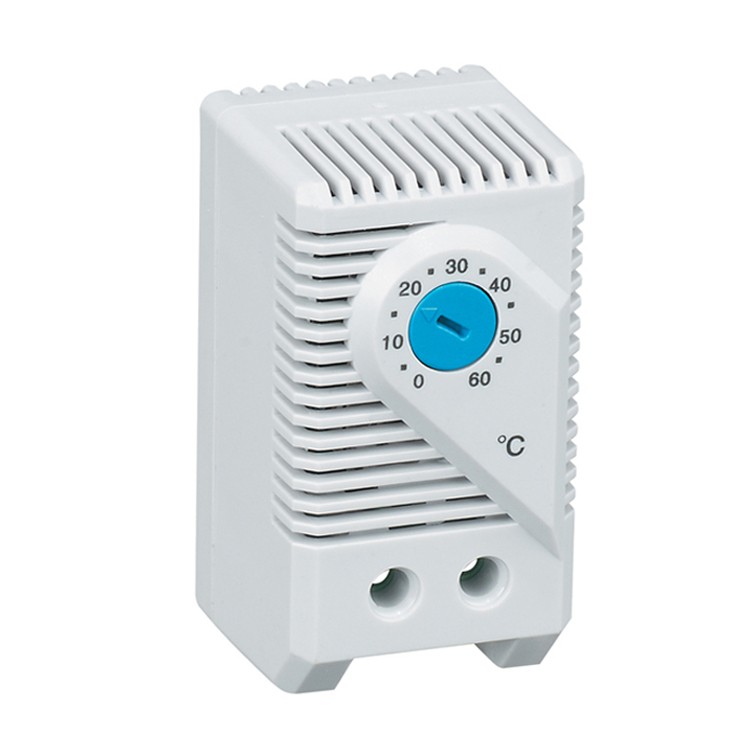

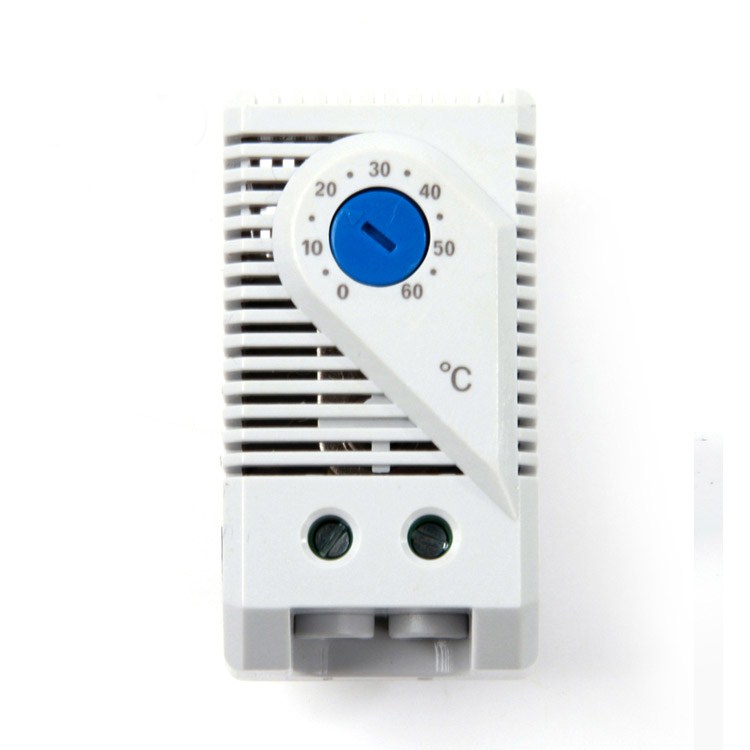

KTS 011 KTO 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat

KTS 011 KTO 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat

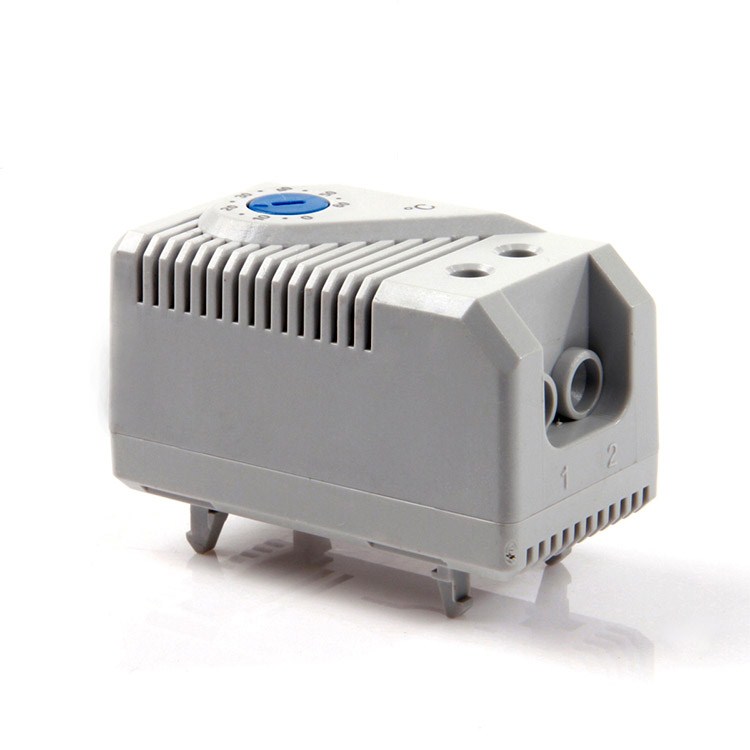

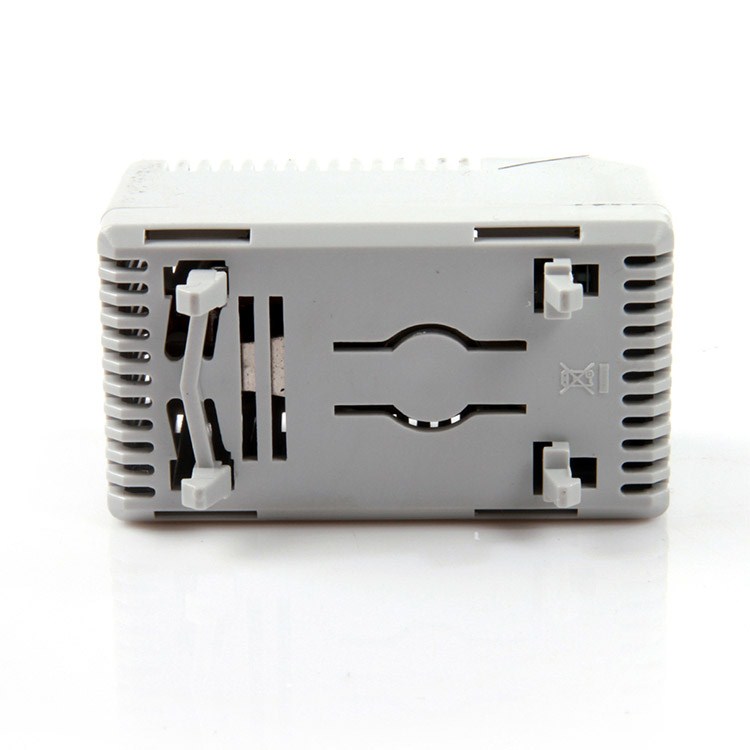

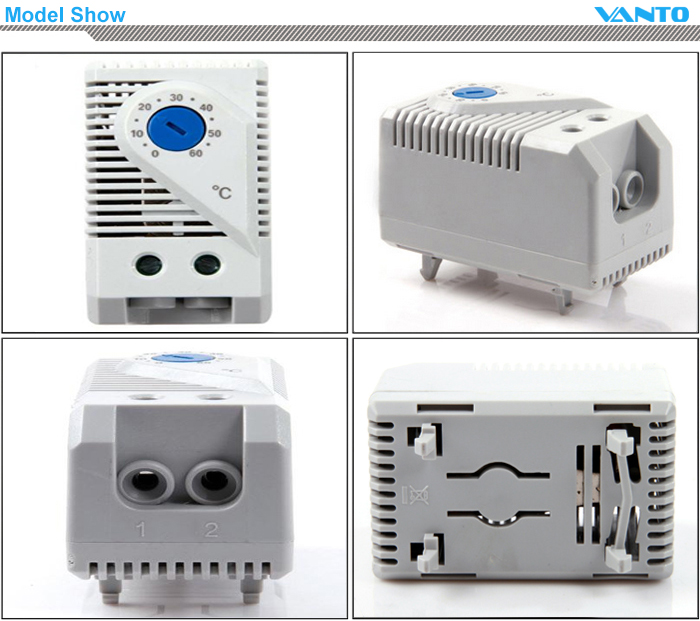

Stego KTS 011Thermostat Cabinet Thermostat Enclosure Thermostat Model Show

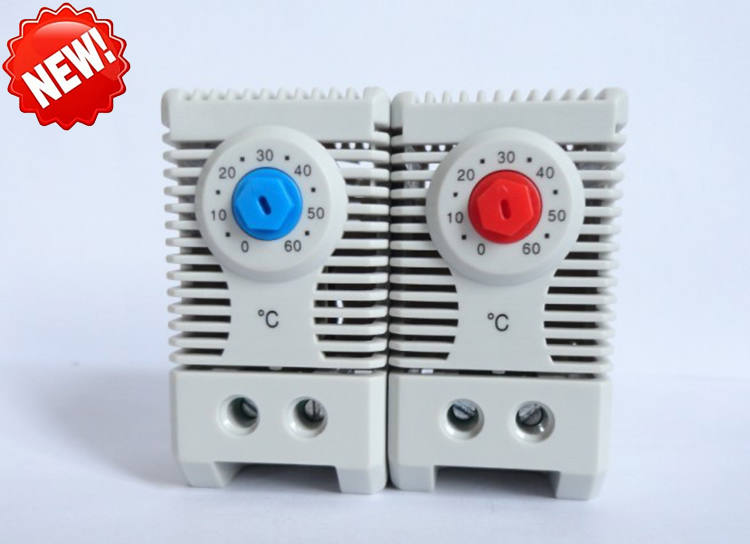

Stego New Design KTS 011 KTO 011 Thermostats

Small Thermostat Cabinet Thermostat Enclosure Thermostat

Stego KTS 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat Packing Show

FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
