ZR 011 Dual Thermostat
You are here: Home» Products » Thermostat » Enclosure Thermostat

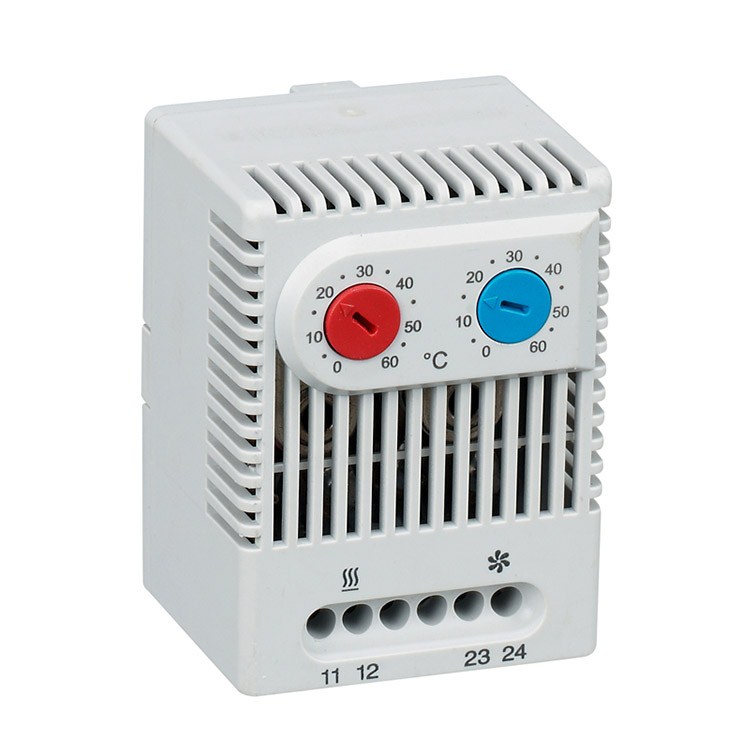

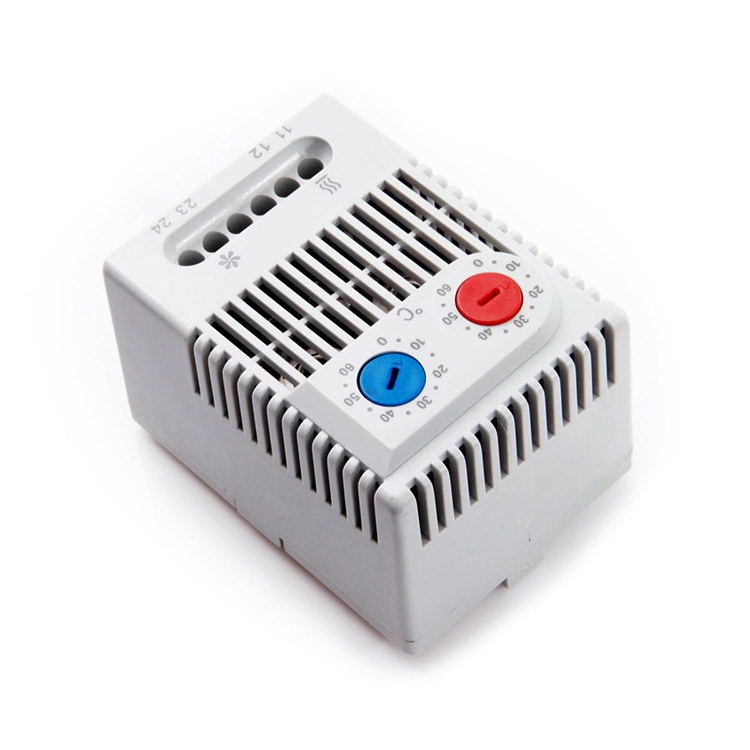

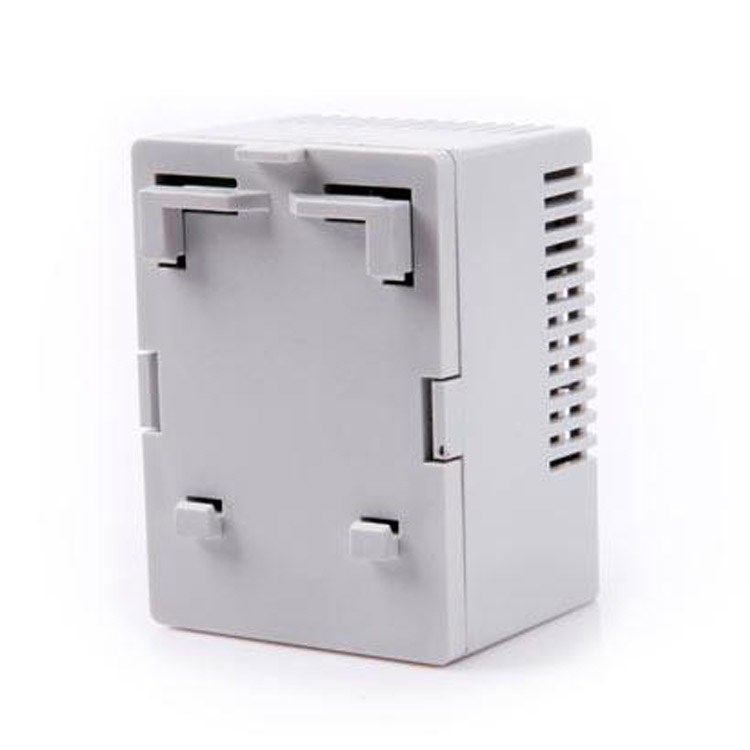

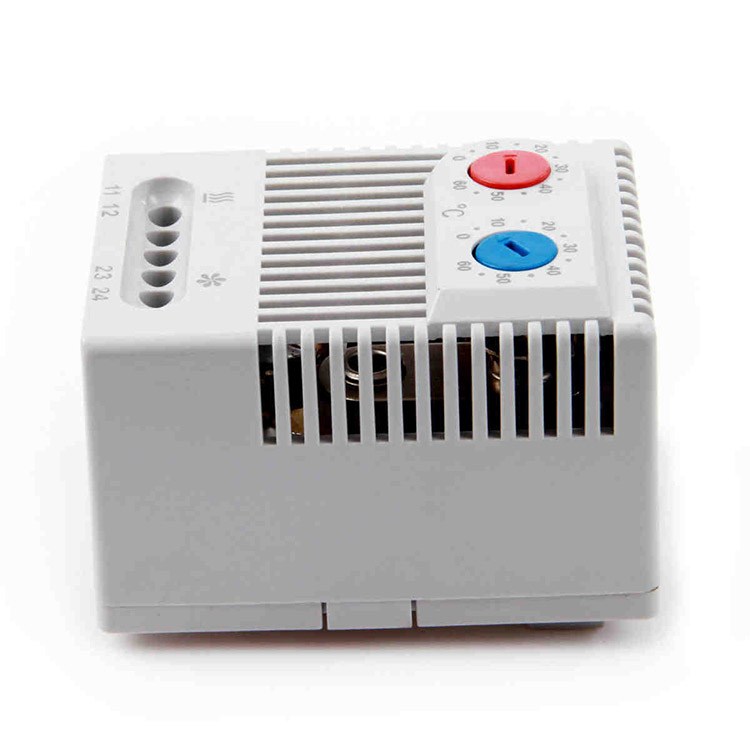

ZR 011 Dual Thermostat

1. NO and NC in one casing
2. Separate adjustable temperatures
3. High switching capacity
4. Terminals easily accessible
5. Clip fixing
Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters. The contact opens when temperature is rising.

Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Stego ZR 011 Dual Thermostat Cabinet Thermostat Enclosure Thermostat Specifications

Sensor element:
Thermostatic bi-metal
Maximum tolerance:
+/- 7.2°F (4K)
Switching difference (hysteresis):
12.6°F +/- 5.4°F (7°C +/- 4K)
Switching capacity (max. load):
NC: 10A resistive/2A inductive @ 250VAC
NO: 5A resistive/2A inductive @ 250VAC
DC 30W
Minimum load:
20 mA (all voltages)
EMI/EMC compliance:
EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connections:
4-pole terminal for AWG 14 max. (2.5 mm²)
Mounting:
Clip for 35mm DIN rail (EN50022)
Dimensions (H x W x D)/wegiht:
2.6 x 2.0 x 1.8" (67 x 50 x 46 mm) 90 g
Housing:
Plastic, UL 94V-0
Protection type:
IP20
Operating temperature:
-4 to 476°F (-20 to 80°C)
Storage temperature:
-49 to 158 °F (-45 °C to 70 °C)

Part No.
Setting range NC
Setting range NO
Setting range NO
01172.0-01
32 to 140 °F
32 to 140 °F
-
01175.0-01
14 to 122 °F
68 to 176 °F
-
01172.0-00
0 to 60 °C
0 to 60 °C
-
01175.0-00
-10 to 50 °C
20 to 80 °C
-
01176.0-00
-
0 to 60 °C
0 to 60 °C
01176.0-01
-
32 to 140 °F
32 to 140 °F

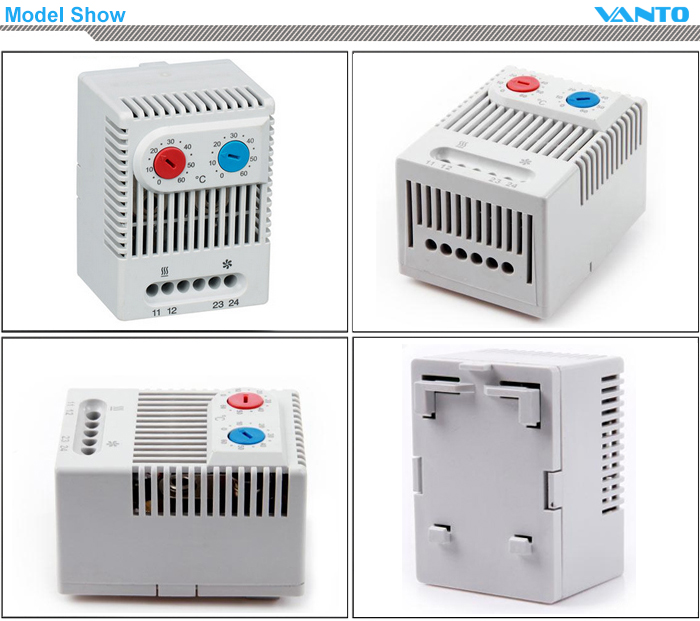

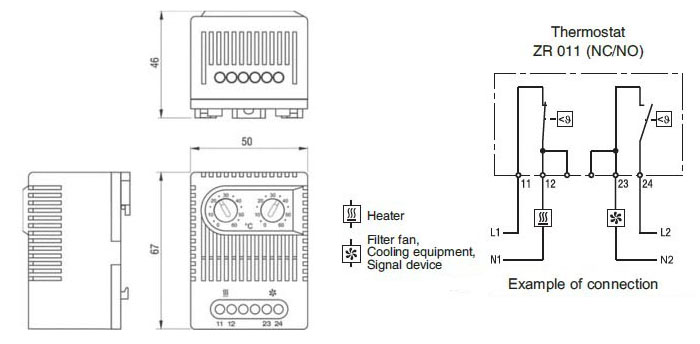

Stego ZR 011 Dual Thermostat Cabinet Thermostat Enclosure Thermostat DrawingStego ZR 011 Dual Thermostat Cabinet Thermostat Enclosure Thermostat Model ShowZR 011 Dual Thermostat Packing

Stego ZR 011 Dual Thermostat Cabinet Thermostat Enclosure Thermostat for Temperature Control Packing ShowFAQ-Vanto Electric
