SG-7000 Mechanical Thermostat
You are here: Home» Products » Thermostat » Room Thermostat

SG-7000 Mechanical Thermostat

Use instructions Room thermostat
Bimetallic room thermostat for heating and air-conditioning instalations
Thermal, electrical and mechanical features Breaking capacity on opening contact, 10A-250V A.C.(ohmic load)Differential:0.5K

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

SG-7000 Mechanical Room Thermostat Specificates

Use instructions Room thermostat
Bimetallic room thermostat for heating and air-conditioning instalations.
Bimetallic room thermostat for heating and air-conditioning instalations.
Thermal, electrical and mechanical features Breaking capacity on opening contact, 10A-250V A.C.(ohmic load)Differential:0.5K

Temperature's scale adjustment
After almost two days from the installation, to obtain a precise scale adjustment, measure the room temperature with a reference
thermometer, placed aside to reach the same value of the thermometer, We suggest to install the equipment at at about1.5mt from the
floor and far from any heat source.

Important
● Accelerating resistance with voitage to 220V-250V a.c.
● Thermostat is provided with an accelerating resistance which mustbe absolutely connected to obtain the regulation's performances.
● The terminal 4has thus to be connected to the neutral according to the diagram shown on the cover.
● This connection allows also the working of the pilot lamp which indicates the operation of the heating
.

Voltage:
AC230V +10%~-15%,50/60Hz
Max. Current:
16A
Load:
With floor sensor: 16A,3600W
With build-in sensor: 16A,3600W
Temperature scale:
0~40℃
Control voltage signal:
AC230V
Ambient temperature:
-10℃/+50℃
Dimensions:
H:75, W:75, D:25 MM
Protection:
With floor sensor: IP20
With build-in sensor: IP20

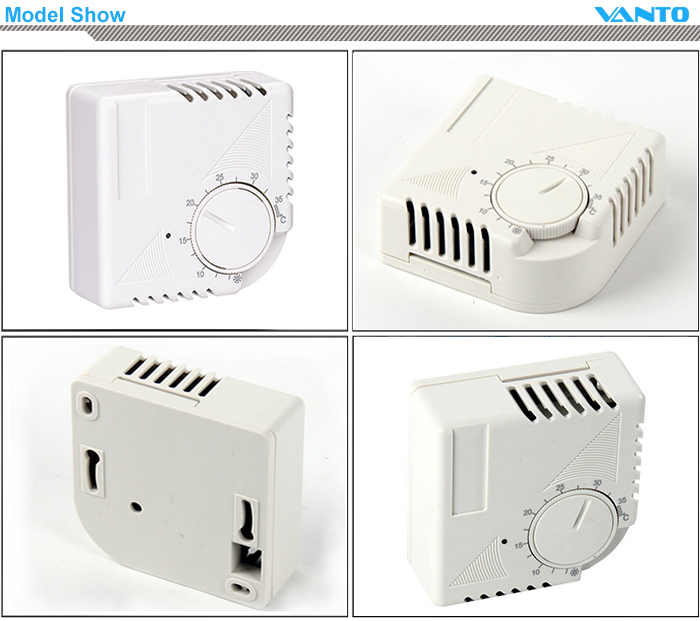

SG-7000 Mechanical Room Thermostat Model Show

SG-7000 Mechanical Room Thermostat Packing


FAQ-Vanto Electric

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
