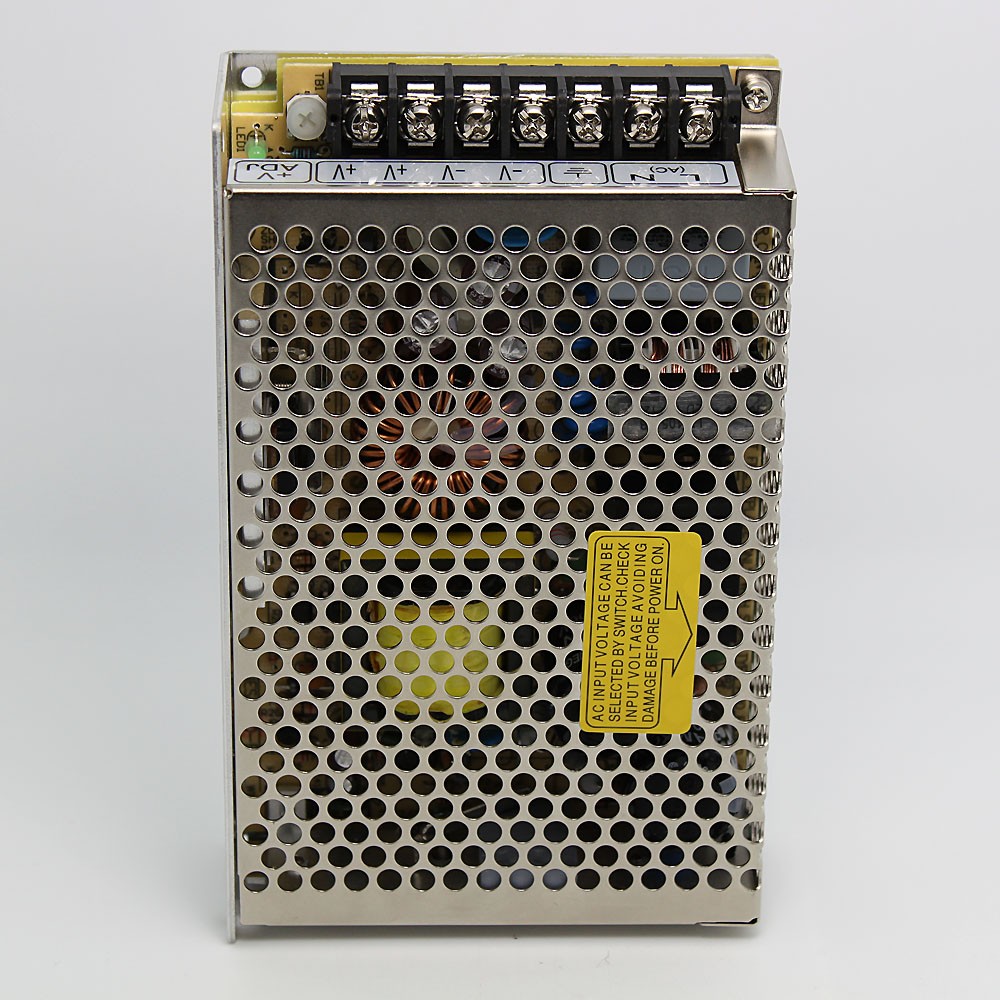

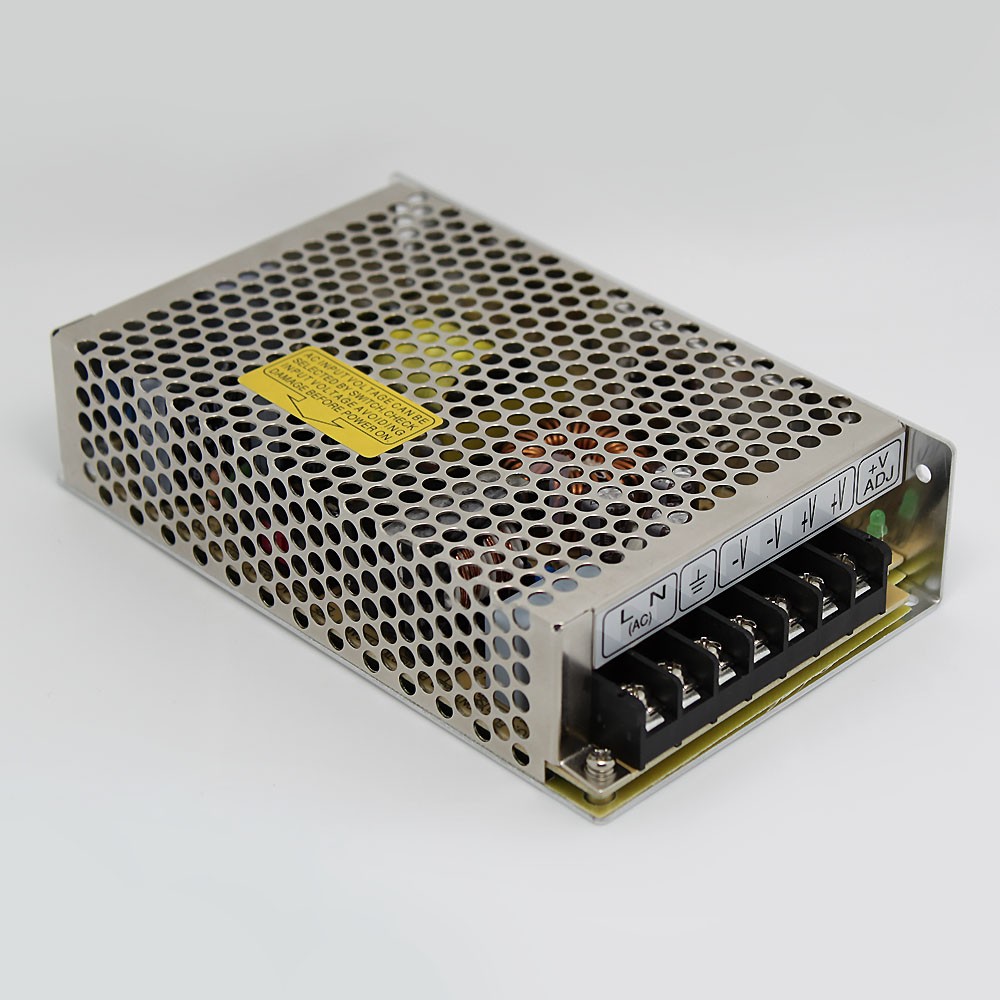

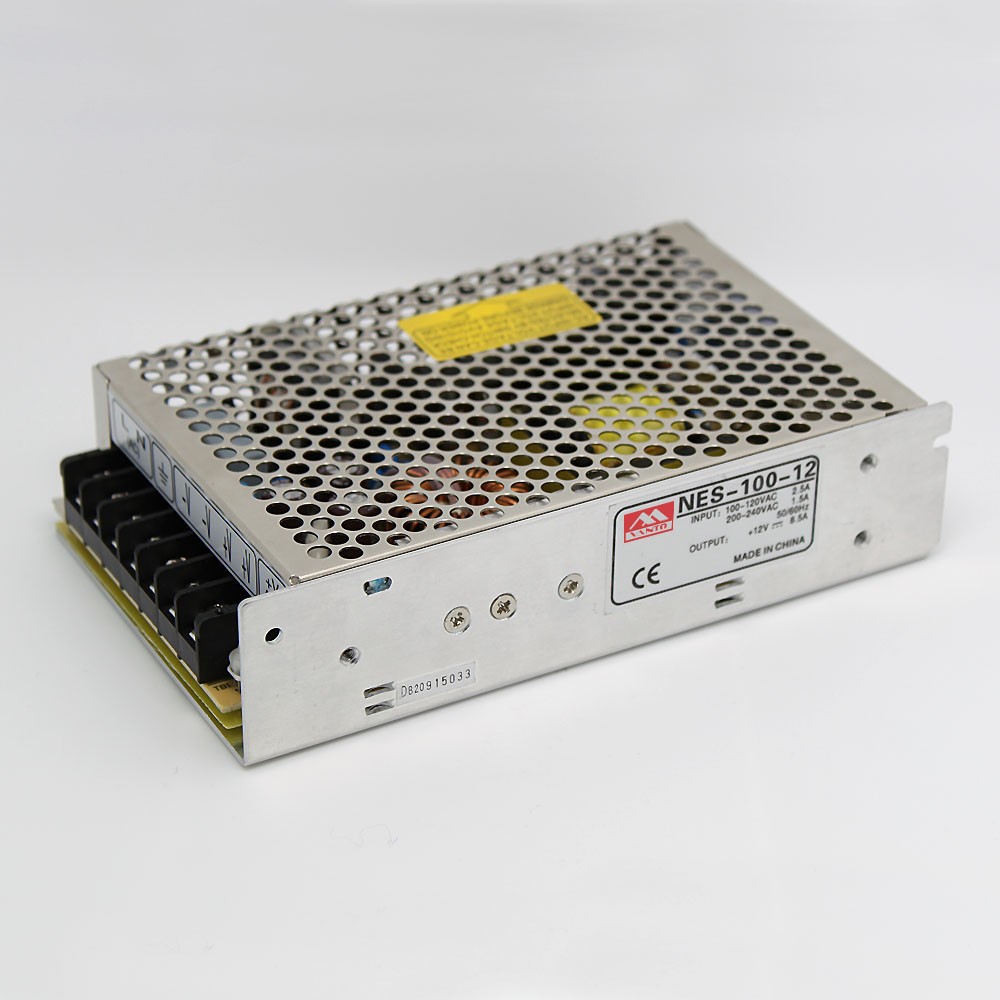

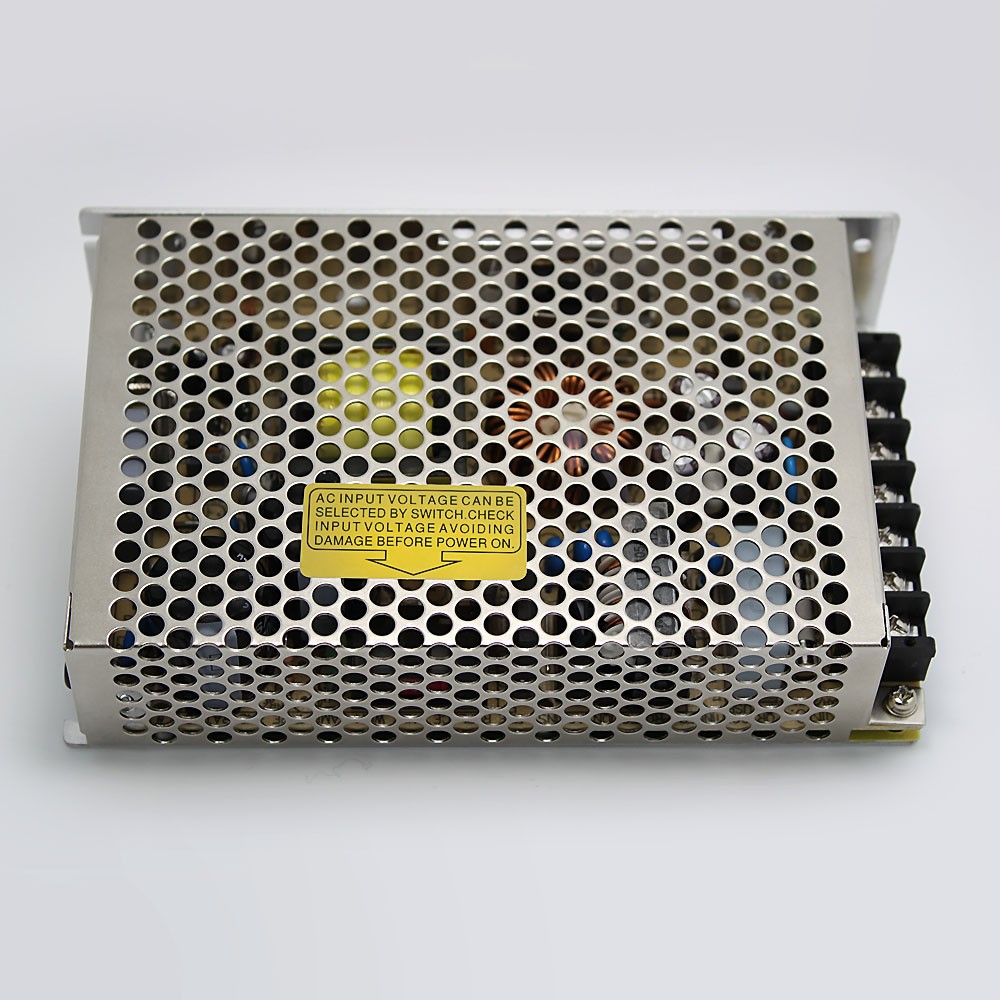

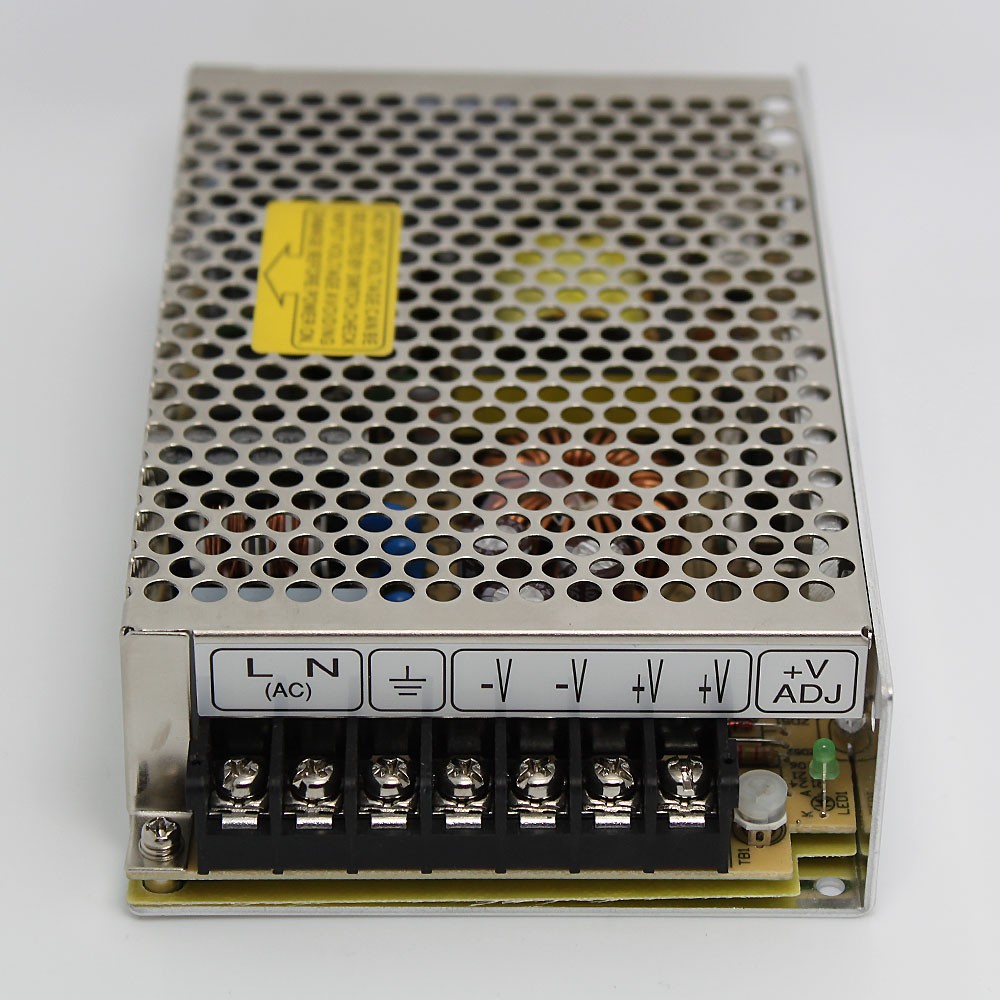

1• Universal AC input 2• Small volume，low weight，high efficiency3• Protections：short circuit/over load/over voltage4• Cooling by free air convection5• LED indicator for power on6• 100% full load burn-in test7• 2 Year warranty8• Size:159*97*38mm (L*W*H)
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
Model |
NES-100-5 |
NES-100-12 |
NES-100-15 |
NES-100-24 |
||||
|
Output |
DC voltage |
5V |
12V |
15V |
24V |
|||
|
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
||||
|
Rated current |
16A |
8.3A |
6.7A |
4.2A |
||||
|
Current range |
0~16A |
0~8.3A |
0~6.7A |
0~4.2A |
||||
|
Rated power |
80W |
99.6W |
100.5W |
100.8W |
||||
|
Ripple&noise |
80mvp-p |
100mvp-p |
100mvp-p |
120mvp-p |
||||
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
||||
|
Input |
Voltage range |
90~264VAC,125~373VDC |
||||||
|
frequency |
47~63HZ |
|||||||
|
AC current |
2.2A/115VAC,1.1A/230VAC |
|||||||
|
efficiency |
79% |
82% |
82% |
84% |
||||
|
Inrush current |
Cold start current 20A/115VAC,40A/230VAC |
|||||||
|
Leakage current |
< 2mA/240VAC |
|||||||
|
Protection |
Over load |
Rated output power110%~150% start over load protection |
||||||
|
protection type:hiccup mode,auto-recovery after fault condition is removed |
||||||||
|
over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
||||
|
protection type:hiccup mode,auto-recovery after fault condition is removed |
||||||||
|
Environment |
Working temp,humidity |
-20℃~+60℃,20%~90%RH |
||||||
|
Storagetemp,humidity |
-40℃~+85℃,10%~95%RH non-condensing |
|||||||
|
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes |
|||||||
|
Safety |
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC |
|||||||
|
Standard |
Safety standard |
UL1012 |
||||||
|
EMC standard |
EN55022,CLASSA |
|||||||
|
Others |
Dimension |
159*97*38mm (L*W*H) |
||||||
|
Weight/packing |
0.48kg/45pcs/22.5kg/0.041m³/1.45CUFT |
|||||||
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
|||||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
