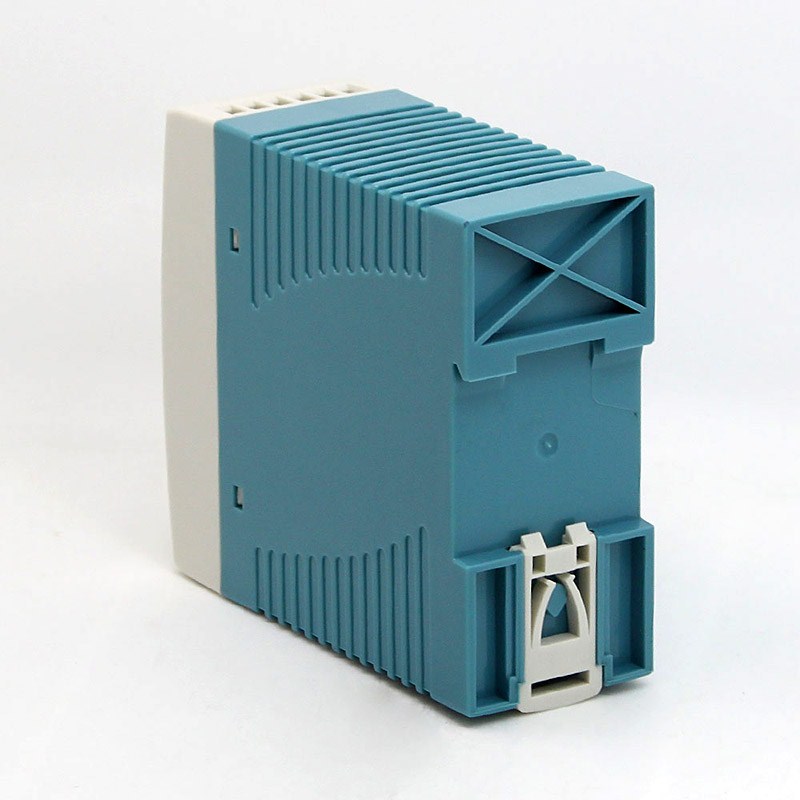

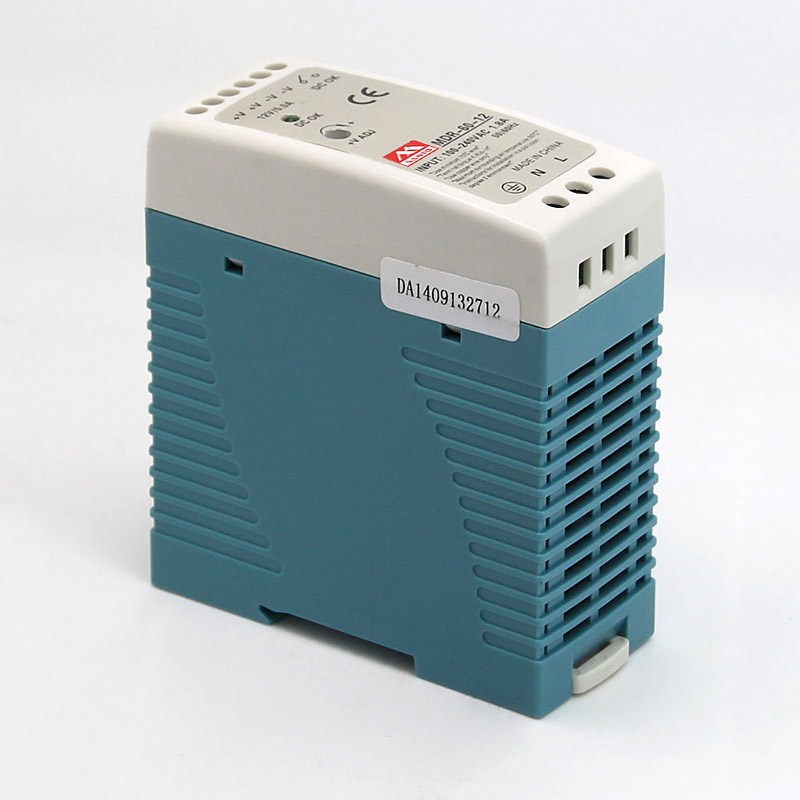

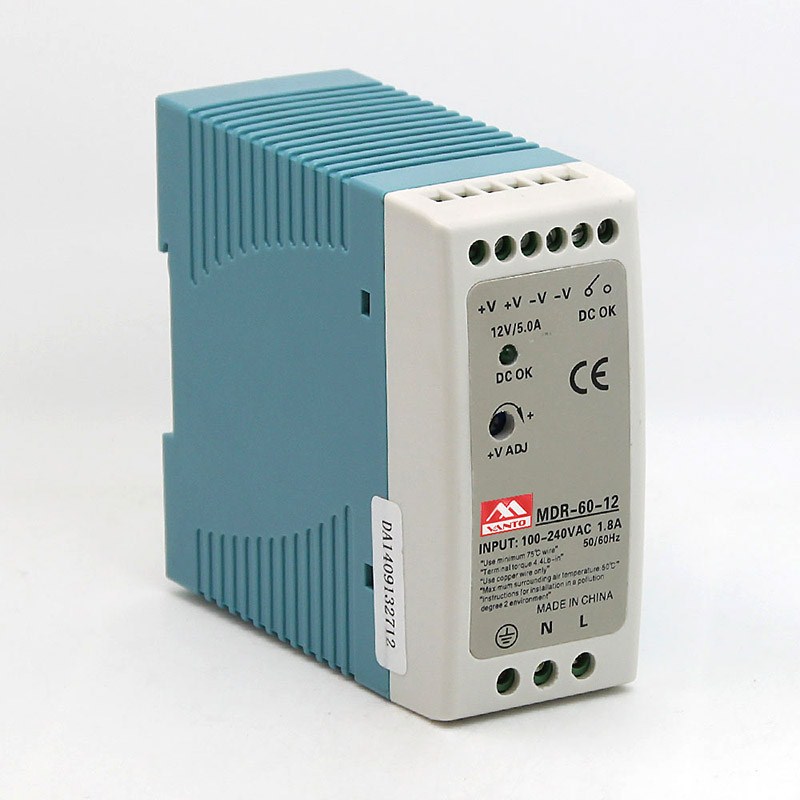

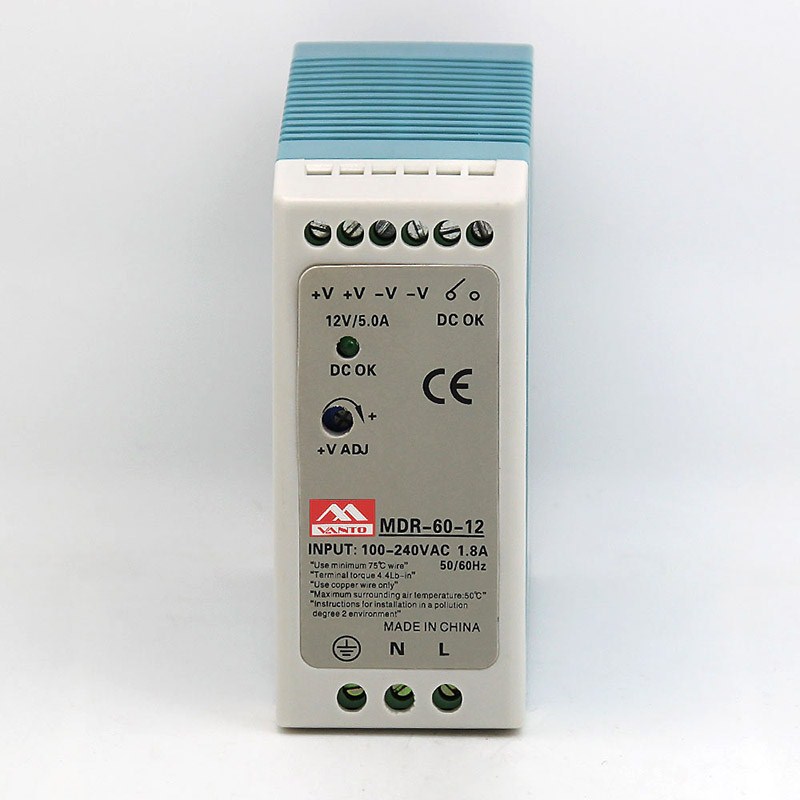

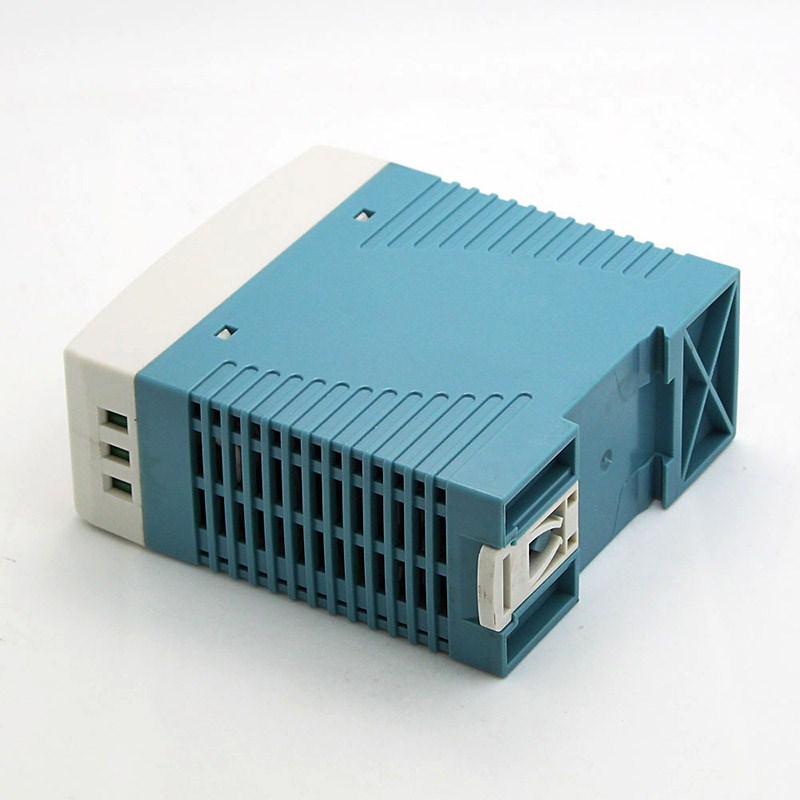

MDR-60W Din Rail Power Supply

1. Universal AC input
2. Small volume, low weight, high efficiency
3. Protections: short circuit/over load/over voltage
4. Cooling by free air convection
5. Can be installed on DIN rail
6. LED indicator for power on
7. 100% full load burn-in test
8. 2 Year warranty

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MDR-60W Din Rail Power Supply Specifications

MODEL MDR-60-5 MDR-60-12 MDR-60-24 MDR-60-48
OUTPUT DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 10A 5A 2.5A 1.25A
CURRENT RANGE 0 ~ 10A 0 ~5A 0 -2.5A 0-1.25A
RATED POWER 50W 60W 60W 60W
RIPPLE & NOISE (max.) 80mVp-p 120mVp-p 150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 5 -6V 12-15V 24 - 30V 48 ~ 56V
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±1.5% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME Note.5 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 85 - 264VAC 120-370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 78% 86% 88% 87%
AC CURRENT (Typ.) 1.8A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.) COLD START 30A/115VAC,60A/230VAC
LEAKAGE CURRENT <1mA/240VAC
PROTECTION OVERLOAD 105 - 150% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
OVERVOLTAGE 6.25-7.25V 15.6 - 18V 31.2-36V 57.6 - 64.8V
Protection type: Shut down o/p voltage, re-power on to recover
FUNCTION DC OK SIGNAL Relay contact rating (max.): 30V/1A resistive
ENVIRONMENT WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/°C (0 - 50°C)
VIBRATION Component: 10 - 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508, UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE l/P-0/P:3KVAC l/P-FG:2KVAC 0/P-FG:0.5KVAC
ISOLATION RESISTANCE l/P-O/P, l/P-FG, 0/P-FG:>100M Ohms/500VDC/25°C/70% RH
EMC EMISSION Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY Compliance to EN6100(M-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS MTBF 299.2K hrs min. MIL-HDBK-217F (25°C)
DIMENSION 40*90*100mm (W*H*D)
PACKING 0.33Kg; 60pcs/20Kg/0.82CUFT
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.
5. 5.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
