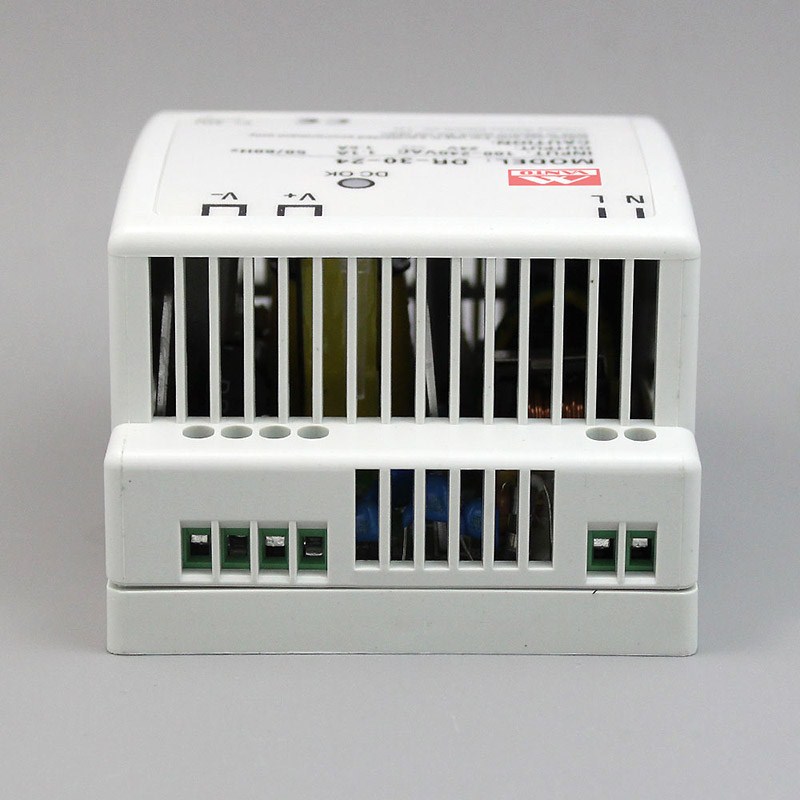

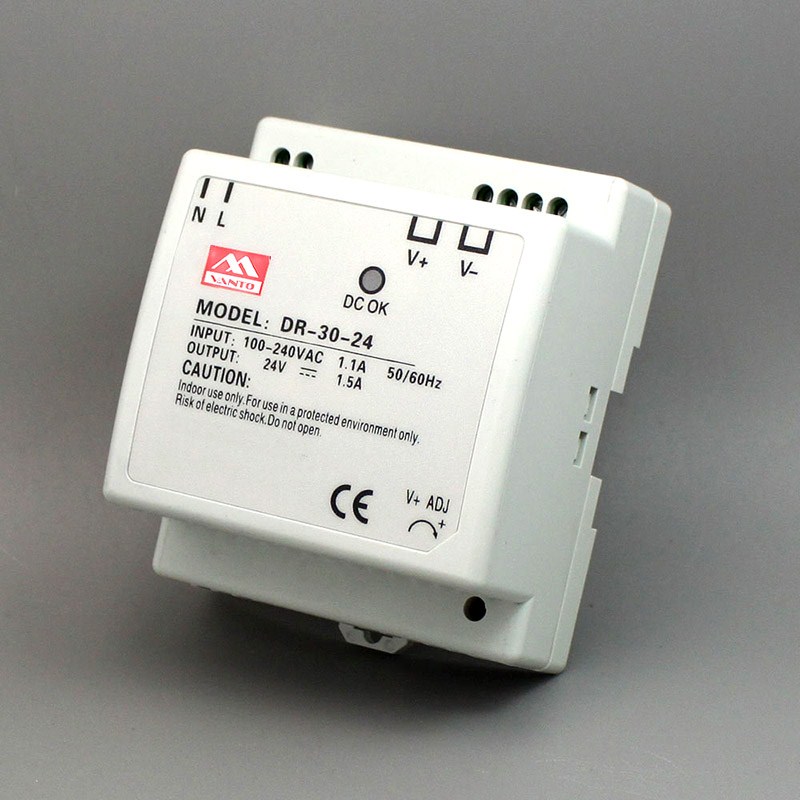

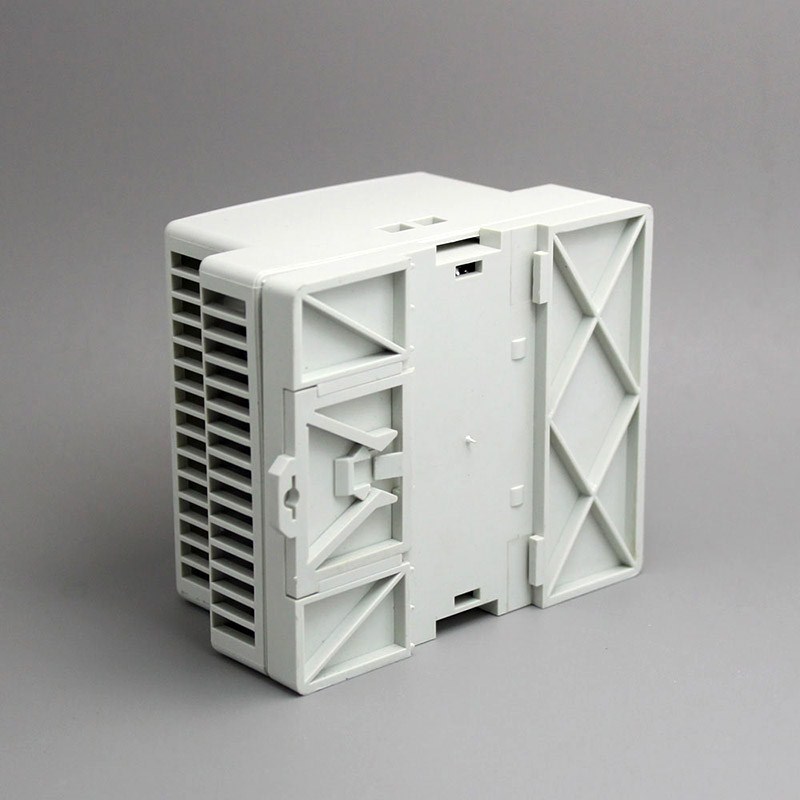

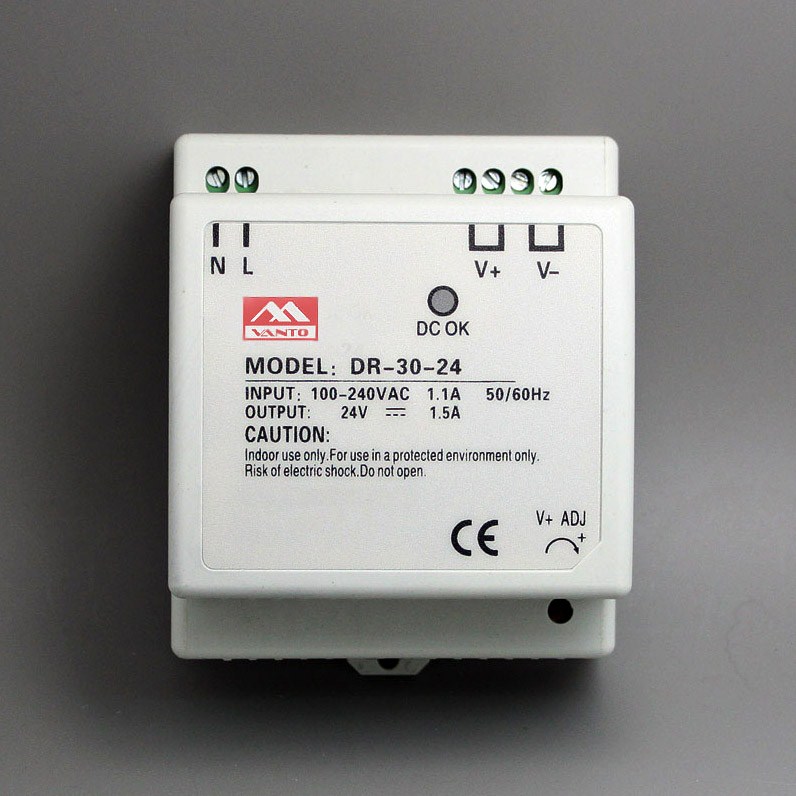

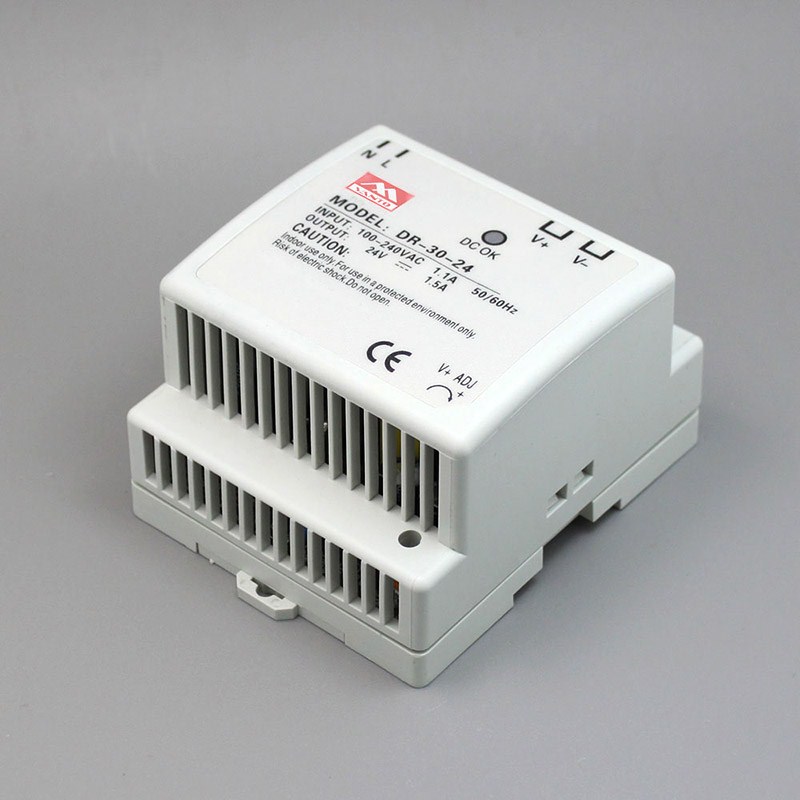

1. Universal AC input2. Small volume, low weight, high efficiency3. Protections: short circuit/over load/over voltage4. Cooling by free air convection5. Can be installed on DIN rail6. LED indicator for power on7. 100% full load burn-in test8. 2 Year warranty
OnLine Service: |
|
|---|---|
E-mail Us
|
 PDF Download
|
vantoele
|
 75606132
|
| 【Prev Products】 | 【Next Products】 |
|
MODEL |
DR-30-5 |
DR-30-12 |
DR-30-15 |
DR-30-24 |
|
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
|
RATED CURRENT |
3A |
2A |
2A |
1.5A |
|
|
CURRENT RANGE |
0 ~ 3A |
0 ~ 2A |
0 ~2A |
0 ~ 1.5A |
|
|
RATED POWER |
15W |
24W |
30W |
36W |
|
|
RIPPLE & NOISE (max.) |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
|
|
VOLTAGE ADJ.RANGE |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
|
|
VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
LOAD REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
SETUP, RISE TIME |
100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load |
||||
|
HOLD TIME(Typ.) |
100ms/230VAC 30ms/115VAC at full load |
||||
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
|||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||
|
EFFICIENCY (Typ.) |
74% |
81% |
82% |
83% |
|
|
AC CURRENT |
0.88A/115VAC 0.48A/230VAC |
||||
|
INRUSH CURRENT(max.) |
COLD START 15A/115VAC 30A/230VAC |
||||
|
PROTECTION |
OVERLOAD |
105 ~ 160% rated output power |
|||
|
Protection type : Constant current limiting,recovers automatically after fault condition is removed |
|||||
|
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
|
|
Protection type : Shut down o/p voltage,re-power on to recover |
|||||
|
ENVIRONMENT |
WORKING TEMP. |
-20 ~ +60ºC (Refer to output load derating curve) |
|||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85ºC , 10 ~ 95% RH |
||||
|
TEMP. COEFFICIENT |
±0.03%/ºC (0 ~ 50ºC) |
||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||
|
SAFETY & EMC |
SAFETY STANDARDS |
Design refer to UL60950-1,TUV EN60950-1,EN50178 |
|||
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
||||
|
HARMONIC CURRENT |
Compliance to EN61000-3-2,-3 |
||||
|
EMS IMMUNITY |
Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A |
||||
|
OTHERS |
MTBF |
441.5K hrs min. MIL-HDBK-217F (25ºC) |
|||
|
DIMENSION |
78*93*56mm (L*W*H) |
||||
|
PACKING |
0.27Kg; 45pcs/12.2Kg/1.02CUFT |
||||
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.
Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.
Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.
Q:7.What is your warranty time of the products?
A:24 months
