HGK 047 Semiconductor PTC Heater

1. Dynamic heating up
2. Energy saving
3. Wide voltage range
4. Clip fixing

The heaters(with cable) are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Stego Small PTC Heater HGK 047 Specifications

Heating element
PTC resistor, self regulating and temperature limiting
Heater body
extruded aluminium profile, anodised
Mounting
clip for 35mm DIN rail, EN 50022
Fitting position
vertical
Operating/Storage temperature
-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class
IP54 / I (earthed)
-
Part. No.
Operating voltage
Heating capacity*
Inrush current max.
Length (L)
Weight
Connection
04700.0-00
110-240V AC/DC**
10W
1.0A
50mm
0.10kg
3 x 0,5mm² x 300mm sheathed cable (silicone)
04701.0-00
110-240V AC/DC**
20W
2.5A
60mm
0.20kg
3 x 0,5mm² x 300mm sheathed cable (silicone)
04702.0-00
110-240V AC/DC**
30W
3.0A
70mm
0.20kg
3 x 0,5mm² x 300mm sheathed cable (silicone)
04700.9-00
110-120 V AC/DC
10W
1.0A
50mm
0.10kg
3 x AWG 20 x 300mm sheathed cable
04701.9-00
110-120 V AC/DC
20W
1.5A
70mm
0.20kg
3 x AWG 20 x 300mm sheathed cable
04702.9-00
110-120 V AC/DC
30W
1.5A
100mm
0.20kg
3 x AWG 20 x 300mm sheathed cable

*at 20°C ( 68°F) ambient temperature
*(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

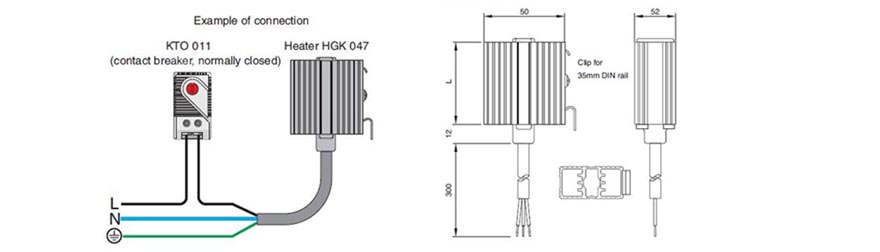

Stego HGK 047 Semiconductor PTC Heater Cabinet Heater Enclosure Heater Drawing

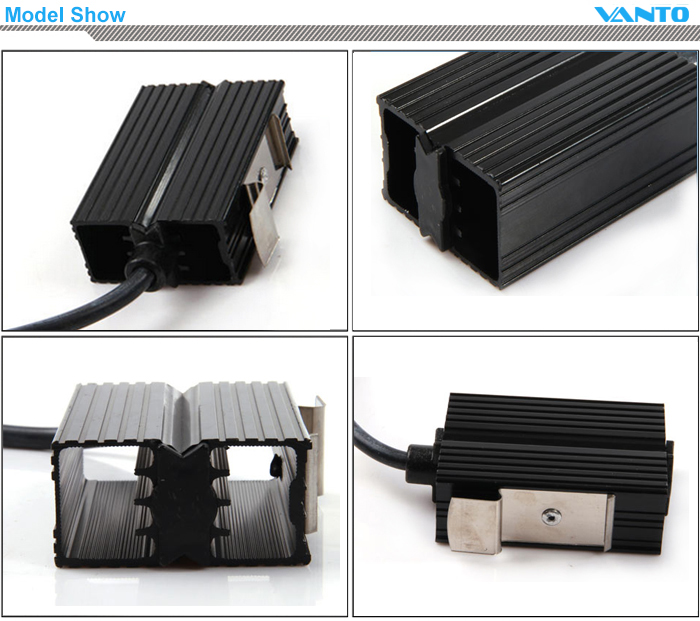

Stego Semiconductor PTC Heater HGK 047 Model ShowStego Small PTC Heater HGK 047 Packing Show
